Sunway High Voltage Solar System Battery Pack Dc Combiner Box
| Model Number | SW1000V200A |
Dimension (L*W*H) | 570*400*160mm |
| Rated Voltage | 1000V |
| Module Capacity (kWh) | 5 |
| Capacity | 200A |
November 2, 2023
No Comments
| Model Number | SW1000V200A |
Dimension (L*W*H) | 570*400*160mm |
| Rated Voltage | 1000V |
| Module Capacity (kWh) | 5 |
| Capacity | 200A |
The SUNWAY SW51B314TW2 is a LiFePO₄ battery for residential and commercial energy storage.
Its compact floor-mounted design allows easy installation and stable performance, while the modular structure supports up to 15 units in parallel.
Built with high-safety LiFePO₄ cells and SUNWAY’s intelligent BMS, it offers over 6000 cycles, remote monitoring.
Certified by CE/EMC/UN38.3/MSDS, it ensures reliable, safe, and long-lasting power for modern energy systems.
Installation | Floor mounted |
| Expandable Design | Up to 15 units in parallel |
| Smart BMS | Safer & smarter power control |

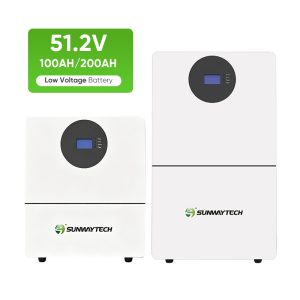

Sunway Solar offers a range of lithium storage batteries for solar power. The batteries have the following features you may like:
Nominal Capacity (AH) | 102/204/280AH |
| Capacity | 5/10/15KWH |
| Battery Rated Voltage | 51.2V |
| Design Life | 10 years+ |
| Certification | CE/IEC/UN38.3/MSDS |
Models | SW25100 | SW25200 |
Chemistry | LiFeP04 | |
Nominal Voltage | 25.6V | |
Nominal Capacity | 100Ah(C5,25°C) | 200Ah(C5,25°C) |
Energy | 2560Wh | 5120Wh |
Internal Resistance | ≤50mQ | |
| Model Number: | SW51B200TW3 |
| Capacity： | 5KWH |
| Battery Rated Voltage: | 51.2V |
| Dimensions（mm）: | 580*190*800mm |
| Weight（kg）: | 90±0.5Kg |
Standard Voltage | 3.15V/3.20V RT@1C/0.33C Discharge | 3.20V RT@0.33C Discharge | 3.0V RT@0.33C Discharge |
Nominal Capacity | 46.5Ah/46.5Ah RT@1C/0.33C Discharge | 50Ah/50Ah RT@1C/0.33C Discharge | 32Ah/33Ah RT@1C/0.33C Discharge |
Voltage Range | 2.0V~3.65V | 2.0V-3.65V | 1.5-3.95V |
Max Charge Current | 32.6A | 50A | 16A |
Max Discharge Current | 46.5A | 50A | 60A |
| Model Number: | LFPWall 10K |
| Capacity： | 10.24KWH |
| Battery Rated Voltage: | 51.2V |
| Dimensions（mm）: | 694*581*219 |
| Weight（kg）: | 96 |
The HRH-5200 is a high-performance rack-mounted LiFePO₄ energy storage system designed for both scalability and reliability. With a modular configuration ranging from 5.22kWh to 62.64kWh, it offers flexible solutions for residential, commercial, and industrial applications. The system features a specially designed BMS with three-level overcurrent protection, ensuring optimal safety and longevity.
Engineered for efficiency, the HRH-5200 delivers over 6000 cycles at 90% depth of discharge, with wide compatibility via RS485/CAN communication protocols for seamless integration with mainstream inverter brands. Its plug-and-play modular design simplifies installation and maintenance, making it an ideal choice for reliable, long-term energy storage.
| Model Number: | HRH-5200 |
| Cell Type | LiFePO₄ |
Cycle Life | ≥6000 |
| Communication | RS485 / CAN |
| Operation Temperature | 0–50°C |
New Arrival 51.2V 2.5kWh 5kWh 10kWh 20kWh Sunway Stack Lithium Battery Energy Storage Battery
| Model Number: | SW48B-HV-2500 |
| Capacity： | 2.5-20KWH |
| Battery Rated Voltage: | 48-384V |
| Dimensions（mm）: | 580*220*202.5 |
| Weight（kg）: | 23.5 |
