Sunway 5KW 10KW 15KW 20KW Stacked Lithium Battery Pack with Inverter

Sunway 5KW 10KW 15KW 20KW Stacked Lithium Battery Pack with Inverter

Single Module Capacity
5.12kwh
Nominal Voltage51.2V

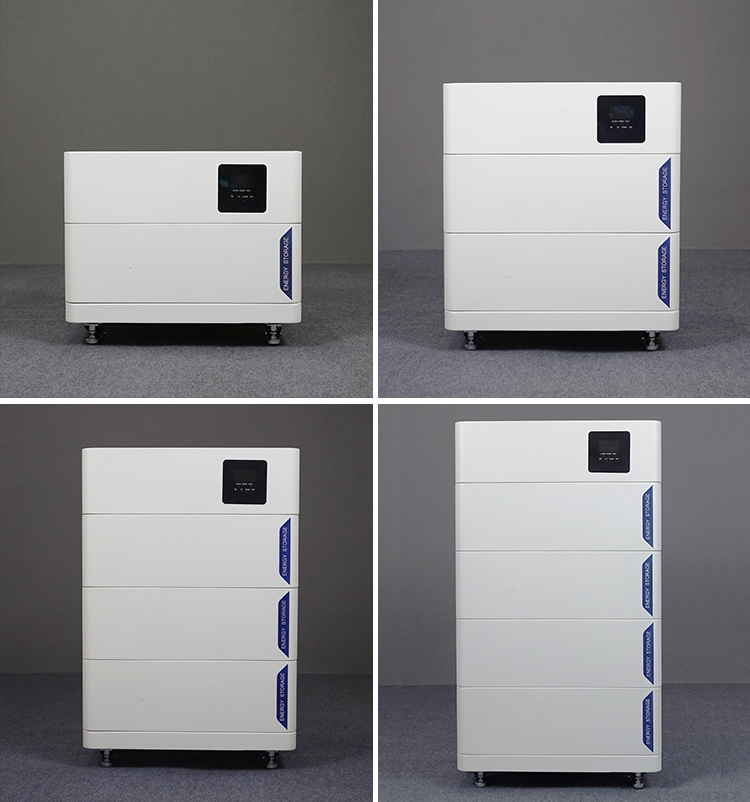

Installation MethodStacked mode
Dimension/module600*440*200mm
Communication ProtocolCAN/RS485/RS232(WIFI Optional)
Cell TypeLFP

Safety: LiFePO4 batteries are known for their excellent thermal and chemical stability. They are less prone to overheating and thermal runaway, making them a safer choice compared to some other lithium-ion chemistries.


Long Cycle Life: LiFePO4 batteries have a long cycle life, which means they can be charged and discharged many times without significant degradation in performance. This makes them suitable for applications where longevity is important.

Fast Charging: High-voltage LiFePO4 batteries can support relatively fast charging, which can be useful in applications where rapid replenishment of energy is required.

Wide Temperature Range: They can operate effectively over a wide temperature range, making them suitable for both high and low-temperature environments.

Single Module Capacity
5.12kwh

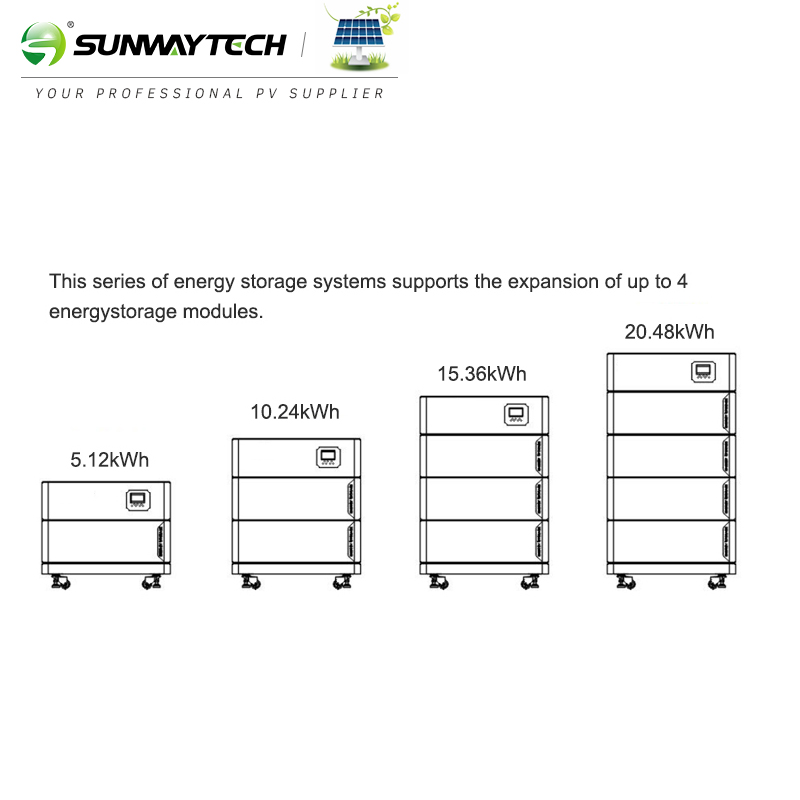

Module Number
1
2
3
4
Rated Capacity
5.12kwh
10.24kwh
15.36kwh
20.48kwh
Nominal Voltage
51.2V
Working Voltage
44V-58.4V
Nominal Discharging Current
100A
200A
300A
400A
Nominal Charging Current
50A
100A
150A
200A
Recommended Discharge Level
80%
Humidity
20%-60%
Installation Method
Stacked mode
Protection Level
IP20
Communication Protocol
CAN/RS485/RS232(WIFI Optional)
Dimension/module
600*440*200mm
Net Weight/module
40kg
Battery Pack Parameters
Cell Type
LFP
Battery Rated Input Voltage
51.2VDC
Hybrid Charging Maximum Charging Current
80A
Battery Pack Voltage Range
40VDC-60VDC
Photovoltaic Input Parameters
Maximum PV Open Circuit Voltage
500VDC
PV Working Voltage Range
120V-500VDC
MPPT Voltage Range
120V-450VDC
Maximum PV Input Current
16A
Maximum PV Input Power
5500W
Maximum PV Charging Current
100A
AC parameters(Grid-connected side)
Maximum Charging Current
60A
Rated Input Voltage
220V/230VAC
Input Voltage Range
170VAC-280VAC
Frequency
50Hz/60Hz
Charging Efficiency
>95%
Switching Time
10ms
Maximum Bypass Overload Current
40A
AC output parameters(Grid-connected side)
Output Voltage Waveform
Pure sine wave
Rated Output Voltage
230VAC±5%
Rated Output Power
5000W
Peak Power
10000VA
