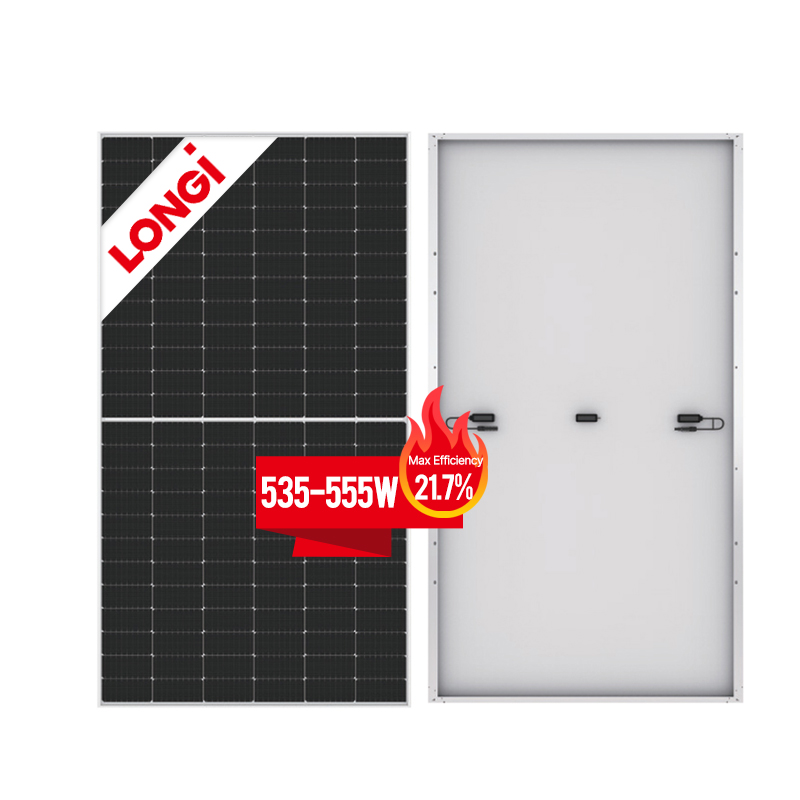

Hot Selling 144cells 535w 540w 545w 550w 555w mono fotovoltaik solar panel for home
| Model Number: | SW555M-144 |
| Power Range： | 535W-555W |

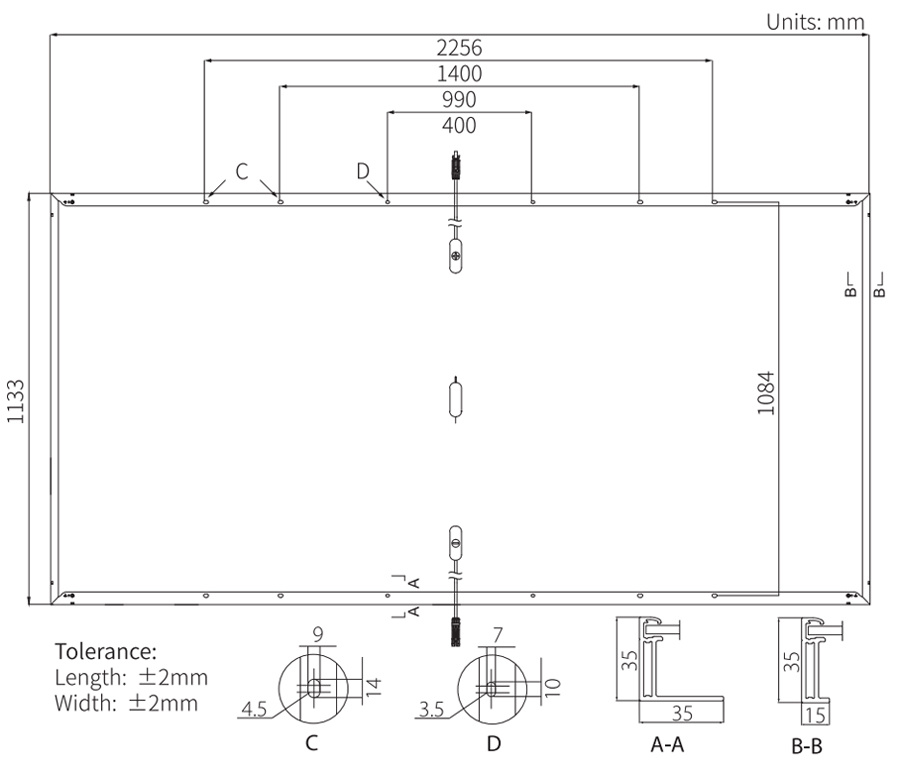

| Dimensions: | 2256*1133*35mm |
| Weight: | 27.2kg |
| Certificate: | CE/TUV |
| Module Type | LR5-72HPH-535M | LR5-72HPH-540M | LR5-72HPH-545M | LR5-72HPH-550M | LR5-72HPH-555M | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 535 | 399.9 | 540 | 403.6 | 545 | 407.4 | 550 | 411.1 | 555 | 414.8 |
| Open Circuit Voltage(Voc/V) | 49.35 | 46.40 | 49.50 | 46.54 | 49.65 | 46.68 | 49.80 | 46.82 | 49.95 | 46.97 |
| Short Circuit Current(Isc/A) | 13.78 | 11.14 | 13.85 | 11.20 | 13.92 | 11.25 | 13.98 | 11.31 | 14.04 | 11.35 |
| Voltage at Maximum Power(Vmp/V) | 41.50 | 38.55 | 41.65 | 38.69 | 41.80 | 38.83 | 41.95 | 38.97 | 42.10 | 39.11 |
| Current at Maximum Power(Imp/A) | 12.90 | 10.38 | 12.97 | 10.43 | 13.04 | 10.49 | 13.12 | 10.56 | 13.19 | 10.61 |
| Module Efficiency(%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.7 | |||||
Inmetro Solar Panel :
545w 550w Placas Solares 550Watt Solar PV Panel Price from China
|
Model Number: |
SW550M-144 |
|
Power Range： |
550W |
|
Dimensions: |
2279*1133*35mm |
|
Weight: |
31.5kg |
|
Certificate: |
CE/TUV/INMETRO |
Hot Selling 144cells 555w 560w 565W 570w 575W 580W mono fotovoltaik solar panel for home
| Model Number: | SW580M-144 |
| Power Range： | 555W-580W |
| Dimensions: | 2256*1132*35mm |
| Weight: | 29kg |
| Certificate: | CE/TUV |
Perc Half Cell Solar Panel:
High power 550watt half cell solar panel 540w 550w 560w mono photovoltaic module pv solar panel
| Model Number: | SW550M-144 |
| Power Range： | 540W-560W |
| Dimensions: | 2279*1134*35mm |
| Weight: | 29kg |
| Certificate: | CE/TUV |
