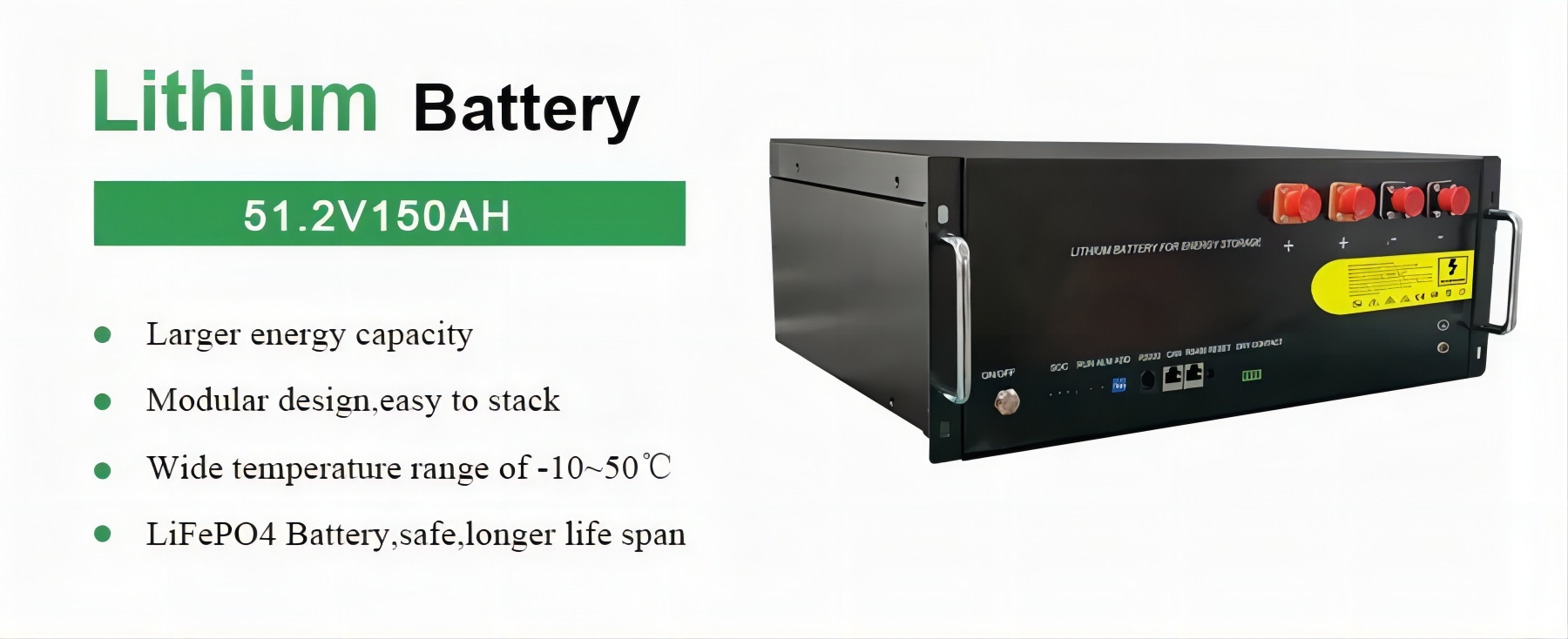

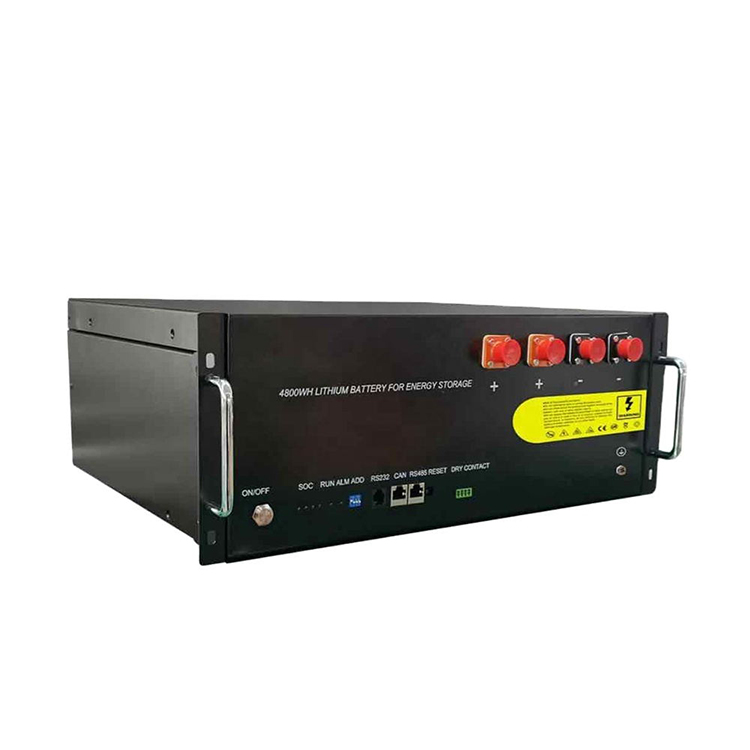

Sunway 51.2V 100Ah 150Ah 200Ah Racked Lithium Battery

Sunway 51.2V 100Ah 150Ah 200Ah Racked Lithium Battery

Power Bank Solar residential storage 51.2V 100Ah 150Ah 200Ah LiFePO4 Lithium Battery pack

Model Number:SWB48150
Capacity:7680WH
Battery Rated Voltage:51.2V
Dimensions(mm):480*678*178
Weight(kg):60

Features

1. Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity

2. Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries.

3. Long lifespan: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to
minimize replacement cost and reduce total cost of ownership.

4. Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

5. Easy Installation

Basic Parameters
48150
Nominal Voltage (V)
51.2
Nominal Capacity (Wh)
7680
Usable Capacity (Wh)
6144
Dimension (mm)
480*678*178
Weight (Kg)
60
Discharge Voltage (V)
45.6-57.6
Charge Voltage (V)
56-57.6
Charge / Discharge Current (A)
50A(Recommend)
100 A(Max)
Cycle Life
>6000,25
Power Consumption
<10W Work
Monitoring Parameters
System voltage,current,cell voltage,cell temperature,module temperature
SOC
Intelligent algorithm
Communication
CAN/DRY CONTACT
Operating Temperature Range
-10~50
Transport or Storage Temperature Range
-20-45
Humidity
15%~85% (No Condensing)

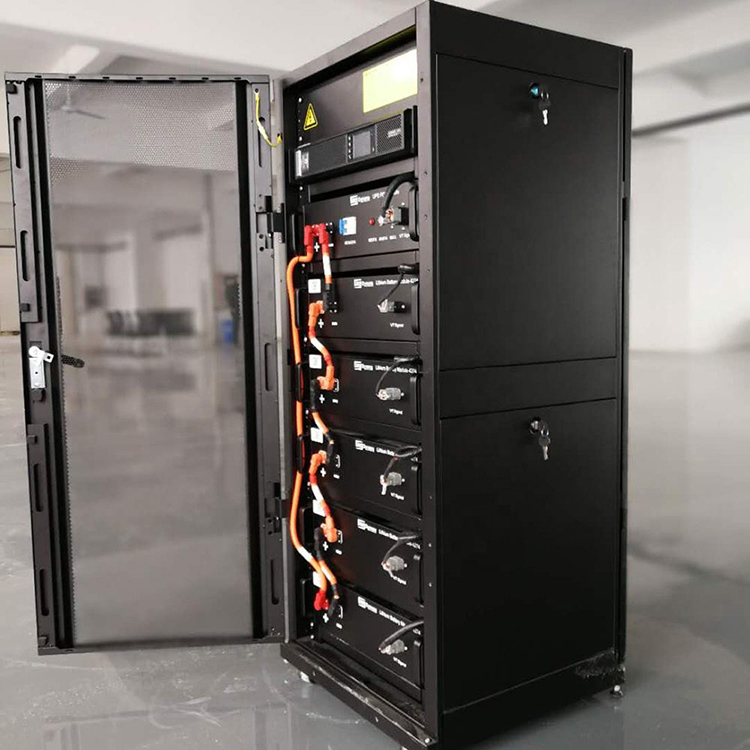

1.Put battery modules into cabinet and connect the cables
Note: If customer needs cabinet, please contact our sales






























1.Put the battery into the cabinet

2.Drive the 4 pcs screws
3.Connect the cables between battery modules
4.Connect the cables to inverter











2. Power On

Double check all the power cable and communication cable
(1) ON/OFF
Switch on all the battery modules and the green LED light below will be on
(2) Set ADD
Set ADD follow ADD instruction, pack 1 will be host, others are slaves
