Sunway Deep Cycle 12V 200Ah GEL Solar Battery AGM Storage Battery
|
Model Number: |
SW-12V 200AH-GEL/AGM |
|
Capacity： |
2400WH |
|
Battery Rated Voltage: |
12V |
|

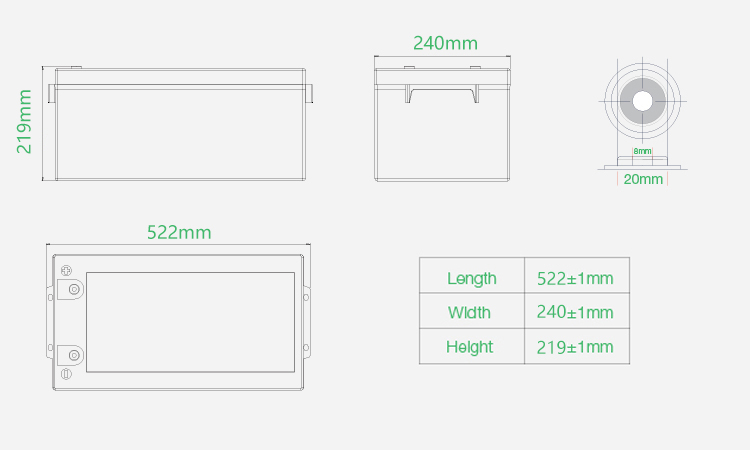

Dimensions（mm）: |
522*240*219MM |
|
Weight（kg）: |
57.9 |
Deep Cycle 12V 200Ah GEL Solar Battery AGM Storage Battery
|
Model
|
6-GFM-200Ah
|
6-GFM(G)-200Ah
|
|
Cells Per Unit
|
6
|
|
|
Voltage Per Unit
|
12
|
|
|
Capacity
|
200Ah@10hr-rate to 1.80V per cell @25°C
|
|
|
Weight
|
57.9kg
|
62.4kg
|
|
Internal Resistance
|
Approx. 3 mΩ
|
Approx. 3.5 mΩ
|
|
Terminal
|
F8
|
|
|
Max.Discharge Current
|
3000A (5 sec)
|
|
|
Design Life
|
6~8 years
|
10~15 years
|
|
Maximum Charging Current
|
50A
|
|
|
Reference Capacity
|
C10 200.0AH
C3 153.3AH
C1 110.4AH
|
C10 200.0AH
C3 144.7AH
C1 110.1AH
|
|
Float Charging Voltage
|
13.6 V~13.8 V @ 25°C
Temperature Compensation: -20mV/°C/Cell
|
|
|
Cycle Use Voltage
|
14.4 V~14.9 V @ 25°C
Temperature Compensation: -30mV/°C/Cell
|
|
|
Operating Temperature Range
|
Discharge: -15°C~50°C
Charge: 0°C~40°C
Storage: -15°C~40°C
|
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
|
|
Normal Operating Temperature Range
|
25°C±5°C
|
|
|
Self Discharge
|
Less than 3% at 25°C per month
|
|
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional
|
|
Deep Cycle 12V 200Ah 150Ah 200Ah GEL Solar Battery Detail
Deep Cycle 12V 200Ah 150Ah 200Ah GEL Solar Battery Project
|
Models
|
SW25100
|
SW25200
|
|
Chemistry
|
LiFeP04
|
|
|
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
100Ah(C5,25°C)
|
200Ah(C5,25°C)
|
|
Energy
|
2560Wh
|
5120Wh
|
|
Internal Resistance
|
≤50mQ
|
|
|
Models
|
SW25100
|
SW25200
|
|
Chemistry
|
LiFeP04
|
|
|
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
100Ah(C5,25°C)
|
200Ah(C5,25°C)
|
|
Energy
|
2560Wh
|
5120Wh
|
|
Internal Resistance
|
≤50mQ
|
|
Solar lithium phosphate battery 24v 100ah 200ah portable lithium battery pack
| Model Number: | SWB12180 |
| Capacity： | 2304WH |
| Battery Rated Voltage: | 12.8V |
| Dimensions（mm）: | 520*270*220 |
| Weight（kg）: | 31.5 |
