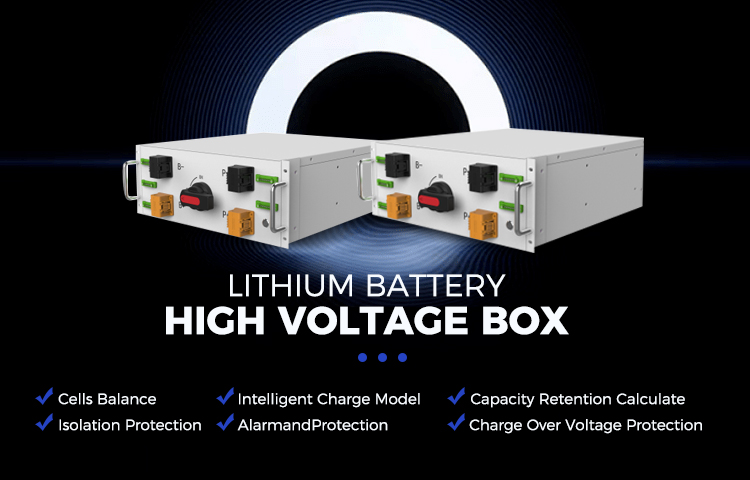

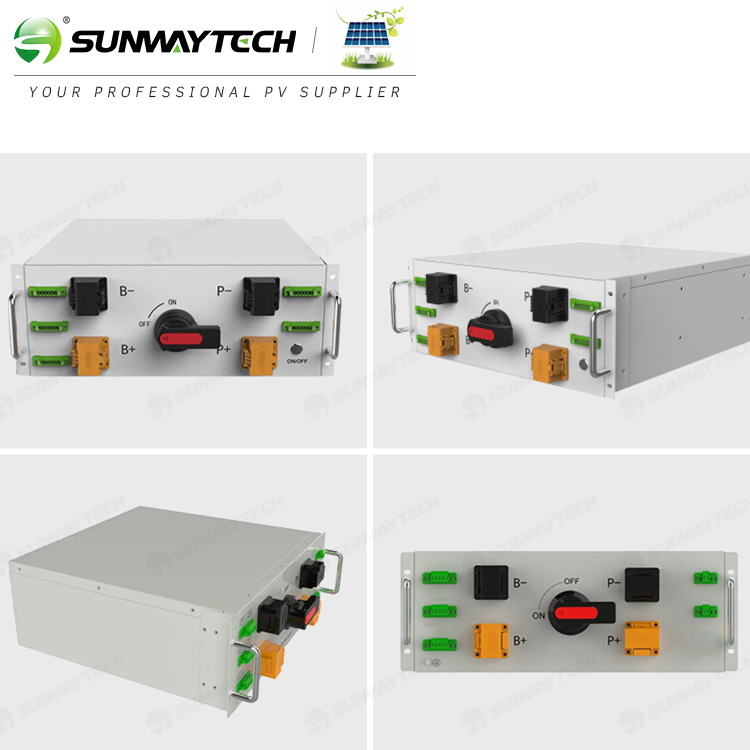

Sunway High Voltage Solar System Battery Pack Dc Combiner Box

Sunway High Voltage Solar System Battery Pack Dc Combiner Box

Model NumberSW1000V200A
Dimension (L*W*H)
570*400*160mm
Rated Voltage1000V
Module Capacity (kWh)5
Capacity200A





High energy density: Rack-mounted high-voltage lithium batteries have high energy density, which means they are capable of storing large amounts of energy in a relatively small physical space. This makes it a compact option for energy storage systems, especially in limited space

Customizability: Rack-mounted high-voltage lithium batteries can be customized to meet specific needs. You can select battery capacity, voltage, and other parameters to meet the needs of your specific application.

High-voltage design: High-voltage lithium batteries typically have higher voltages, which means they can operate at higher voltages, reducing transmission losses. This is advantageous for applications that require transporting energy over long distances away from the source of the energy source.

Reliability: Multiple protection measures are adopted to ensure its reliability and safety under different environmental conditions. This includes overcharge, over-discharge, over-temperature, short-circuit and other protection functions.

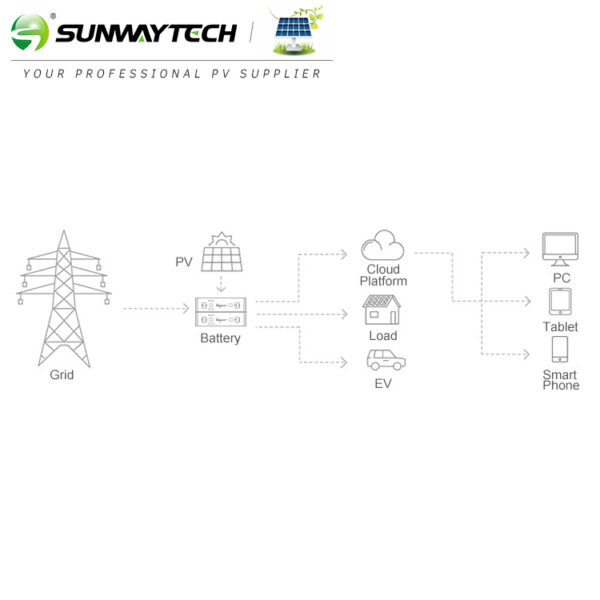

Sustainable energy integration: Rack-mounted high-voltage lithium batteries can be integrated with renewable energy systems (solar, wind, etc.) to store and balance unstable energy supplies, thereby achieving more sustainable energy utilization.



Related Product

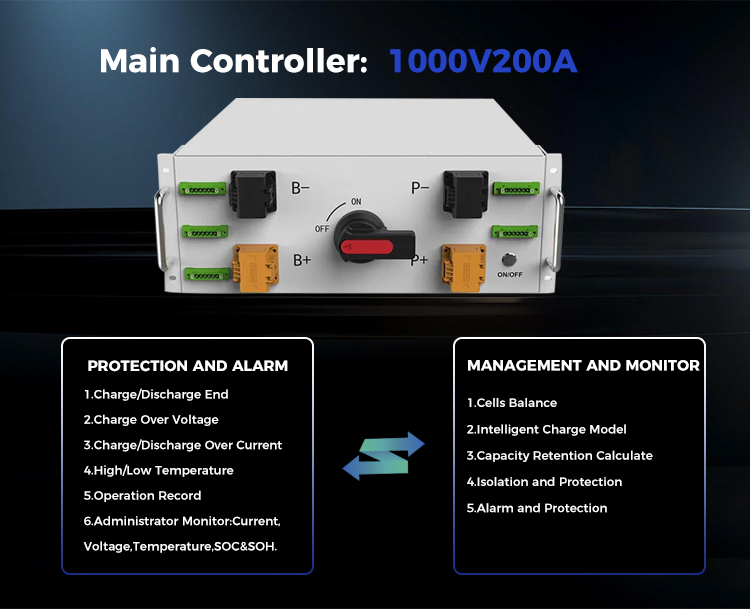

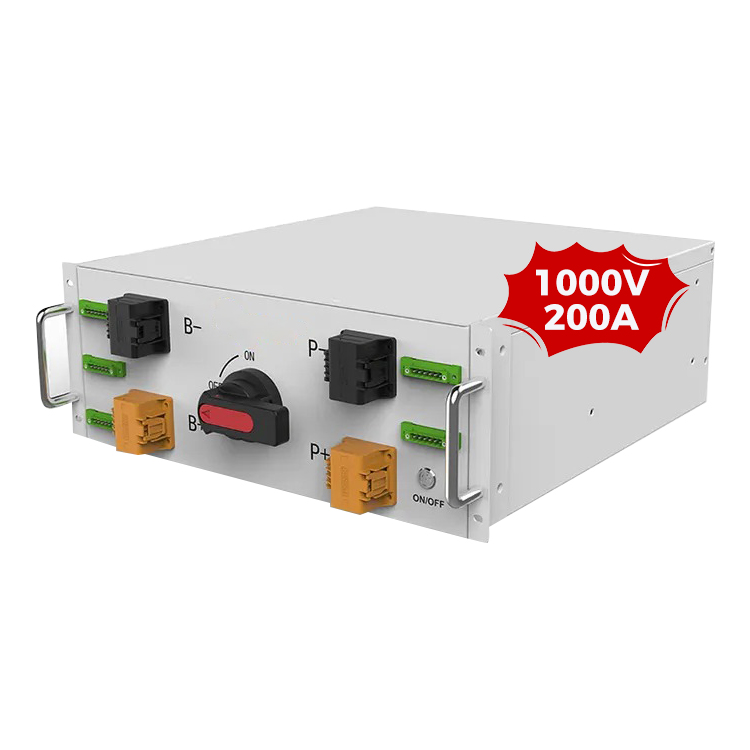

1000V200A
System Operation Voltage (Vdc)
0~1000
Operation Current (Max.) (A)
200
Self-consumption Power(W)
8
Dimension (W* D* H, mm)
468mm*642mm*200mm (±5)
Communication
MODBUS RTU/ CAN
Protection Class
IP20
Weight(kg)
20
Operation Life
15+
Operation Temperature
-20~65℃
Storage Temperature
-40~80℃
