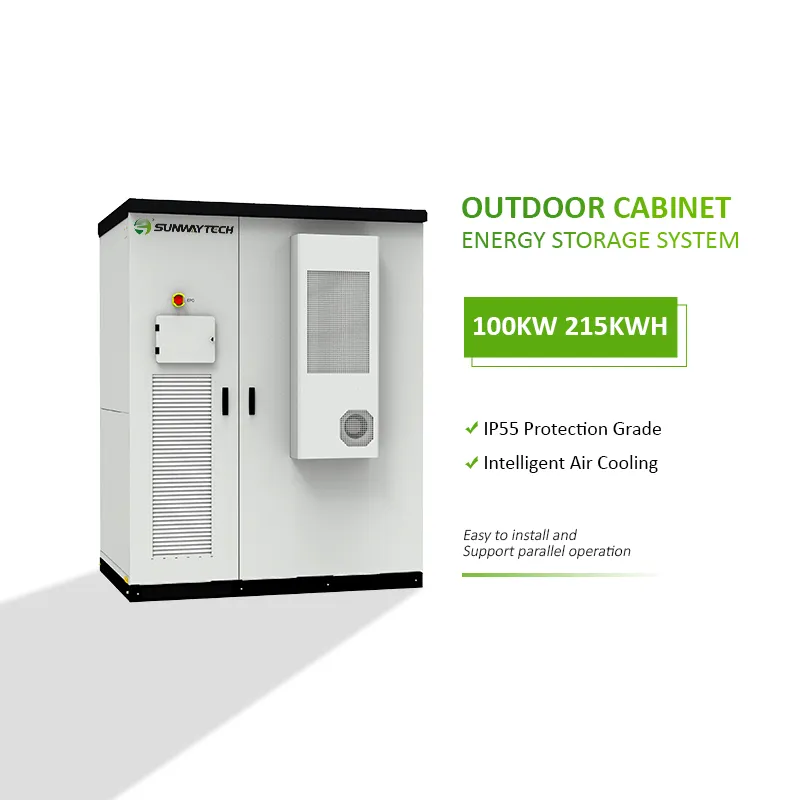

A secure, intelligent, and efficient commercial and industrial energy storage solution designed for utility and business energy storage to optimize energy management.
| Model Number | SWMonet-100TS(215kWh) |
| Rated Power Output | 100kW |
| Battery Rated Energy Storage Capacity | 215kWh |
| System Voltage Range | 672V~864V |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Communication Protocols | CAN, Ethernet, RS485 |

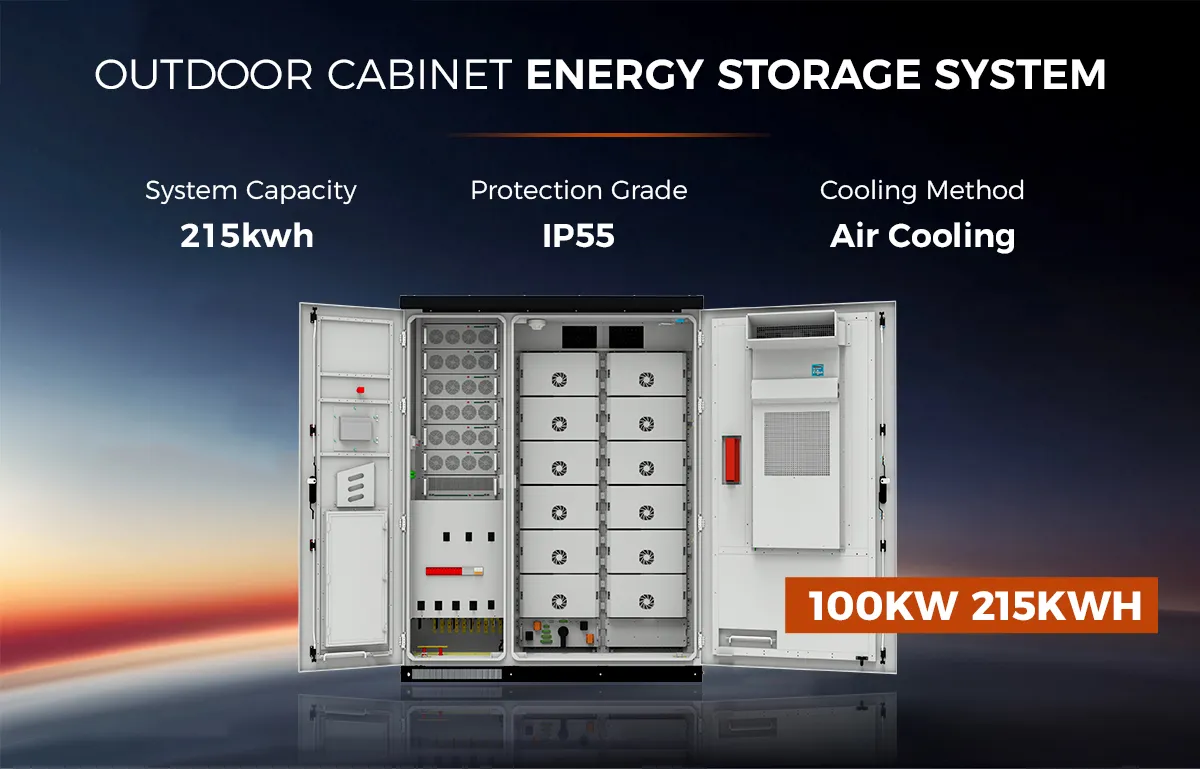

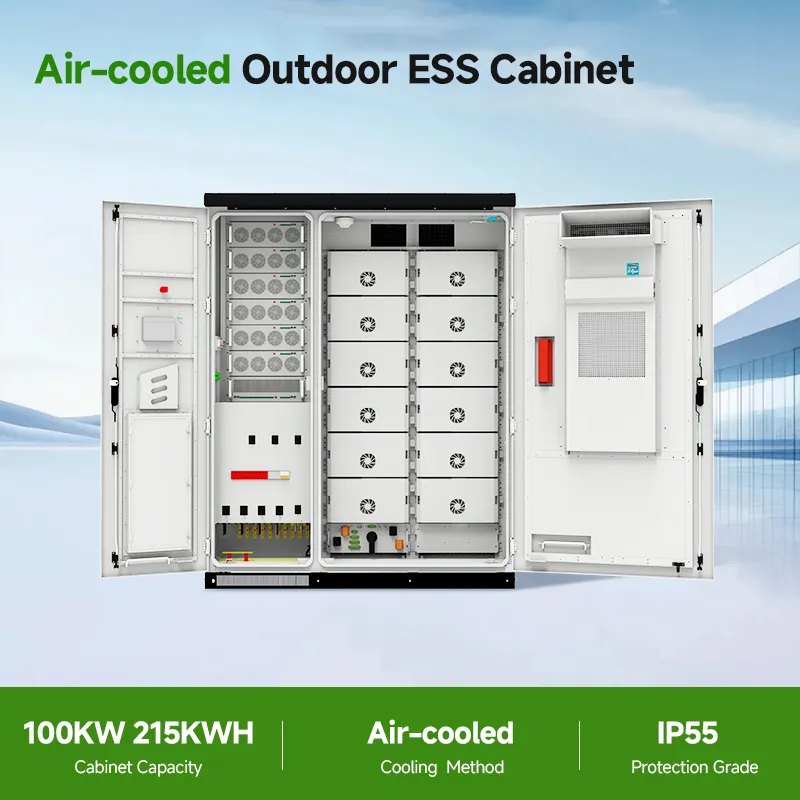

🔋High-Capacity Outdoor Solar Battery Storage for Scalable Applications
This robust system is engineered as a high-performance air cooling industrial energy storage system, delivering reliability and intelligence for demanding environments.
215 kWh battery storage with 100 kW rated AC output, ideal for commercial and industrial loads.
Key Features
215 kWh battery storage with 100 kW rated AC output, providing substantial power for business energy storage needs.

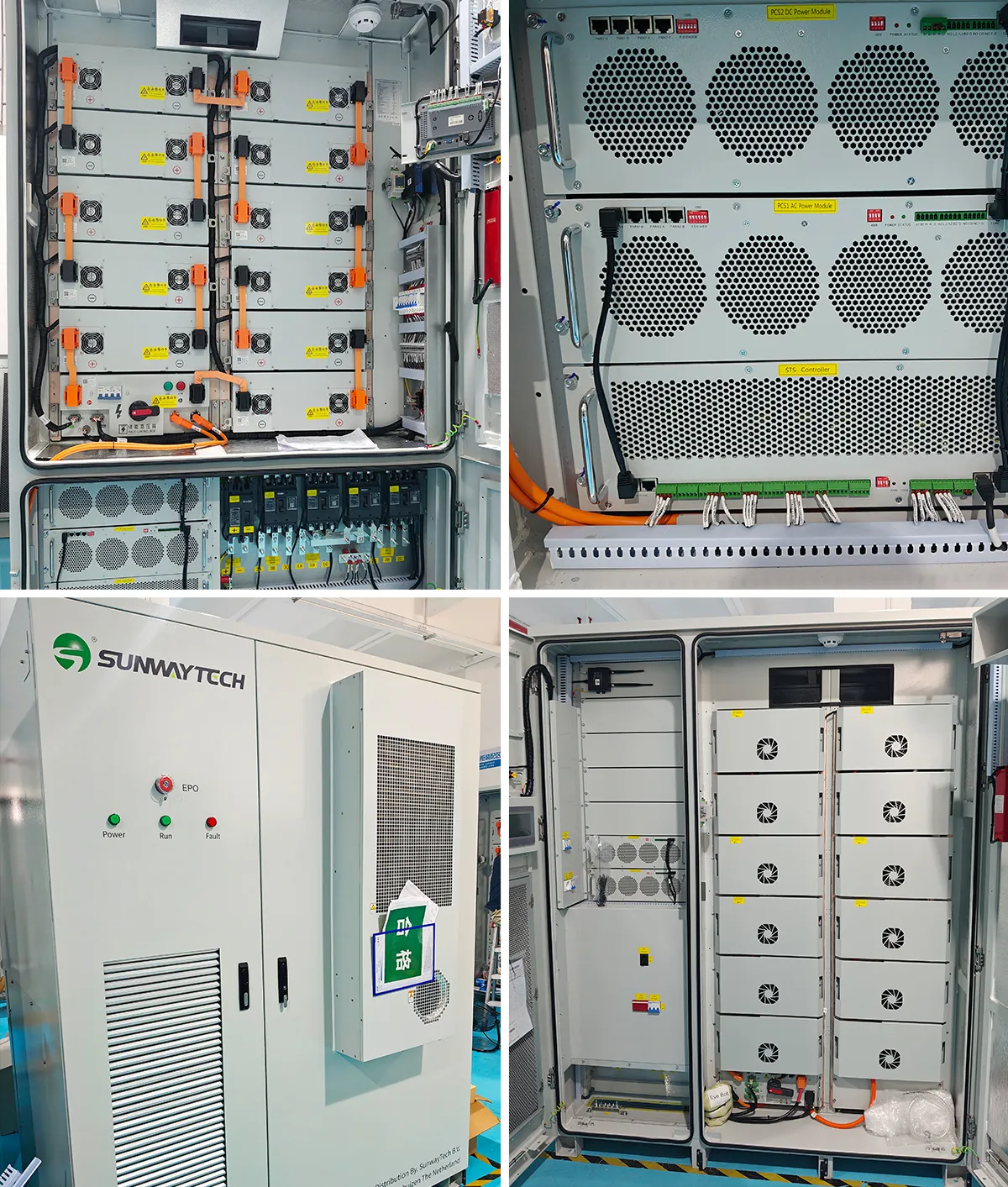

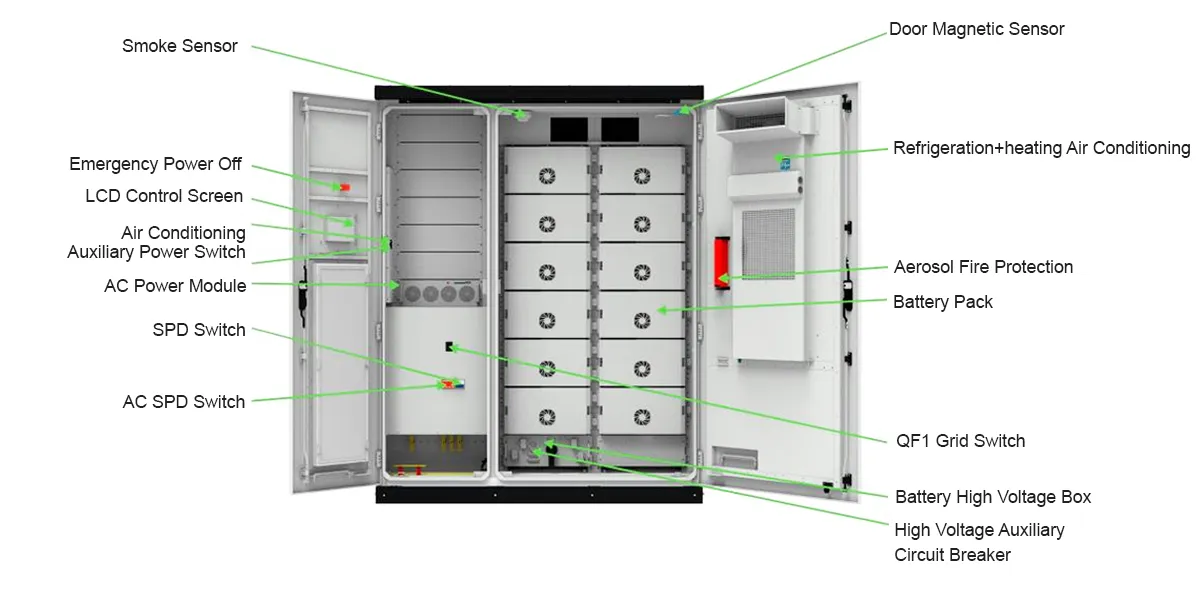

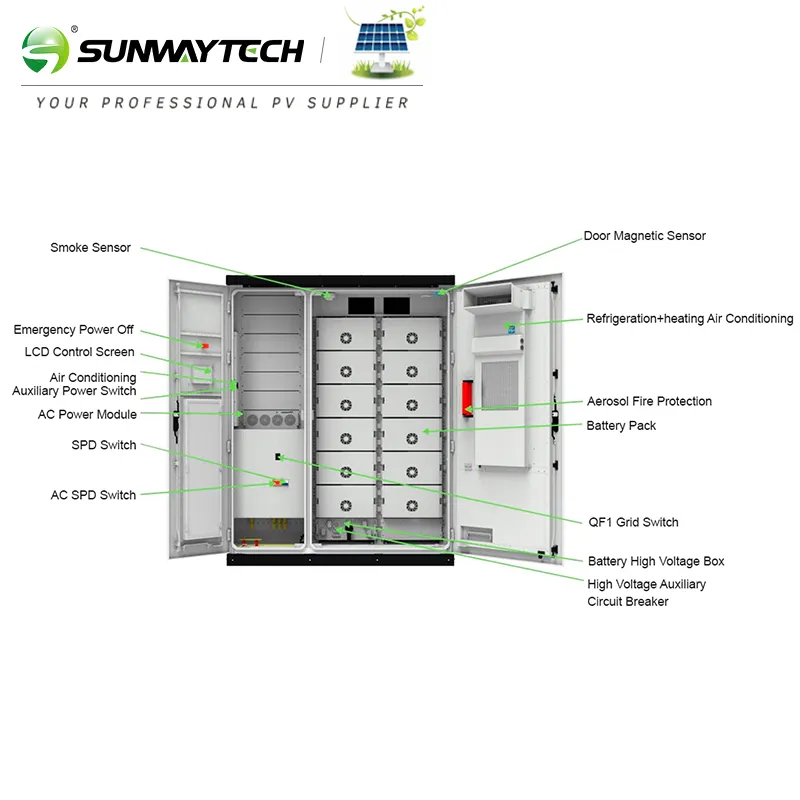

These sustainable solar systems combine LFP batteries, PCS, EMS, BMS, power distribution, fire protection, and cooling systems in one all-weather, unified unit.

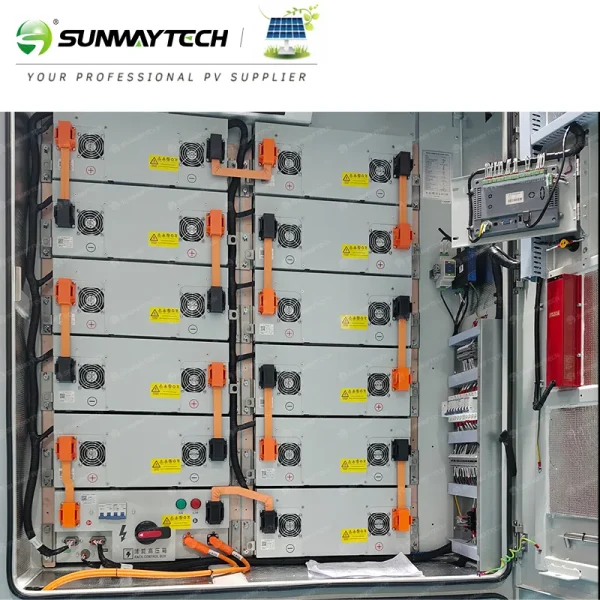

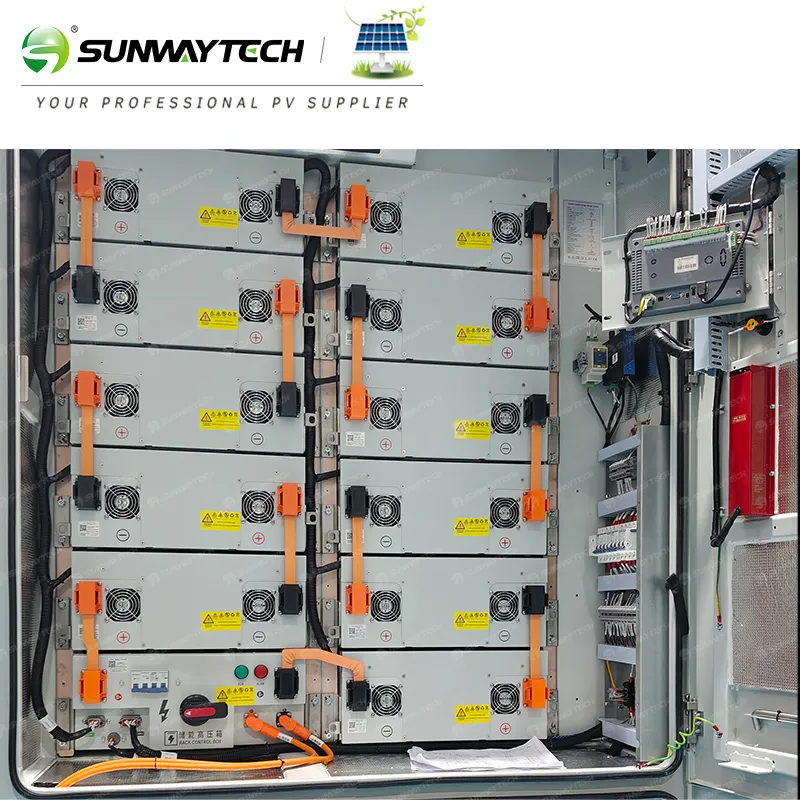

12 battery boxes in a 1P20S12S configuration enable flexible capacity scalability and simplify maintenance procedures, supporting reliable commercial and industrial energy storage applications.
Equipped with CAN, Ethernet, and RS485 communication protocols for comprehensive, real-time energy management and monitoring, supporting a reliable energy storage power supply.
Features IP54 protection, transformer isolation, intelligent air cooling, and stable operation across a wide temperature range from -25°C to 60°C, ensuring durability as a dependable 100kW battery storage solution
| PERFORMANCE PARAMETER | |
| Energy Storage System | SWMonet-100TS(215kWh) |
| Battery Rated Energy Storage Capacity | 215kWh |
| System Rated Voltage | 768V |
| System Voltage Range | 672V~864V |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Battery Pack Series and Parallel Connection | 1P*20S*125 |
| Maximum Charge and Discharge Current | 81A |
| Rated AC Power | 100kW |
| Rated AC Current | 140A |
| Rated AC Voltage | 400V,3W+N+PE/3W+PE |
| Rated AC Frequency | 50/60Hz |
| Current Total Harmonic Distortion Rate THDI | <5%(rated power) |
| Power Factor | -1 lead~+1 lag |
| Voltage Total Harmonic Distortion THDU | <3%(linear load) |
| Degree of Protection | IP54 |
| Protection Level | / |
| Isolation Method | Transformer isolation |
| Power Consumption During Shutdown | <100W(without transformer) |
| Show | LCD |
| Relative Humidity | 0~95%(no condensation) |
| Noise | <70dB |
| Ambient Temperature | -25°C~60°C(Derating above 45°C) |
| Cooling Method | Intelligent air Cooling |
| Altitude | 2000m(>2000m derating) |
| BMS Communication | CAN |
| EMS Communication | Ethernet/485 |

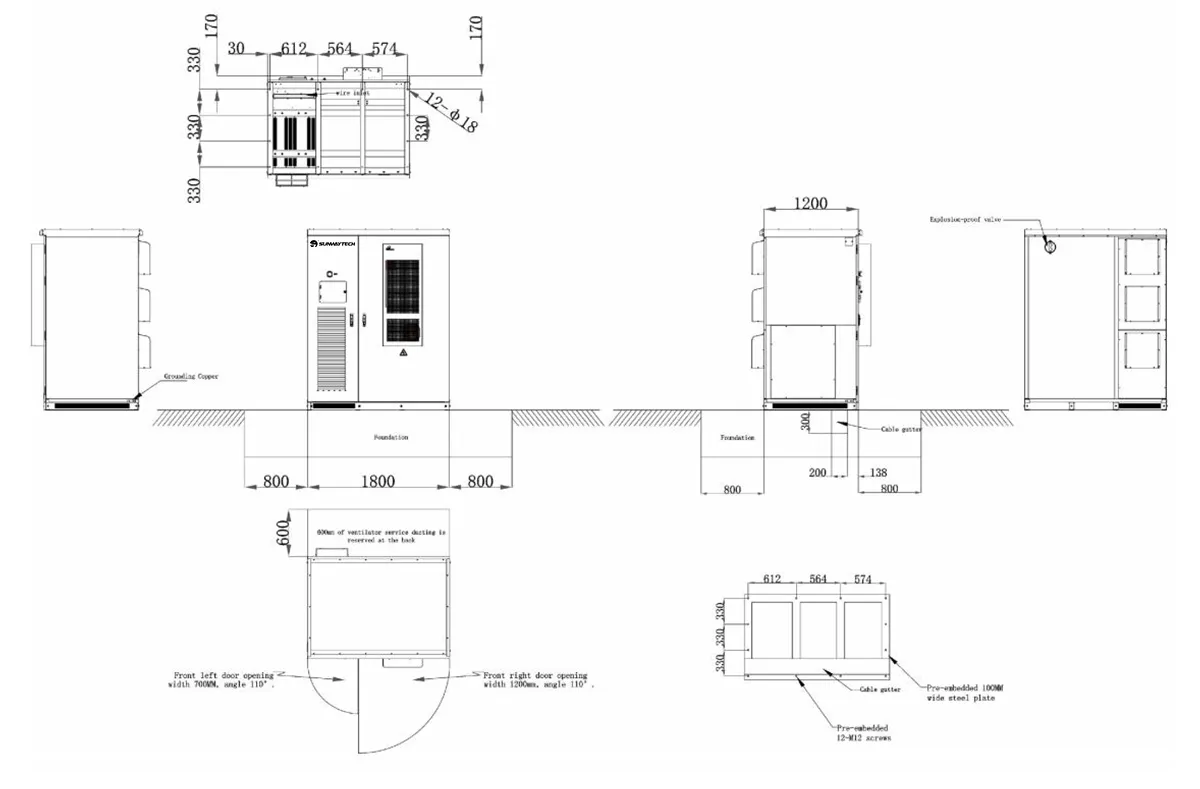

| Dimensions(W*D*H) | 1800*1200*2300mm |
| Weight(approx.) | 3000kg |
| Battery System | |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Nominal Voltage | 3.2V |
| Voltage Range | 2.8V~3.6V |
| Nominal Capacity | 280Ah |
| Maximum Operating Temperature Range(charging) | 0~50°C |
| Maximum Operating Temperature Range(discharging) | -10~50°℃ |
| Cell Series and Parallel connection | 1P205 |
| Rated Energy | 17.92kWh |
| Nominal Voltage) | 64V |
| Voltage Range | 56V~72V |
| Weight(approx.) | 135kg |
| Overall dimensions(W*D*H) | 460*940*230mm |
| Rated Energy Storage | 215kWh |
| System Rated Voltage | 768V |
| System Voltage Range | 672V~864V |
| Series and Parallel Mode | 1P*20S*125 |
| Number of Electrical Boxes Included | 12 |
| Weight(approx.) | 1620kg |
