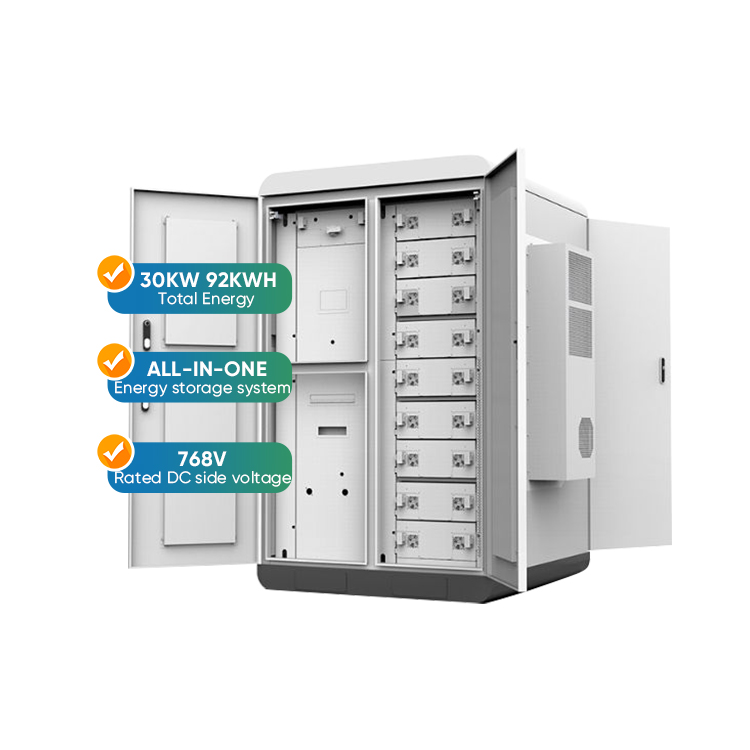

Total energy
|
92kWh,25℃@0.5c rated
|
|
Rated DC side voltage
|
768V
|
|
DC side working voltage
|
672~864V
|
|
Sustainable charging power
|
30KW
|
|
Sustainable discharge power
|
30KW
|
This product is used for power storage in power energy storage systems. The battery route is an aluminum-shell lithium iron phosphate battery. The modular design of the battery pack makes it easy to transport, install, and maintain. nThe battery pack can monitor and store battery pack parameters in real-time to achieve local protection. Meets applications such as peak shaving, peak shaving and valley filling, and of-grid backup power supply for power energy storage systems
|
Battery onfiguration
|
10S1P
|
| Max capacity |
92 kWh
|
| Max. charging power | ≤100 kw |
| Max. discharging power | ≤90 kw |
| Dimensions (W*D*H) | 885mm*434mm*238mm |
| Dimensions(W*D*H)including Smart Rack Controller and Smart PCS | 2100mm*1400mm*1900mm |
| Weight(with battery packs) | ≤2430kg |
| Weight(without battery packs) | ≤1090kg |
| Operating temperature range | -30°C to +55°C |
| Storage temperature range | -40°C to +60°C |
| Operating humidity range | 0-100% (non-condensing) |
| Max. operating altitude | 4000 m |
| Installation environment | Outdoor installation |
| Temperature control mode | Industrial-grade air conditioner |
| Fire suppression | Supported |
| Auxiliary power supply | 220 VAC,≤4.2 kw |
| Communication port | Ethernet / SFP |
| Communication protocol | Modbus TCP |
| EMC rating | Class A |
|
IP rating
|
IP55
|
