768V 215kWh Industrial and commercialenergy storage systems

768V 215kWh Industrial and commercialenergy storage systems

Category Energy Storage System

Rated Battery Capacity(kWh)	215
Rated Voltage(V）	768
Voltage Range(Vdc)	720-840
Charge and Discharge Rate(P)	≤0.5

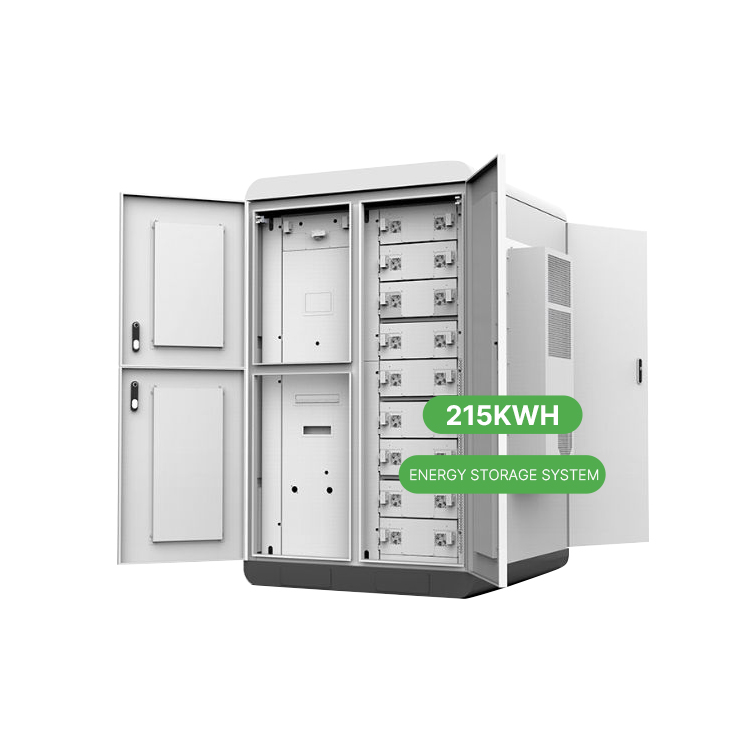

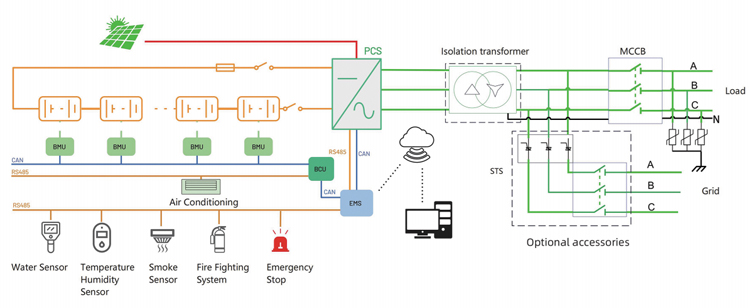

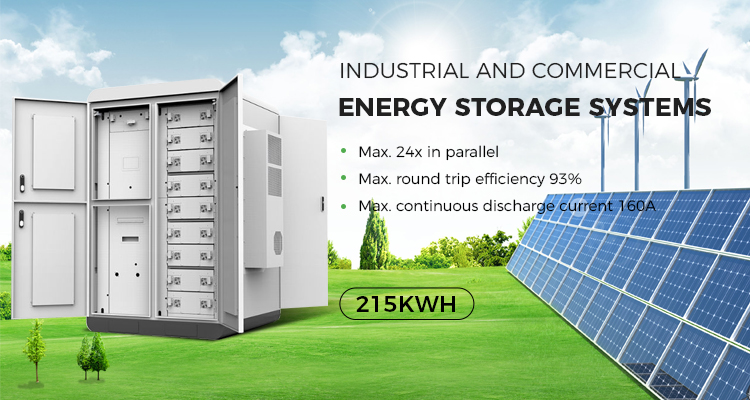

SUNWAY 215 commercial & industrial energy storage system adopts the All in one design concept. The cabinet is integrated with a battery management system (BMS), and an energy management system (EMS).modular power conversion system(PCS),andfireprolec-tian system. The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start(The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault.).

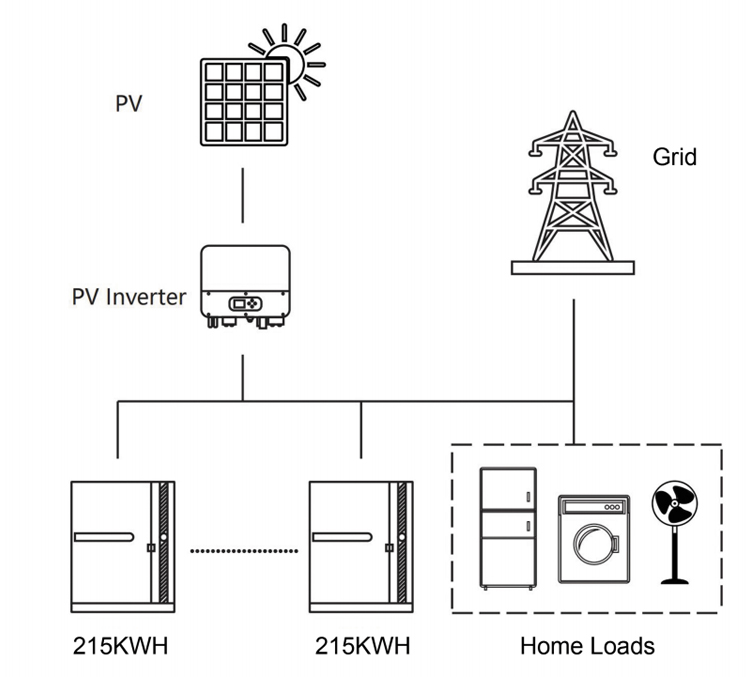

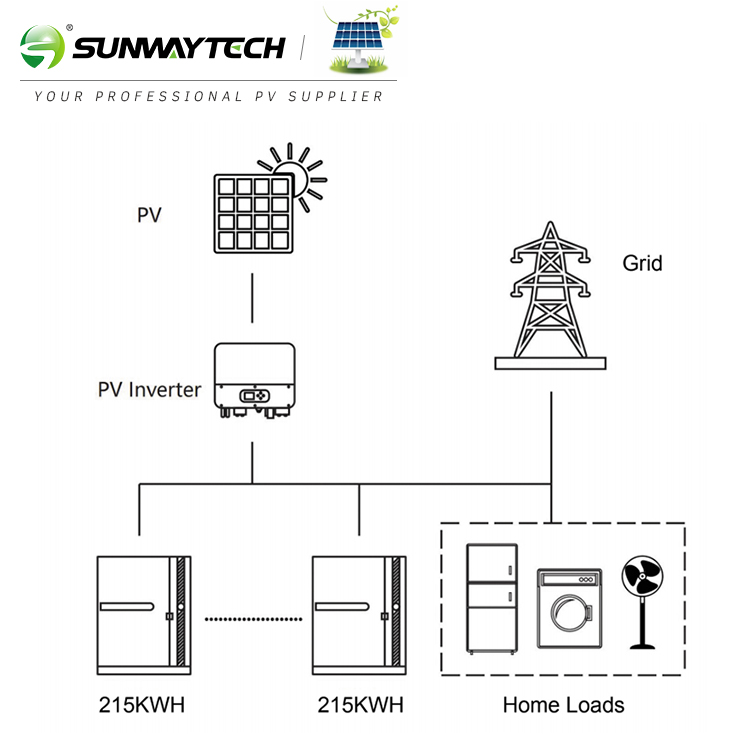

SUNWAY 215 intelligent energy storage system is directly connected to the low-voltage side and can realize multi-connection cabinets and flexible expansion. lt is the best choice for all industrial and commercial application scenarios.

Rated Battery Capacity(kWh)	215
Rated Voltage(V）	768
Voltage Range(Vdc)	720-840
Charge and Discharge Rate(P)	≤0.5
Max.Round Trip Efficiency	93%
DOD	95%
Cooling Strategy	Industrial Air Conditioning
Cycle Lifetime at EOL 80%	≥8000cycles
Fire Fighting System	Perfluorohexanone
Rated Power(kW)	100
Rated AC Voltage(Vac)	380/400
AC Voltage Range	-15%~+10%
Rated Grid Frequency(Hz)	50/60
Size(WDHmm)	152012702117
Weight(T)	2.6
Enclosure Protection Rating	IP55
Operating Temperature Range(℃)	-20-+55(>45 drop)
Operating Humidity Range	0-95%
Maximum Working Altitude(m)	≤4000(>2000 drop)
Communication Interface	RS485,Ethernet
Protocol	Modbus RTU, Modbus TCP, IEC104
