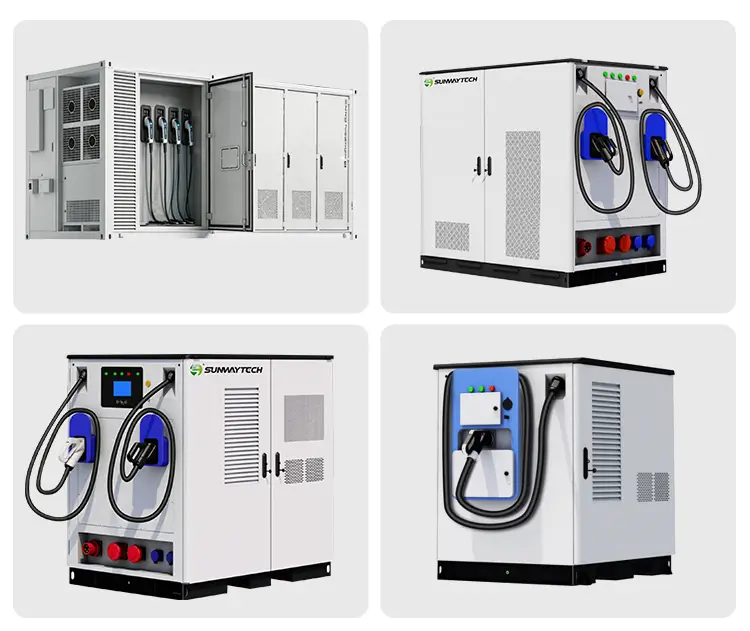

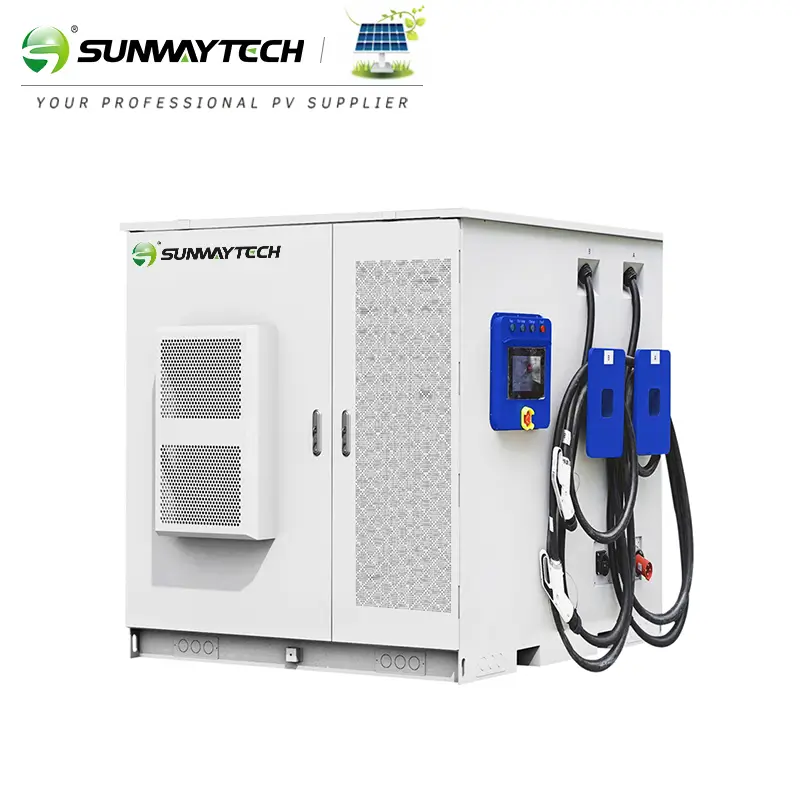

0.5P Liquid-Cooled Mobile BESS EV Charger (156-261kWh)

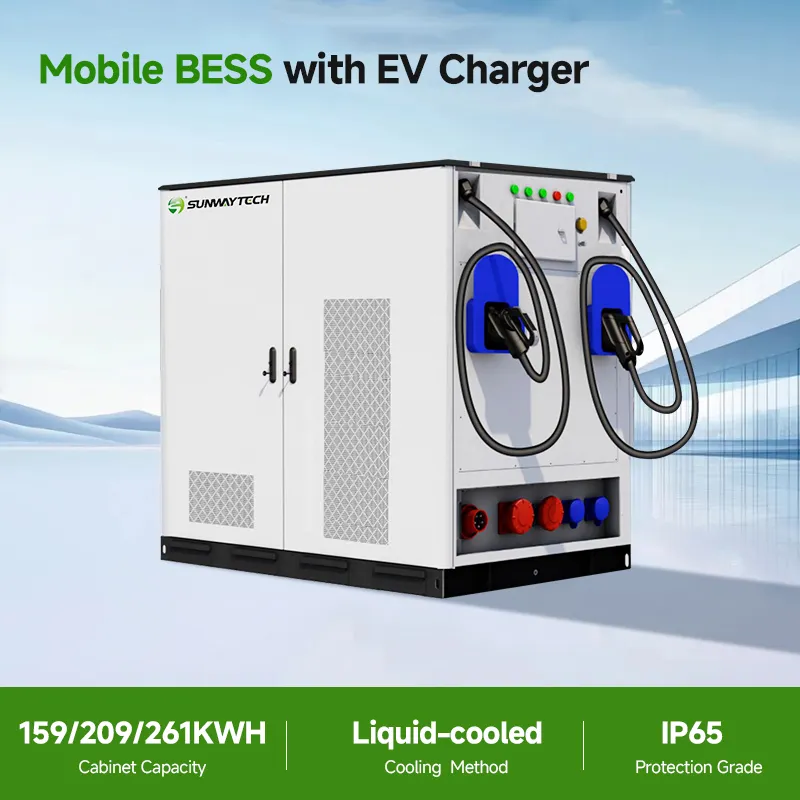

The 0.5P Mobile BESS with EV Charger is an integrated system combining a LiFePO4 battery pack, an energy management module, and an EV charging station. It utilizes a liquid cooling system for thermal management and is available in three capacity configurations: 156kWh, 209kWh, and 261kWh. Depending on the model, it delivers a maximum DC charging power of 80kW or 120kW.

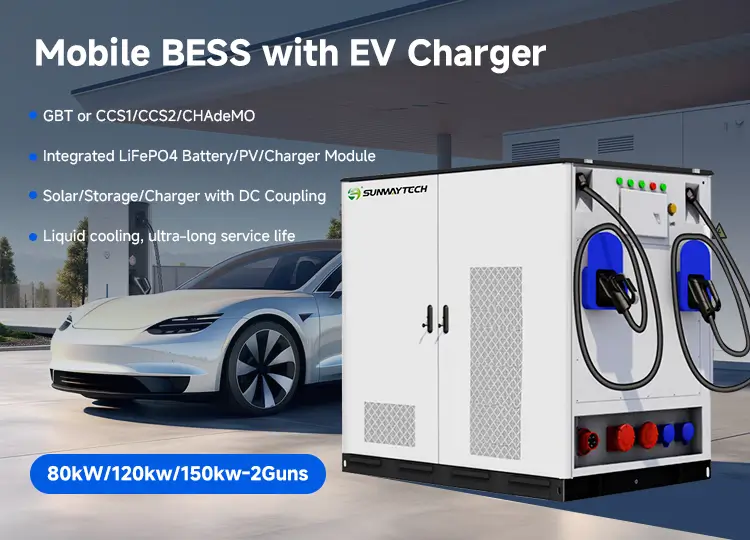

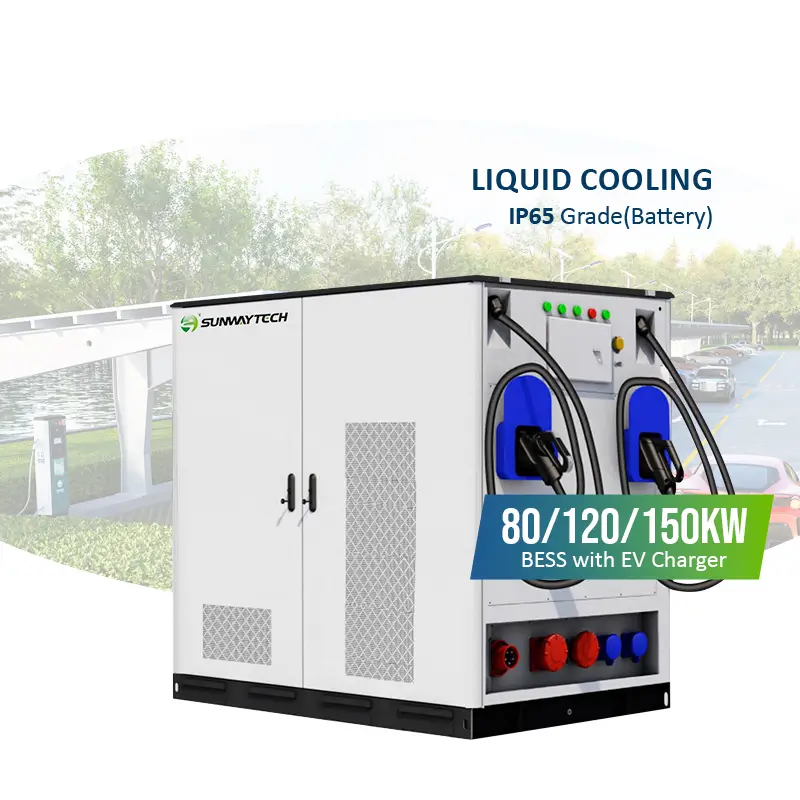

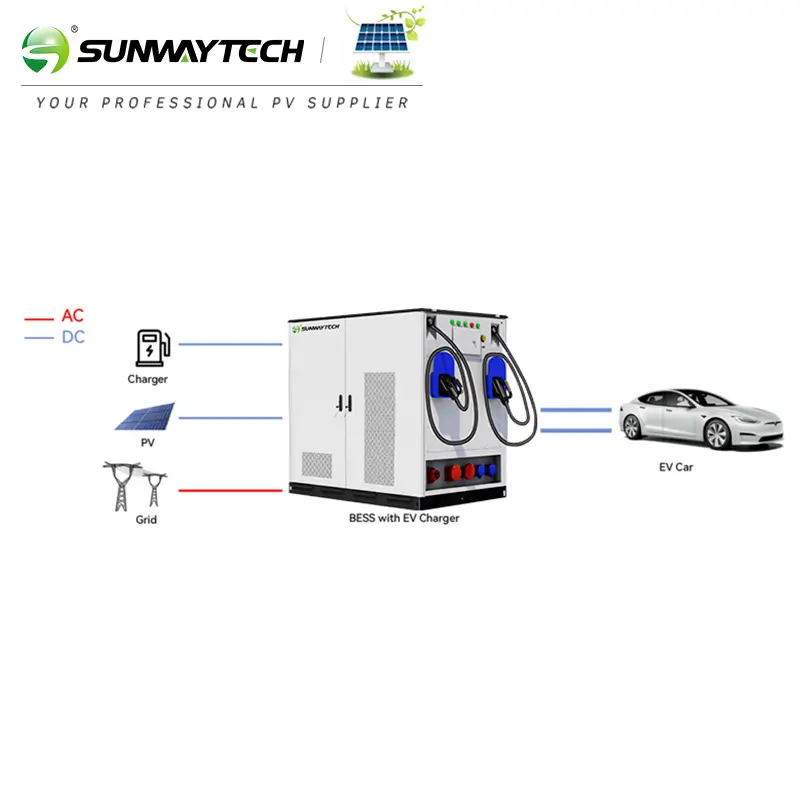

The hardware is equipped with two charging guns. The default socket type is GBT, with CCS1, CCS2, and CHAdeMO available as physical options. The system supports a charger voltage range of 200Vdc to 1000Vdc. Beyond EV charging, it supports DC coupling with optional PV (solar) input limits ranging from 38kW to 120kW, and includes AC output capabilities (30kW to 125kW) for off-grid operations. The battery compartment is IP65 rated and uses an aerosol fire protection system.

Deployment Logic

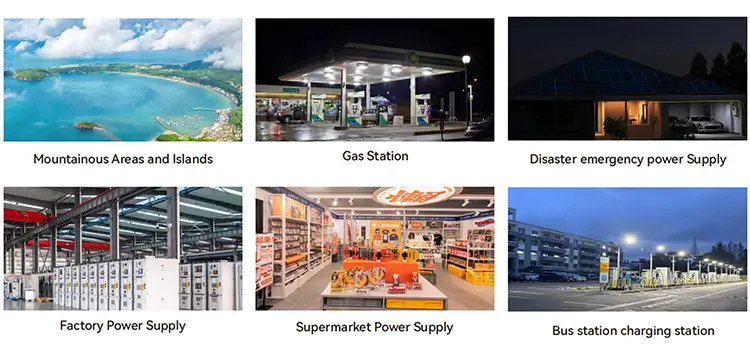

Operating at a 0.5P charge/discharge rate, this unit is engineered for sustained energy delivery rather than rapid power bursts. It is built for physical environments where grid capacity is insufficient or non-existent, requiring long-duration power availability. Standard deployment scenarios include mountainous areas, islands, remote gas stations, industrial factories, and disaster emergency power supply sites.
