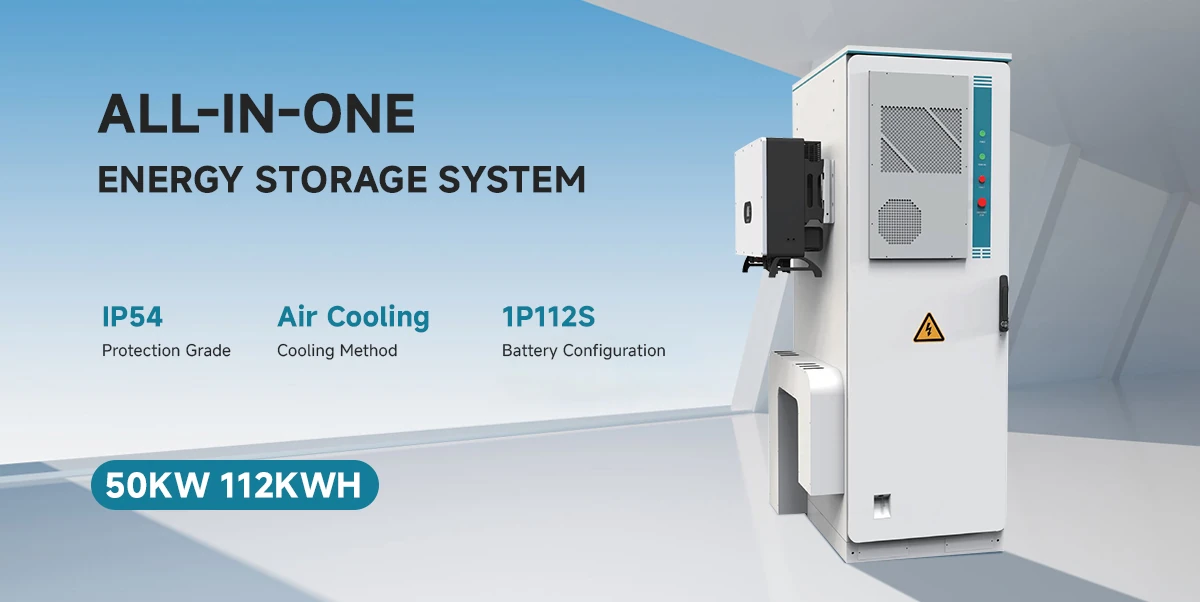

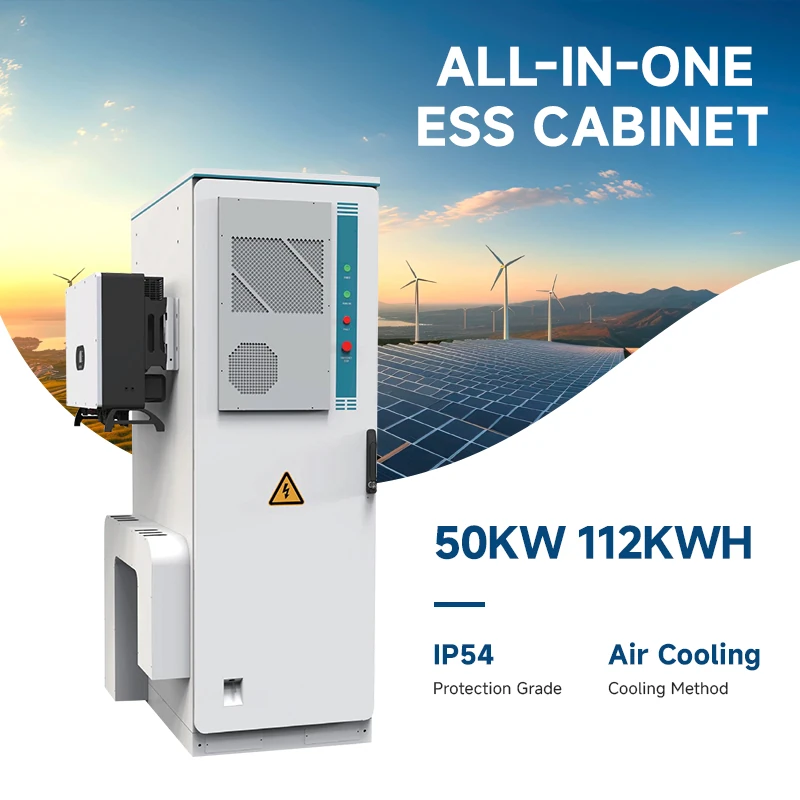

Outdoor Cabinet ESS 50kW 112kWh

SW-50kW112kWh is a 50 kW / 112 kWh outdoor energy storage cabinet with air-cooled design, up to 100 kW of PV input, and fast on/off-grid switching — built for C&I storage, microgrids, and PV+ESS+charging applications.

Rated Output Power	50 kW
Rated Energy	112 kWh
Max. PV Input Power	100 kWp
IP Rating	IP54

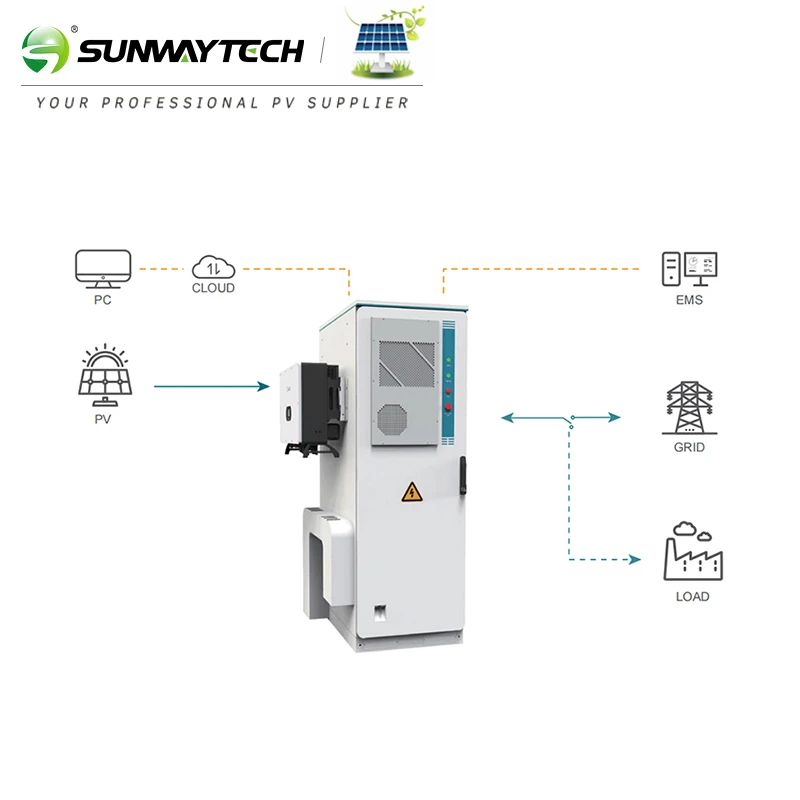

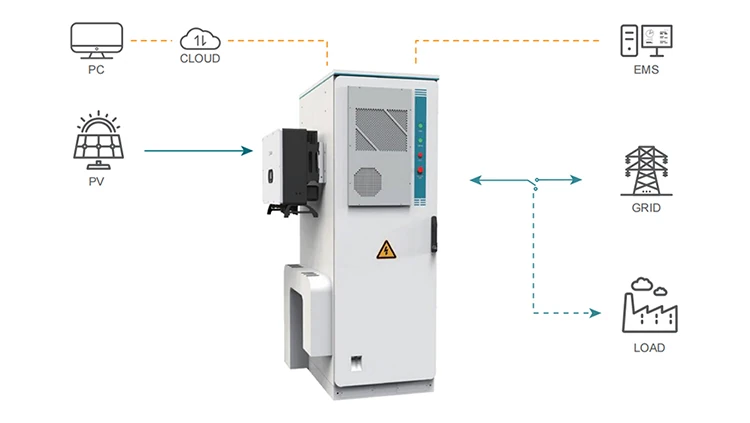

SW-50kW112kWh is an outdoor, PV-ready energy storage cabinet designed for commercial and industrial applications, microgrids, and PV+ESS+charging scenarios. It combines a 50 kW rated AC output with a 112 kWh LFP battery bank (314 Ah cells, 1P112S, 358 V), supports 0.5C charge/discharge, and accepts up to 100 kW of PV input through 4 MPPT channels (200–950 V). A built-in generator input (up to 60 kVA) adds flexibility for sites with backup generators, while on-grid and off-grid operation with under 20 ms switching keeps critical loads powered through grid disturbances.

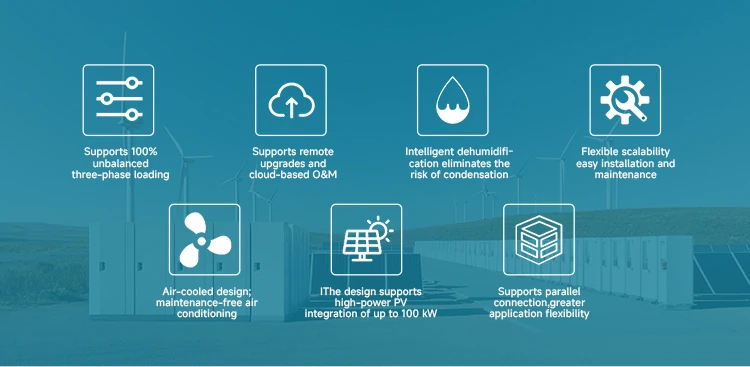

The cabinet is built for outdoor deployment and low-maintenance operation: air-cooled thermal management, IP54 protection, and a dual fire protection system combining aerosol and water-based suppression protect the system in demanding environments. It supports unbalanced three-phase loads and parallel units for flexible expansion, and remote cloud EMS enables monitoring and upgrades over RS485/Ethernet with Modbus — making SW-50kW112kWh a complete, scalable solution for distributed energy storage.

Model	SW-50kW112kWh
Battery Parameters
Charge/Discharge Rate	0.5C
Rated Cell Capacity [Ah]	314
Rated Voltage [VI	358
Operating Voltage Range [V]	313~408
Rated Energy [kWh]	112
Configuration	1P112S
AC Parameters (On-Grid)
Rated Output Power [kw]	50
Rated Output Current [A]	72
Max Output Power [kVA]	55
Max Output Current [A]	80
Rated Grid Voltage [V]	3W/N/PE, 220/380,230/400
Rated Grid Frequency [Hz]	50
Power Factor	1 (0.8 leading~0.8 lagging)
THDi	<3%（@Rated power)
AC Parameters (Off-Grid)
Rated Output Power [kW]	50
Rated Output Current [A]	72
Rated Output Voltage [V]	3W/N/PE, 220/380,230/400
Rated Output Frequency [Hz]	50
Switching Time [ms]	<20
PV Parameters
Max. PV Input Power [kWp]	100
Max. PV Input Voltage [V]	1000
No. of MPPTs / Max. Strings per MPPT	4/2
MPPT Operating Voltage Range [V]	200~950
Max. PV Input Current [A]	4*40
Max. PV Short-Circuit Current [A]	4*50
Generator Input
Max. Input Power [kVA]	60
Max. Input Current[A]	80
Working Phase	3W/N/PE
Rated Input Voltage [VI	220/380,230/400
Rated Input Frequency [Hz]	50
General Parameters
IP Rating	IP54
Cooling Method	Air Cooling
Fire Protection System	Aerosol, Water-based Fire Protection
Relative Humidity	0~95%, Non-condensing
Operating Temperature Range [C]	-20~+50
Max Altitude [m]	4000 (>2000 Derating required)
Communication Method	RS485, Ethernet
Communication Protocol	Modbus
Weight [T]	≈1.3
Dimensions(WDH)[mm]	75011502250
