Outdoor Cabinet ESS 186kW/209kW

SW-186kW372kWh and SW-209kW418kWh are liquid-cooled outdoor ESS cabinets delivering 186 kW / 372 kWh and 209 kW / 418 kWh respectively — built on high-density LiFePO4 batteries for reliable C&I, grid-side, and microgrid energy storage.

Parameter	SW-186kW372kWh	SW-209kW418kWh
Rated Output Power	186 kW	209 kW
Rated Capacity	372.73 kWh	417.99 kWh
Cell Rated Capacity	280 Ah	314 Ah
Weight	≈ 3600 kg	≈ 3750 kg

SW-186kW372kWh and SW-209kW418kWh are high-capacity outdoor energy storage cabinets engineered for commercial & industrial, grid-side, PV+ESS+charging, and microgrid applications. Both models use long-life LiFePO4 cells in a 1P416S configuration with a rated system voltage of 1331.2 V, support 0.5C charge/discharge, and provide rated AC output of 186 kW and 209 kW respectively at a 690 V grid voltage. With rated capacities of 372.73 kWh and 417.99 kWh, the series delivers up to 418 kWh in a single cabinet for high-density deployments.

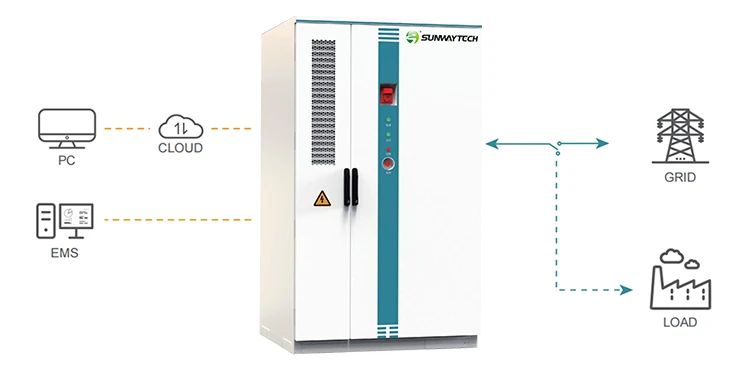

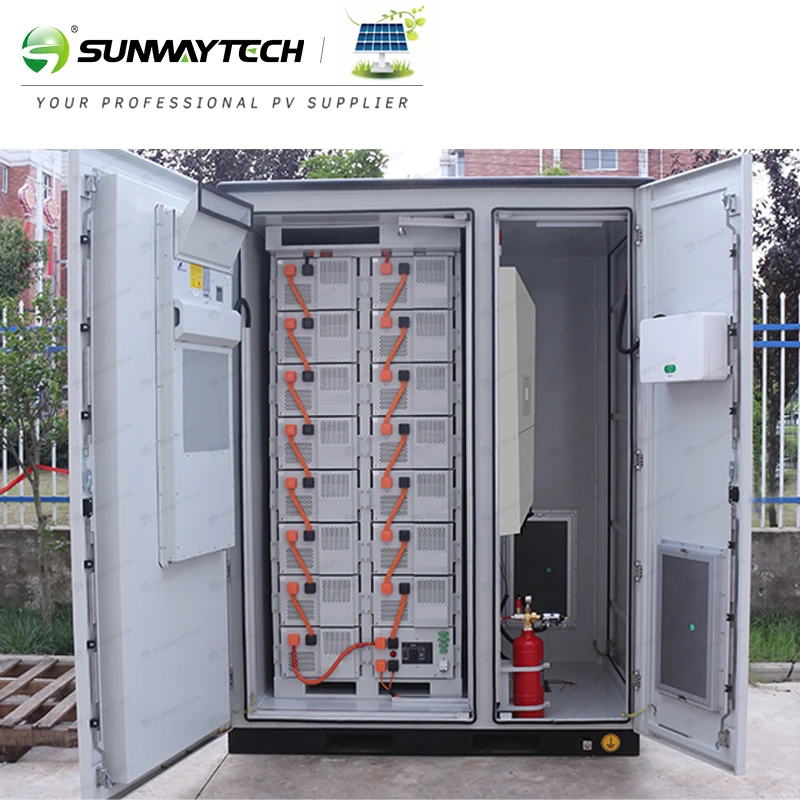

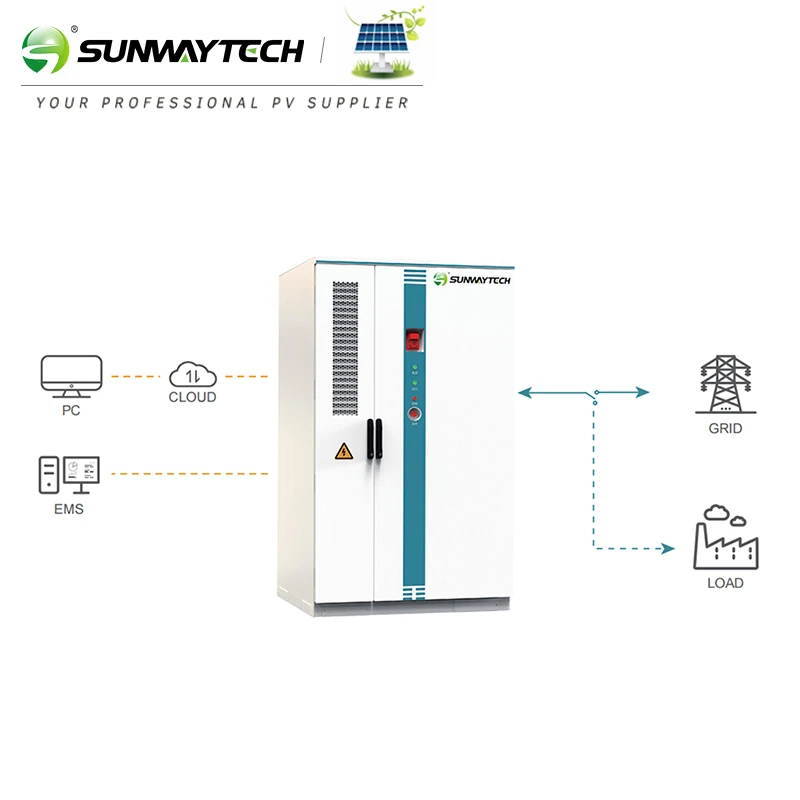

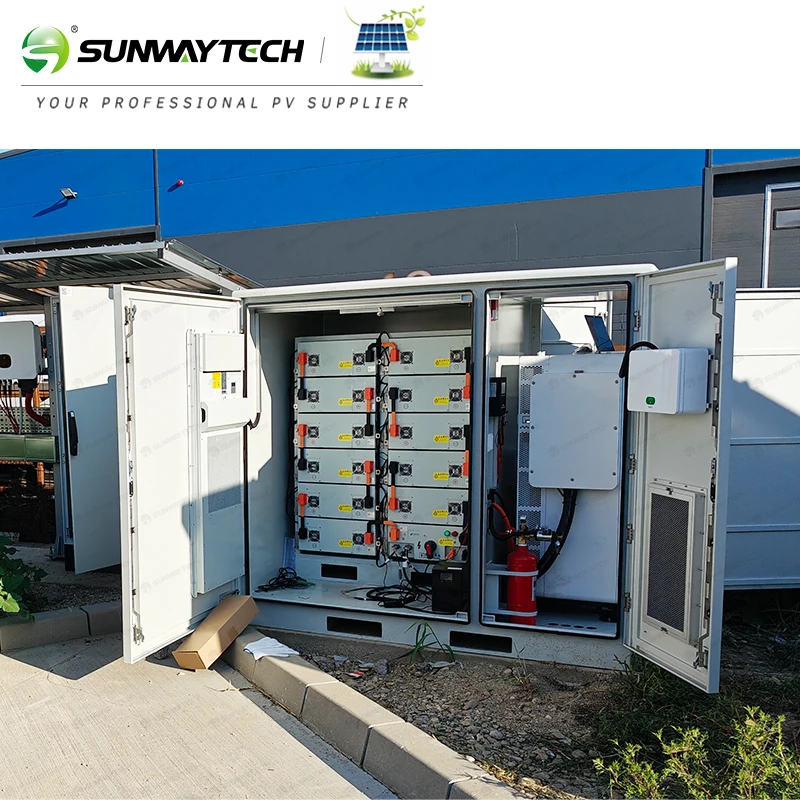

Built for outdoor reliability and easy installation, both cabinets combine pack-level liquid cooling with air-cooled electrical compartments, IP54 ingress protection, and dual fire protection using aerosol or perfluorohexanone. Intelligent dehumidification eliminates condensation risk, while flexible expansion and parallel operation let the system grow with demand. Communication via RS485/CAN with Modbus and IEC104 protocols supports remote monitoring, cloud operations, and seamless integration into larger energy management systems — making the LES series a complete, scalable solution for large-scale distributed energy storage.

Model	SW-186kW372kWh	SW-209kW418kWh
Battery
Battery Type	LiFeP04
Rated Charge/Discharge Performance	0.5C
Rated Voltage [V]	1331.2
Operating Voltage [V]	1164.8~1497.6
Cell Rated Capacity [Ah]	280	314
Rated Capacity [kWh]	372.73	417.99
Composition	1P416S	1P416S
AC Output (On Grid)
Rated Output Power [kW]	186	209
Max. Output Current [A]	171	192
Rated Grid Voltage [V]	3/PE,690
Rated Grid Frequency [Hz]	50
Power Factor	1(0.9 Leading~0.9 Lagging)
THDi	<3%(@Rated Power)
General Parameters
Ingress Protection	IP54
Cooling Method	Battery Compartment (Liquid Cooled)、Electrical Cabin(Air Cooled)
Battery Cooling Method	Liquid cooling system
Fire Protection System	Aerosol/Perfluorohexanone
Relative Humidity	0~95%,Non-condensing
Temp. Range [PC]	-20~+50
Altitude [m]	4000(>2000 Derating)
Communication	RS485、CAN
Communication Protocol	Modbus、IEC104
Weight [kg]	≈3600	≈3750
Dimension(WxDxH)[mm]	132513752300	132513752300
Delivery Method	Integral transportation
