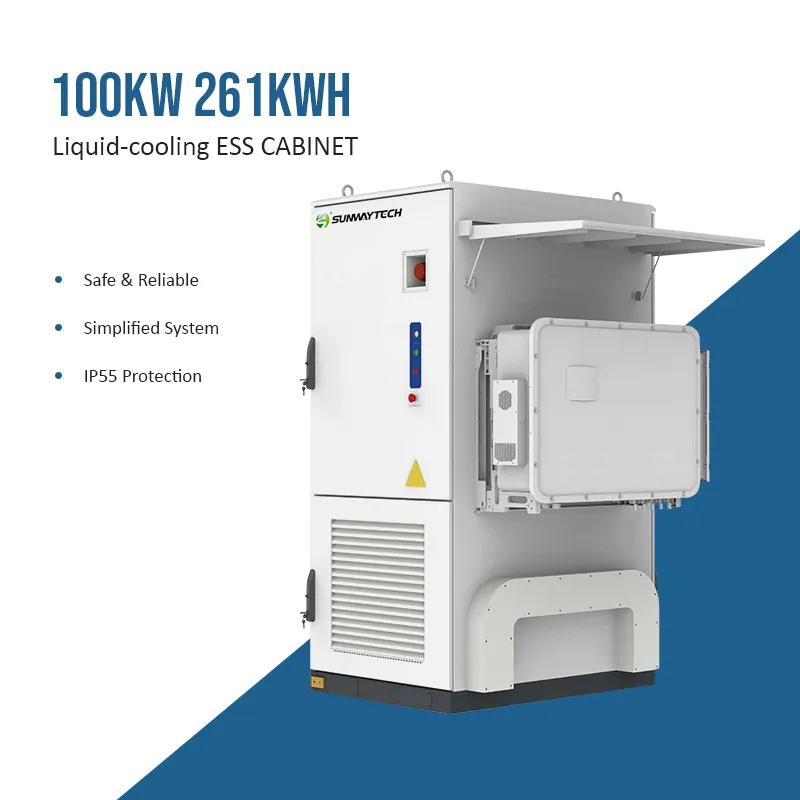

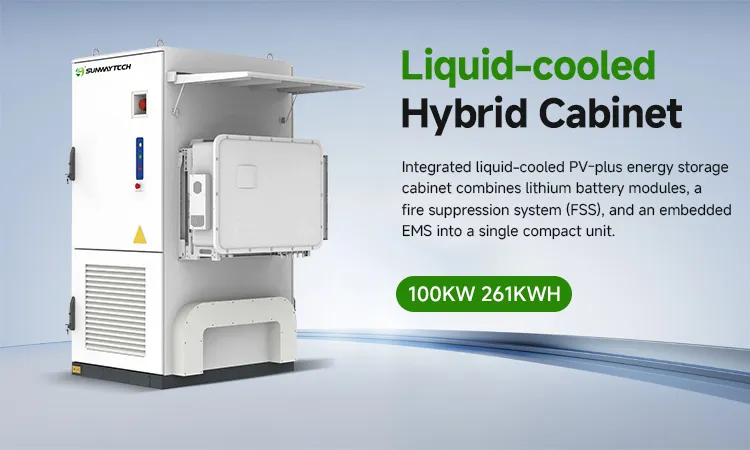

SUNWAY 100kW 261kWh Liquid-cooled Hybrid Cabinet

SUNWAY 100kW 241kWh Air-cooled Hybrid Cabinet

SUNWAY 100kW 261kWh Liquid-cooled Hybrid Cabinet

Power outages are expensive. Is your business ready for a backup?

Introducing the SWMonet-125CL Energy Storage Cabinet.
Say goodbye to grid instability and hello to total energy independence.

Why clients in LATAM are choosing this unit:
🔹 261kWh of LiFePO4 battery storage (High safety!).
🔹 100kW PV Input + 125kW AC Output – Power through peak demand.
🔹 Built-in Isolation Transformer: No more voltage spikes killing your equipment! ⚡
🔹 Smart Liquid Cooling: Built to survive the extreme heat (-25℃ to 60℃).
🔹 High Altitude Ready: Suitable for the Andean regions.

Whether you run a factory, a commercial complex, or a mining site, we have the reliable, long-lasting ESS solution to stabilize your power and cut your bills.

🚀 Ready to install? Send us a DM for a customized quote for your country.

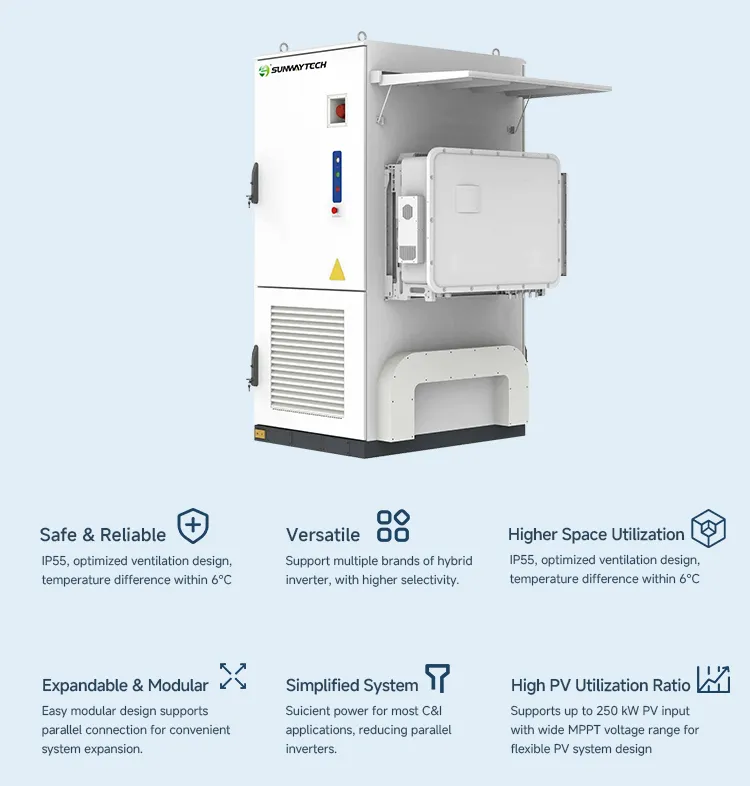

Safe & Reliable:IP55, optimized ventilation design. temperature difference within 6°C.
Versatile:Support multiple brands ofhybrid inverter. with higher selectivity.
Higher Space Utilization:1.8m2 footprint, larger capacity per cabinet. saving space and site cost.
High PV Utilization:Capability Supports up to 250 kW PV input with wide MPPT voltage range for flexible PV system design.
Expandable &Modular:Easy modular design supports parallel connectionfor convenient system expansion.
Simplified System:Suffident power for most C&l applications,reducing parallel inverters.

Battery Cabinet
Cell Type	LFP/314 Ah
Pack Configuration	24.1 kWh /1P24S
System Configuration	241 KWh /1P240S
Rated DC Voltage	768V
DC Voltage Range	672~864V
Max. Charge/Discharge Rate	0.5P
Max. Depth of Discharge	100%(25±2℃)
Cycle Life	≥8,000 cycles
PV Input
Max. input power	150kW	160kW	200kW	200kW	250kW
PV Voltage Range	150~950V
MPPT	10
MAX. Input Current	42A*10
AC Side
Rated Output Power	75kW	80kW	99.9kW	100kW	125kW
Rated AC Voltage	400V
AC Voltage Range	±15%
Grid Type	3W+N+PE
Rated Frequency	50Hz160 Hz
Power Factor	0.99/-0.8~+0.8
THDi	≤3%
DC Ratio	<0.5% Ipn
General
Max. Round Trip Efficiency	90%
Communication	Modbus TCP/IP
Fire Suppression System	Aerosol
Ingress Rating	IP55
Cooling	Air cooling
Operating Temperature	-25℃~55℃ (Derating after 45°℃)
Anticorrosion Rating	C4(C5 optional)
Humidity	0~95% RH (non-condensing)
Altitude	3000m (Derating above 2000m)
Dimensions (WDH)	125014502250mm
Weight	2670kg
Safety/EMC	UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4
Grid code	EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11
