1P High-Power Mobile BESS EV Charger (Up to 200kW)

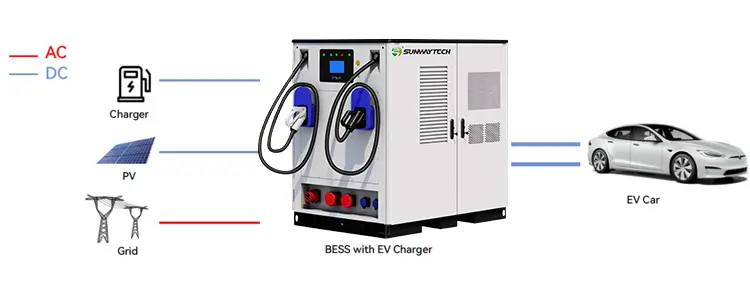

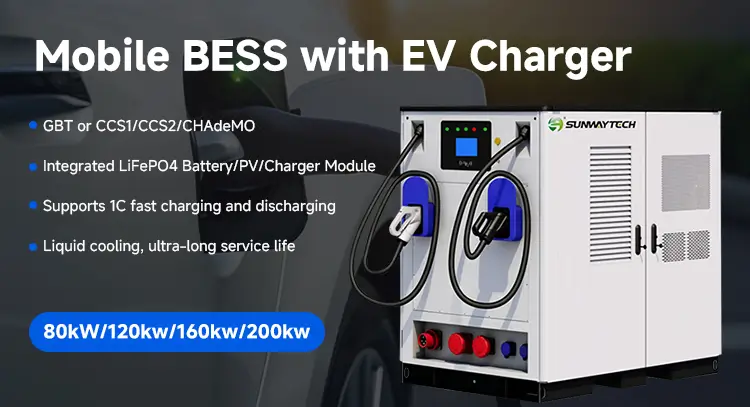

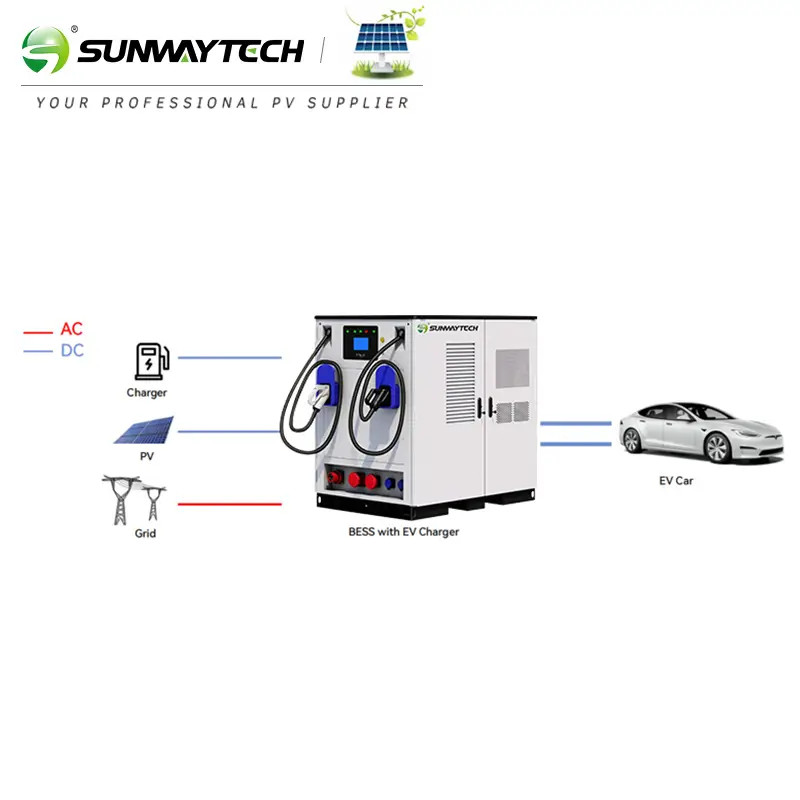

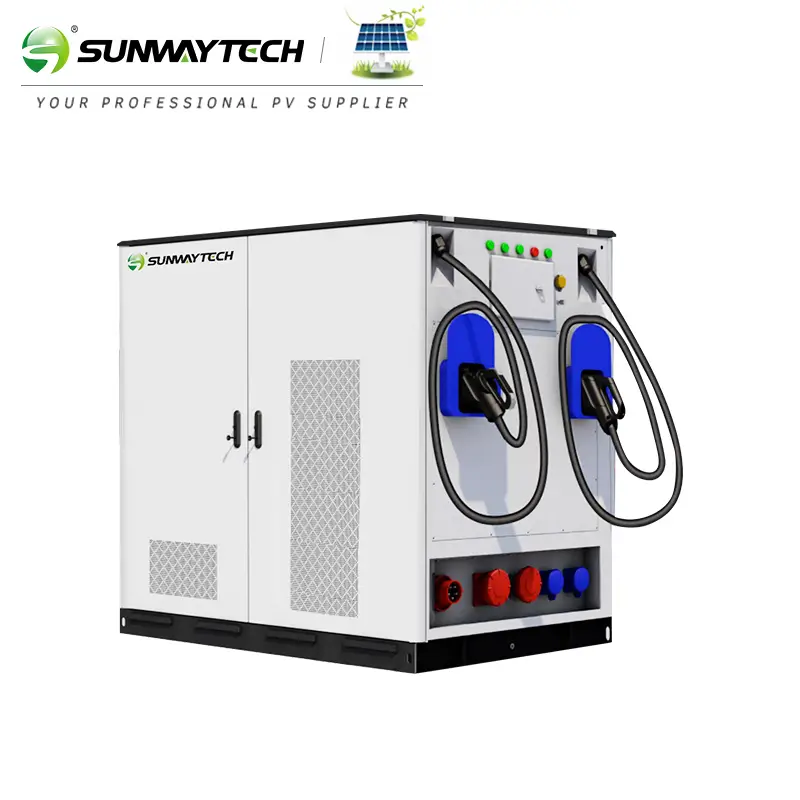

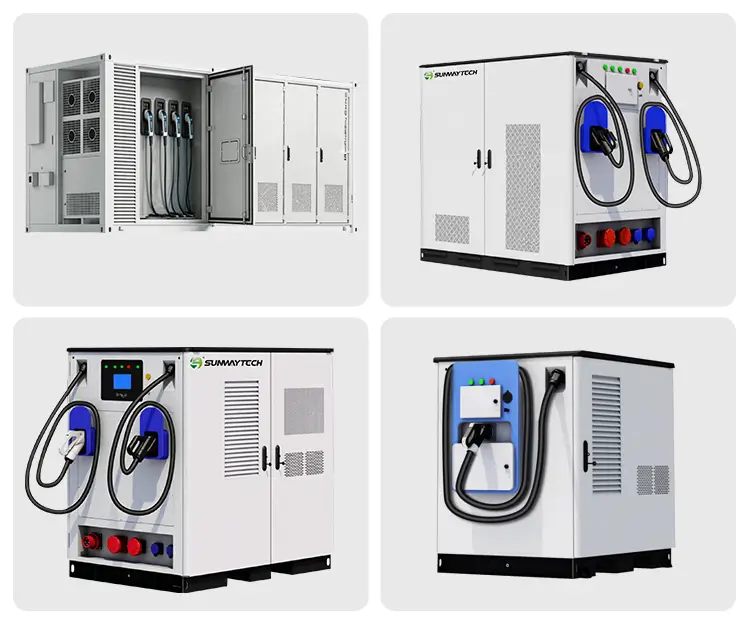

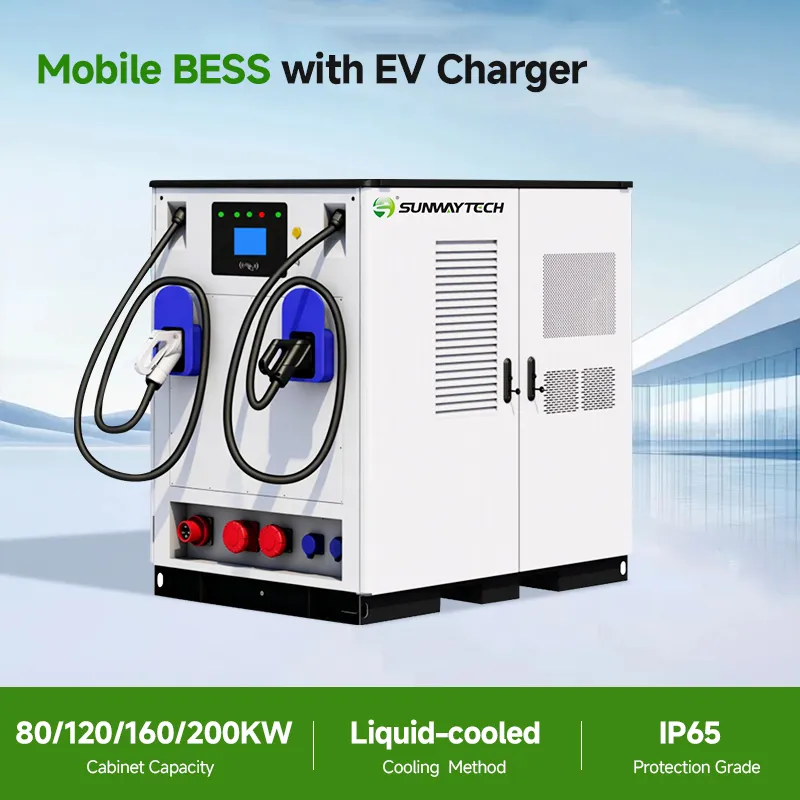

The 1P Mobile BESS with EV Charger integrates a LiFePO4 battery, PV input capabilities, and a fast DC charging module. Engineered to support 1C fast charging and discharging, the system utilizes liquid cooling for thermal management, with the exception of the 87kWh entry model which relies on air-cooling. The equipment is available in four capacity configurations: 87kWh, 122kWh, 162kWh, and 203kWh. It delivers a maximum DC charging power of up to 200kW and is equipped with up to two charging guns.

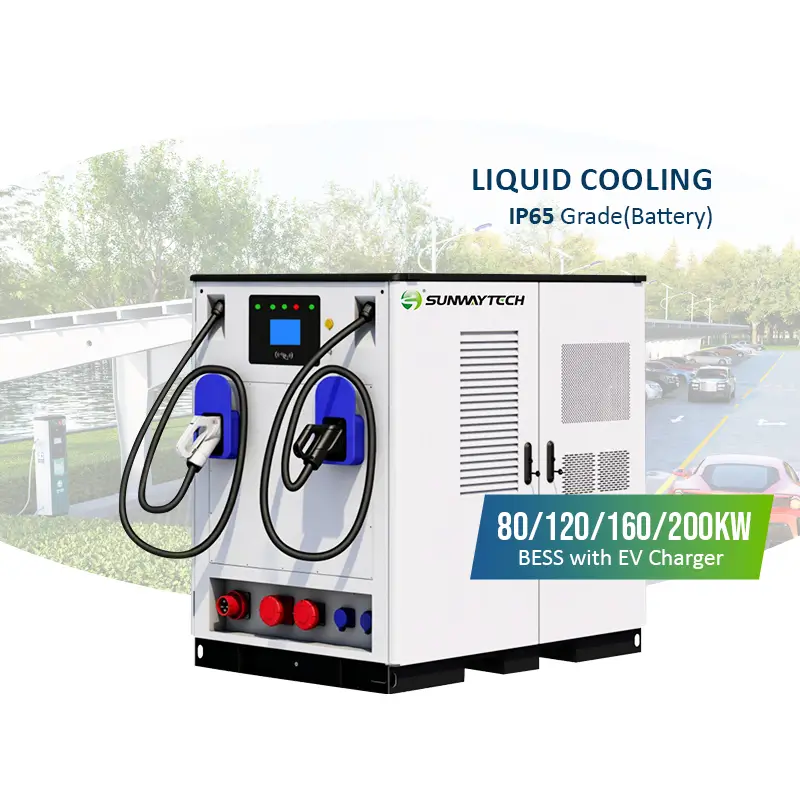

The standard gun type is GBT, with CCS1, CCS2, and CHAdeMO available as physical options. The charger voltage range operates between 200Vdc and 1000Vdc. The system supports AC output up to 125kW for off-grid applications and optional PV solar input up to 120kW. The battery unit features an IP65 rating (IP54 for the 87kWh model) and uses an aerosol fire protection system.

Deployment Logic

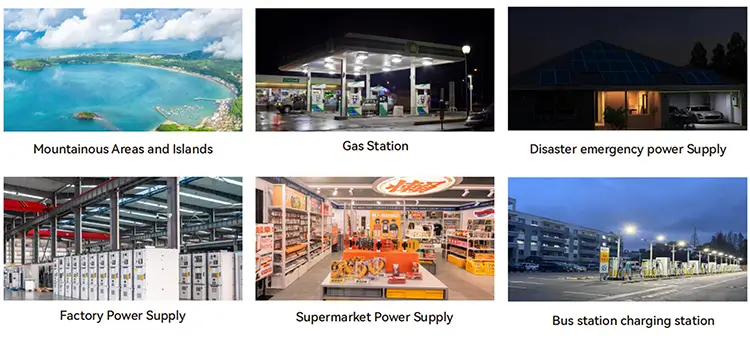

Operating at a 1P rate, this unit is designed for rapid power delivery rather than long-duration energy storage. It is built for high-turnover environments requiring immediate, high-power energy dispensing, such as disaster emergency power supply, bus station charging stations, and remote gas stations.
