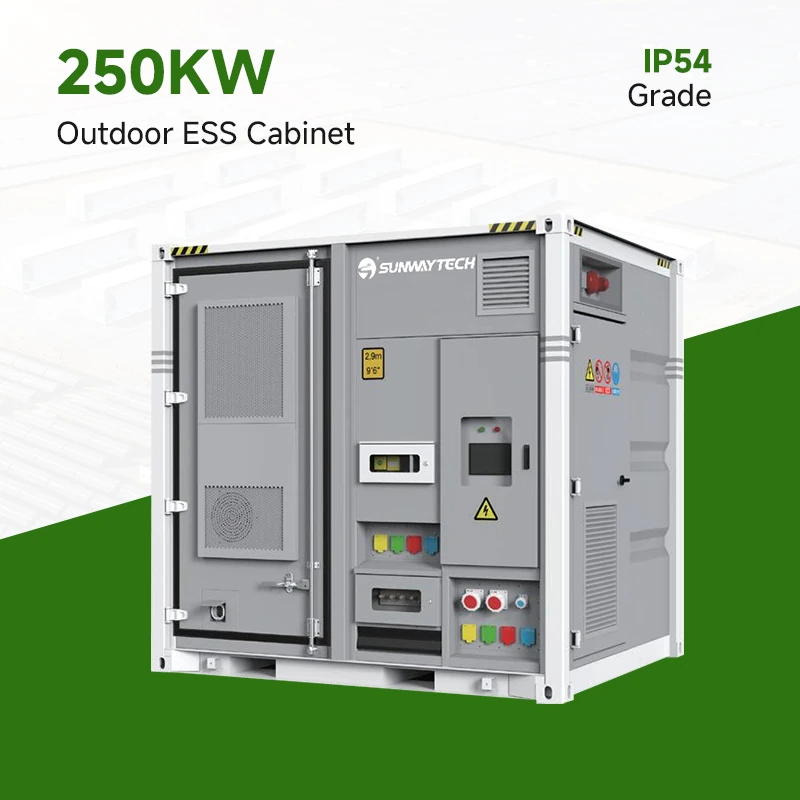

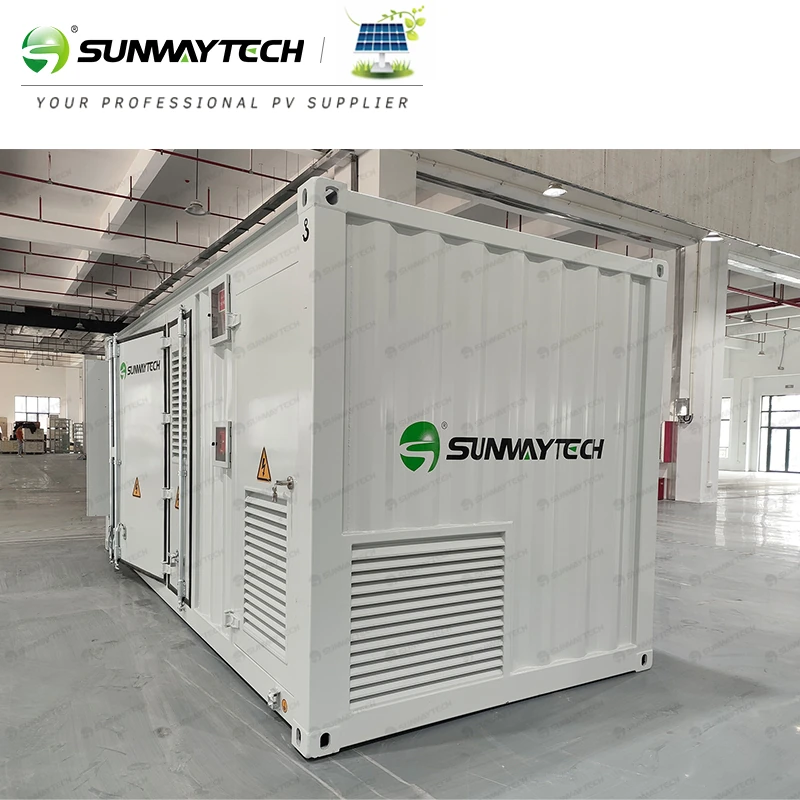

Outdoor Cabinet ESS 250kW/500kW

The SW-H10-250kW482kWh, SW-H10-250kW732kWh, and SW-H20-500kW1205kWh are medium-scale microgrid energy storage systems covering 482–1205 kWh with 250–500 kW rated output — containerized, PV-ready, and built for seamless on/off-grid operation.

Parameter	SW-H10-250kW482kWh	SW-H10-250kW732kWh	SW-H20-500kW1205kWh
Rated Output Power	250 kW	250 kW	500 kW
Rated Capacity	482 kWh	723 kWh	1205 kWh
Max. PV Input Power	360 kWp (external)	360 kWp (external)	720 kWp
Reference Weight	≈ 8.1 t	≈ 9.8 t	≈ 20 t

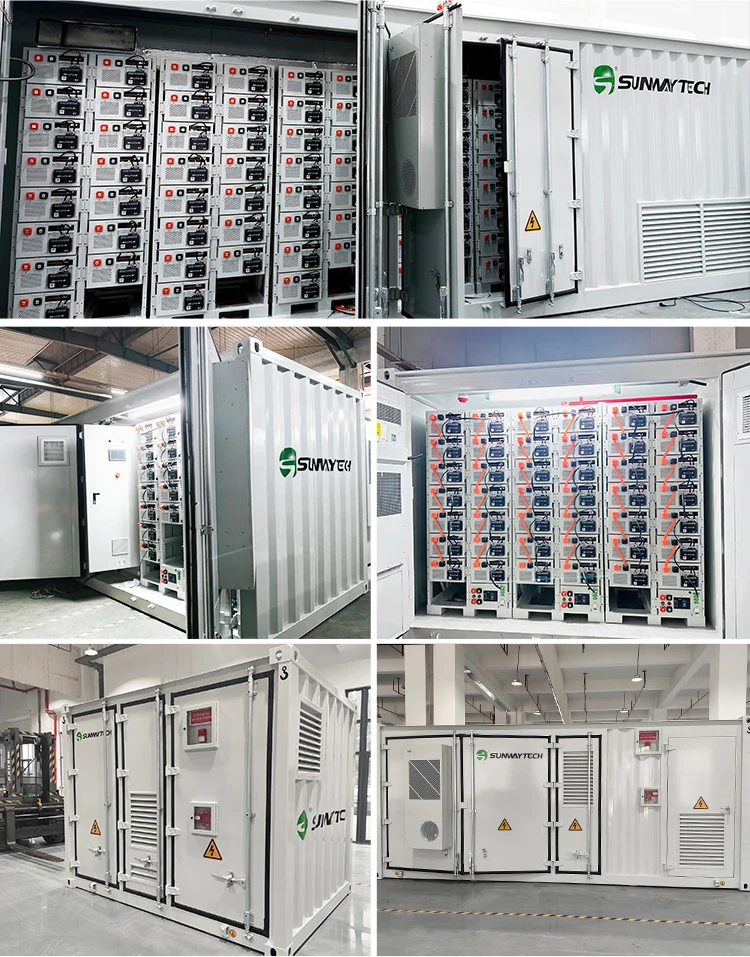

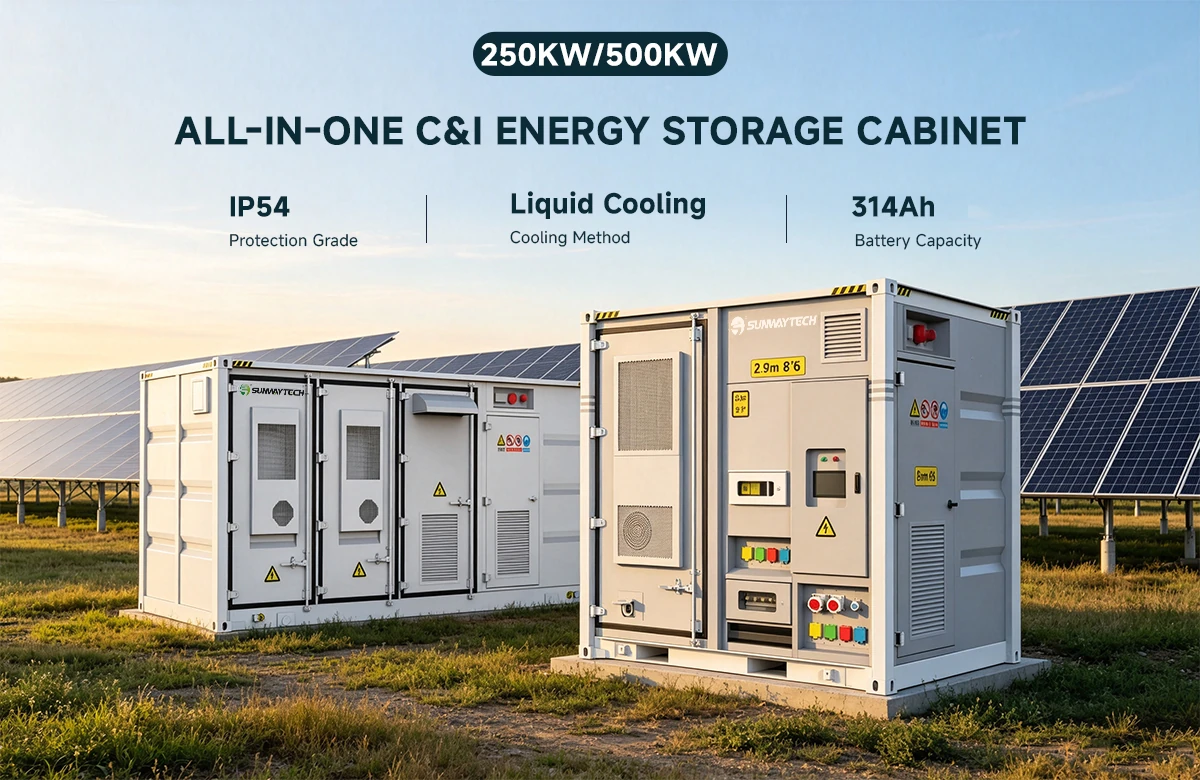

The H series is a range of highly integrated, containerized medium-scale microgrid energy storage systems designed for commercial & industrial, PV+ESS+charging, microgrid, and grid-side applications. The SW-H10-250kW482kWh and SW-H10-250kW732kWh deliver 250 kW rated AC output with 482 kWh and 723 kWh of LiFePO4 storage respectively, while the SW-H20-500kW1205kWh steps up to 500 kW output and 1205 kWh capacity. All three models use 314 Ah LFP cells with 0.5C charge/discharge, support 100% unbalanced three-phase loads, and switch seamlessly between on-grid and off-grid operation for backup power and black-start capability.

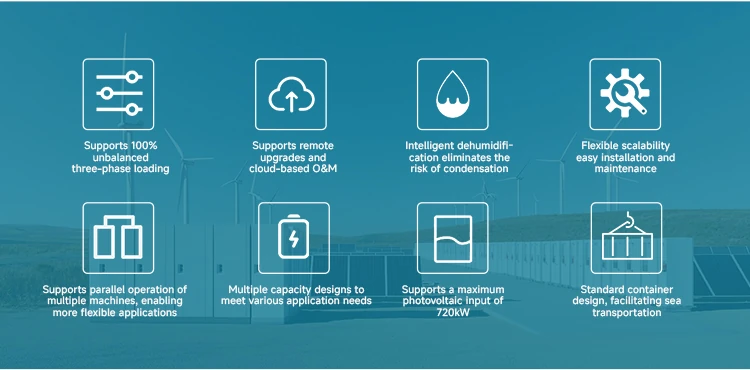

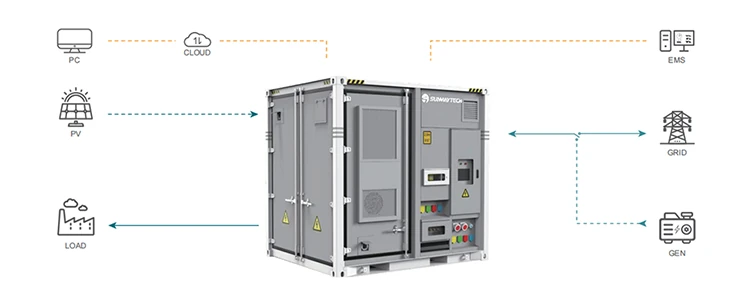

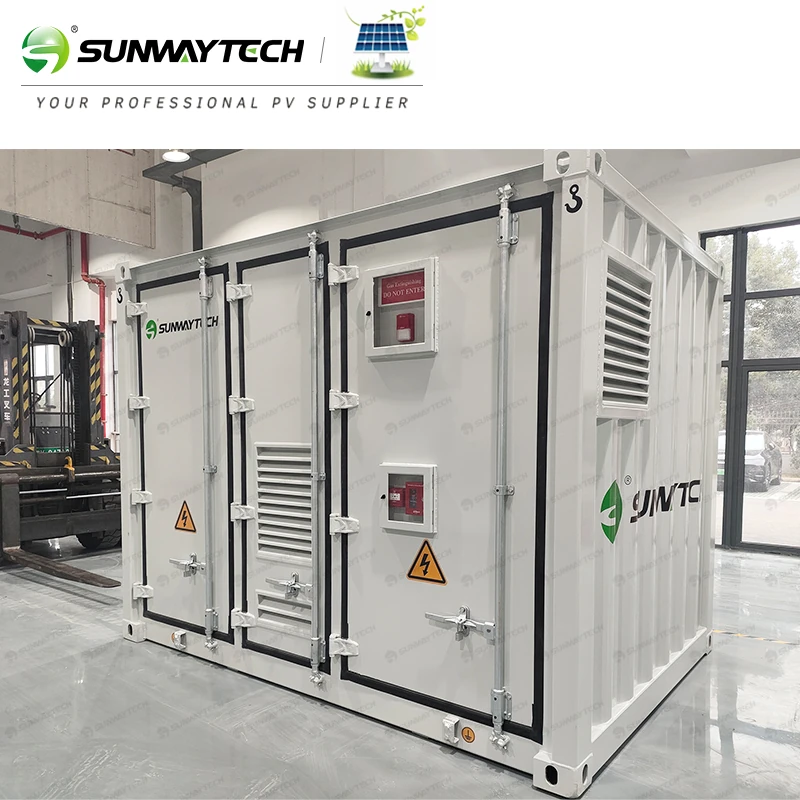

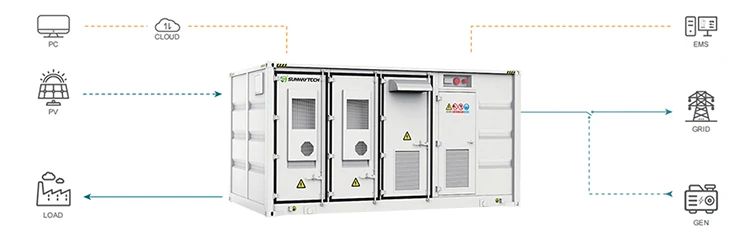

Each system is PV-ready with DC-coupled PV input — up to 360 kWp (external) on the H10 models and 720 kWp on the H20 model — and coordinates multiple power sources including PV, grid, load, and generator. Built in a standard container design for easy shipping, the cabinets are highly integrated and plug-and-play, with IP54 protection, intelligent dehumidification, isolation transformers on the H-series models, and liquid-cooled battery compartments on the H10 series to ensure reliable outdoor operation. Communication via RS485/Ethernet with Modbus and IEC104 supports remote monitoring, cloud EMS, and remote upgrades — making the H series a complete, scalable solution for medium-scale microgrids.

Model	SW-H10-250kW482kWh	SW-H10-250kW723kWh	SW-H20-500kW1205kWh
Battery Parameters
Charge/Discharge Rate	0.5C
Rated Battery Cell Capacity [Ah]	314
Rated Voltage [V]	768
Operating Voltage Range [V]	684~864
Rated Energy [kWh]	482	723	1205
Configuration	(1P240S) *2P	(1P240S) *3P	5P240S
AC Parameters (On Grid)
Rated Output Power [kw]	250		500
Rated Output Current [A]	360		721
Rated Grid Voltage [V]	3W/N/PE,230/400
Rated Grid Frequency [Hz]	50/60
Power Factor	1 (0.9 leading to 0.9 lagging)
THDi	≤3%(@ Rated power)
AC Parameters (Off Grid)
Rated Output Power [kW]	250		500
Rated Output Current [A]	360		721
Rated Output Voltage [V]	3W/N/PE,230/400
Rated Output Frequency[Hz]	50/60
Unbalanced Load Capability	100%
PV Input
PV Max. Input Power [kWp]	360		720
MPPT Max. Number	6		12
PV Input Voltage Range [V]	200~660
PV Max. Input Current [A]	6*150		12*150
General Parameters
Isolation Transformer	Yes
IP Rating	IP54
Cooling Method	Battery Compartment (Liquid-Cooled)/Electrical Compartment (Air-Cooled)		Air-Cooled
Fire Suppression System	Water-based Fire Protection		Aeroso
Relative Humidity	0~95%, Non-condensing
Temp. Range [PC]	-20~+50
Max. Operating Altitude [m]	4000 (>2000 Derating required)
Communication Interface	RS485, Ethernet
Communication Protocol	Modbus/IEC104
Weight [T]	≈8.1	≈9.8	≈20
Dimensions(WDH)[mm]	299124382896		605824382896
