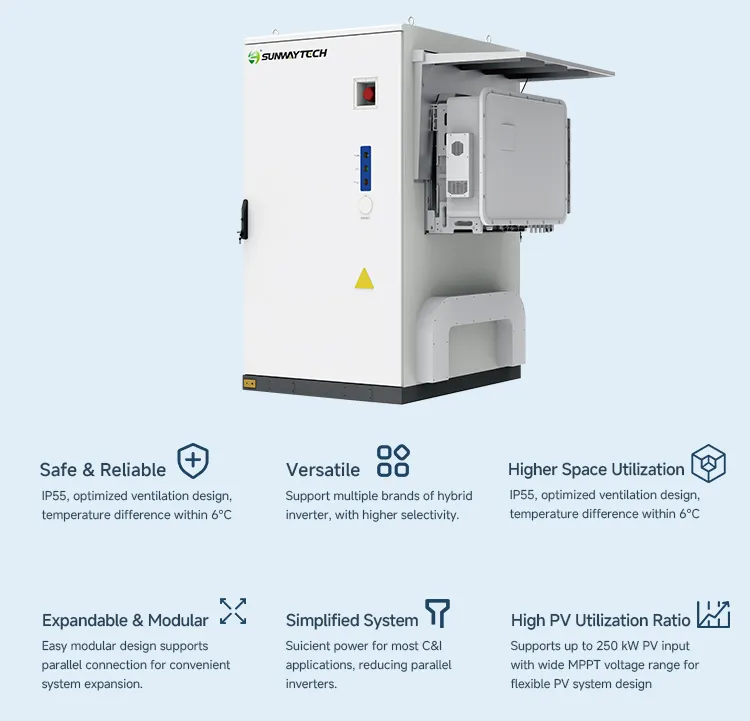

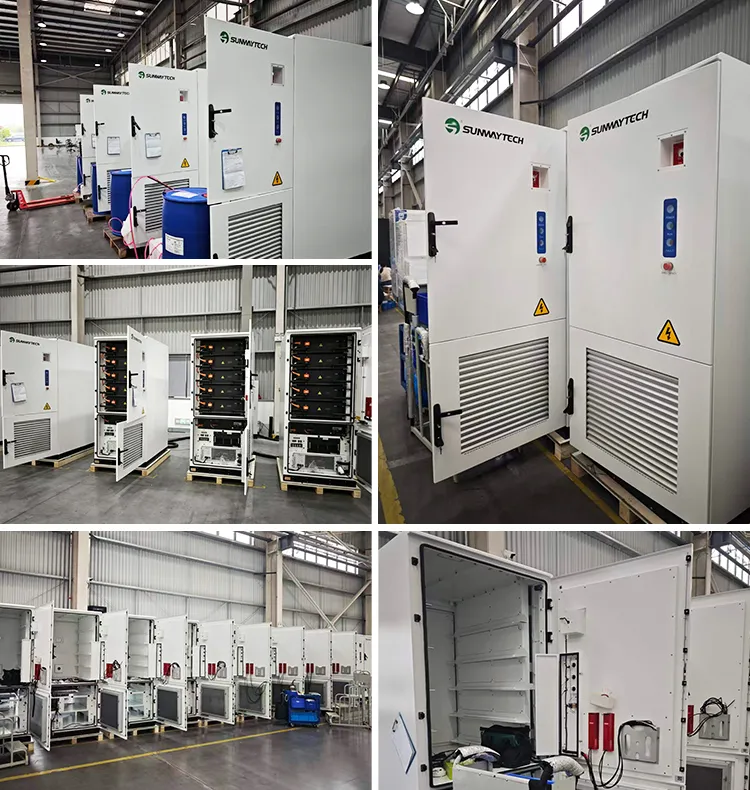

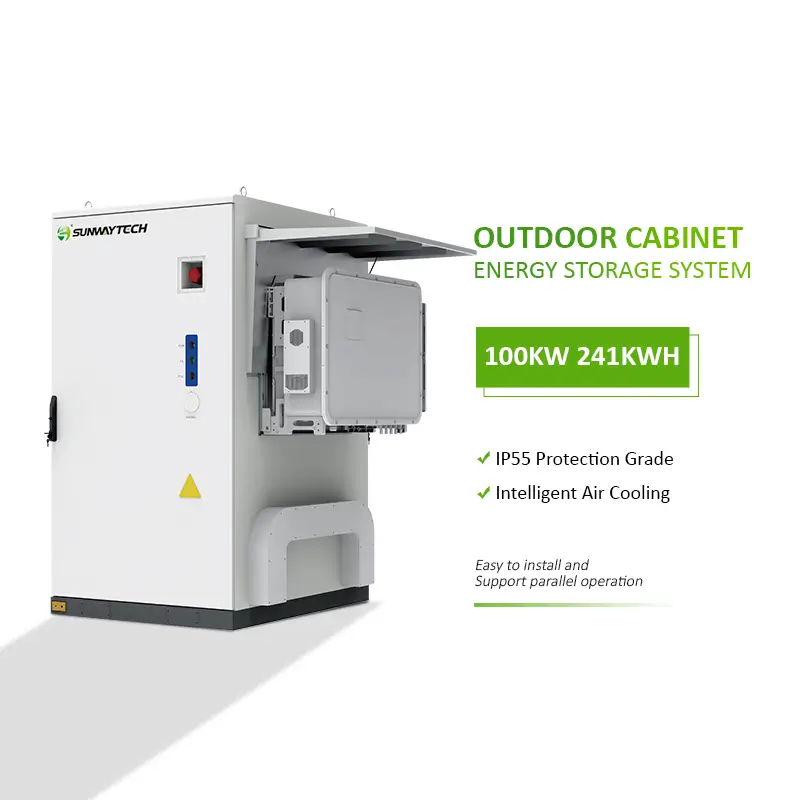

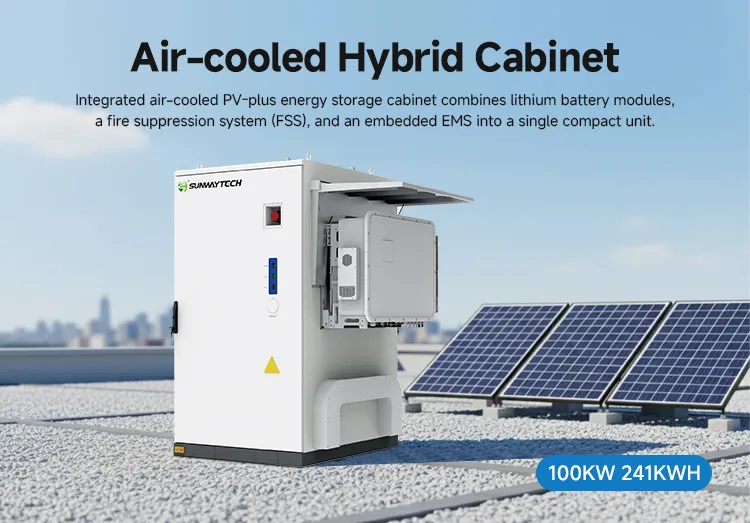

SUNWAY 100kW 241kWh Air-cooled Hybrid Cabinet

SW100KW241KWH is a 100 kW / 241 kWh commercial energy storage cabinet with long-life LFP cells, up to 200 kW of PV input, and IP55 air-cooled protection — built for reliable, grid-compliant energy management in commercial and industrial applications.

Rated Power	100 kW
Battery Capacity	241 kWh
Cell Type	LFP / 314 Ah
Cycle Life	≥ 8,000 cycles

SW100KW241KWH is a complete commercial and industrial energy storage system that pairs a 100 kW rated AC output with a 241 kWh battery cabinet in a compact, easy-to-deploy unit. Powered by high-safety LFP cells with 314 Ah capacity (1P240S configuration), the system runs at a rated DC voltage of 768 V (672–864 V), supports 0.5P charge/discharge, and delivers up to 100% depth of discharge with more than 8,000 cycles for dependable long-term performance.

The system is PV-ready, accepting up to 200 kW of solar input through 10 MPPT channels (150–850 V, 42 A each) — well suited for applications combining solar generation with peak shaving, load shifting, and backup power. Air-cooled and rated IP55 with C4 anticorrosion protection (C5 optional), it operates reliably from -25°C to 55°C and at altitudes up to 3,000 m. Communication is handled via Modbus TCP/IP, aerosol fire suppression is built in, and the unit meets international safety and grid standards including IEC 62619, IEC 63056, IEC 62477-1, EN 50549, G99, VDE-AR-N 4105, and NRS 097 — a safe, compliant, long-life choice for commercial and industrial energy storage.

SW100KW241KWH
System Parameter
Rated Power(kW)	100
Battery Capacitylkwh)	241

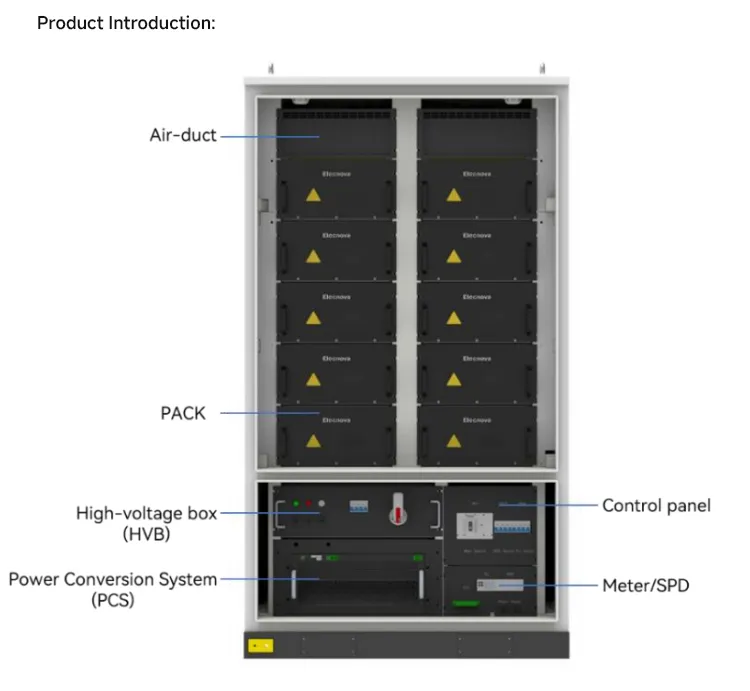

Battery Cabinet
Cell Type	LFP/314Ah
Pack Configuration	24.1 KWh / 1P24S
System Configuration	241 kWh /1P240S
Rated DC Voltage	768V
DC Voltage Range	672~864V
Max. Charge/Discharge Rate	0.5P
Max. Depth of Discharge	100%(25±2℃)
Cycle Life	≥8000 cycles
PV Input
Max. Input Power	200kW
PV Voltage Range	150～850V
MPPT	10
Max. Input Current	42A*10
AC Side
Rated Output Power	100kW
Rated AC Voltage	400V
AC Voltage Range	±15%
Grid Type	3W+N+PE
Rated Frequency	50Hz/60Hz
Power Factor	0.99/-0.8~+0.8
THDi	≤3%
DC Ratio	<0.5% Ipn
General
Max. Round Trip Eiciency	90%
Communication	Modbus TCP/IP
Fire Suppression System	Aerosol
Ingress Rating	IP55
Cooling	Air cooling
Operating Temperature	-25℃~55℃ (Derating after 45℃
Anticorrosion Rating	C4(C5 optional)
Humidity	0-95% RH (non-condensing)
Altitude	3000m (Derating above 2000m)
Dimensions (W"D*H)	125014502250mm
Weight(kg)	2670 kg
Safety/EMC	UN38.3, IEC62619,IEC63056, IEC62477-1, IEC61000-6-2/4
Grid Code	EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11
