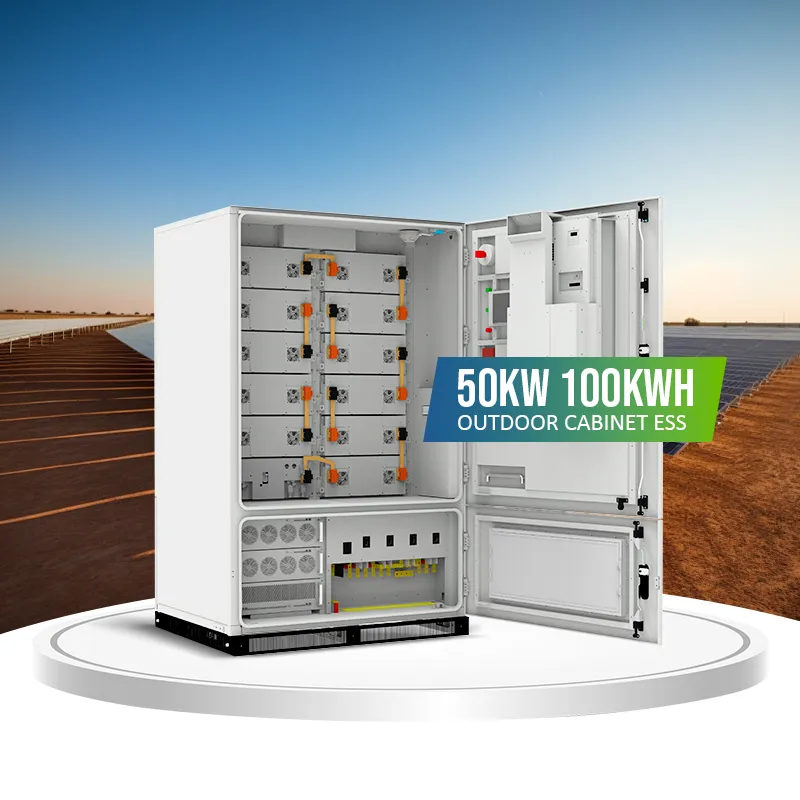

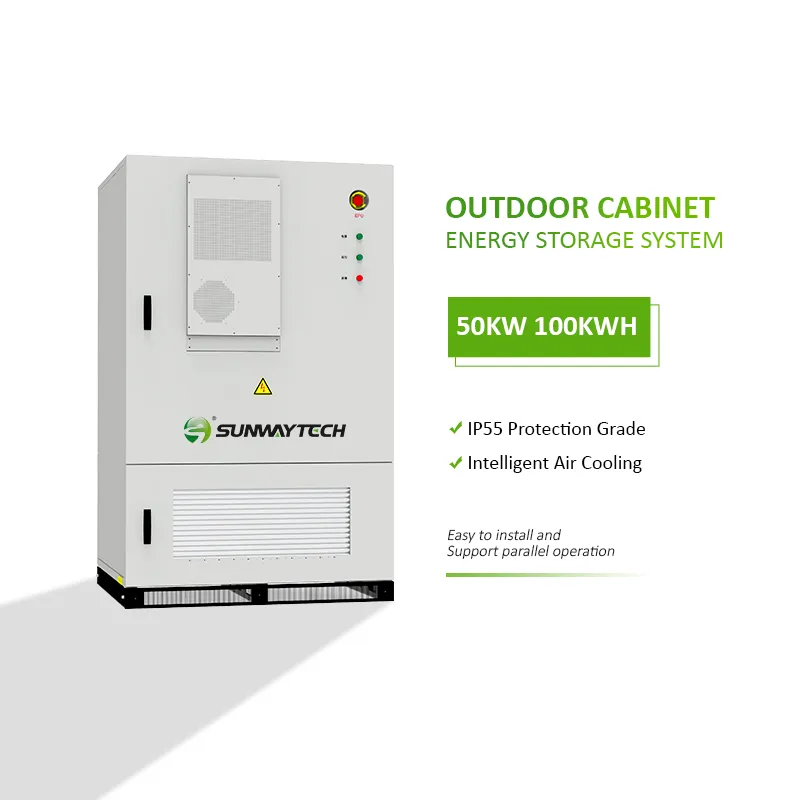

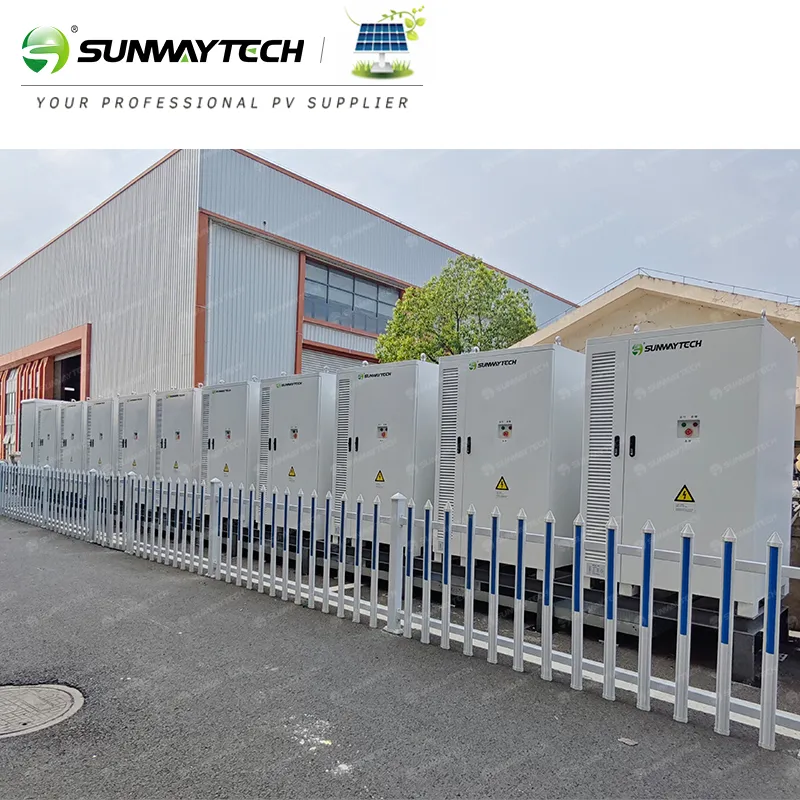

Sunway 50kW/100kWh outdoor solar energy storage system integrates robust components into a single, versatile solution designed for demanding applications.
A reliable 50kW battery storage solution that provides dependable power for a wide range of commercial and industrial applications.
| Model Number | SWMonet-50C |
| Battery Rated Energy Storage Capacity | 100kWh |
| System Voltage Range | 739 V – 950.4 V |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Communication Protocols | CAN, Ethernet, RS485 |

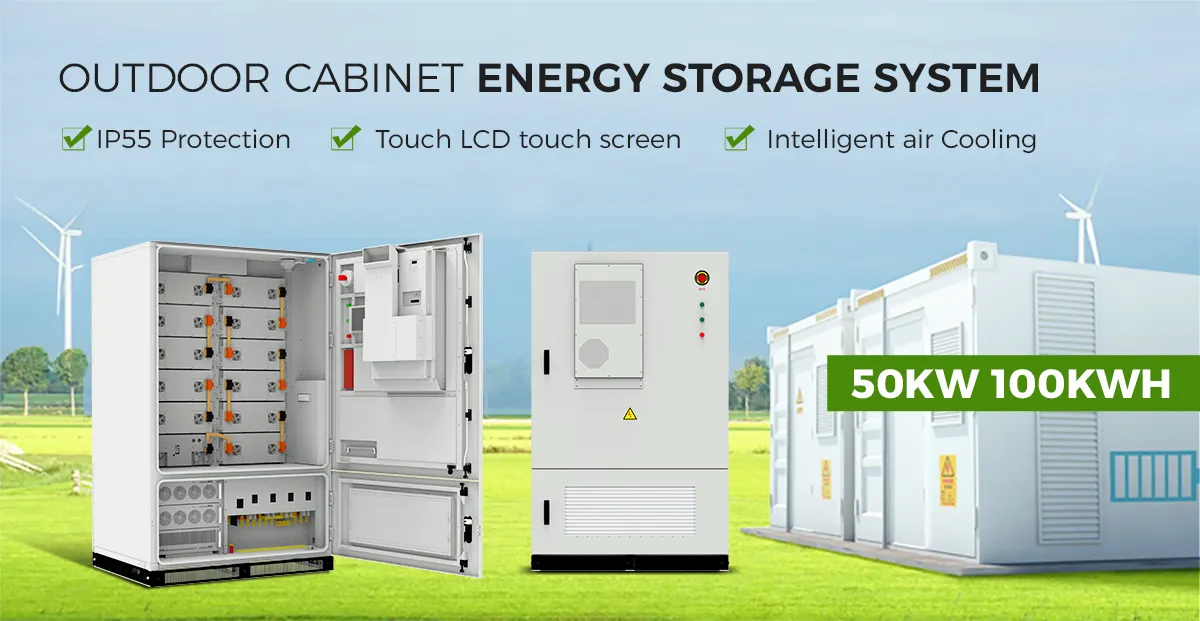

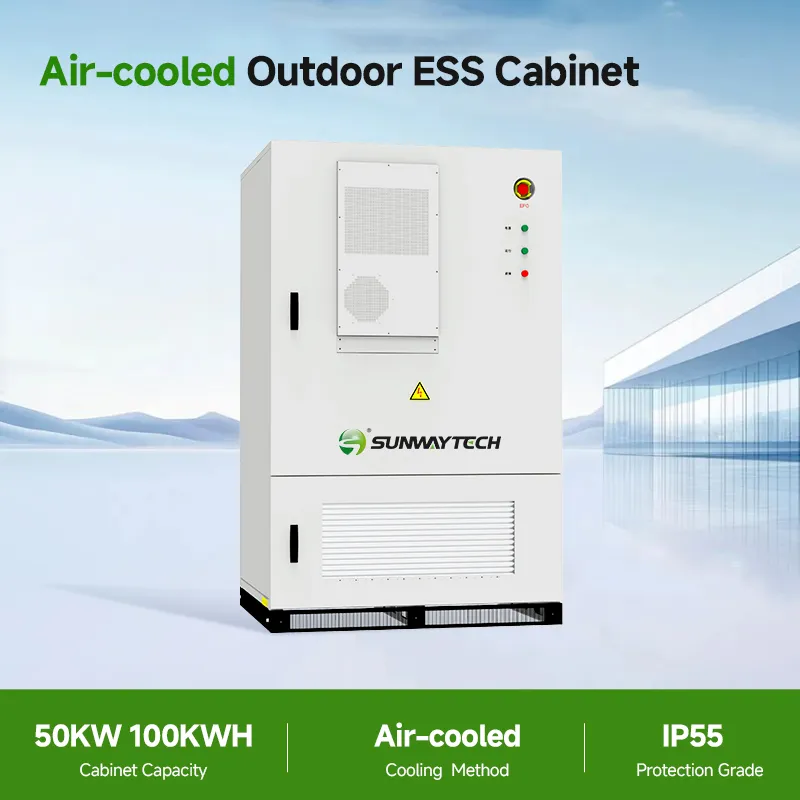

Key Features of Sunway 50kW/100kWh Air cooling Outdoor Energy Storage System
Engineered by the top solar system manufacturer in China, this Sunway Solar system integrates critical components into a robust, user-centric design for reliable performance.

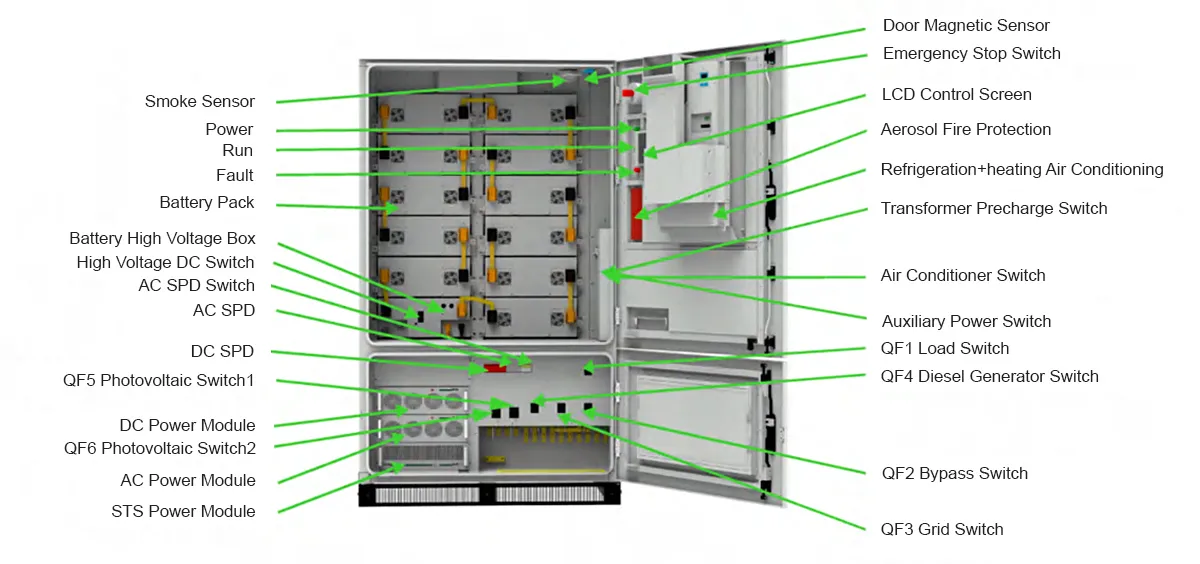

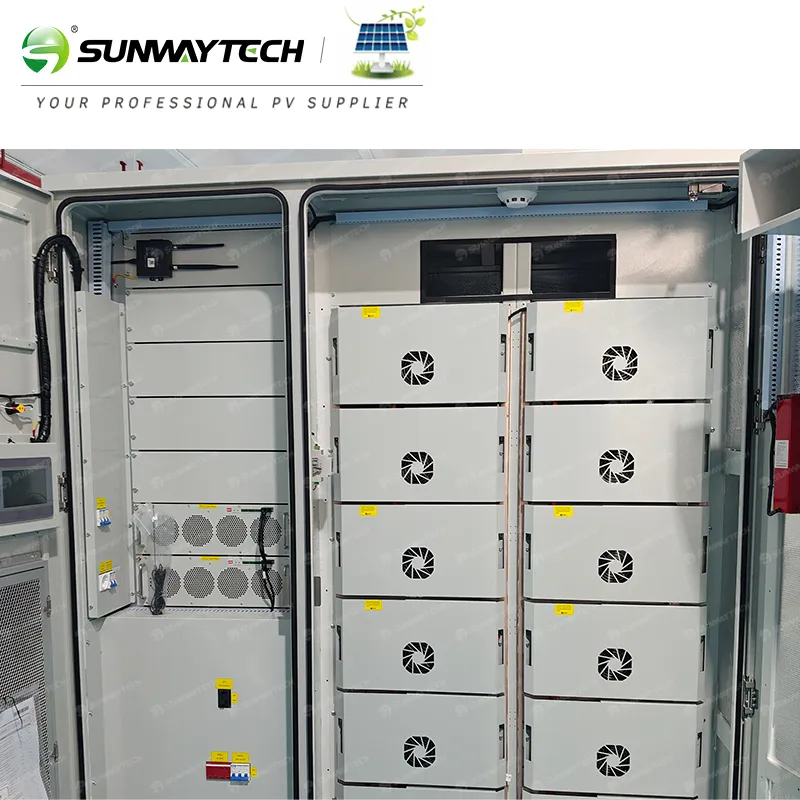

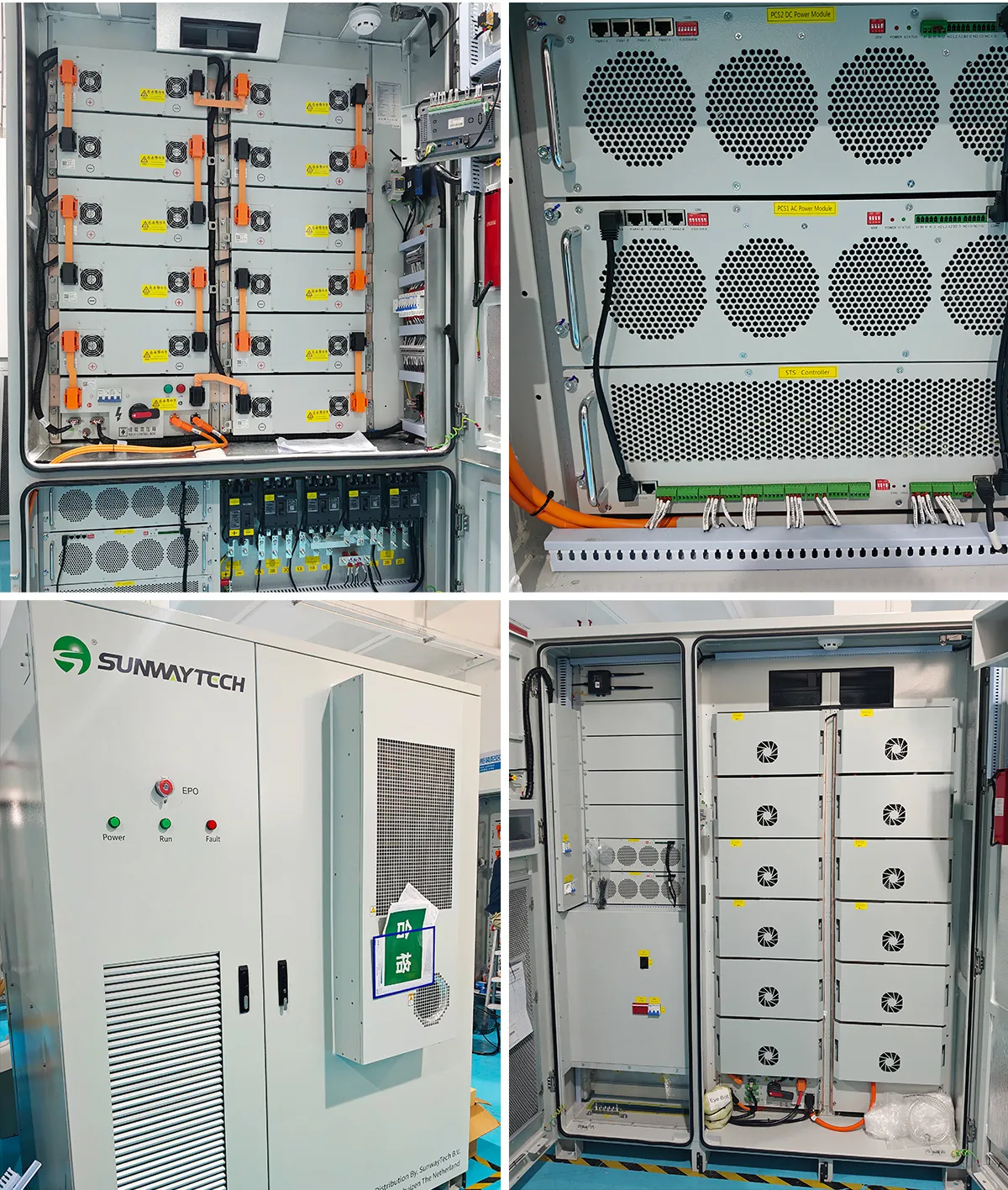

Integrates LFP batteries, modular PCS, EMS, BMS, power distribution, environmental control, and fire protection in one compact and secure unit, forming a reliable LFP battery system.
Features an easily expandable capacity with a modular PCS design, supporting diverse application needs and future growth, ideal for scalable solar energy storage system applications.
Front-access maintenance reduces installation footprint and simplifies ongoing servicing, ideal for an outdoor solar energy storage system.
This Sunway Solar system ensures reliable performance, real-time monitoring, and enables rapid deployment.
Optimized for commercial solar energy storage and industrial use, delivering 50kW rated AC power and 100kWh battery capacity as a robust 50kW battery storage solution
| PERFORMANCE PARAMETER | |
| Energy Storage System | SWMonet-50C |
| Battery Rated Energy Storage Capacity | 100kWh |
| System Rated Voltage | 844.8V |
| System Voltage Range | 739V~950.4V |
| PVVoltage Range | 250~600V(MPPT) |
| PV Maximum Current | 160A |
| PV MPPT Path Number | 2 |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Battery Pack Series and Parallel Connection | 1p*24S*115 |
| Maximum Charge and Discharge Current | 120A |
| Rated AC Power | 50kW |
| Rated AC Current | 72A |
| Rated AC Voltage | 400V,3W+N+PE |
| Rated AC Frequency | 50Hz |
| Current Total Harmonic Distortion Rate THDI | <3%(rated power) |
| Power Factor | -1 lead~+1 lag |
| Voltage Total Harmonic Distortion THDU | <3%(linear load) |
| Degree of Protection | IP55 |
| Protection Level | / |
| Isolation Method | Transformer isolation |
| Power Consumption During Shutdown | <100W(without transformer) |
| Show | Touch LCD touch screen |
| Relative Humidity | 0~95%(no condensation) |
| Noise | <78dB |
| Ambient Temperature | -25°C~60C(Derating above 45°C) |
| Cooling Method | Intelligent air Cooling |
| Altitude | 2000m(>2000m derating) |
| BMS Communication | CAN |
| EMS Communication | Ethernet/485 |

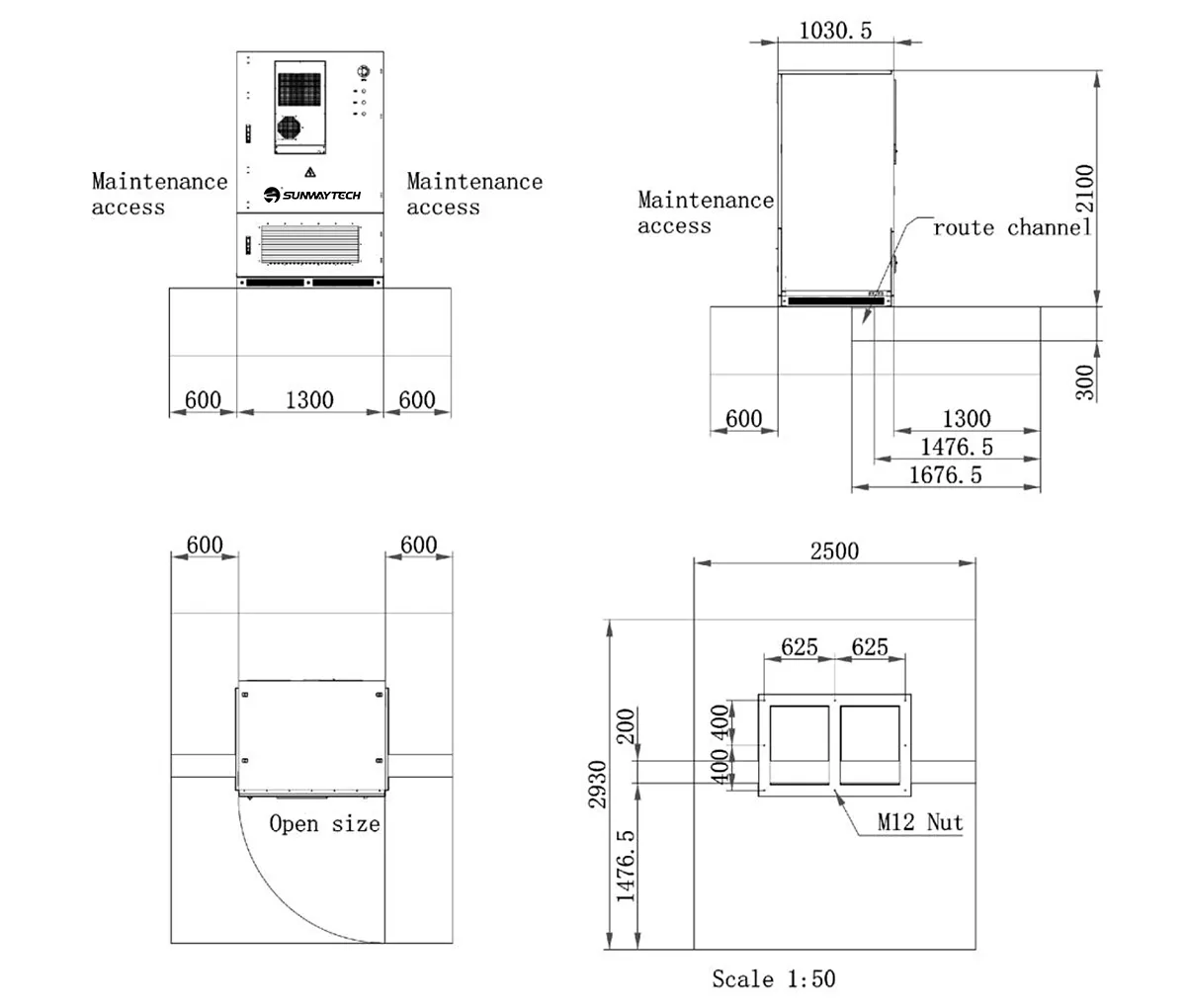

| Dimensions(W*D*H) | 1300*1000*2100mm |
| Weight(approx.) | 2000kg |
| Battery System | |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Nominal Voltage | 3.2V |
| Voltage Range | 2.8V~3.6V |
| Nominal Capacity | 120Ah |
| Maximum Operating Temperature Range(charging) | 0~45°C |
| Maximum Operating Temperature Range(discharging) | -10~50°C |
| Cell Series and Parallel Connection | 1P24S |
| Rated Energy | 9.216kWh |
| Nominal Voltage | 76.8V |
| Voltage Range | 60V~87.6V |
| Weight(approx.) | 85kg |
| Overall dimensions(W*D*H) | 527*676*202mm |
| Rated Energy Storage | 100kWh |
| System Rated Voltage | 844.8V |
| System Voltage Range | 739V~950.4V |
| Series and Parallel Mode | 1P*245*115 |
| Number of Electrical Boxes Included | 11 |
| Weight(approx.) | 935kg |
