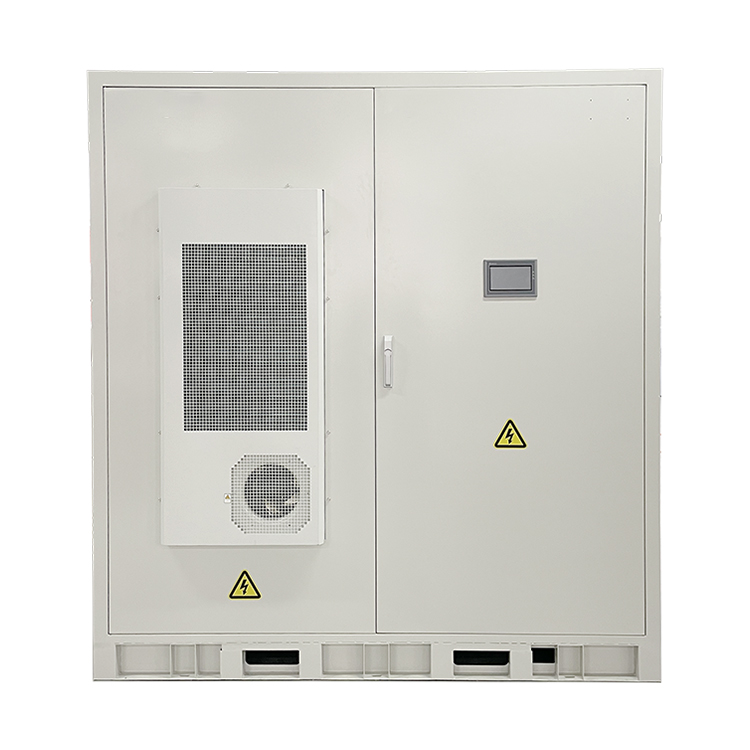

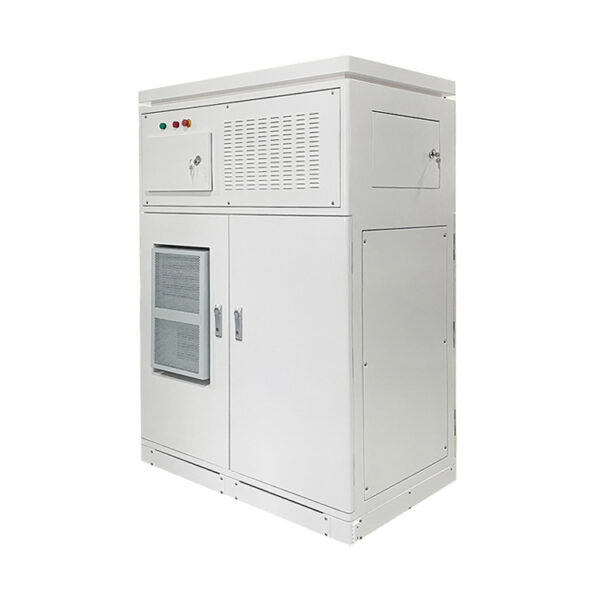

Energy Storage 30-86KWH Hybrid Lithium Battery Solar Power System 100kw with EMS
| Model Number: | LFP3048 |
| Capacity： | 48KWH |
| Battery Rated Voltage: | 460V |
| Dimensions（mm）: | 1220*860*1850 |
| Weight（kg）: | 750 |

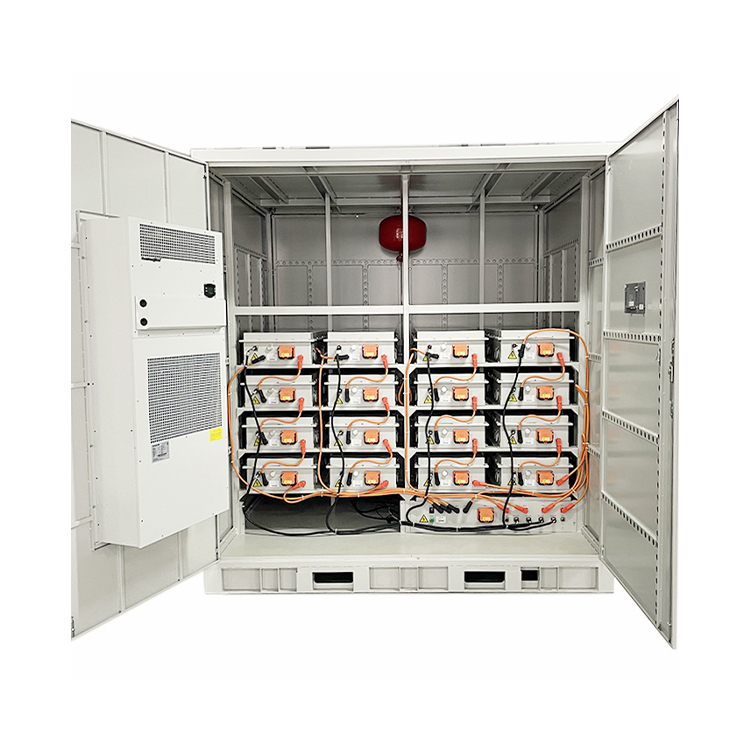

1.The integrated cabinet design of on-grid and off-grid supports a maximum of eight parallel units on the power grid
|
Catagory
|
Project
|
Product model
|
|||||
|
3032
|
3040
|
3048
|
3064
|
3075
|
3086
|
||
|
Battery
|
Cell type
|
Lithium iron phosphate
|
|||||
|
Cell capacity(Ah)
|
105
|
210
|
|||||
|
Cell nominal voltage (V)
|
3.2
|
||||||
|
Battery capacity (kWh)
|
32.256
|
40.32
|
48.384
|
64.512
|
75.264
|
86.016
|
|
|
Voltage range(V)
|
273.6~340.8
|
273.6~340.8
|
342~
426
|
410.4~511.2
|
319.2~397.6
|
364.8~454.4
|
|
|
Maximum charging /discharging current (A)
|
52.5
|
97
|
83
|
73
|
|||
|
Maximum charging /discharging power (kW)
|
16
|
20
|
24
|
30
|
30
|
30
|
|
|
Life cycle(25℃,85%DOD)
|
≥6000
|
||||||
|
Photovoltaic (pv) interface
|
Maximum DC input voltage(V)
|
850
|
|||||
|
MPPT Operating voltage range (V)
|
150~550
|
||||||
|
Starting voltage (V)
|
150
|
||||||
|
Maximum input current (A)
|
100
|
||||||
|
Maximum DC input power (kW)
|
30
|
||||||
|
MPPT input numb
|
1
|
||||||
|
MPPT efficiency
|
≥99%
|
||||||
|
AC side
|
Rated input power (kW)
|
30
|
|||||
|
Input type
|
three phase five wire system
|
||||||
|
Rated voltage (Vac)
|
380 ±15%
|
||||||
|
Rated current (A)
|
45
|
||||||
|
Rated frequency and range (Hz)
|
50/60
|
||||||
|
Power factory adjustment range
|
±1
|
||||||
|
Harmonic content THDi
|
≤3%
|
||||||
|
System Working mode
|
Grid mode
|
Self-use / peak cutting and valley filling /power backup
|
|||||
|
Off grid mode
|
Y
|
||||||
|
Others
|
Maximum net weight of system (kg)
|
650
|
700
|
750
|
870
|
950
|
1030
|
|
System size (mm)
|
1220*860*1850
|
||||||
|
Installation
|
Ground mounted
|
||||||
|
Protaction grade
|
IP65
|
||||||
|
Operating temperature
|
-10℃~45℃
|
||||||
|
Storage temperature
|
-20℃~55℃
|
||||||
|
Relative humidity
|
0~95%
|
||||||
|
Working altitude
|
Altitude < 2000m, no derating
|
||||||
|

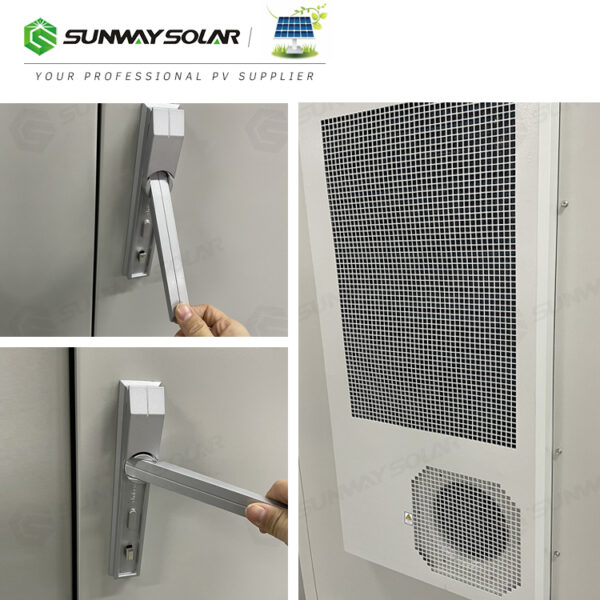

Temperature control mode
|
air conditioner
|
||||||
|
Fire control mode
|
FM200
|
||||||
|
Noise level
|
≤50dB
|
||||||
|
DC Breaker
|
630/ 1500/ 1250A |
