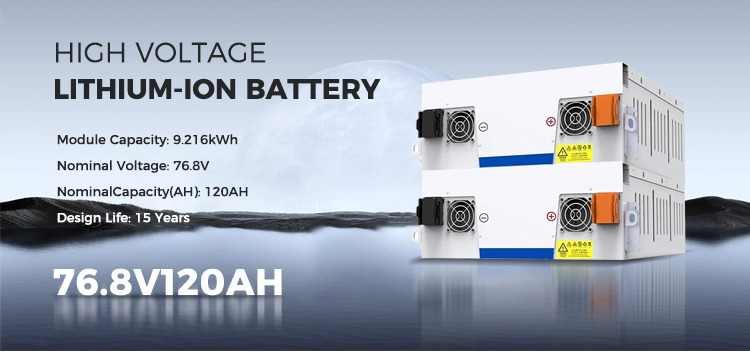

Capacity(kWh)
|
9.216
|
Nominal Voltage(Vdc)
|
76.8
|
Nominal Capacity(AH)
|
120
|
Dimension(W* D* H,mm
|
468×642×202(±5)
|
Design Life
|
15+ years (25℃)
|
Communication
|
CANBUS/Modbus RTU/TCP/IP
|
Weight(kg)
|
86g± 1kg
|
High energy density: Rack-mounted high-voltage lithium batteries have high energy density, which means they are capable of storing large amounts of energy in a relatively small physical space. This makes it a compact option for energy storage systems, especially in limited space
Customizability: Rack-mounted high-voltage lithium batteries can be customized to meet specific needs. You can select battery capacity, voltage, and other parameters to meet the needs of your specific application.
High-voltage design: High-voltage lithium batteries typically have higher voltages, which means they can operate at higher voltages, reducing transmission losses. This is advantageous for applications that require transporting energy over long distances away from the source of the energy source.
Reliability: Multiple protection measures are adopted to ensure its reliability and safety under different environmental conditions. This includes overcharge, over-discharge, over-temperature, short-circuit and other protection functions.
Sustainable energy integration: Rack-mounted high-voltage lithium batteries can be integrated with renewable energy systems (solar, wind, etc.) to store and balance unstable energy supplies, thereby achieving more sustainable energy utilization.
Capacity(kWh)
|
9.216
|
Nominal Voltage(Vdc)
|
76.8
|
Nominal Capacity(AH)
|
120
|
Voltage Range(Vdc)
|
67.2~86.4
|
Depth of Discharge
|
90%
|
Dimension(W* D* H,mm
|
468×642×202(±5)
|
Design Life
|
15+ years (25℃)
|
Cycle Life
|
> 6000 (25℃)
|
Communication
|
CANBUS/Modbus RTU/TCP/IP
|
Protection Class
|
IP20
|
Weight(kg)
|
86g± 1kg
|
Operation TemperatureStorage
|
0~50℃
|
Temperature
|
-20~60 ℃
|
Product Certificate
|
UN38 .3
|
Single Module Capacity |
5.12kwh
|
Nominal Voltage | 51.2V |
Installation Method | Stacked mode |
Dimension/module | 600*440*200mm |
Communication Protocol | CAN/RS485/RS232(WIFI Optional) |
Cell Type | LFP |
Power Bank Solar residential storage 51.2V 100Ah 150Ah 200Ah LiFePO4 Lithium Battery pack
Model Number: | SWB48150 |
Capacity: | 7680WH |
Battery Rated Voltage: | 51.2V |
Dimensions(mm): | 480*678*178 |
Weight(kg): | 60 |
china supplier 51.2V 55Ah 150Ah 2.8Kwh 7.6Kwh high energy lto lithium titanate lifepo4 battery
Model Number: | Ground ECO2800 |
Capacity: | 2.8kWH |
Battery Rated Voltage: | 51.2V |
Dimensions(mm): | 480*280*210 |
Weight(kg): | 30 |
New Arrival 51.2V 2.5kWh 5kWh 10kWh 20kWh Sunway Stack Lithium Battery Energy Storage Battery
Model Number: | SW48B-HV-2500 |
Capacity: | 2.5-20KWH |
Battery Rated Voltage: | 48-384V |
Dimensions(mm): | 580*220*202.5 |
Weight(kg): | 23.5 |
