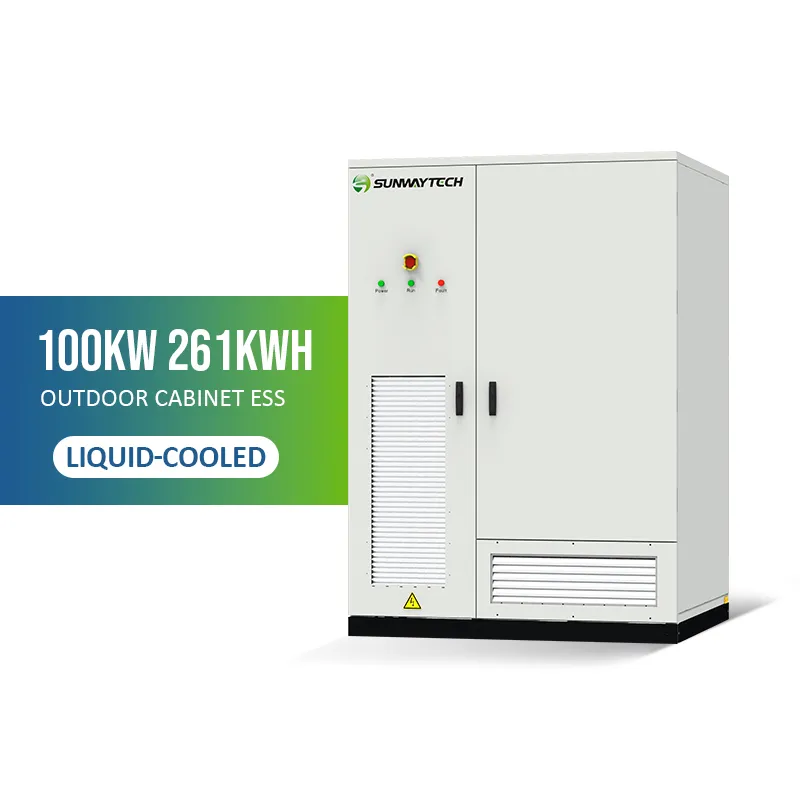

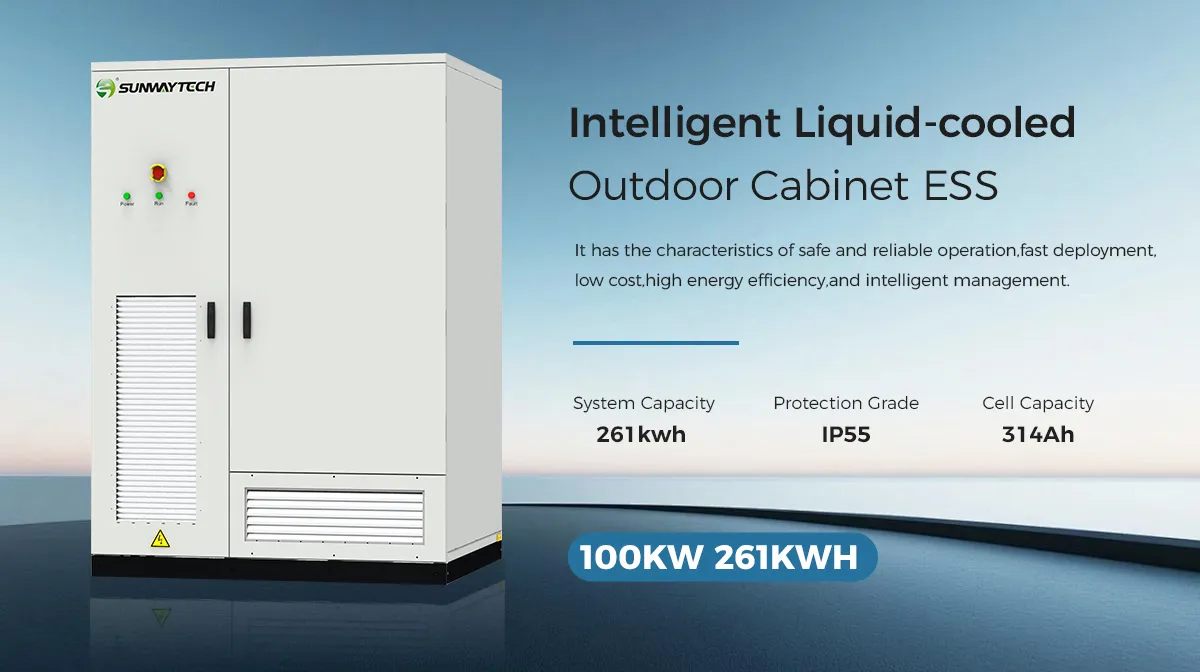

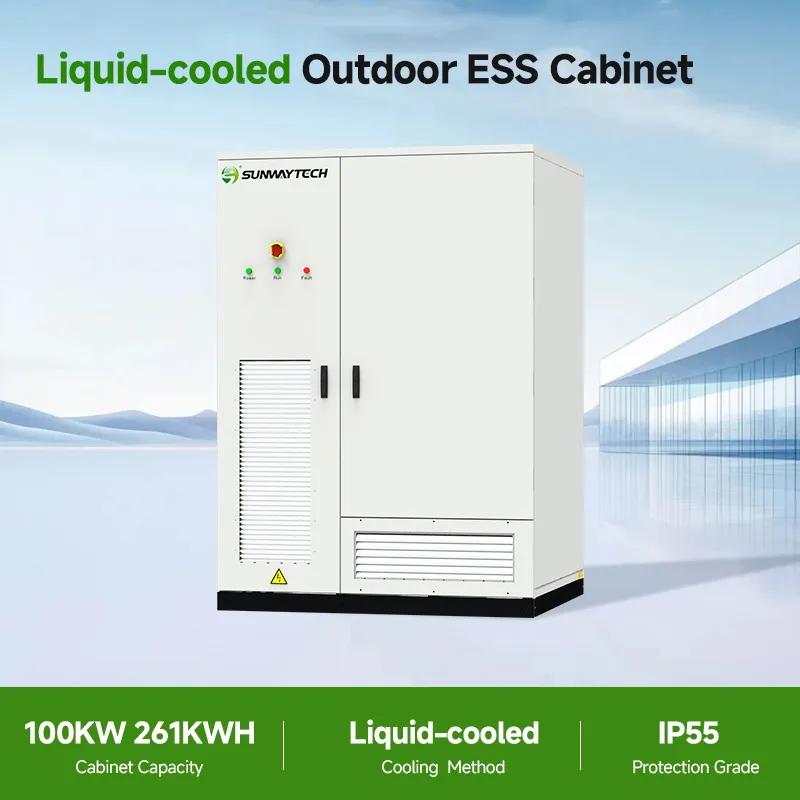

Engineered for high-capacity commercial energy storage and industrial energy storage applications, this all-in-one liquid-cooled energy storage system delivers integrated power and safety:
| Model Number | SWMonet-125CL |
| Battery Capacity | 261 kWh |
| System Voltage Range | 728 V – 936 V |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Communication Protocols | CAN, Ethernet, RS485 |
Key Features of the Sunway 100kW/261kWh Liquid-Cooled Energy Storage System:
This liquid-cooled energy storage system is engineered for demanding applications by the top solar energy storage supplier in China, including robust solar energy storage, integrating high performance, safety, and intelligence into a single solution.
Delivers 125 kW of rated AC power and 261 kWh of energy capacity, providing reliable support for large-scale industrial and commercial energy storage needs.

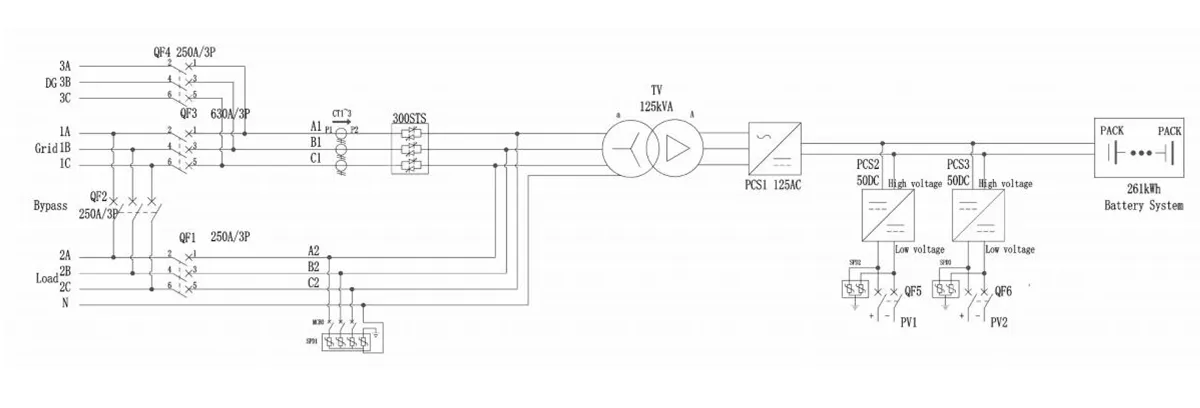

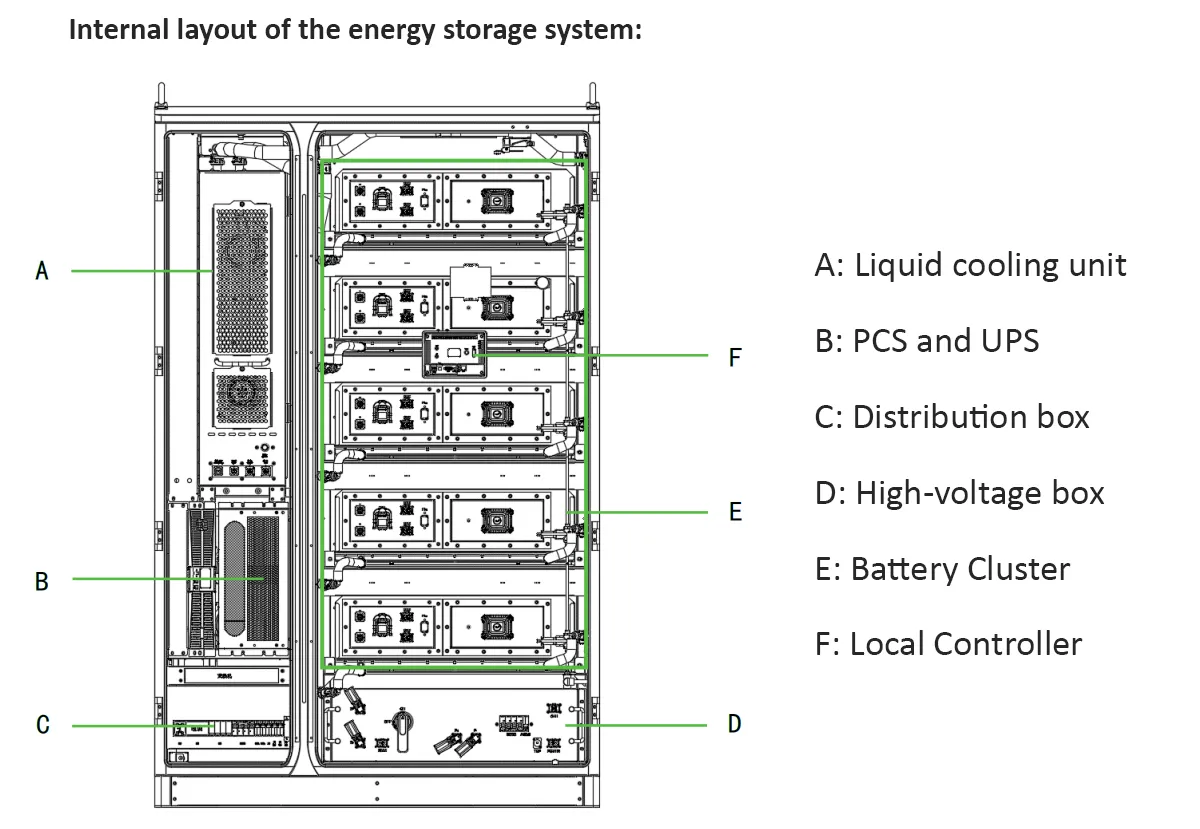

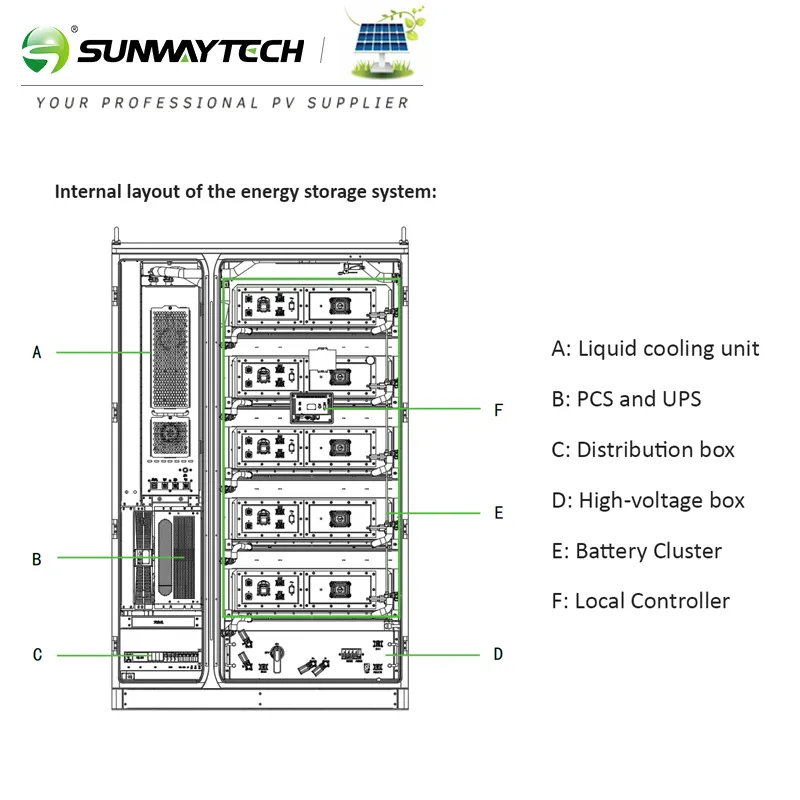

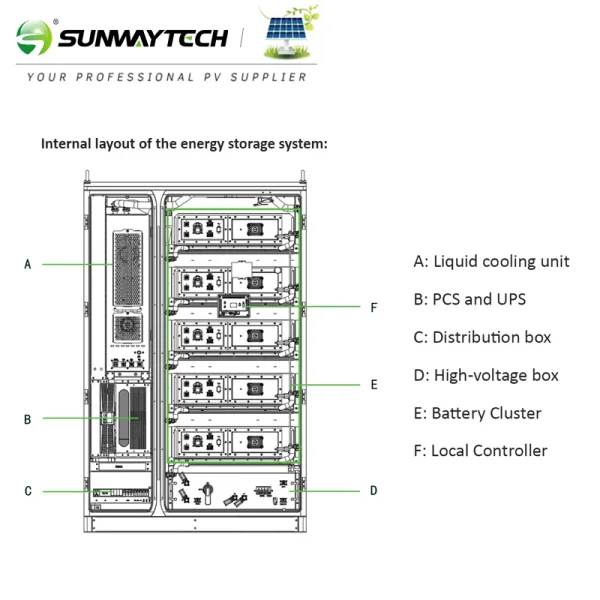

The advanced outdoor solar energy storage system that integrates LFP batteries, modular PCS, EMS/BMS, power distribution, fire suppression, and environmental control systems into a unified, compact enclosure, purpose-built for reliable commercial, industrial, and other outdoor operations.
Advanced Liquid Cooling
Delivers advanced battery energy storage solutions by employing intelligent thermal management to enhance efficiency and extend battery life under demanding operating conditions.
High Protection & Safety
Designed for dependable solar energy storage, our liquid-cooled energy storage system features an IP55 protection rating, transformer isolation, and comprehensive system monitoring to ensure maximum reliability.
Smart & Scalable:
Engineered for scalable commercial energy storage, it supports real-time communication via CAN, Ethernet, and RS485, and features a modular design for seamless future capacity expansion.
Pre-assembled & Pre-tested:
Factory-integrated and commissioned, this 100kW battery storage solution arrives ready to install, minimizing on-site labor and complexity across various projects.
As a comprehensive battery energy storage solutions provider, this system is a powerful and safe outdoor solar energy storage system ready for challenging environments.
| PERFORMANCE PARAMETER | |
| Battery Parameters | SWMonet-125CL |
| Battery Rated Capacity | 261kWh |
| Battery Rated Voltage | 832V |
| Battery Voltage Range | 728V~936V |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Battery Cell Capacity | 1p*52S*5S |
| Cell Capacity | 314Ah |
| Max.Charging/Discharging Power | 0.5P |
| Max.Charge/Discharge Current | 157A |
| Photovoltaic Parameters | |
| Rated Power | 100kW |
| PV Voltage Range | 250~500V(MPPT) |
| PV Max.Current | 160A*2 |
| MPPT Quantity | 2 |
| AC Parameters | |
| Rated AC Power | 125kw |
| Rated AC Current | 180A |
| Rated AC Voltage | 400V，3W+N+PE |
| Rated AC Frequency | 50/60Hz |
| THDi | <3(Rated power) |
| Power Factor | 1 leading to +1 lagging |
| THDv | <3%(linear load) |
| Protection Level | IP55 |
| Isolation Mode | Isolation transformer |
| Shutdown Self-discharge | <100W(Without transformer) |
| Display | LCD |
| Relative Humidity | 0~95%(No condensation) |
| Noise | <78dB |
| Ambient Temperature | -25°C~+60°C(Derating above 45°C) |
| Cooling Mode | Intelligent liquid-cooled |
| Altitude | 3000m(>2000m derating) |
| BMS Communication | CAN |
| EMS Communication | Ethernet/485 |

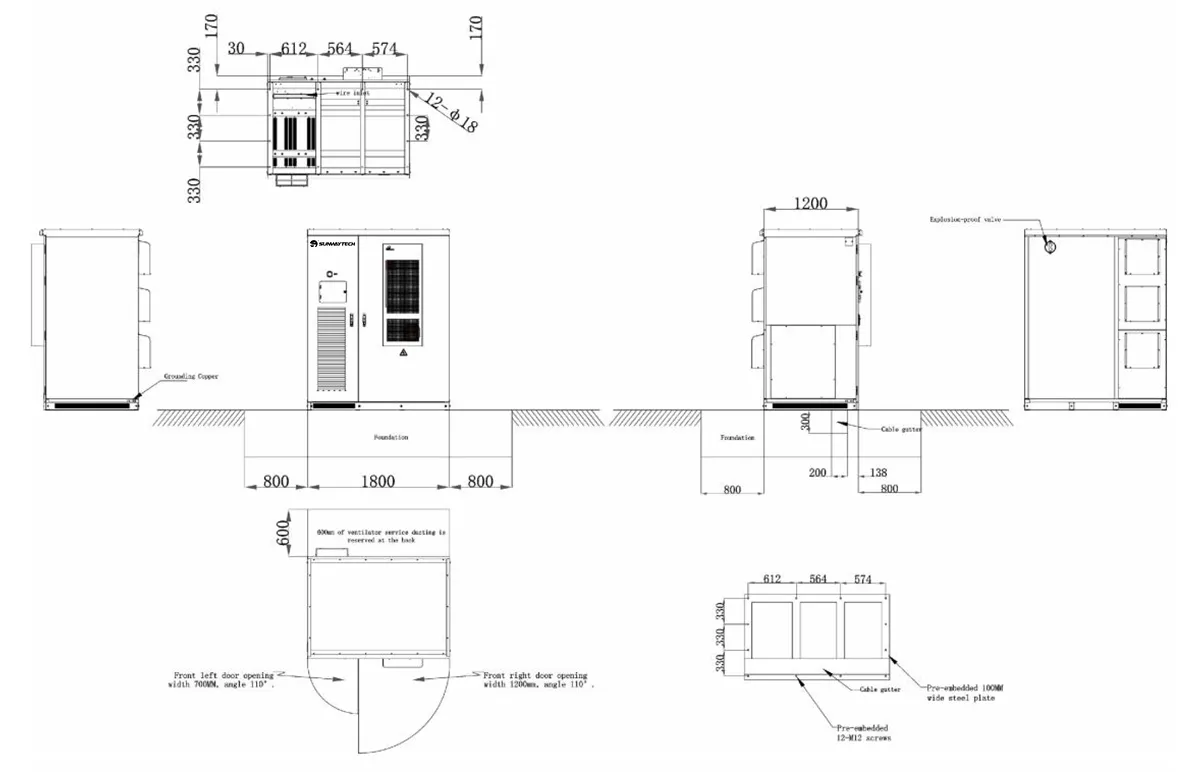

| Dimension(W*D*H) | 1600*1350*2300mm |
| Weight(approx.) | 3330kg |
