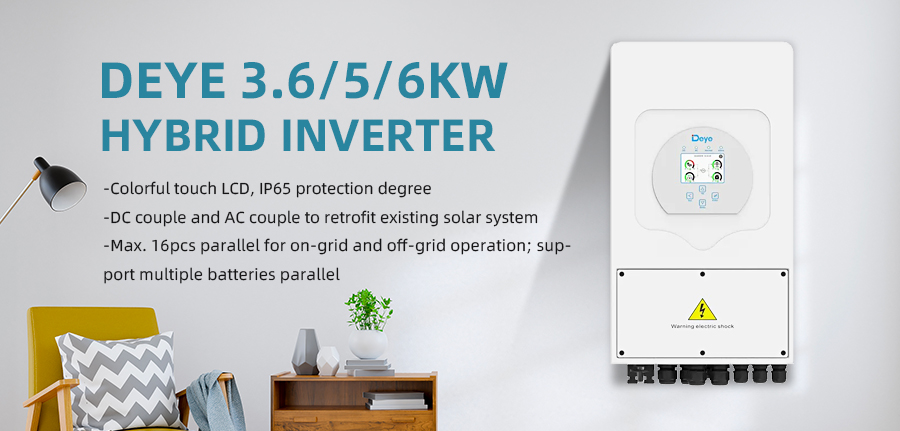

Sunway Deye 3.6kw 5kw 6kw 230V Single Phase Hybrid Solar Inverter

Hybrid Inverter

SUN 3.6/6K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.

During the day, the PV system generates electricity which will be provided to the loads initially.

Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it.

The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It equipped with RS485/CAN port for battery communication

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete  running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.

Model	SUN-3.6K-SG03LP1-EU	SUN-5K-SG03LP1-EU	SUN-6K-SG03LP1-EU
Battery Input Date
Battery Type	Lead-acid or Li-Lon
Battery Voltage Range(V)	40~60
Max.Charging Current(A)	90	120	135
Max.Discharging Current(A)	90	120	135
External Temperature Sebsor	Yes
Charging Curve	3 Stages/Equalization
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Date
Max.DC Input Power(W)	4680	6500	7800
Rated PV Input Voltage(V)	370(125~500)
Start-up Voltage(V)	125
MPPT Voltage Range(V)	150-425
Full Load DC Voltage Range(V)	300-425
PV Input Current(A)	13+13
Max.PV ISC(A)	17+17
Number of MPPT/Strings per MPPT	2/1+1

AC Output Date
Rated AC Output and UPS Power(W)	3600	5000	6000
Max.AC Output Power(W)	3690	5500	6600
AC Output Rated Current (A)	16.4	22.7	27.3
Max. AC Current (A)	18	25	30
Max. Continuous AC Passthrough (A)	35		40
Peak Power (off grid)	2 time of rated power, 10 S
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type	Single Phase
DC injection current (mA)	THD<3% (Linear load<1.5%)
General Data
Operating Temperature Range (°C)	-45~60°C, >45°C derating
Cooling	Natural cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	20.5
Size (mm)	330W x 580H x232D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

Why Choose Deye Solar inverters?

1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9

own subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.

2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters

3.All Deye Solar inverters can be found in PV Solar system

4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company

5.All Deye Solar inverters are equipped with Standard WiFi communication

6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)
