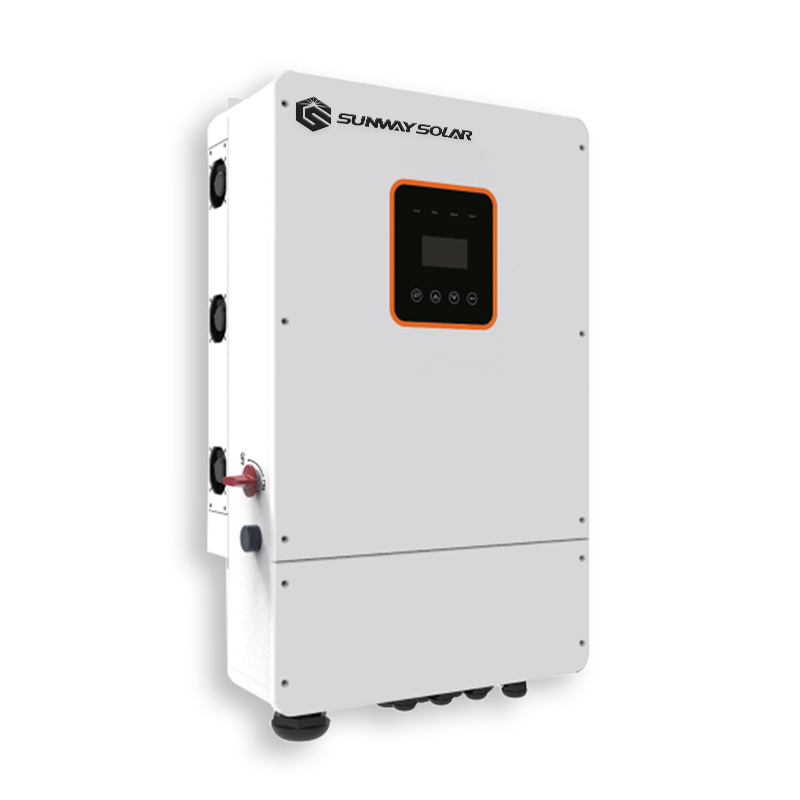

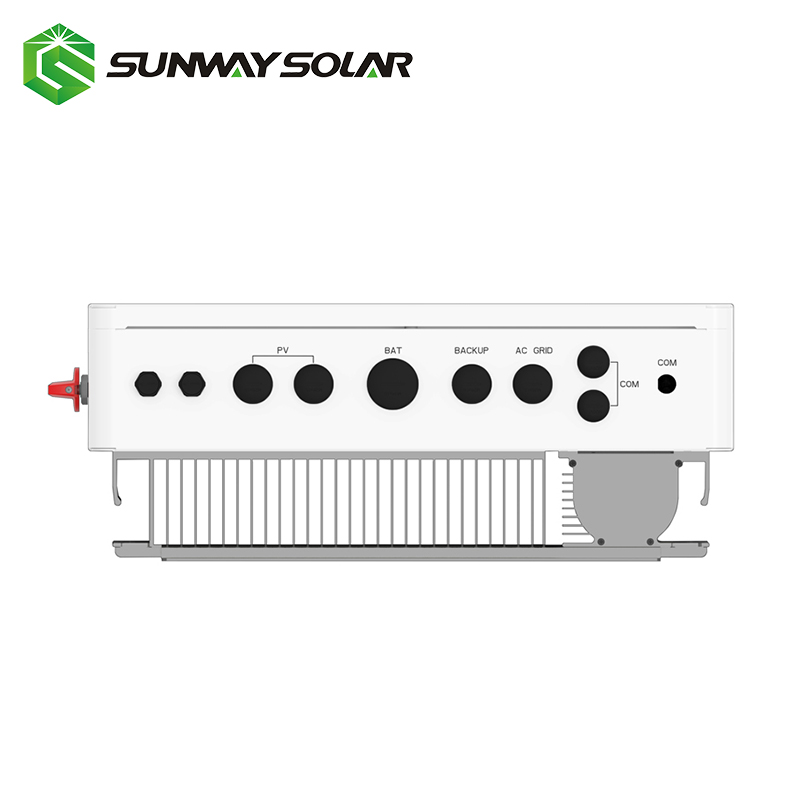

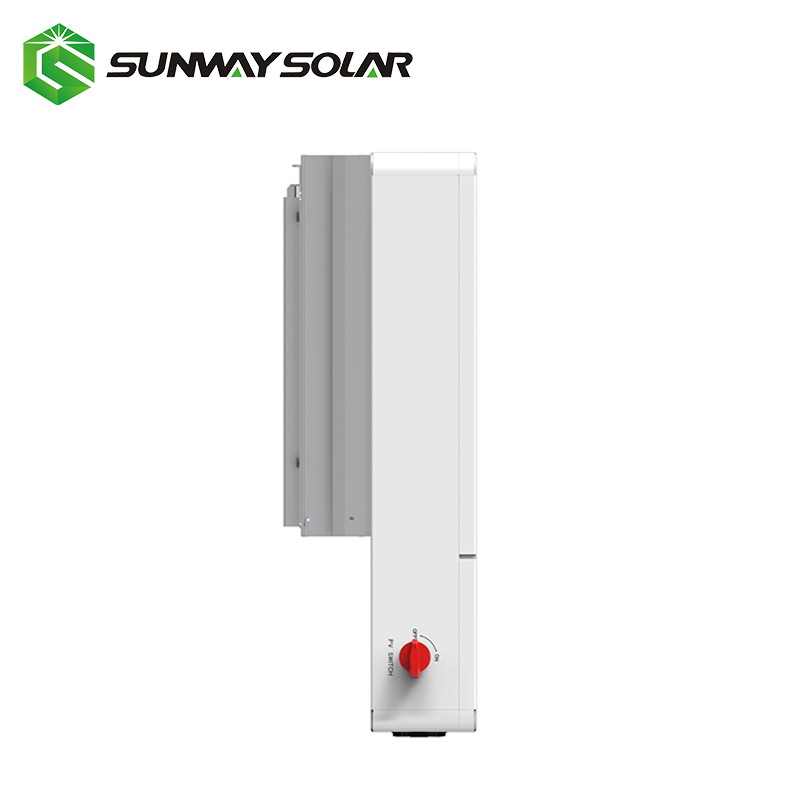

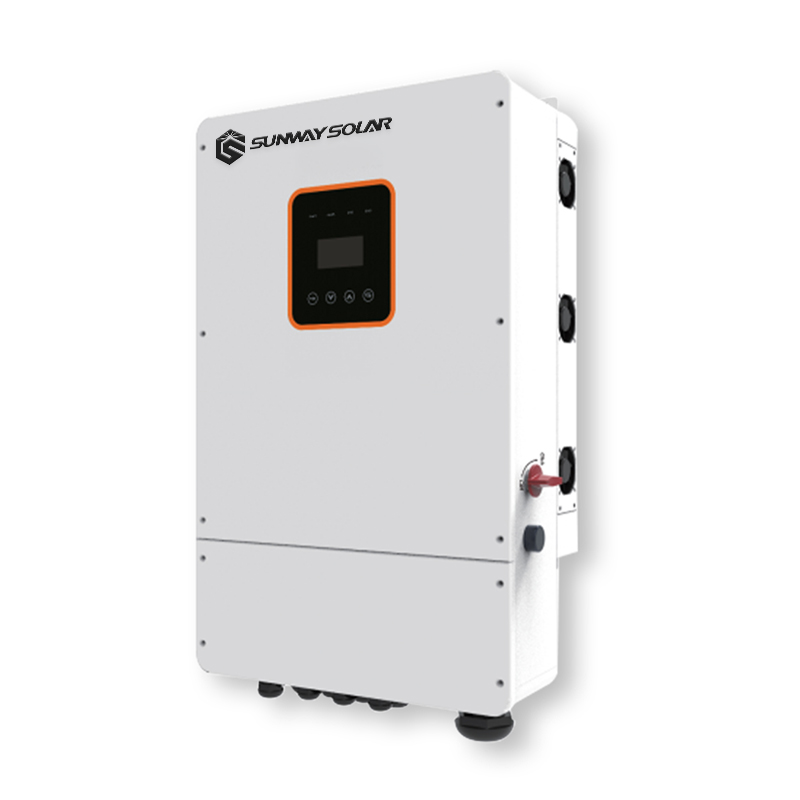

Hybrid solar inverter have function of both on grid inverter and off grid inverter supply Intelligent energy management system for home
| Model Number: | R8KLNA |
| Output power： | 5-8kw |
| Output Voltage: | 400V |
| Size: | 430x710x210mm |
| Weight: | 41KG |
Hybrid solar inverter have function of both on grid inverter and off grid inverter,so hybrid solar system
have the advantage of on grid and off grid solar system,all equipments are connected to hybrid solar inverter,
so the hybrid inverter is the most important device for the system.

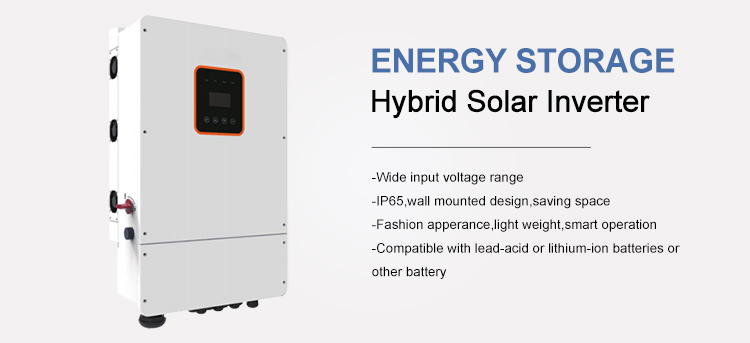

Flexible
* Wide input voltage range
* Compatible with lead-acid or lithium-ion batteries or other batteryGrace
*Fashion apperance,light weight, smart operation
*Natural cooling, low noise
*IP65, wall mounted design, saving space
*Touch screen LCD Reliable
*Compatible anti counter flow function
*Battery reverse connect protection Advanced
*Intelligent energy management system for home
*Power dispatching and demand side response management
*Distributed virtual power station management
|
Model
|
R5KLNA
|
R6KLNA
|
R7K6LNA
|
R8KLNA
|
|
On Grid AC Output
|
||||
|
Rate AC Output Power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|
AC Output Voltage
|
120/240Vac(split phase),208Vac( 2/3 phase),230Vac(single phase)
|
|||
|
AC Out put Frenquecny
|
50/60Hz
|
|||
|
Grid Type
|
Split phase,2/3 phase,Single Phase
|
|||
|
Max Output Current
|
24A
|
28.8A
|
36.5A
|
38.3A
|
|
AC reverse charging
|
Yes
|
|||
|
PF
|
0.8leading...0.8lagging
|
|||
|
Output THDI
|
＜2%
|
|||
|
Back-up AC Output
|
||||
|
Rated Backup output power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|
Max Back output Voltage
|
6.25KVA 60S. 7.5KVA 1S
|
7.5KVA 60S. 9KVA 1S
|
9.5KVA 60S. 11.4KVA 1S
|
10KVA 60S. 12KVA 1S
|
|
Backup AC output Voltage
|
120/240Vac(split phase),208Vac( 2/3 phase),230Vac(single phase)
|
|||
|
AC Frenquency
|
50/60Hz
|
|||
|
Output THDI
|
＜2%
|
|||
|
PV Input
|
||||
|
PV input power
|
7.5kw
|
9kw
|
12kw
|
12kw
|
|
MPPT number
|
4
|
|||
|
PV voltage range
|
350V/85V-500V
|
|||
|
MPPT voltage range
|
120V-500V
|
|||
|
Single MPPT input current
|
12A
|
12A
|
12A
|
12A
|
|
Battery
|
||||
|
Max charging/discharging current
|
120A/120A
|
135A/135A
|
190A/190A
|
190A/190A
|
|
Battery Voltage range
|
48V
|
48V
|
48V
|
48V
|
|
Battery Type
|
Lithium-ion, Lead-acid
|
|||
|
Protection
|
||||
|
Ground protection
|
Yes
|
|||
|
AFCI protection
|
Yes
|
|||
|
islanding protection
|
Yes
|
|||
|
DC disconnect detection
|
Yes
|
|||
|
Battery Reverse protection
|
Yes
|
|||
|
Battery Reverse protection
|
Yes
|
|||
|
Battery charge and discharge protection
|
Yes
|
|||
|
insulation testing
|
Yes
|
|||
|
GFCI
|
Yes
|
|||
|
DC anti-thunder
|
Yes
|
|||
|
AC anti-thunder
|
Yes
|
|||
