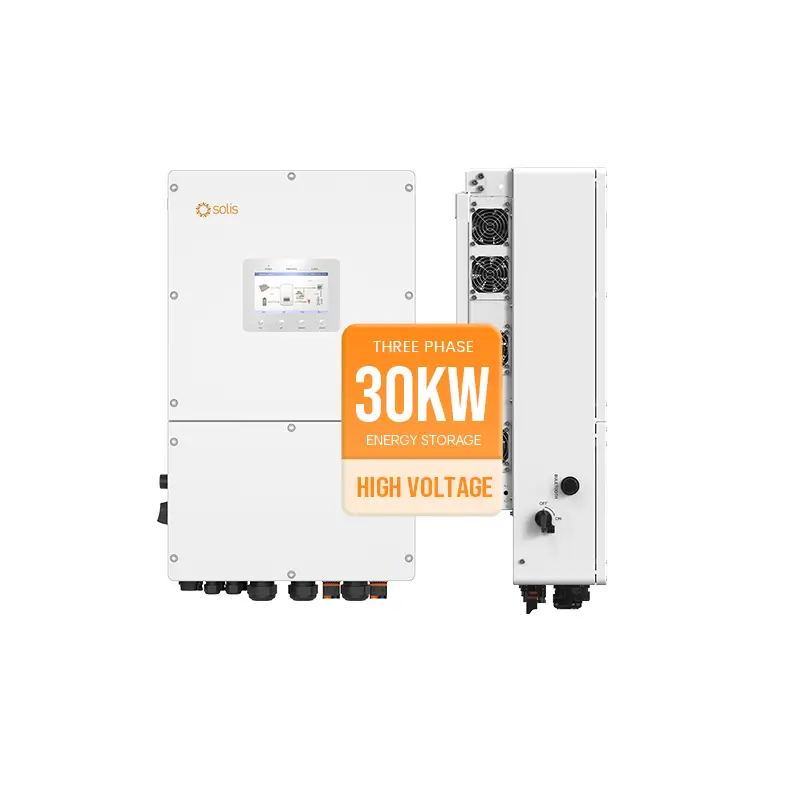

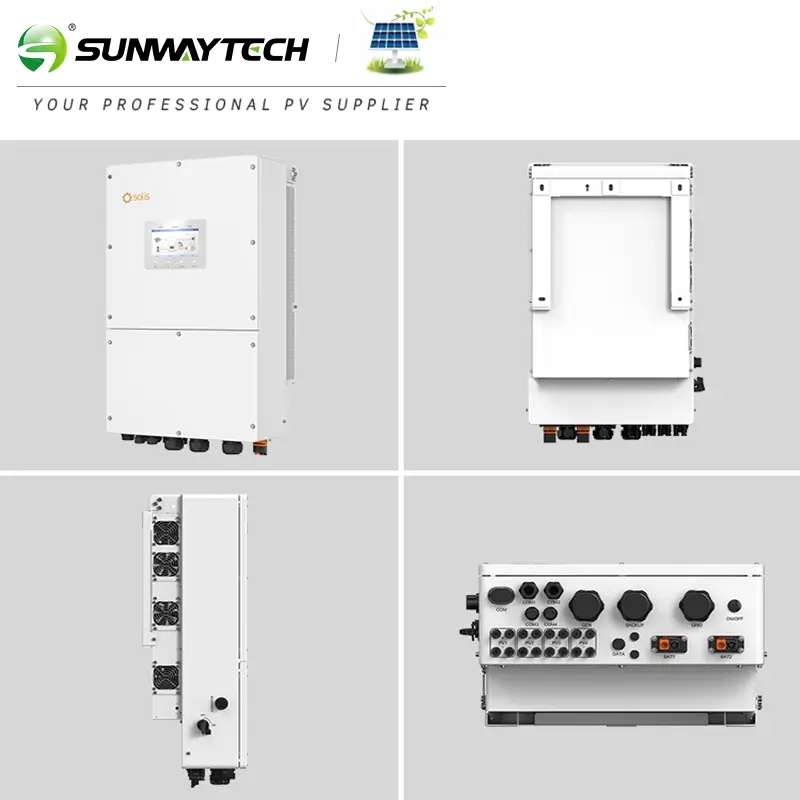

| Model Number: | S6-EH3P(29.9-50)K-H |
| Brand Name | Solis |
| Output Voltage: |
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|

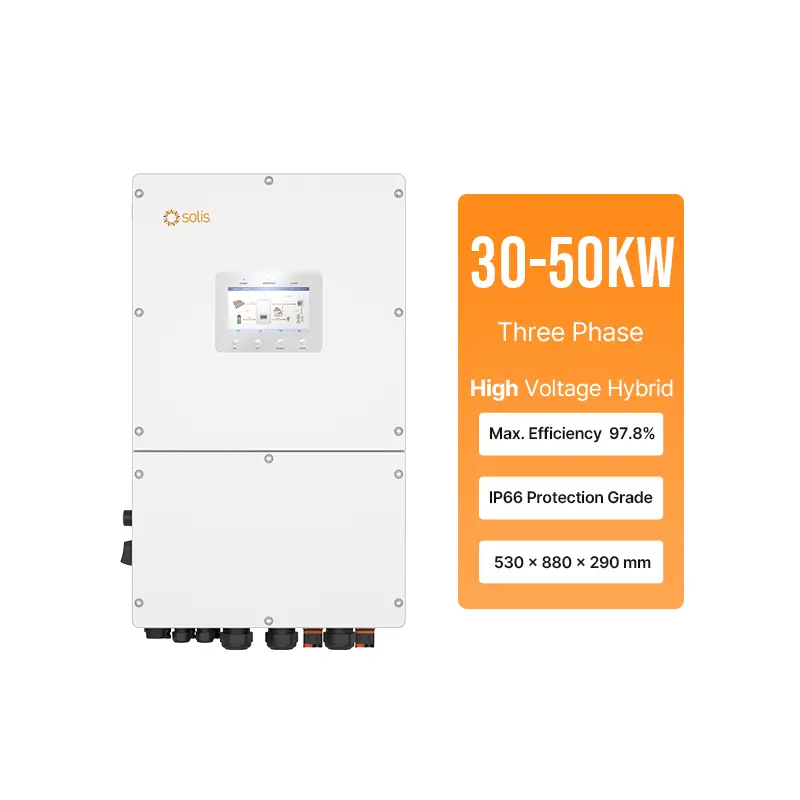

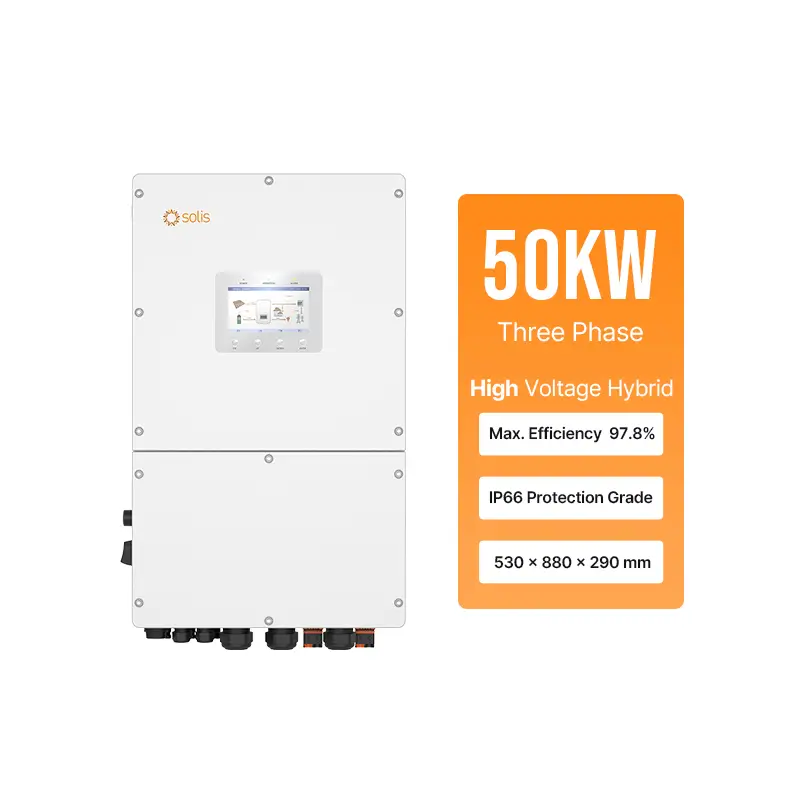

| Size(mm): |
530* 880* 290 mm
|
| Weight(KG)： |
73
|

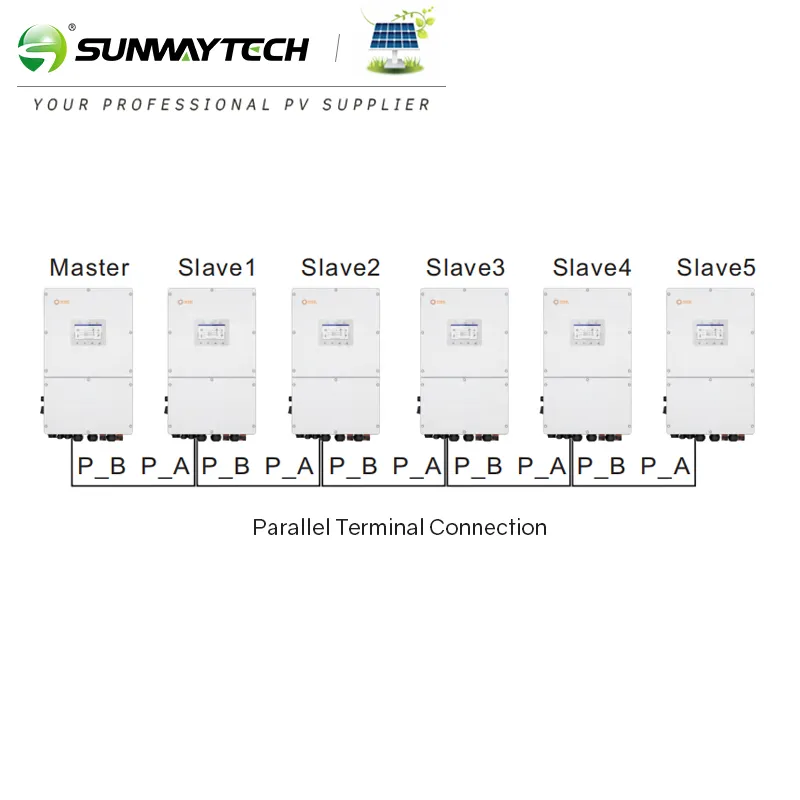

S6-EH1P(12-16)K03-NV-YD-L series energy storage inverter is suitable for large residential PV energy storage system, support up to 40A MPPT current input, suitable for 182mm/210mm solar panels; integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system, the maximum power of 160kW. also support AC couple to retrofit existing solar system; Maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, make it the first choice for large-scale residential PV energy storage system.
|
Models
|
29.9K
|
30K
|
40K
|
50K
|
|
Input DC (PV side)
|
||||
|
Recommended max. PV array size
|
59.8 kW
|
60 kW
|
80 kW
|
100 kW
|
|
Max. usable PV input power
|
59.8 kW
|
60 kW
|
80 kW
|
96 kW
|
|
Max. input voltage
|
1000 V
|
|||
|
Rated voltage
|
600 V
|
|||
|
Start-up voltage
|
180 V
|
|||
|
MPPT voltage range
|
150 - 850 V
|
|||
|
Max. input current
|
40 A / 40 A / 40 A
|
4 × 40 A
|
||
|
Max. short circuit current
|
60 A / 60 A / 60 A
|
4 × 60 A
|
||
|
MPPT number / Max. input strings number
|
3 / 6
|
4 / 8
|
||
|
Battery
|
||||
|
Battery type
|
Li-ion
|
|||
|
Battery voltage range
|
150 - 800 V
|
|||
|
Max. charge / discharge power
|
32.1 kW
|
33 kW
|
44 kW
|
55 kW
|
|
Max. charge / discharge current
|
70 A × 2 (1)
|
|||
|
No. of battery inputs
|
2
|
|||
|
Max. charge / discharge power of each input
|
32.1 kW
|
33 kW
|
35 kW
|
35 kW
|
|
Communication
|
CAN / RS485
|
|||
|
Output AC (Grid side)
|
||||
|
Rated output power
|
29.9 kW
|
30 kW
|
40 kW
|
50 kW
|
|
Max. apparent output power
|
29.9 kVA
|
30 kVA
|
40 kVA
|
50 kVA
|
|
Rated grid voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|||
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|||
|
Rated grid output current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|
Max. output current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|
Power factor
|
> 0.99 (0.8 leading - 0.8 lagging)
|
|||
|
THDi
|
< 3%
|
|||
|
Input AC (Grid side)
|
||||
|
Max. AC passthrough current
|
90.8 A / 86.4 A
|
91.2 A / 86.6 A
|
121.6 A / 115.4 A
|
152 A / 144.4 A
|
|
Rated input voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|||
|
Rated input frequency
|
50 Hz / 60 Hz
|
|||
|
Input Generator
|
||||
|
Max. input power
|
29.9 kW
|
30 kW
|
40 kW
|
50 kW
|
|
Rated input current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|
Rated input voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|||
|
Rated input frequency
|
50 Hz / 60 Hz
|
|||
|
Output AC (Back-up)
|
||||
|
Rated output power
|
29.9 kW
|
30 kW
|
40 kW
|
50 kW
|
|
Max. apparent output power
|
1.6 times of rated power, 2 s
|
|||
|
Back-up switch time
|
< 10 ms
|
|||
|
Rated output voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|||
|
Rated frequency
|
50 Hz / 60 Hz
|
|||
|
Rated output current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|
THDv (@linear load)
|
< 2%
|
|||
|
Efficiency
|
||||
|
Max. efficiency
|
97.8%
|
|||
|
EU efficiency
|
97.4%
|
|||
|
BAT charged by PV max. efficiency
|
98.5%
|
|||
|
BAT charged / discharged to AC max. efficiency
|
97.5%
|
|||
