| Model Number: | S6-EH1P(12-16)K03-NV-YD-L |
| Output power： | 12/14/16KW |
| Output Voltage: | 220/230Vac |
| Size(mm): |
464*763 *282 mm
|
| Weight(KG)： |
48.5
|

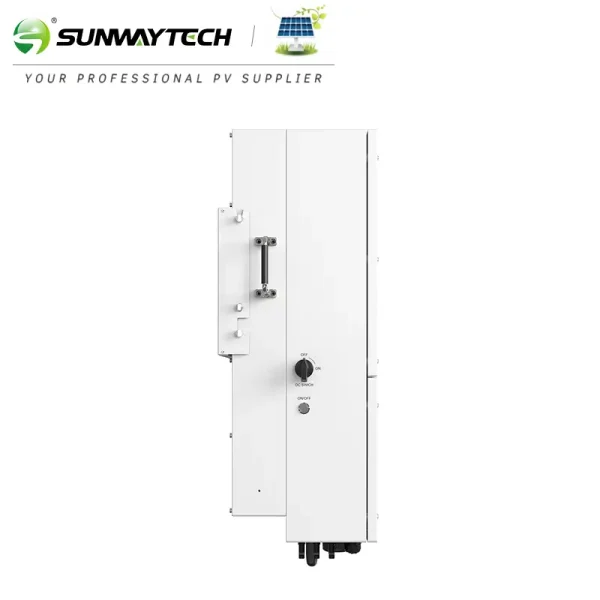

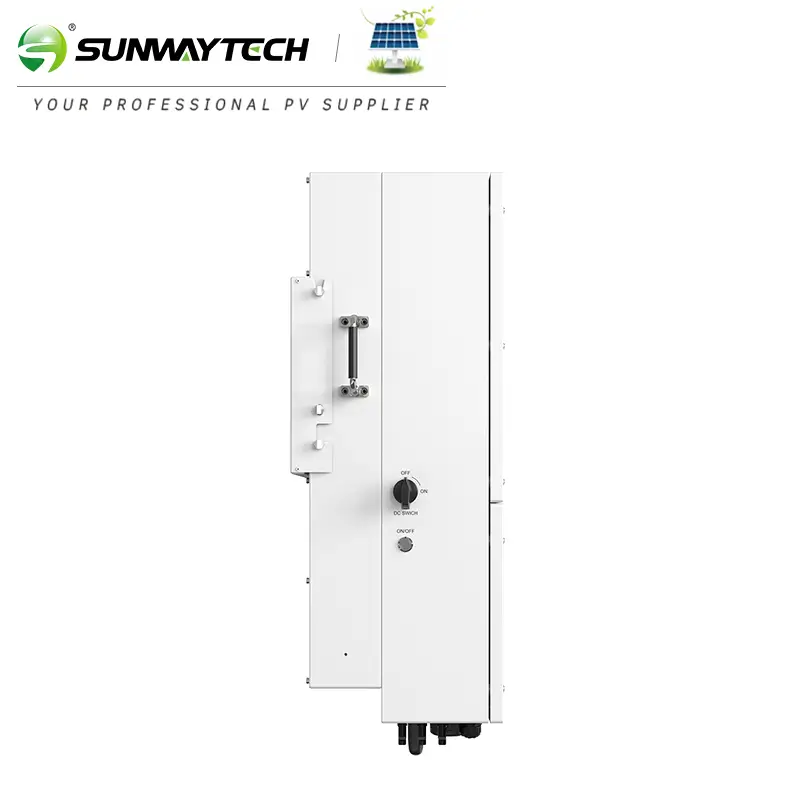

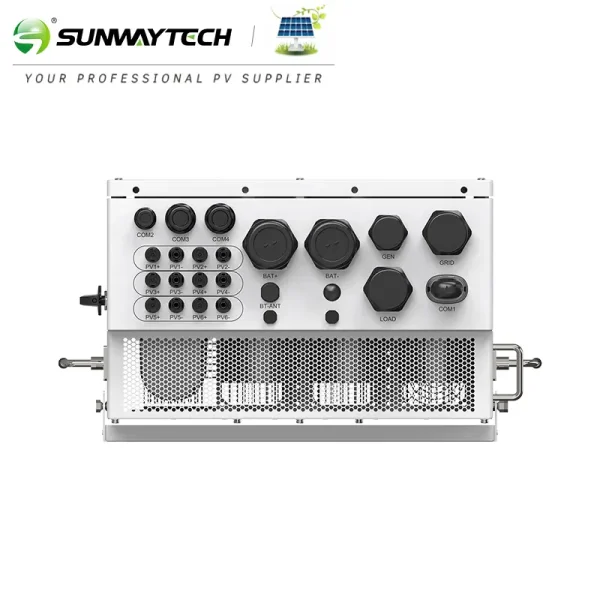

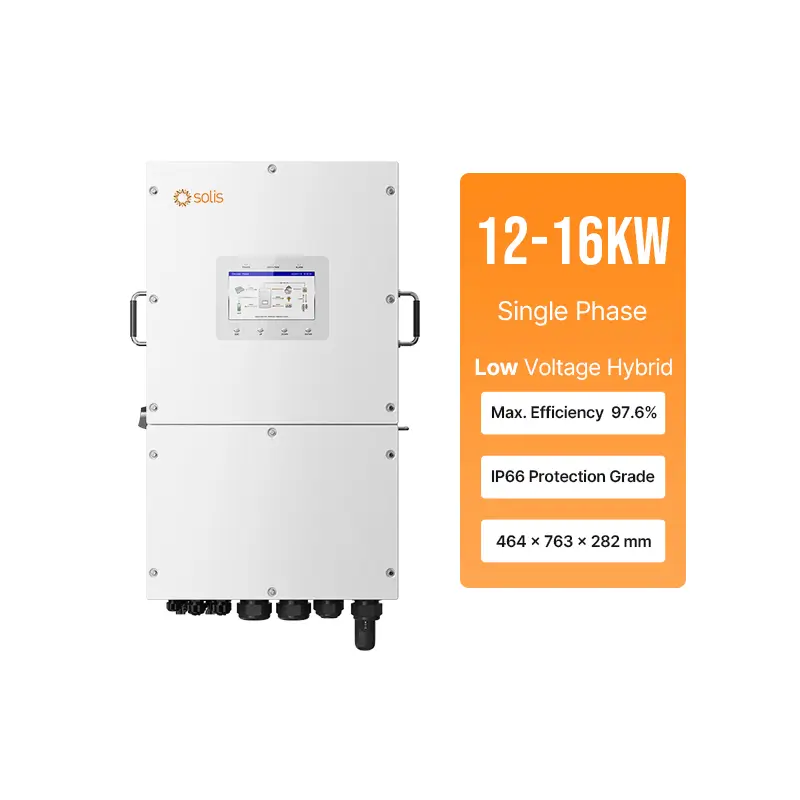

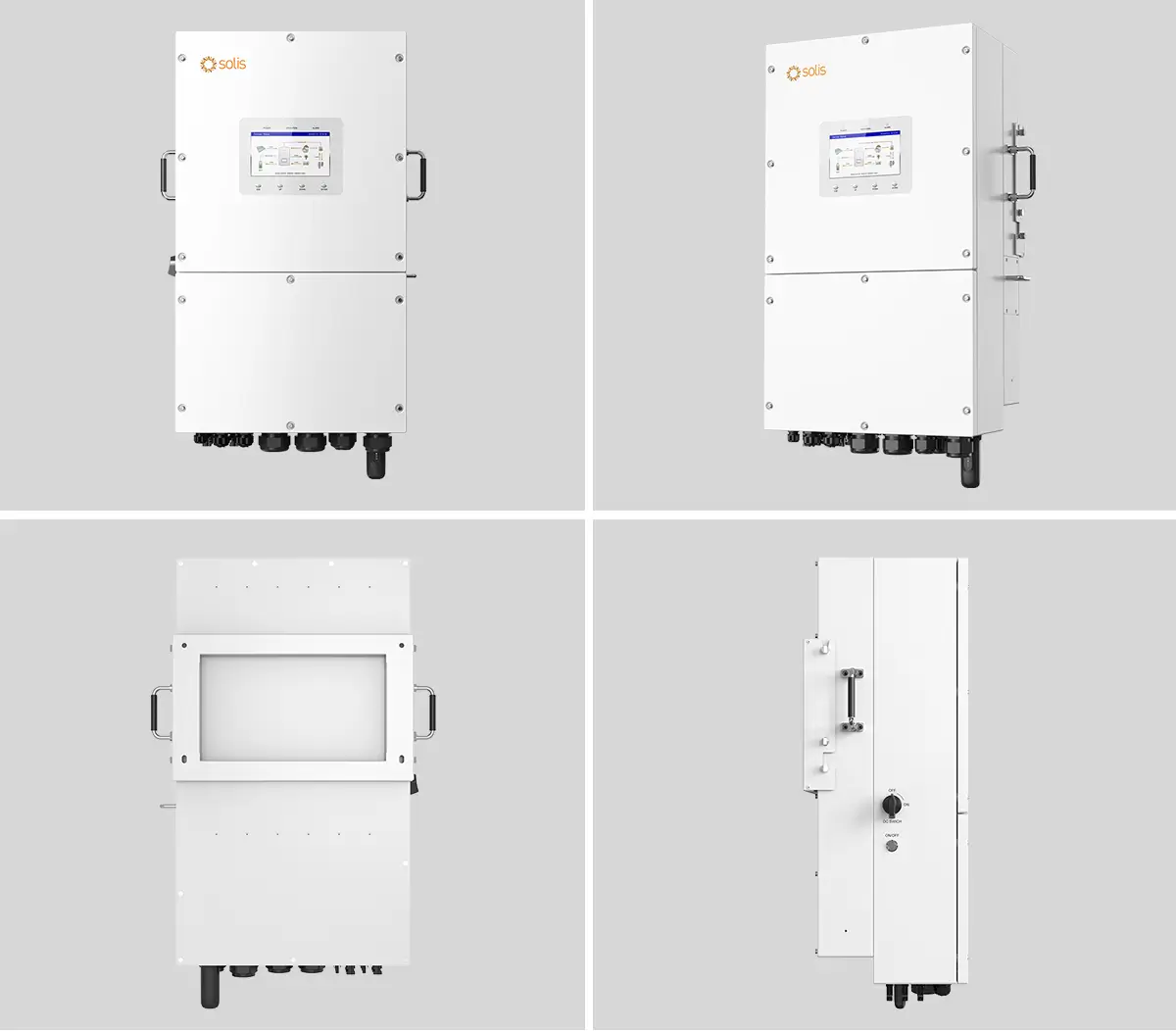

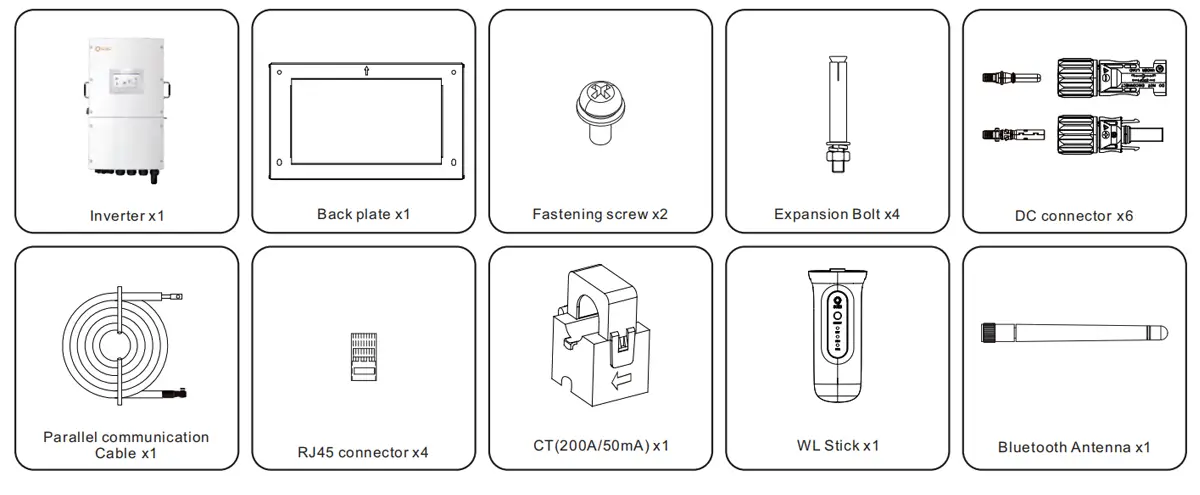

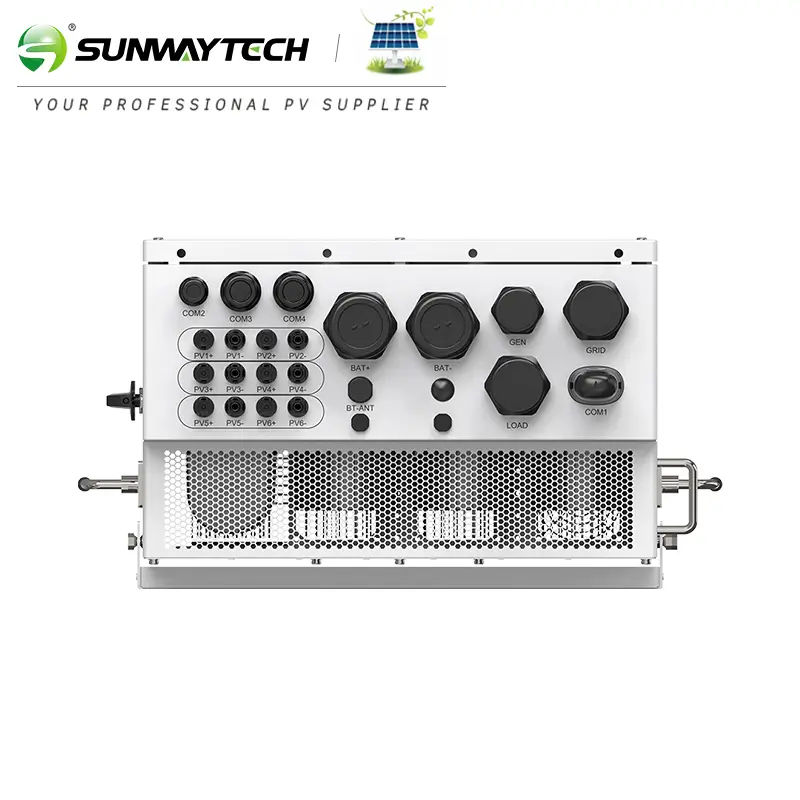

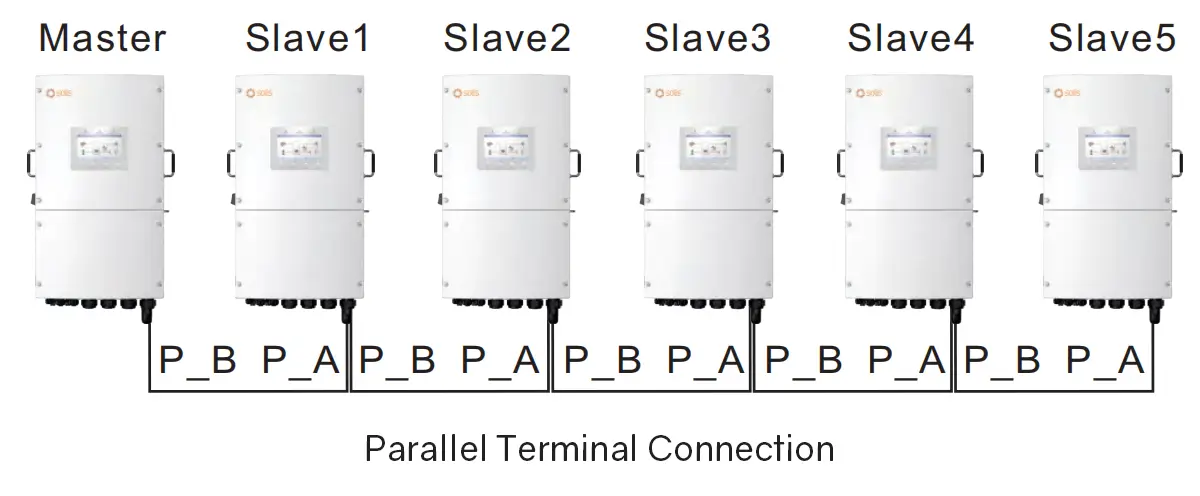

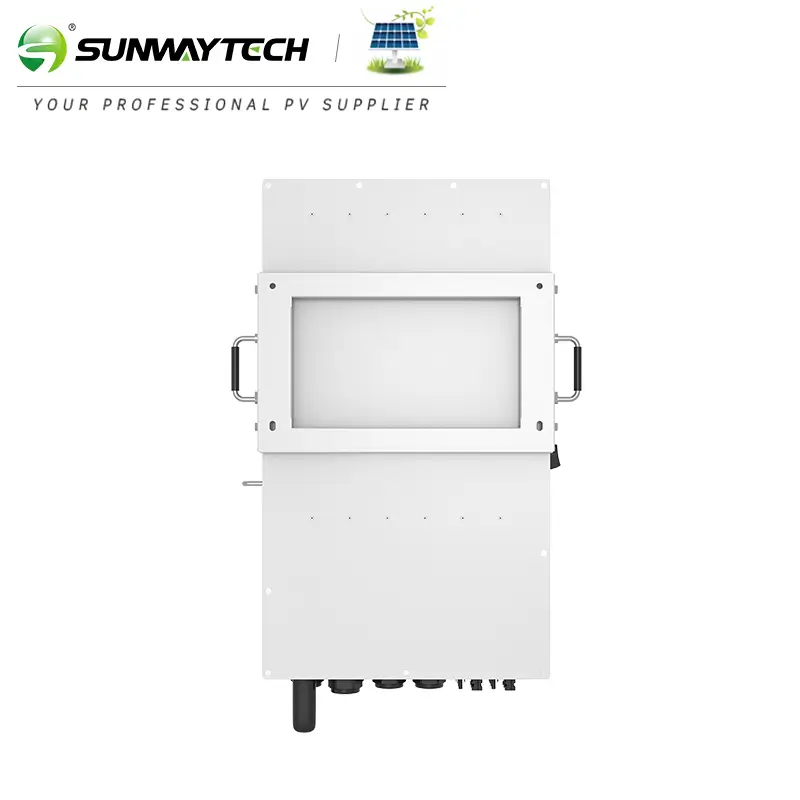

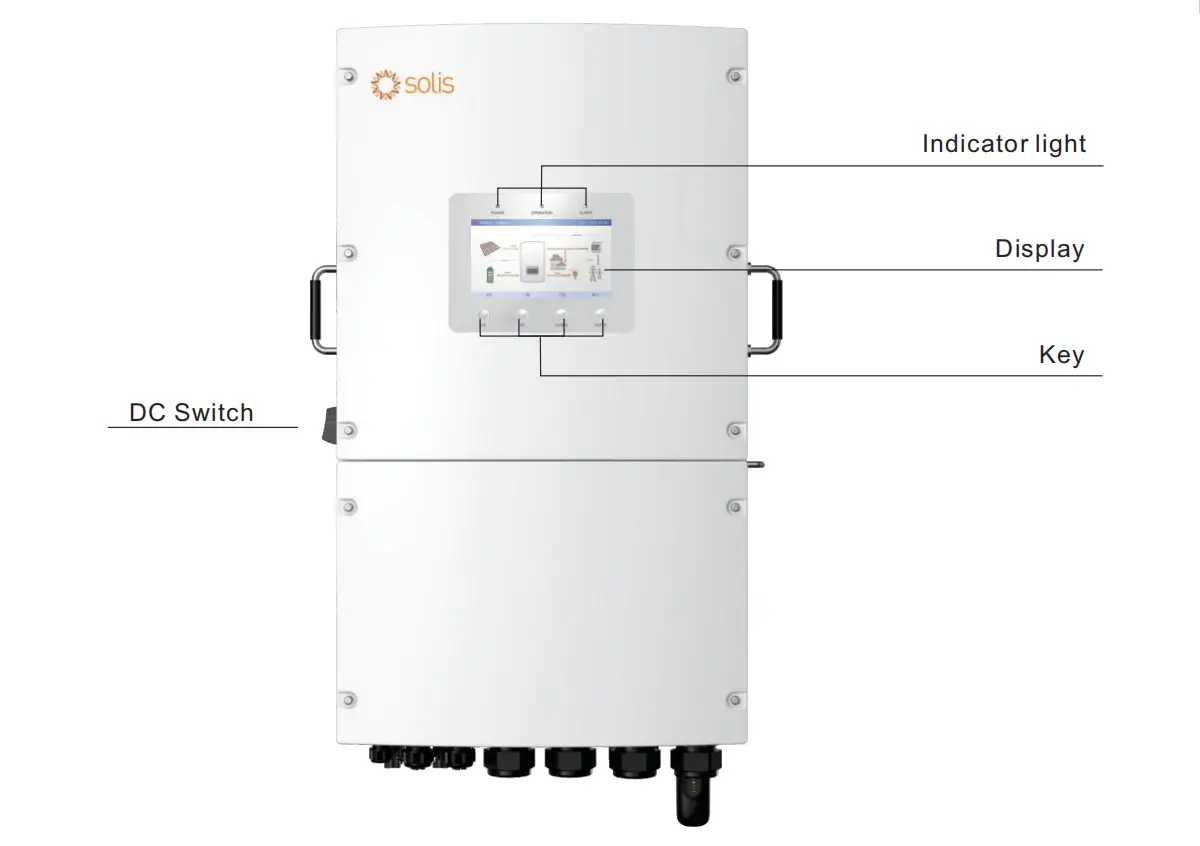

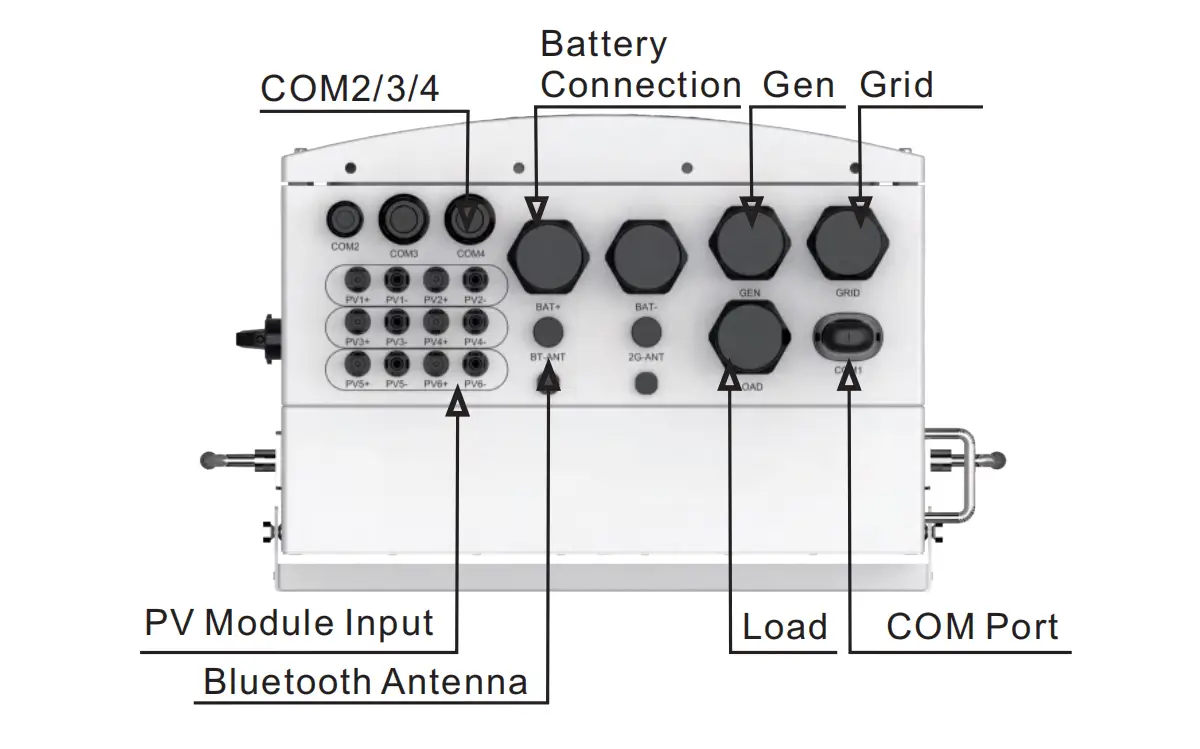

S6-EH1P(12-16)K03-NV-YD-L series energy storage inverter is suitable for large residential PV energy storage system, support up to 40A MPPT current input, suitable for 182mm/210mm solar panels; integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system, the maximum power of 160kW. also support AC couple to retrofit existing solar system; Maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, make it the first choice for large-scale residential PV energy storage system.
|
Models
|
12K
|
14K
|
16K
|
|
Input DC (PV side)
|
|||
|
Recommended max. PV array size
|
24 kW
|
28 kW
|
32 kW
|
|
Max. usable PV input power
|
19.2 kW
|
22.4 kW
|
22.4 kW
|
|
Max. input voltage
|
550 V
|
||
|
Rated voltage
|
380 V
|
||
|
Start-up voltage
|
100 V
|
||
|
MPPT voltage range
|
80 - 520 V
|
||
|
Max. input current
|
40 A / 40 A/ 40A
|
||
|
Max. short circuit current
|
50 A / 50 A/ 50A
|
||
|
MPPT number / Max. input strings number
|
3 / 6
|
||
|
Battery
|
|||
|
Battery type
|
Li-ion / Lead-acid
|
||
|
Battery voltage range
|
40 - 60 V
|
||
|
Max. charge / discharge current
|
250 A
|
290 A
|
290 A
|
|
Communication
|
CAN / RS485
|
||
|
Output AC (Grid side)
|
|||
|
Rated output power
|
12 kW
|
14 kW
|
16 kW
|
|
Operation phase
|
L/N/PE
|
||
|
Rated grid voltage
|
220 V / 230 V
|
||
|
Rated grid frequency
|
50 Hz / 60 Hz
|
||
|
Rated grid output current
|
54.5 A / 52.2 A
|
63.6 A / 60.9 A
|
72.7 A / 69.6 A
|
|
Power factor
|
> 0.99 (0.8 leading - 0.8 lagging)
|
||
|
THDi
|
< 3%
|
||
|
Input AC (Grid side)
|
|||
|
Input voltage range
|
187 - 253 V
|
||
|
Max. input current
|
81.8 A / 78.3 A
|
95.5 A / 91.3 A
|
109.1 A / 104.3 A
|
|
Frequency range
|
45 - 55 Hz / 55 - 65 Hz
|
||
|
Output AC (Back-up)
|
|||
|
Rated output power
|
12 kW
|
14 kW
|
16 kW
|
|
Max. apparent output power
|
2 times of rated power, 10 s
|
||
|
Back-up switch time
|
< 4 ms
|
||
|
Rated output voltage
|
L/N/PE, 220 V / 230 V
|
||
|
Rated frequency
|
50 Hz / 60 Hz
|
||
|
Rated output current
|
54.5 A / 52.2 A
|
63.6 A / 60.9 A
|
72.7 A / 69.6 A
|
|
THDv (@linear load)
|
< 3%
|
||
|
Efficiency
|
|||
|
Max. efficiency
|
97.6%
|
||
|
EU efficiency
|
97.0%
|
||
|
BAT charged by PV / AC max. efficiency
|
> 94.9%
|
||
|
BAT discharged to AC max. efficiency
|
> 94.33% / 93.51%
|
||
