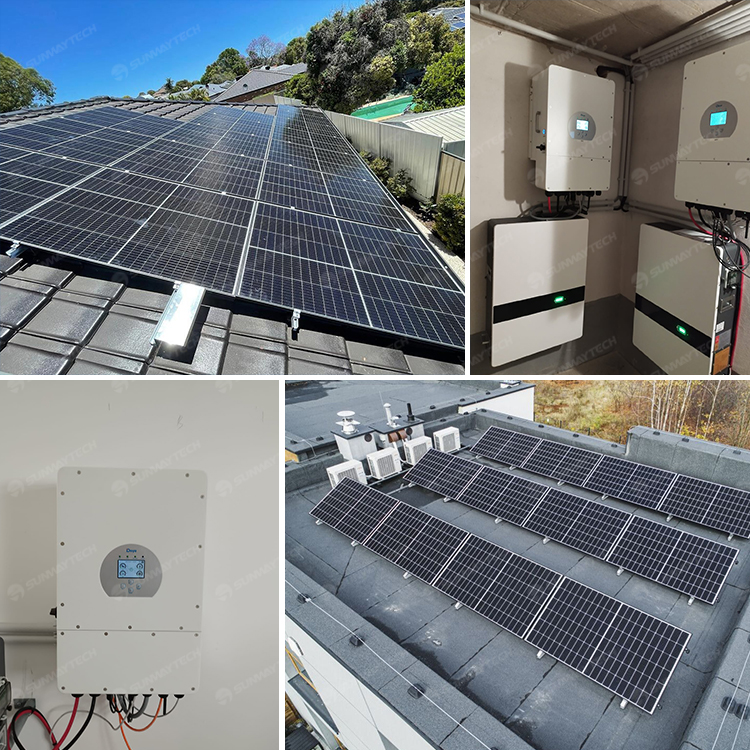

Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)

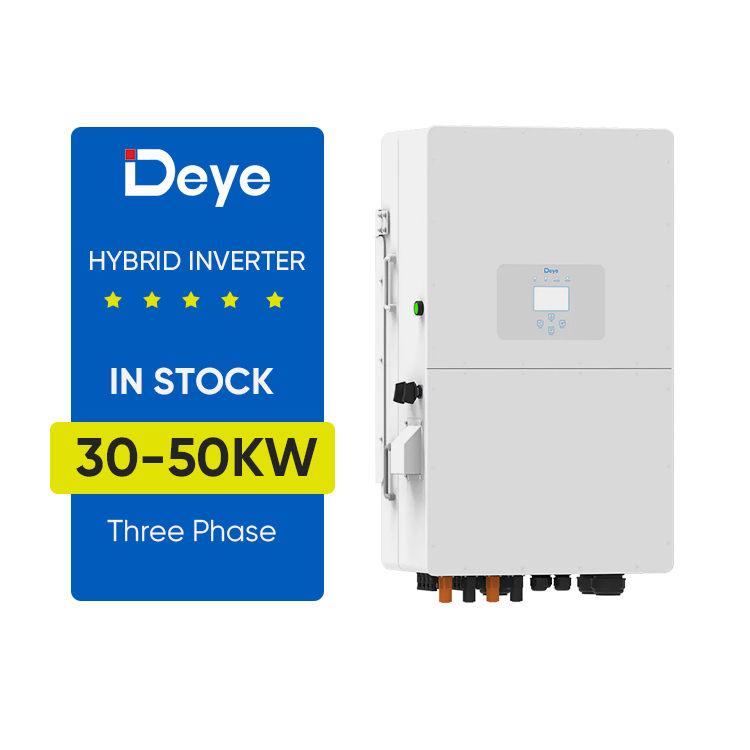

| Model Number: | SUN-29.9-50K-SG01HP3-EU-BM4 |
| Output power： | 29.9/30/35/40/50KW |
| Output Voltage: | 380/400Vac (three phase) |

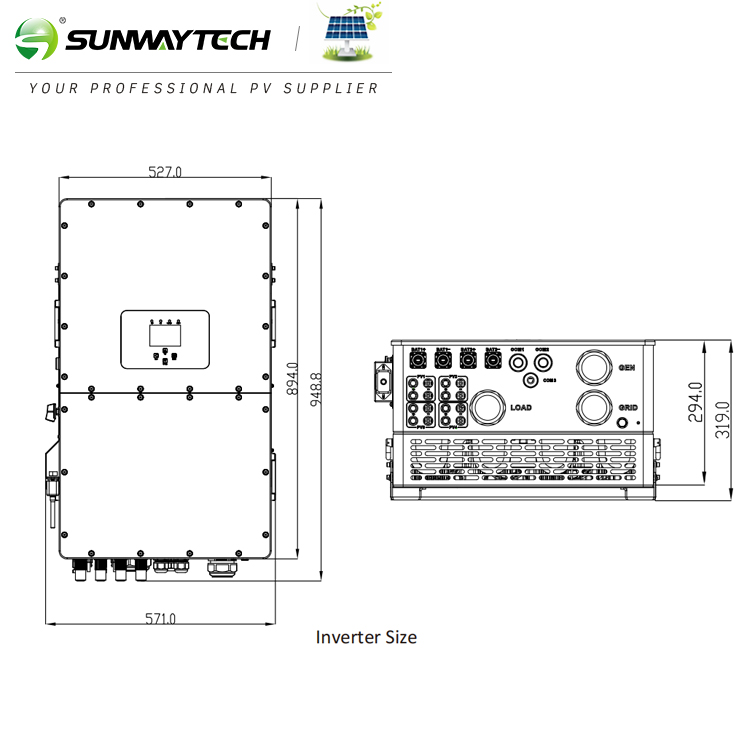

| Size(mm): | 527W*894H*237D |
| Weight(KG)： | 80 |
|
Model
|
SUN-29.9K-SG01HP3-EU-BM3
|
SUN-30K-SG01HP3
-EU-BM3
|
SUN-35K-SG01HP3
-EU-BM3
|
SUN-40K-SG01HP3
-EU-BM4
|
SUN-50K-SG01HP3
-EU-BM4
|
|
Battery Input Data
|
|||||
|
Battery Type
|
Lithium-ion
|
||||
|
Battery Voltage Range(V)
|
160-800
|
||||
|
Max.Charging Current(A)
|
50+50
|
||||
|
Max.Discharging Current(A)
|
50+50
|
||||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
||||
|
Number of battery input
|
2
|
||||
|
PV String Input Data
|
|||||
|
Max DC Input Power（W）
|
38870
|
39000
|
45500
|
52000
|
65000
|
|
Max DC Input Voltage（V）
|
1000
|
||||
|
Start-up Voltage（V）
|
180
|
||||
|
MPPT Voltage Range（V）
|
150-850
|
||||
|
Rated DC Input Voltage(V)
|
600
|
||||
|
Max Input Short-Circuit Current（A）
|
55+55+55
|
55+55+55+55
|
|||
|
Max Operating PV Input Current（A）
|
36+36+36
|
36+36+36+36
|
|||
|
No.of MPP Trackers/No.of String Per MPP Tracker
|
3/2+2+2
|
4/2+2+2+2
|
|||
|
AC Input/Output Data
|
|||||
|
Rated AC Input/Output Active Power（W）
|
29900
|
30000
|
35000
|
40000
|
50000
|
|
Max AC Input/Output Apparent Power （VA）
|
29900
|
33000
|
38500
|
44000
|
55000
|
|
Peak Power (off-grid)（W）
|
1.5 times of rated power,10s
|
||||
|
Rated AC Input/Output Current（A）
|
45.4/43.4
|
45.5/43.5
|
53.1/50.8
|
60.7/58.0
|
75.8/72.5
|
|
Max AC Input/Output Current（A）
|
45.4/43.4
|
50/47.9
|
58.4/55.8
|
66.7/63.8
|
83.4/79.8
|
|
Max Continuous AC Passthrough (grid to load)（A）
|
200
|
||||
|
Rated Input/Output Voltage/Range(V)
|
220/380V，230/400V 0.85Un-1.1Un
|
||||
|
Grid Connection Form
|
3L+N+PE
|
||||
|
Rated Input/Output Grid Frequency/Range
|
50/45-55, 60/55-65
|
||||
|
Power Factor Adjustment Range
|
0.8 leading-0.8 lagging
|
||||
|
Total Current Harmonic Distortion THDi
|
<3% (of nominal power)
|
||||
|
DC Injection Current
|
<0.5%ln
|
||||
|
General Data
|
|||||
|
Operating Temperature Range
|
-40℃+60℃,＞45℃ Derating
|
||||
|
Permissible Ambient Humidity
|
0-100%
|
||||
|
Permissible Altitude
|
2000m
|
||||
|
Noise
|
≤ 65 dB(A)
|
||||
|
Ingress Protection(IP) Rating
|
IP 65
|
||||
|
Inverter Topology
|
Non-Isolated
|
||||
|
Over Voltage Category
|
OVC II(DC),OVC III(AC)
|
||||
|

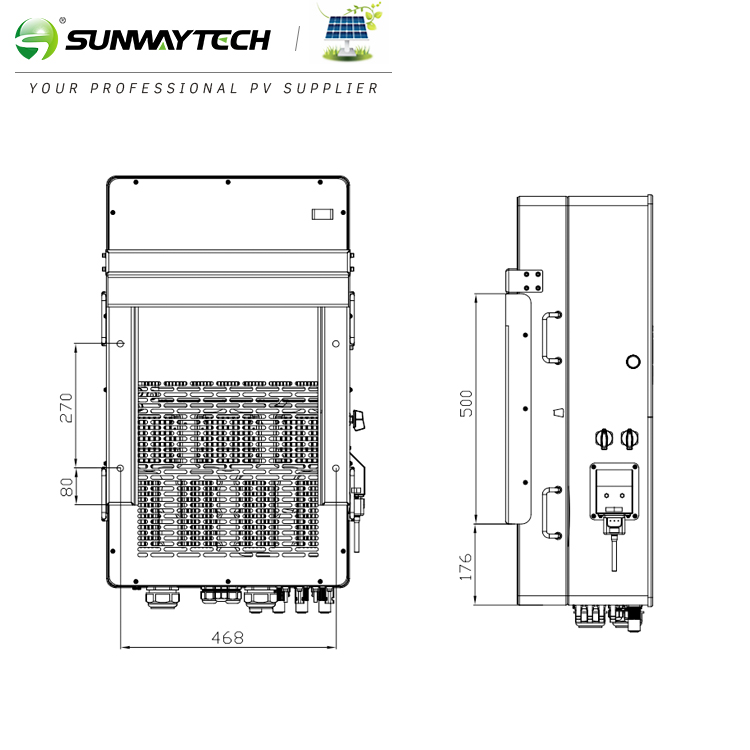

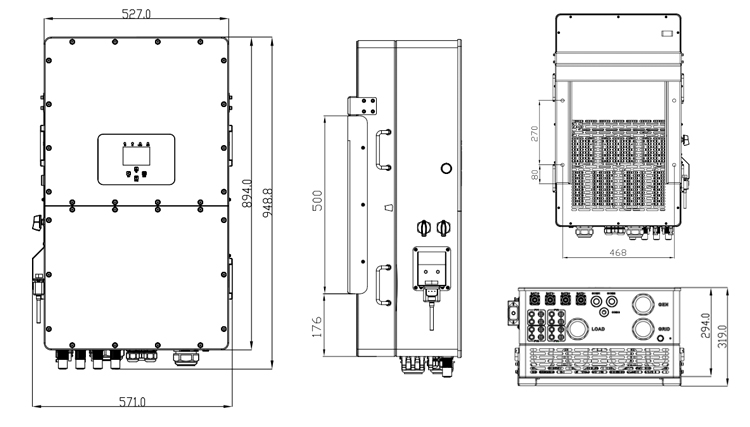

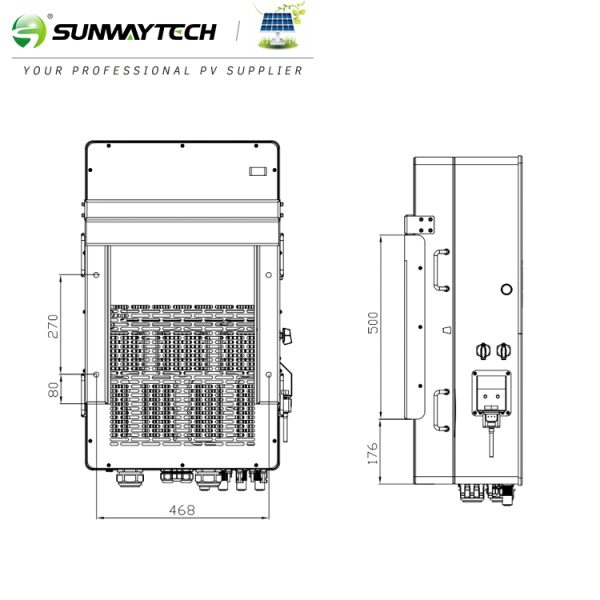

Cabinet size（W*H*D）[mm]
|
527*894*294（Excluding connectors and brackets）
|
||||
|
Weight[kg]
|
80
|
||||
|
Warranty
|
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
||||
|
Type Of Cooling
|
Intelligent air cooling
|
||||
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
||||
|
Safety EMC/Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||||
