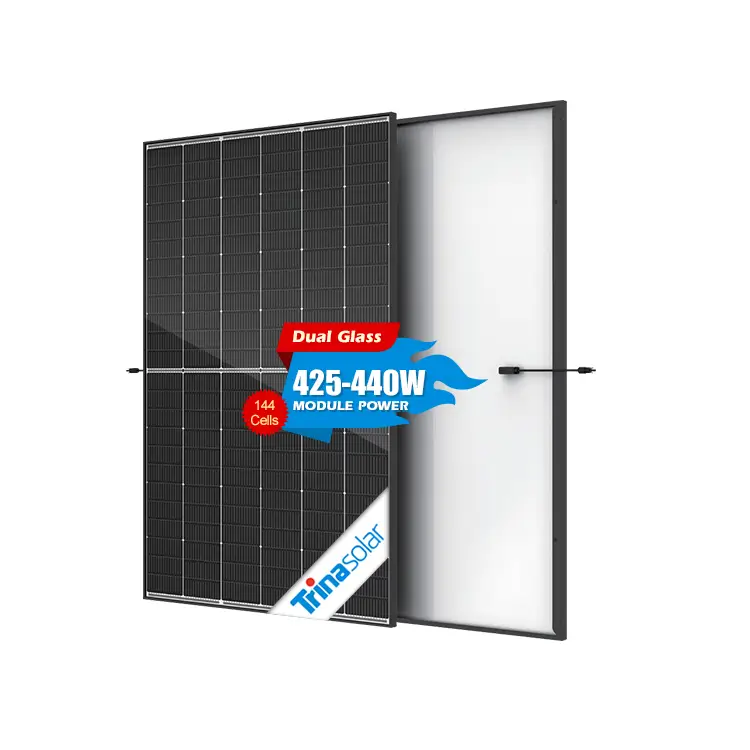

| Solar Cells | Monocrystalline |
| No. of cells | 144 cells |

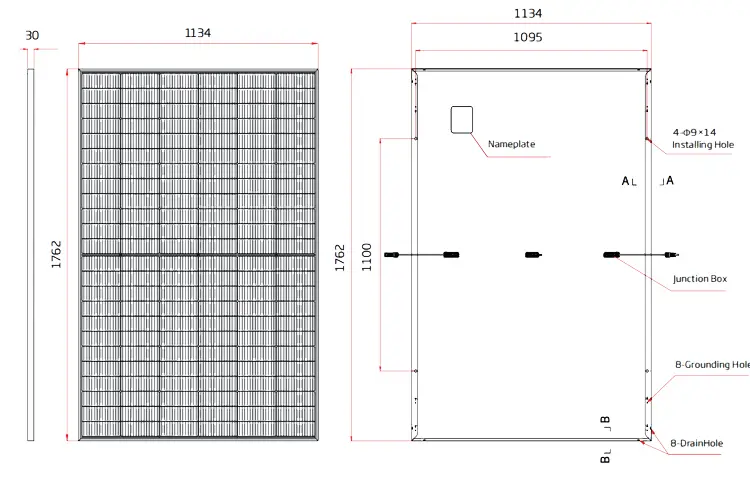

| Module Dimensions | 1762Γ1134Γ30 mm (69.06Γ43.15Γ1.18 inches) |
| Weight | 21.0kg (46.30 lb) |
| Front Glass | 1.6 mm (0.06 inches),High Transmission, AR Coated Heat Strengthened Glass |
| Encapsulant material | POE/EVA |

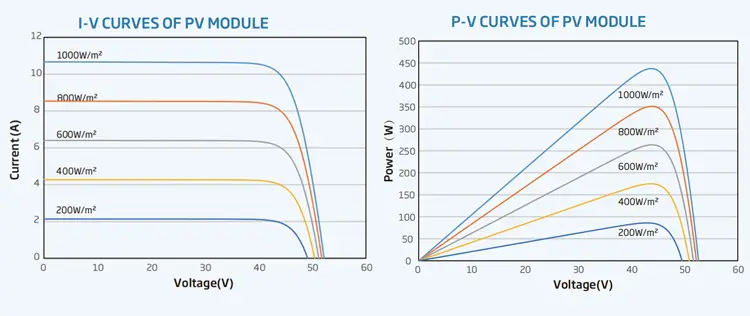

| Peak Power Watts-Pmax(Wp)* | 425 | 430 | 435 | 440 | 445 | 450 |
| Power Tolerance-Pmax(W) | 0 ~ +5 | |||||
| Maximum Power Voltage-VmPP(V) | 42.9 | 43.2 | 43.6 | 44.0 | 44.3 | 44.6 |
| Maximum Power Current-ImPP(A) | 9.92 | 9.96 | 9.99 | 10.01 | 10.05 | 10.09 |
| Open Circuit Voltage-Voc (V) | 50.9 | 51.4 | 51.8 | 52.2 | 52.6 | 52.9 |
| Short Circuit Current-Isc(A) | 10.56 | 10.59 | 10.64 | 10.67 | 10.71 | 10.74 |
| Module Efficiency n (%) | 21.3 | 21.5 | 21.8 | 22.0 | 22.3 | 22.5 |

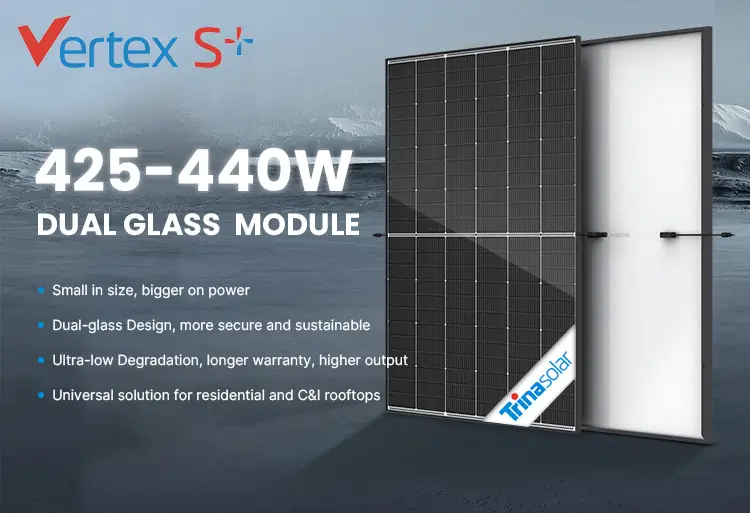

Small in size, bigger on power
β’ Up to 450W, 22.5% module efficiency with high-density interconnect technology
β’ Multi-busbar technology for better light trapping, lower series resistance, improved current collection and enhanced reliabilityβ’ Reduce installation cost with higher power bin and efficiency
β’ Boost performance in warm weather with low-temperature coefficient and operating temperature

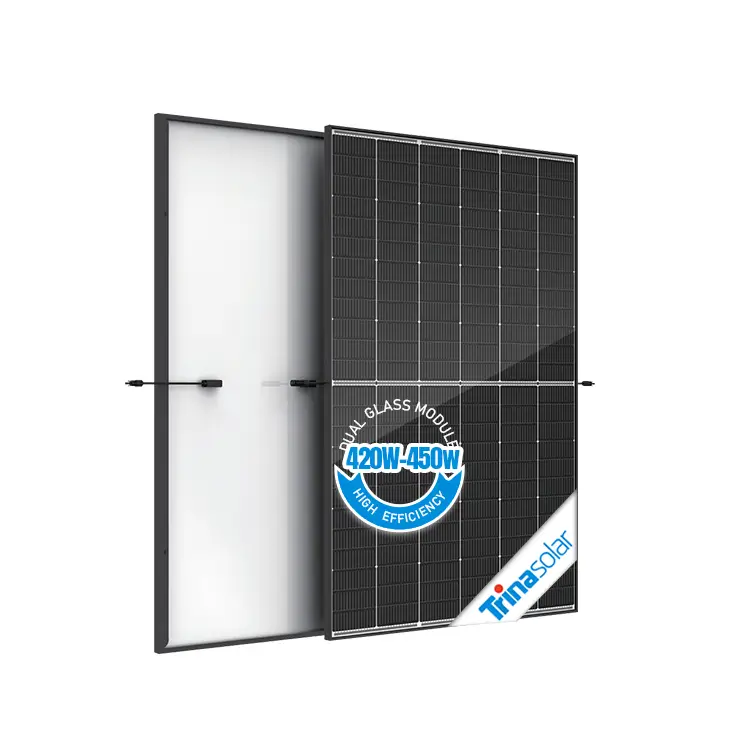

Dual-glass Design, more secure and sustainable
β’ Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation
β’ Excellent fire rating, weather resistance, salt spray, sand dust, and ammonia performance which is fully applicable in coastal, high temperature, humidity areas and harsh environments

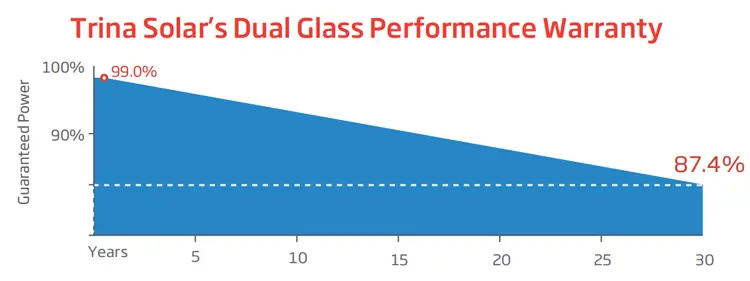

Ultra-low Degradation, longer warranty, higher output
β’ First-year degradation 1% and annual degradation at 0.4%
β’ Up to 15 years product warranty and 30 years power warranty

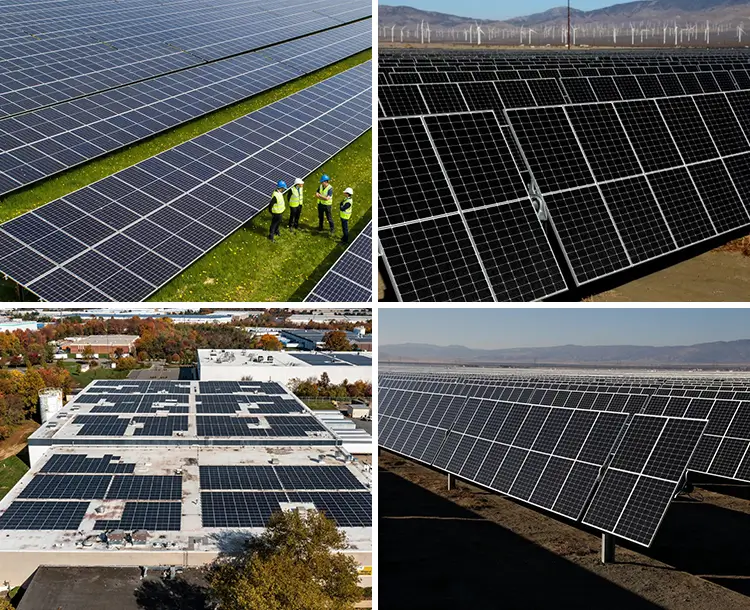

Universal solution for residential and C&I rooftops
β’ Easy for integration, designed for compatibility with existing mainstream inverters and diverse mounting systems
β’ Perfect size and low weight for handling and installation
β’ Most valuable solution on low load capacity rooftops (weight similar to back sheet version)
β’ Mechanical performance up to 5400 Pa positive load and 4000 Pa negative load
