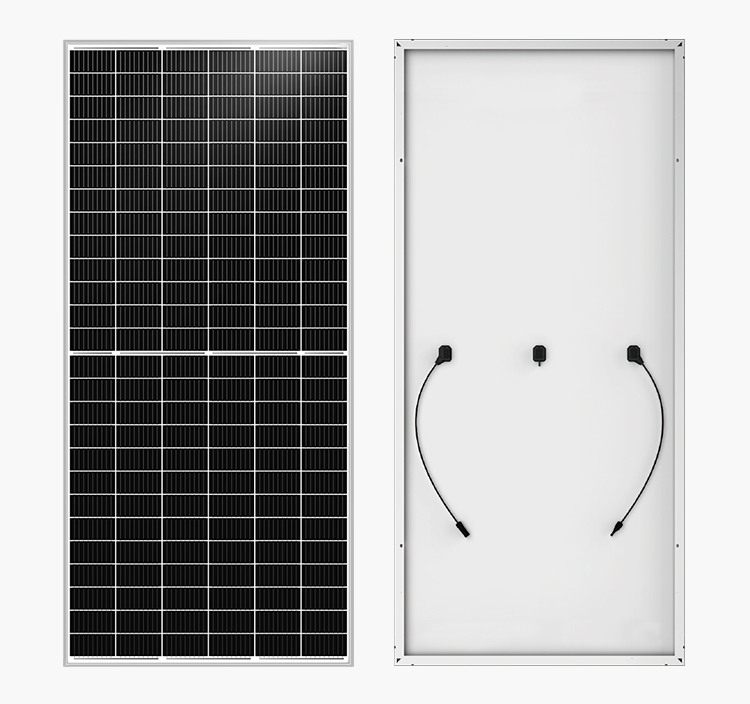

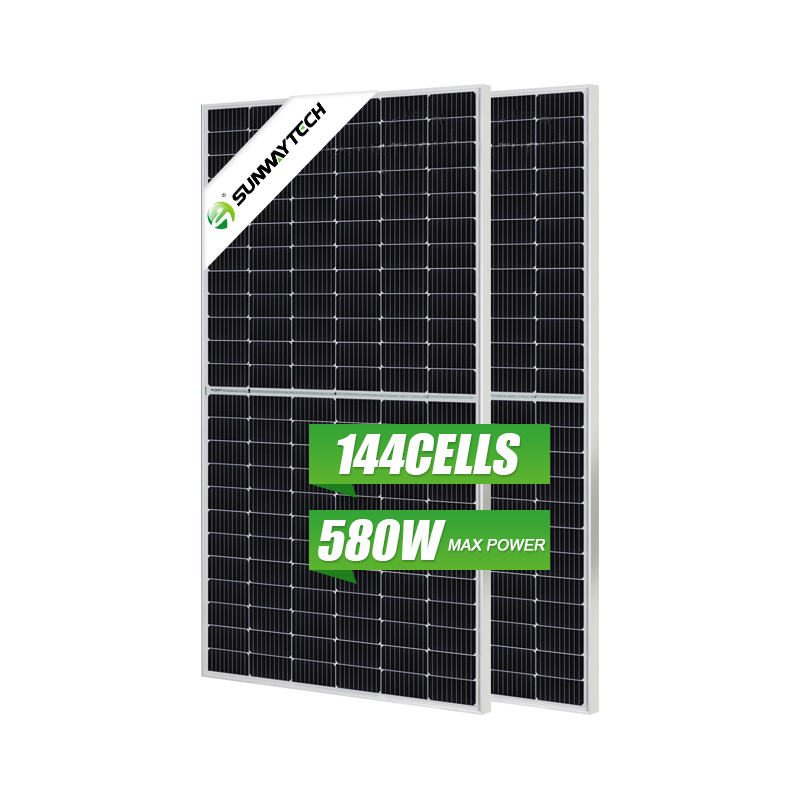

Hot Selling 144cells 555w 560w 565W 570w 575W 580W mono fotovoltaik solar panel for home
Model Number: | SW580M-144 |
Power Range: | 555W-580W |

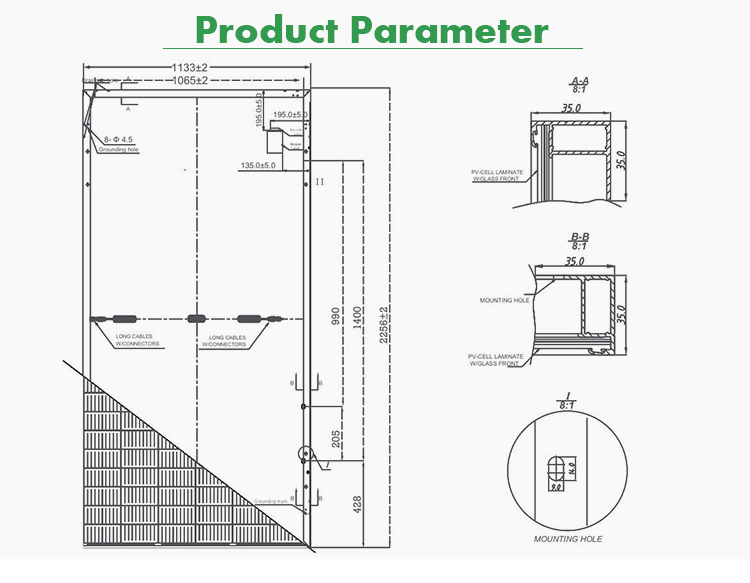

Dimensions: | 2256*1132*35mm |
Weight: | 29kg |
Certificate: | CE/TUV |
Electrical Parameters |
||||||
Module |
SW555M-144 ~ SW580M-144 |
|||||
Encapsulation |

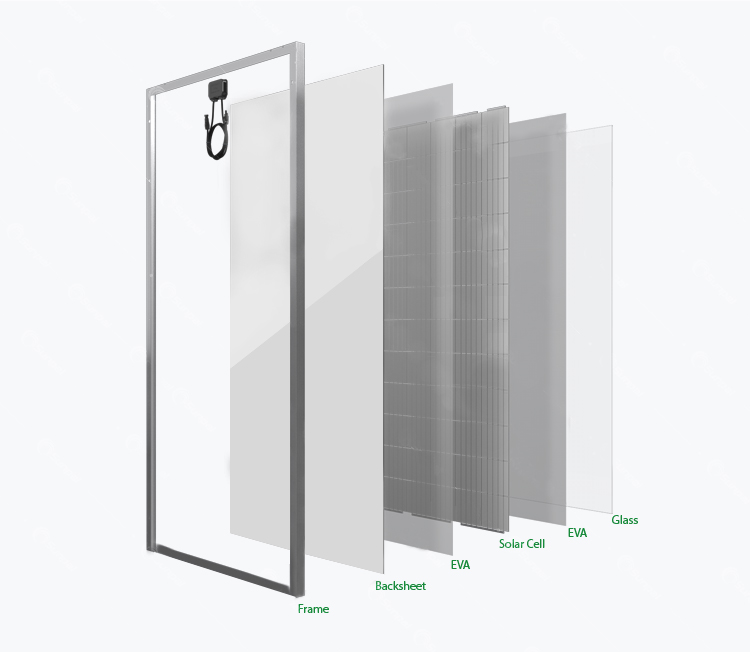

Class/Eva/Cell/Eva/Backsheet |
|||||
Maximum Power Pmax(W) |
555 |
560 |
565 |
570 |
575 |
580 |
Maximum Power Voltage(Vmp/V) |
41.8 |
42 |
42.2 |
42.4 |
42.6 |
42.8 |
Maximum Power Current(Imp/A) |
13.29 |
13.35 |
13.41 |
13.47 |
13.53 |
13.59 |
Open Circuit Voltage(Voc/V) |
50 |
50.2 |
50.4 |
50.6 |
50.8 |
51 |
Short Circuit Currrnt(Isc/A) |
14.05 |
14.11 |
14.17 |
14.23 |
14.29 |
14.35 |
Module Efficiency(%) |
21.7 |
21.9 |
22.1 |
22.3 |
22.5 |
22.7 |
Power Tolerance(W) |
0~+5W |
|||||
Temperature Coefficient of Isc(αIsc) |
+0.059%/℃ |
|||||
Temperature Coefficient of Voc(βVoc) |
-0.330%/℃ |
|||||
Temperature Coefficient of Pmax(γVoc) |
-0.410%/℃ |
|||||
STC |
Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5 |
Glass by XINYI,SG CNBM Anti-reflective glass | 21.23% Higher Efficiency Cell by Tier 1 Brand | Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame |

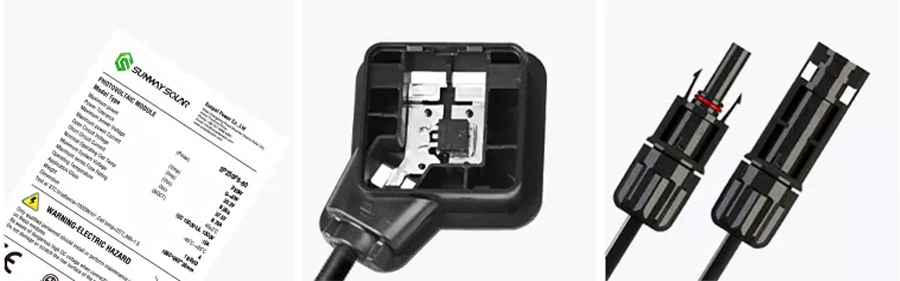

Waterproof Labels Product by Waterproof Labels Sunway/OEM | Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness | PV Connector by TL, QC SolarMC4 4mm Qualified cable |
Reliable Quality |
Positive power tolerance: 0~+5W |
100% EL Double-inspection ensures modules are defects free |
Modules Binned by Current to improve system performance |
Potential induced Degradation (PID) Resistant |
Hot Selling 144cells 390w 395w 400w 405w mono fotovoltaik solar panel for home
Model Number: | TSM-DE09 |
Power Range: | 390W-405W |
Dimensions: | 1754*1096*35mm |
Weight: | 21kg |
Certificate: | CE/TUV |
Hot Selling 144cells 535w 540w 545w 550w 555w mono fotovoltaik solar panel for home
Model Number: | SW555M-144 |
Power Range: | 535W-555W |
Dimensions: | 2256*1133*35mm |
Weight: | 27.2kg |
Certificate: | CE/TUV |
Half Cell Solar Panel:
Sunway 36v 450W 480w low price solar panel monocrystalline for household
Model Number: | SW515M-132 |
Power Range: | 475W-515W |
Dimensions: | 2094*1134*35mm |
Weight: | 24.5kg |
Certificate: | CE/TUV |
