Sunway in stock EU market 650W 660W 670W monocrystalline 210mm half cell solar panel for house
Model Number: |
SW670M-132 |
Power Range: |
650W-670W |

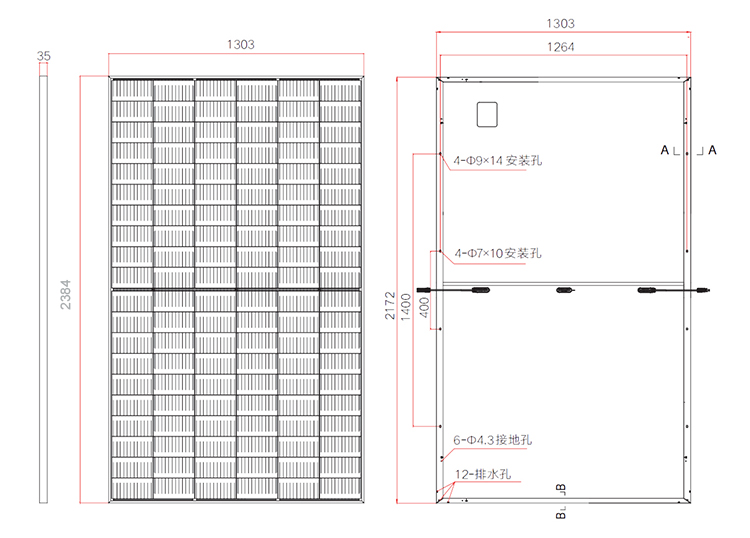

Dimensions: |
2384mm*1303mm*35mm |
Weight: |
34.5kg |
Certificate: |
CE/TUV |
Electrical Parameters |
|||||
Module |
SW650M-132 ~ SW670M-132 |
||||

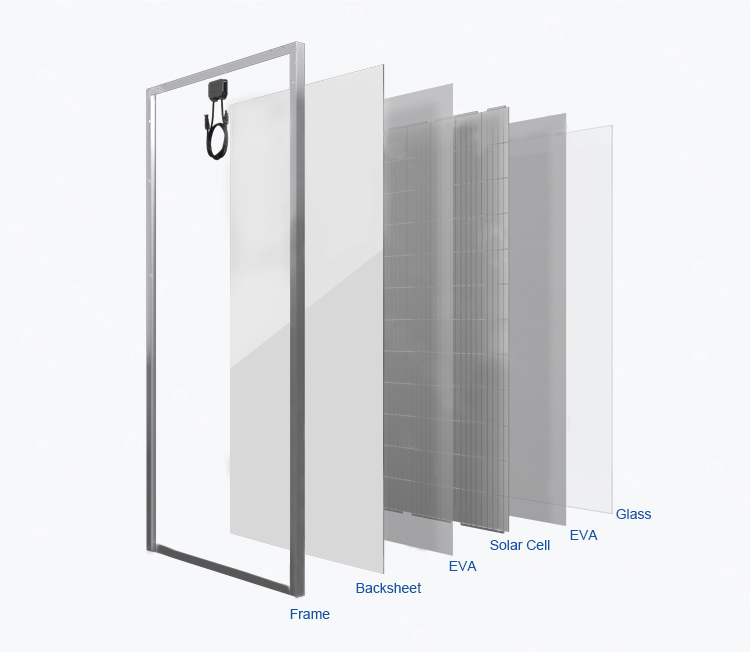

Encapsulation |
Class/Eva/Cell/Eva/Backsheet |
||||
Maximum Power Pmax(W) |
650 |
655 |
660 |
665 |
670 |
Maximum Power Voltage(Vmp/V) |
37.80 |
38.00 |
38.20 |
38.40 |
38.60 |
Maximum Power Current(Imp/A) |
17.20 |
17.24 |
17.28 |
17.32 |
17.36 |
Open Circuit Voltage(Voc/V) |
45.20 |
45.40 |
45.60 |
45.80 |
46.00 |
Short Circuit Currrnt(Isc/A) |
18.26 |
18.30 |
18.34 |
18.38 |
18.42 |
Module Efficiency(%) |
20.90 |
21.10 |
21.30 |
21.40 |
21.60 |
Power Tolerance(W) |
0~+5W |
||||
Temperature Coefficient of Isc(αIsc) |
+0.043%/℃ |
||||
Temperature Coefficient of Voc(βVoc) |
-0.26%/℃ |
||||
Temperature Coefficient of Pmax(γVoc) |
-0.36%/℃ |
||||
STC |
Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5 |
Glass by XINYI,SG CNBM Anti-reflective glass | 21.23% Higher Efficiency Cell by Tier 1 Brand | Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame |
Waterproof Labels Product by Waterproof Labels Sunway/OEM | Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness | PV Connector by TL, QC SolarMC4 4mm Qualified cable |
Hot Selling 144cells 390w 395w 400w 405w mono fotovoltaik solar panel for home
Model Number: | TSM-DE09 |
Power Range: | 390W-405W |
Dimensions: | 1754*1096*35mm |
Weight: | 21kg |
Certificate: | CE/TUV |
Sunway 182mm solar panels china mono solar panel 580w 600w 605w Monocrystalline solar panels
Model Number: |
SW600M-120 |
Power Range: |
580W-605W |
Dimensions: |
2172*1303*30mm |
Weight: |
31.5kg |
Certificate: |
CE/TUV |
Hot Selling 144cells 555w 560w 565W 570w 575W 580W mono fotovoltaik solar panel for home
Model Number: | SW580M-144 |
Power Range: | 555W-580W |
Dimensions: | 2256*1132*35mm |
Weight: | 29kg |
Certificate: | CE/TUV |
Perc Half Cell Solar Panel:
High power 550watt half cell solar panel 540w 550w 560w mono photovoltaic module pv solar panel
Model Number: | SW550M-144 |
Power Range: | 540W-560W |
Dimensions: | 2279*1134*35mm |
Weight: | 29kg |
Certificate: | CE/TUV |
