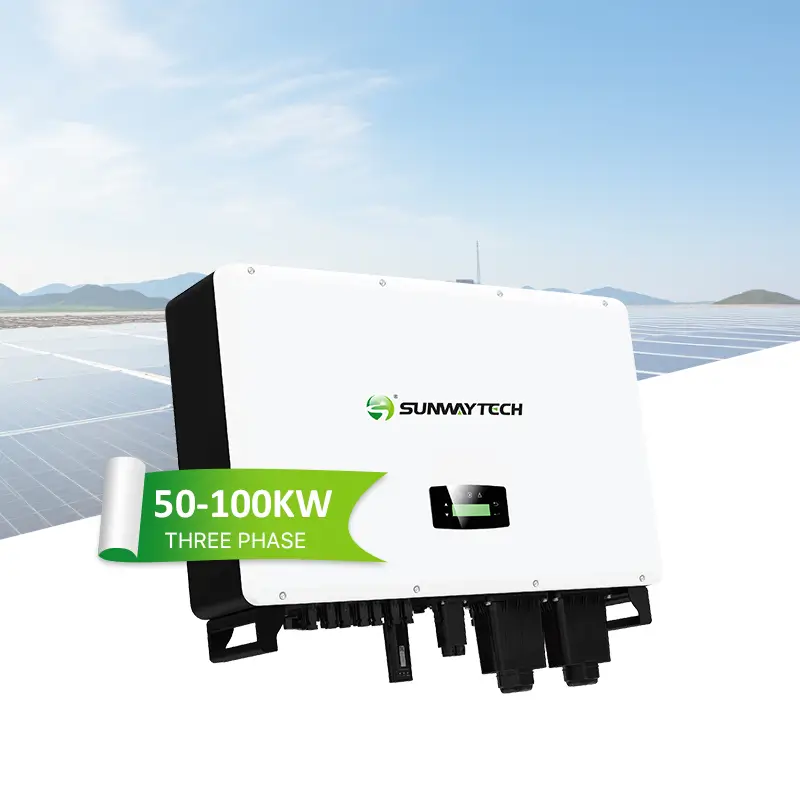

Sunway Three Phase Hybrid Inverter 50-100Kw

Sunway Three Phase Hybrid Inverter 50-100Kw

Categories Hybrid Solar Inverter, SUNWAY Inverter

Model Number:	SW50KHP3EU2
Output power：	50-100KW
Output Voltage:	230 / 400V

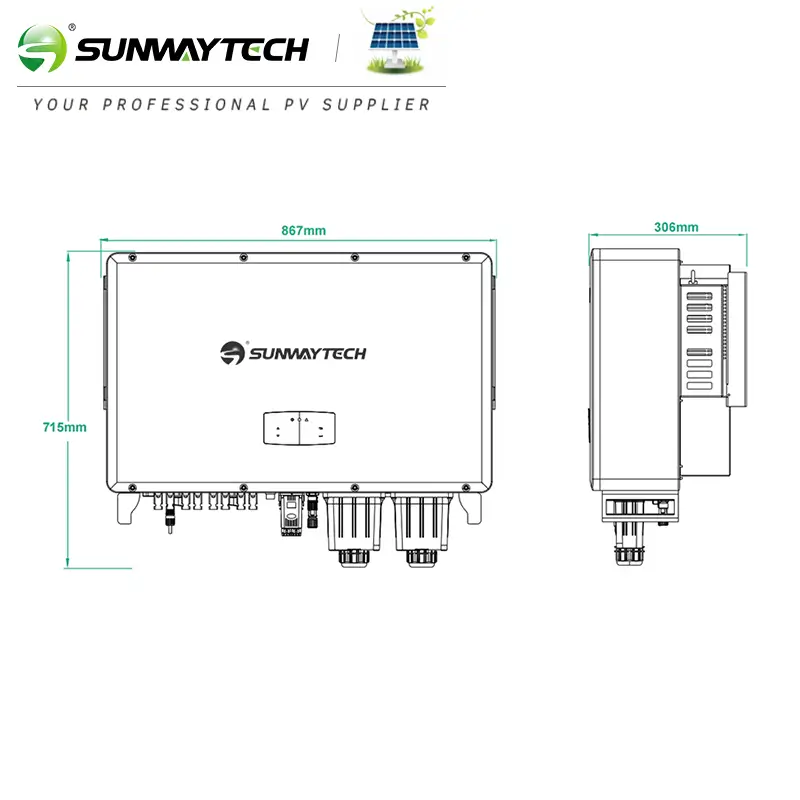

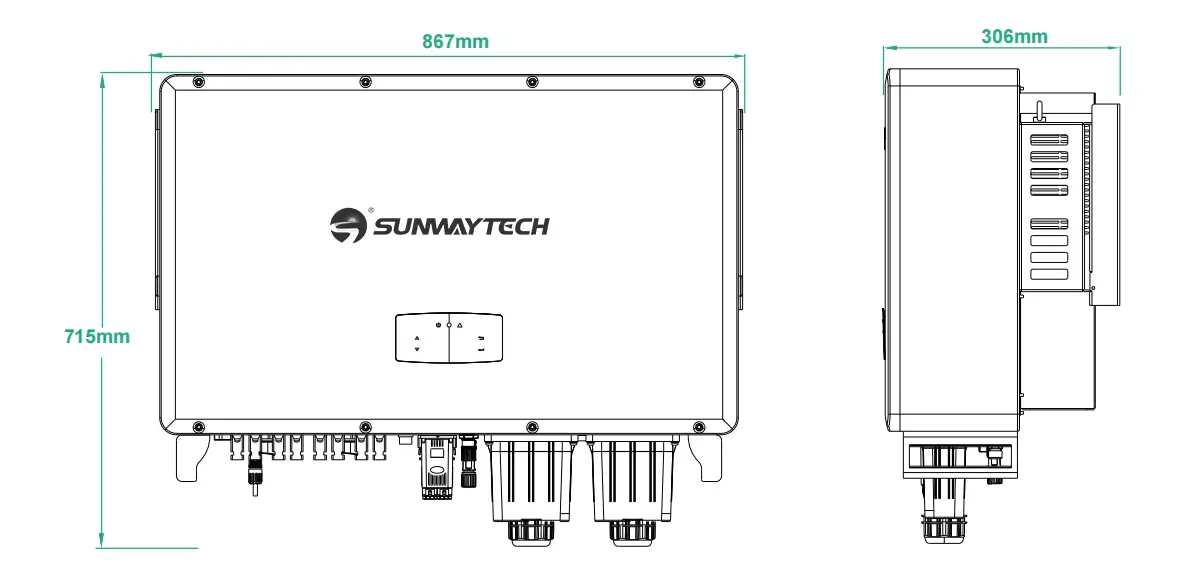

Size(mm):	867715306
Weight(KG)：	81kg

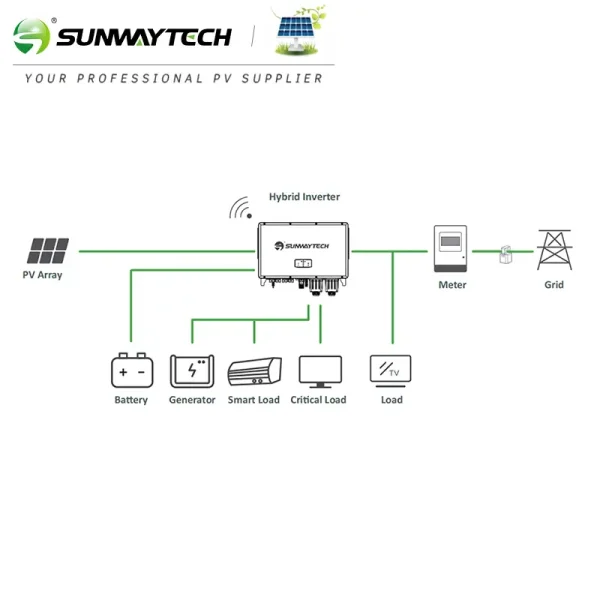

The three phase storage inverters are designed to increase energy independence for homeowners and commercial users. The power range is from 36kW to 50kw, companble with high voltage (150-800v) batteries.

Energy management is based on time-ofuse and demand charge rate sructures, signifcantly reduce the amount of energy purchasedfrom public grid.

Thanks for the ups function iswitch time < 10ms, that enables the crucial loads power on during outages. Addinonally,under the backuroperaton mode, the inverter provides you up to 150% peak output overloading.

Technical Data	SW50KHP3EU2
PV Input
Max. Input Power (kW)	75
Max. PV Voltage (V)	1000
MPPT Range (V)	620
Full MPPT Range (V)	150-1000
Normal Voltage (V)	150-850
Startup Voltage (V)	160
Max. Input Current (A)	40*4
Max. Short Current (A)	48*4
No. of MPP Tracker / No. of PV String	4/8
Battery Port
Max. Charge/Discharge Power (kW)	50
Max. Charge/Discharge Current (A)	120
Battery Normal Voltage (V)	500
Battery Voltage Range (V)	150-800
Battery Type	Li-ion / Lead-acid / Sodium metal chloride battery
AC Grid
Nominal AC Output Power (kW)	50
Max. AC Input/Output Power (kVA)	75/55
Max. AC Output Current (A)	83.5
Nominal AC Voltage (V)	230 / 400
Nominal AC Frenquency (Hz)	50 / 60
Power Factor	1（- 0.8 - 0.8 adjustable）
Current THD (%)	< 3
AC Load Output (Back-up)
Nominal Output Power (kVA)	50
Nominal Output Voltage (V)	230 / 400
Nominal Output Frequency (Hz)	50 / 60
Max. AC Output Current (A)	83.5
Peak Output Power	55kVA, 60s
THDV (with linear load)	3%
Switching Time (ms)	< 10
Efficiency
European Efficiency (%)	98.30%
Max. Efficiency (%)	98.60 %
