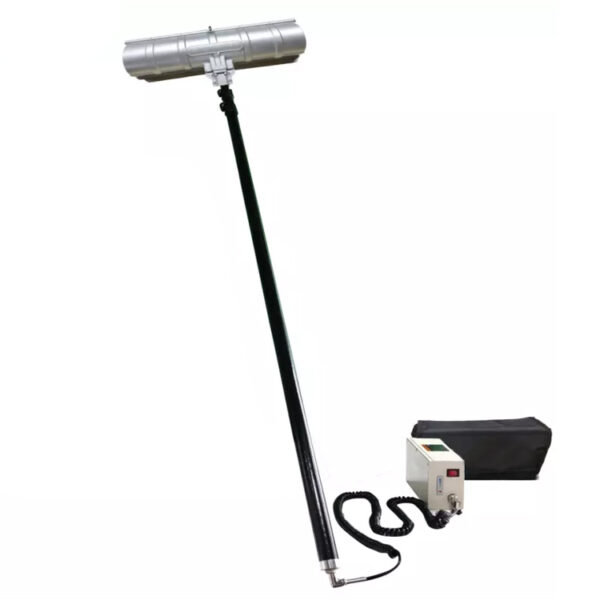

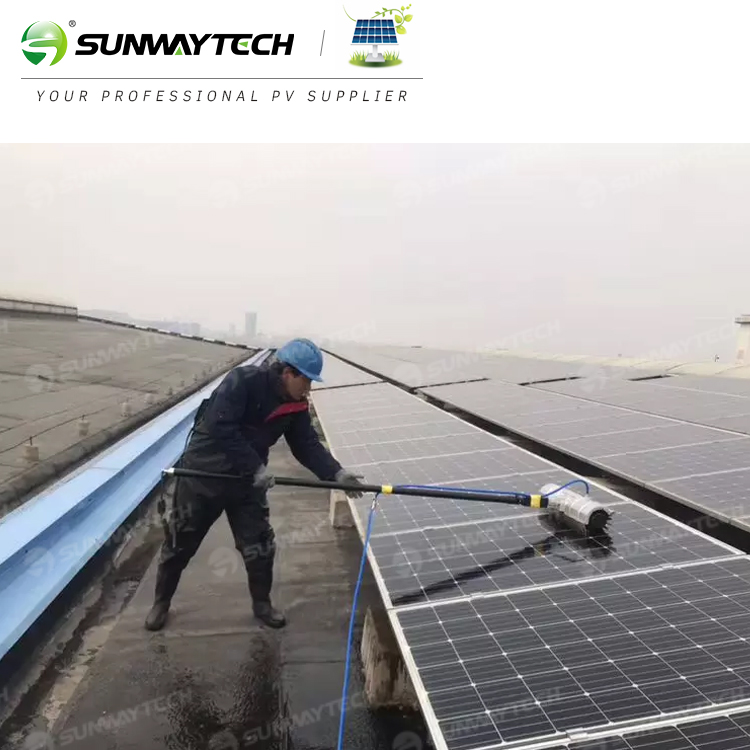

Solar Panel Cleaning Brush:

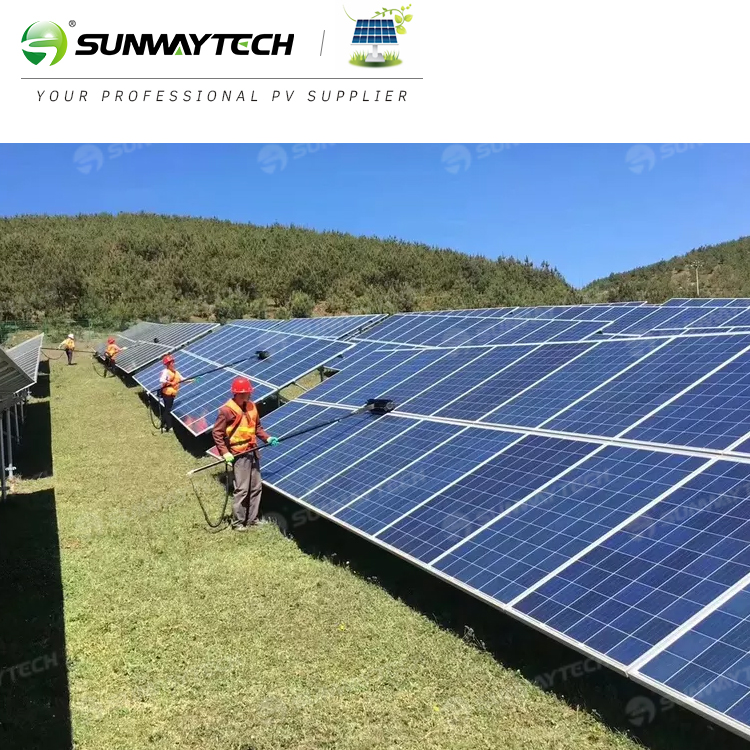

It is suitable for barren mountain power station , distributed power station
and farming photovoltaic power station within meters where the big solar
panel cleaning system.
Solar Panel Cleaning Brush:
It is suitable for barren mountain power station , distributed power station
and farming photovoltaic power station within meters where the big solar
panel cleaning system.

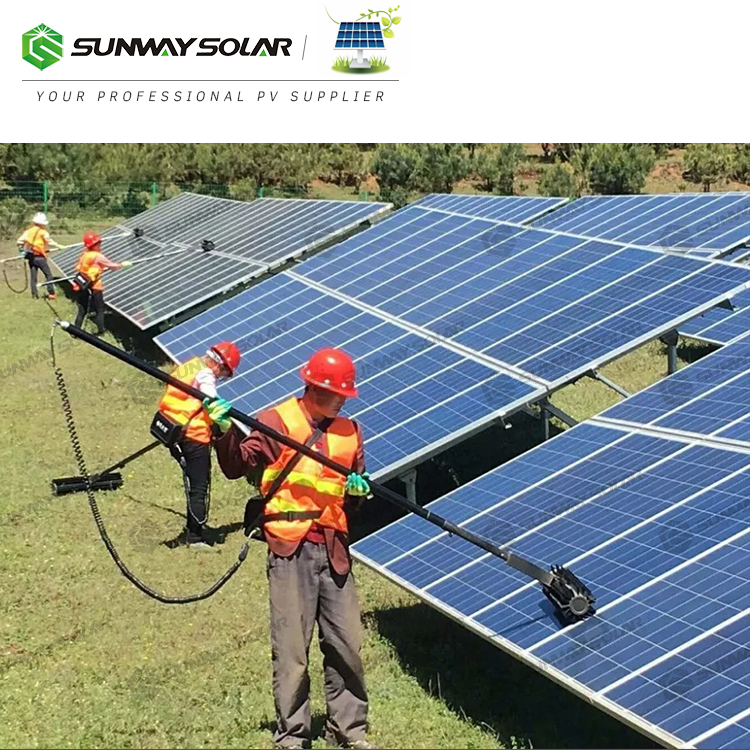

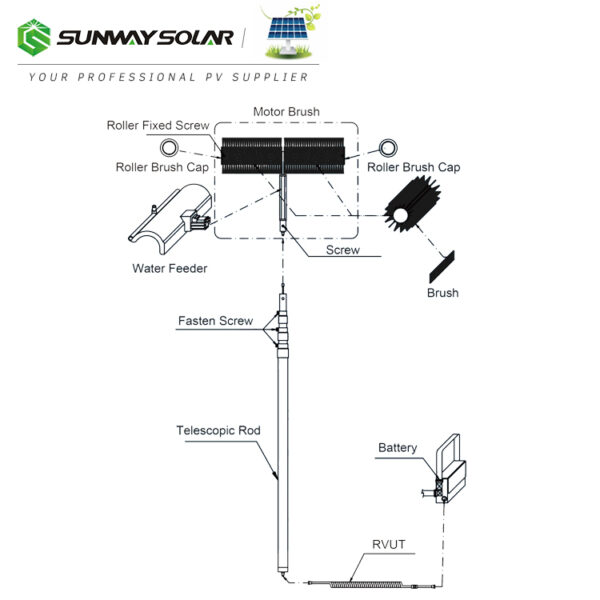

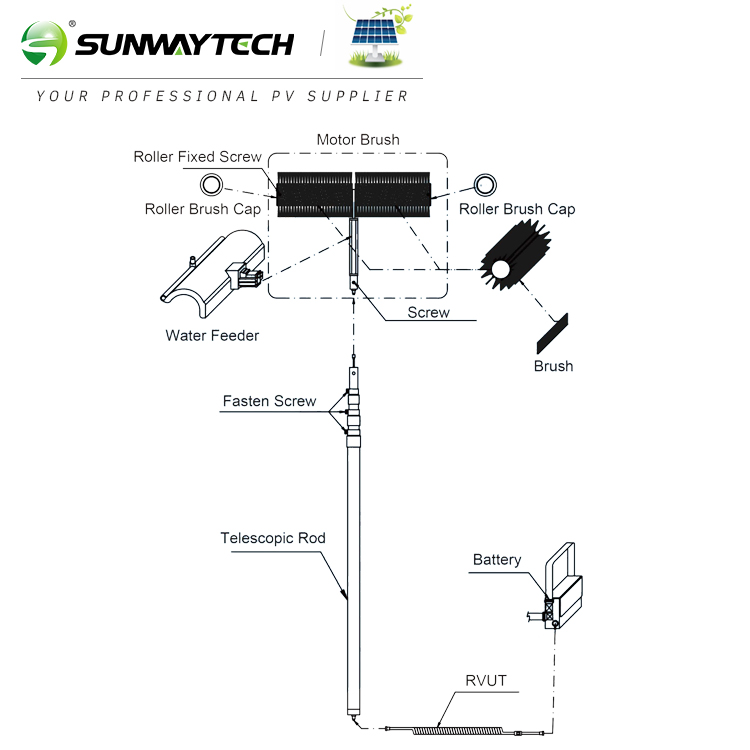

C21 Solar cleaning machine, which is designed and made for the special environment of photovoltaic power station.
|
Item
|
C21-3600
|
C21-5400
|
C21-7200
|
|
|
Product Parameters
|
Type
|
With water feeder
|
||
|
Minimum size
|
575*2330mm
|
|||
|
Maximum size
|
575*3630mm
|
575*5430mm
|
575*7230mm
|
|
|
Net weight
|
12KG
|
13KG
|
14KG
|
|
|
Gross weight
|
13KG
|
14KG
|
15KG
|
|
|

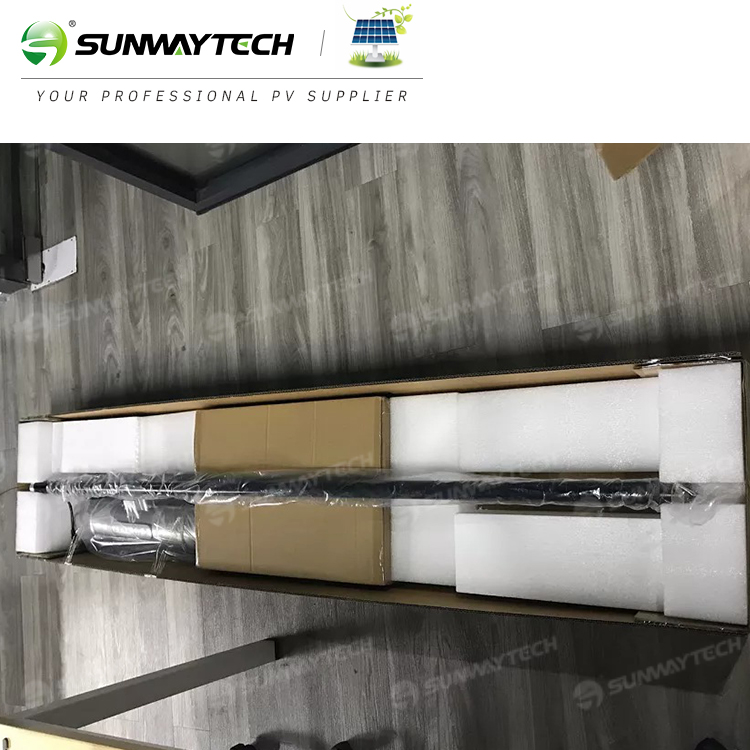

Carton size
|
2030* 170*420MM
|
|||
|
Technical
Parameters |
Working mode
|
Motor
|
||
|
Operating voltage
|
24V
|
|||
|
Charging voltage
|
220V/110V
|
|||
|
Motor power
|
200W
|
|||
|
Battery capacity
|
20Ah
|
|||
|
ldler electric current
|
7~8A
|
|||
|
ldler revolutions
|
500~600rpm
|
|||
|
Battery life
|
3~4h Affected by
workingenvironment and season
|
|||
|
Length of brush roller
|
ф 150*570*400mm
|
|||
|
Length of telescopic rod
|
3600mm
|
5400mm
|
7200mm
|
|
|
Day work efficiency
|
0.5~0.8MW
|
|||
|
Work temperature range
|
30~60℃
|
|||
|

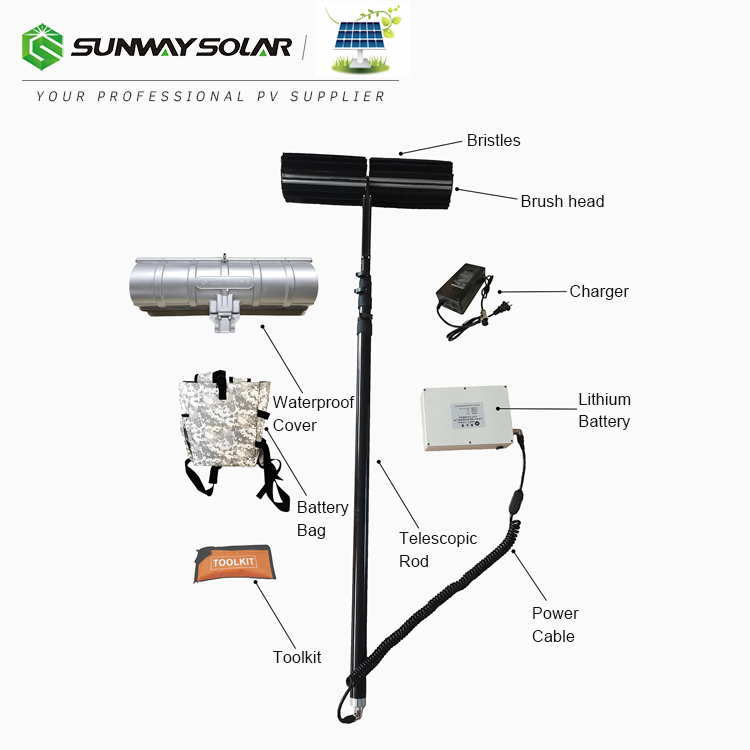

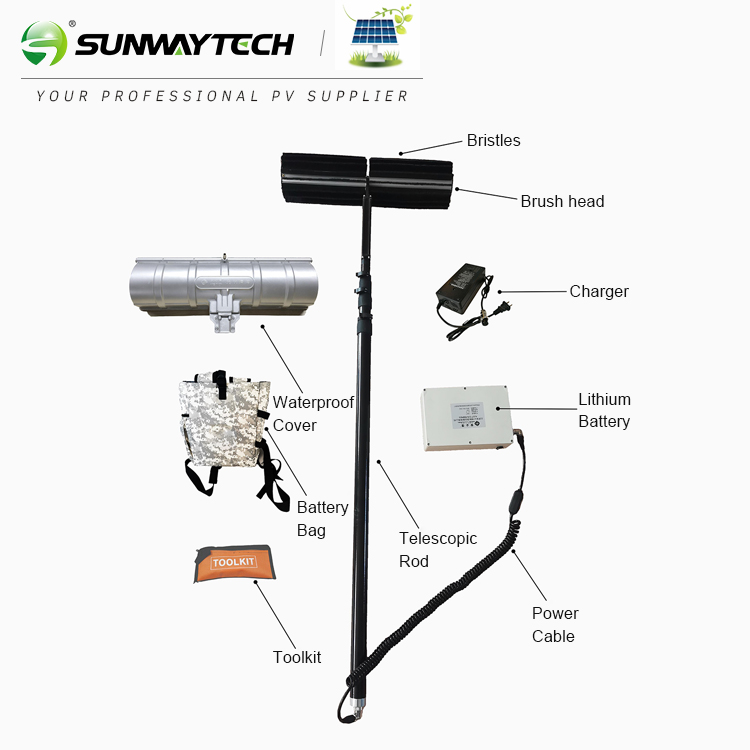

Accessories |
Backpack
|
|||
|
Tool bag
|
||||
|
HS Code
|
8424899900
|
|||

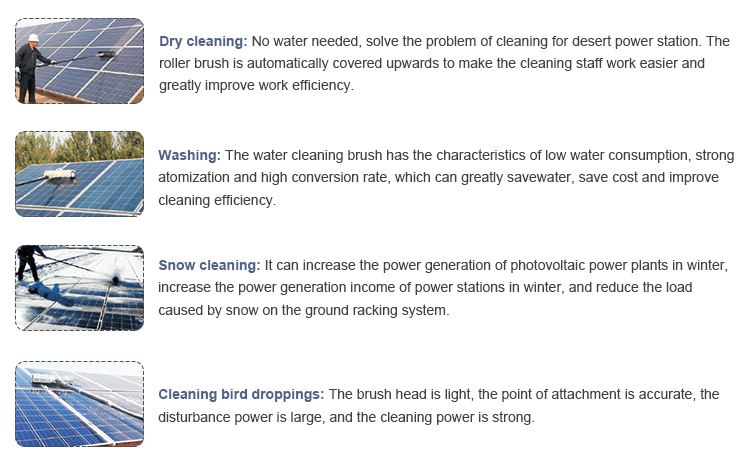

The product has the advantages of low cost, easy using and high efficiency of daily cleaning O.5MW-O.8MW. Besides , there are 2 cleaning methods options , water and dry cleaning ,which provide user with a one-stop solution for photovoltaic power station cleaning.
|
Standard Voltage
|
3.2V RT@0.5C Discharge
|
3.2V RT@05C Discharge
|
|
Nominal Capacity
|
230Ah RT@0.5C Discharge
|
280Ah RT@0.5C Discharge
|
|
Voltage Range
|
2.0V-3.65V
|
2.0V-3.65V
|
|
Standard Charge
|
0.5C CC to 3.65V, 3.65V CV to 0.05C
|
|
Portable Power Station :
Microgrid mainly has solar power system(Inverter, Solar panels), Energy storage system( AGM, GEL or lithium battery), can be also connect with generator
| OPS | OPS600 |
| System Type： | Portable Power Station |
| Solar Power: | 600W |
| Output Voltage: | 14.4V |
| Certificate: | UL/TUV/CE/ISO |
The water guide duster is installed at the lower border of the component.
Through the hydrophilic groups of polymer materials, the water tension
on the surface of the water area is destroyed, and the water and dust at the
lower border of the border are timely guided to go over the border
and flow out in the process of accumulation (water). From the source
(formation stage), the problem of accumulation of water and dust at
the lower border of the component is solved.
PV Combiner：For PV power system, in order for convenient maintenance and reliability,
we generally install DC combiner equipment between PV array and
PV controller or inverter to reduce the connecting wires between them.
| Model Number |
Solar Combiner Box |
| Rated Voltage | 1000V DC /1500V DC |
| Ambient temperature | -25℃~+65℃ |
| Dimension | 400*155*300 |
| Weight | 15kg |
