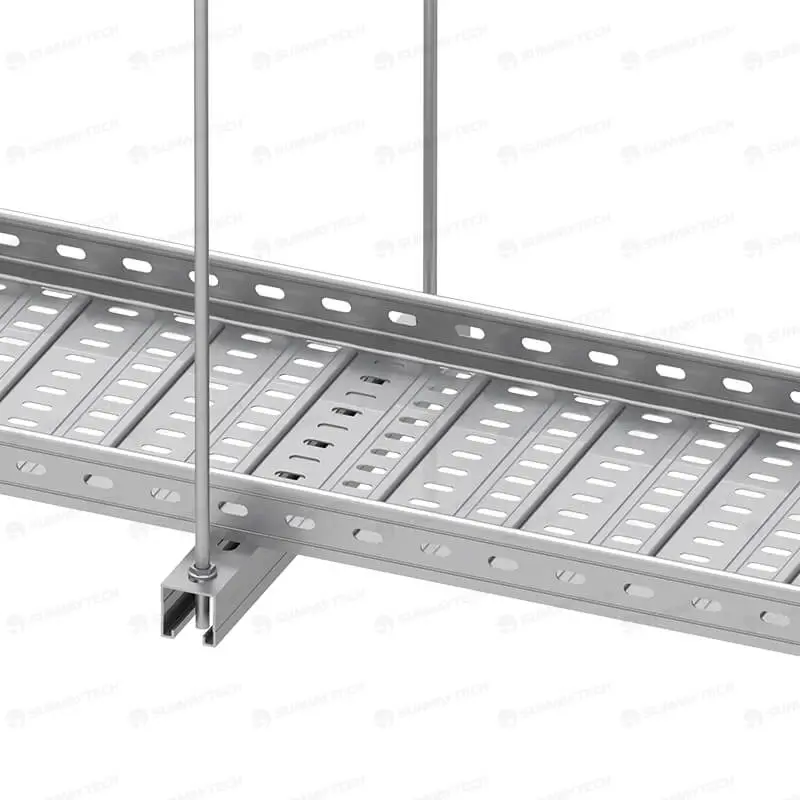

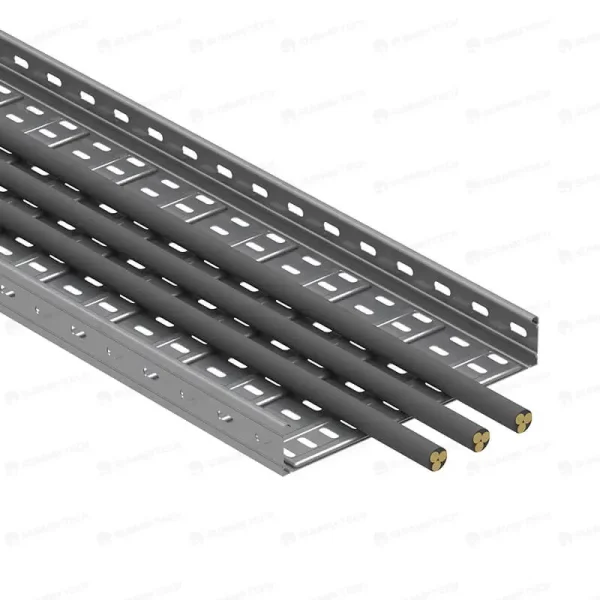

| Type | Ventilated or Perforated Trough |
| Material | Carbon Steel |
| Width | 200mm, 300mm, 600mm, 100MM, 400mm, 500mm, 150mm |
| Length | 3 M, 2.5M, 2 M |
| Surface Finishing | Zinc aluminum magnesium/Galvanized/Powder coating |
1.Customizable: The product supports custom color and size, catering to individual preferences and specific project requirements.
2.Durable: The heavy-duty, high-quality steel material ensures long-lasting performance and resistance to corrosion, suitable for outdoor and harsh environments.
3.Versatile: Choose between perforated or ventilated types to best suit your cable management needs, increasing system efficiency and reducing installation complexity.
4.High-quality finishing: The hot-dipped galvanized treatment provides exceptional corrosion resistance, ensuring the cable tray remains in optimal condition over time.
|
|
Full cable filling
|
SWL KG/M
|
|||
|
Fill Area
|
Fill Load
|
Span (m)
|
|||
|
cm²
|
kg/m
|
1.5m
|
2.0m
|
2.5m
|
|
|
100*100
|
81
|
17.3
|
82
|
58
|
33
|
|
150*100
|
118
|
34.8
|
84
|
62
|
34
|
|
200*100
|
155
|
43.4
|
94
|
66
|
36
|
|
300*100
|
230
|
60.6
|
104
|
80
|
53
|
|
400*100
|
305
|
77.9
|
122
|
96
|
65
|
|
500*100
|
379
|
94.9
|
122
|
96
|
65
|
|
600*100
|
454
|
112.1
|
122
|
96
|
65
|
The Cable Ladder System is designed to offer high loading capacities together with significant weight reductions. CL Cable Ladders are designed to be safe, and give distinct HSE benefits. All parts are roll formed with return flanges and have no sharp edges. Handling, lifting and fitting operations are inherently safer, easier and quicker. All welded stainless steel products are pickled and passivated to meet the expectations of long field lifetime and integrity requirements
The Cable Tray System is equipped with side return flanges and designed to eliminate any sharp edges. This cable tray system incorporates slot patterns, enabling efficient equipment placement and convenient access for cable ties and other fixtures. It is offered in 50, 75, 100, 150 mm heights, with the option for custom heights upon reques
Solid-bottom cable tray are typically used in applications that generate minimum heat, such as Electrical, Data & Telecommunication, they offer maximum protection for wires.It can be formed into a range of combinations of widths and heights so it is easy to find a size to fit your installation’s needs.The solid bottom design is ideal for schools, hospitals and retail environments.A full line of accessories, covers, and radius fittings are available

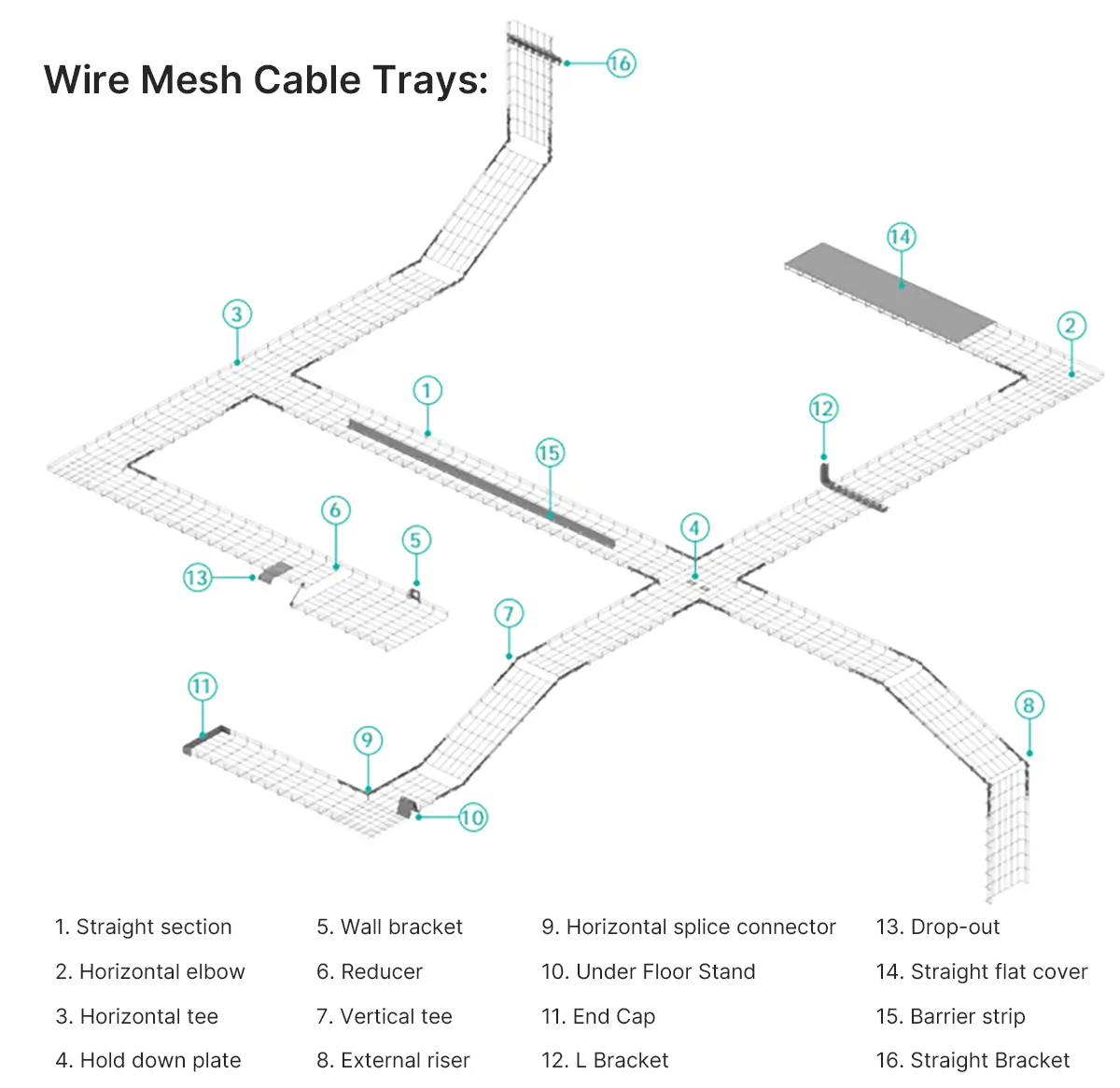

The wire mesh cable trays are ideal for commercial and data center cable management, providing a flexible way to adjust your cable trays to suit your job site applications. It can easily modify the horizontal and vertical transition connection accessories, and there are a variety of materials and surface treatments to choose from to meet environmental and aesthetic requirements.
