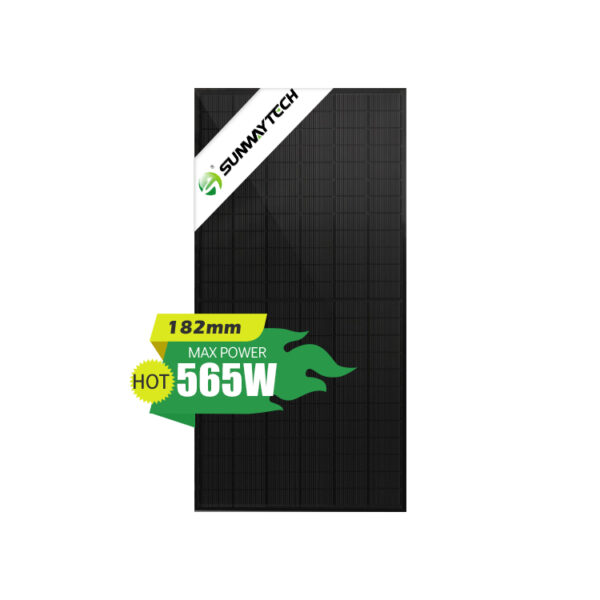

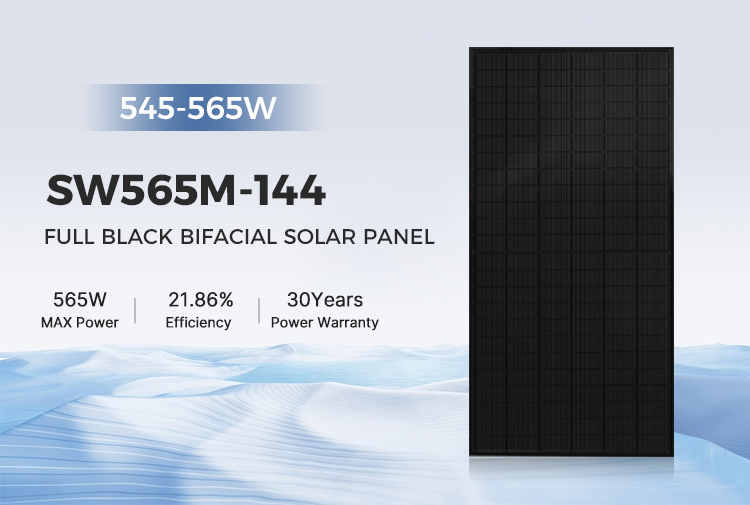

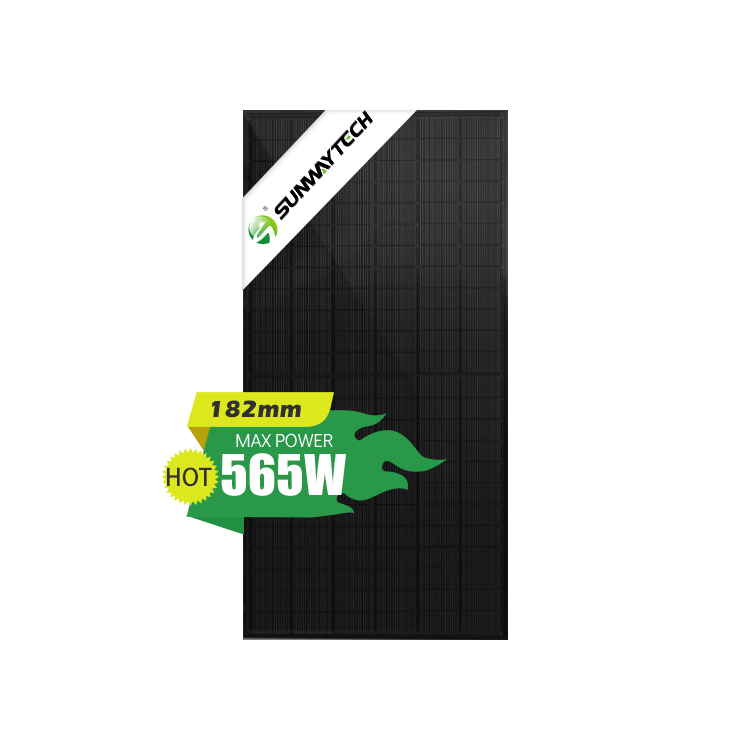

Sunway full black bifacial solar 560w mono half cell 144 182mm solar panels
|
Electrical Parameters
|
|||||
|
Module
|
SW545M-144 ~ SW565M-144
|
||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
||||
|
Maximum Power Pmax (W)
|
545
|
550
|
555
|
560
|
565
|
|
Maximum Power Voltage (Vmp/V)
|
42.00
|
42.10
|
42.31
|
42.52
|
42.74
|
|
Maximum Power Current (Imp/A)
|
12.98
|
13.07
|
13.12
|
13.17
|
13.22
|
|
Open Circuit Voltage (Voc/V)
|
49.80
|
49.90
|
50.01
|
50.20
|
50.38
|
|
Short Circuit Current (Isc/A)
|
13.71
|
13.80
|
13.92
|
13.98
|
14.05
|
|
Module Efficiency (%)
|
21.09
|
21.28
|
21.48
|
21.67
|
21.86
|
|
Power Tolerance (W)
|
0 ~ +5W
|
||||
|
Temperature Coefficient of Isc (αIsc)
|
+0.043%/℃
|
||||
|
Temperature Coefficient of Voc (βVoc)
|
-0.26%/℃
|
||||
|
Temperature Coefficient of Pmax (γPmp)
|
-0.36%/℃
|
||||
|
STC
|
Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5
|
||||
| Reliable Quality |
| Positive power tolerance: 0~+5W |
| 100% EL Double-inspection ensures modules are defects free |
| Modules Binned by Current to improve system performance |
| Potential induced Degradation (PID) Resistant |
| Battery arrangement | 108 (6×18) |
| Junction Box | Split junction box, IP68 |
| Output line | 4mm2, ±1200mm Wire length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Component weight | 20.8kg |
| Component size | 1722×1134×30mm |

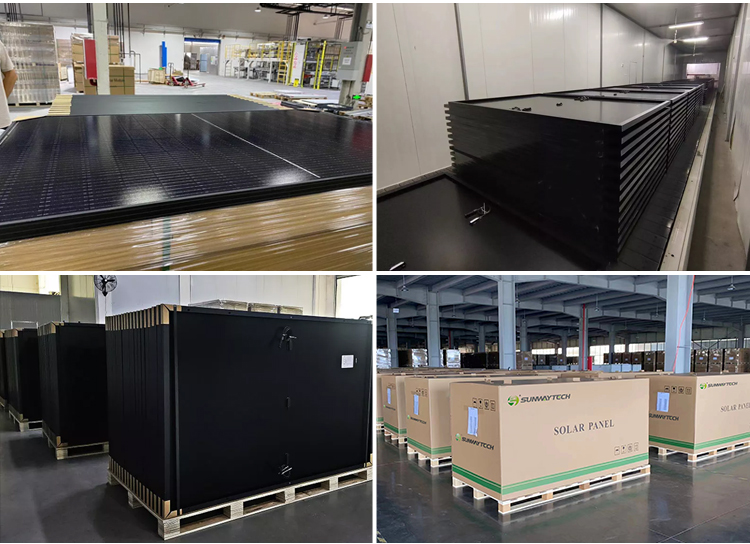

| Packaging Information | 36 p/pallet 216 p/20-foot flat cabinet 936 p/40-foot high cabinet |
