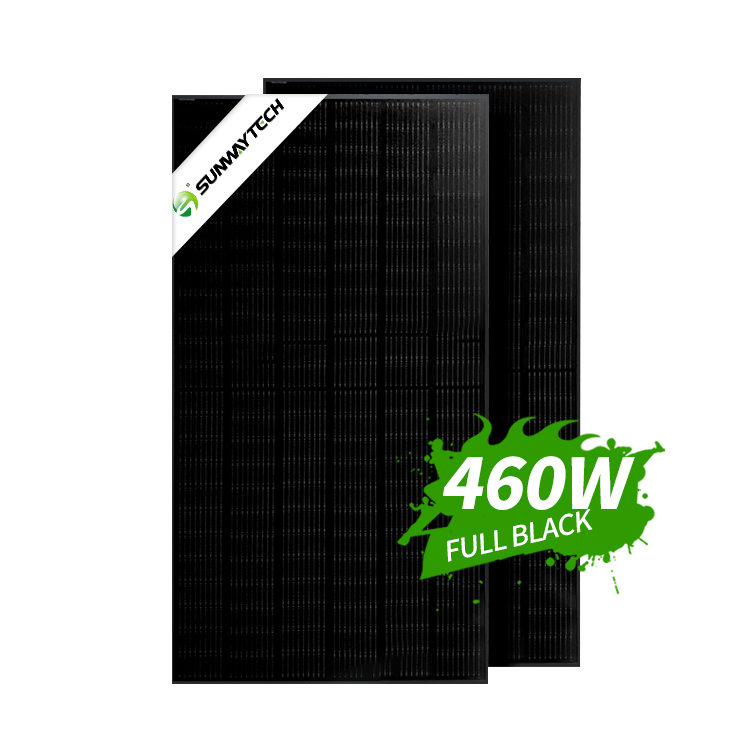

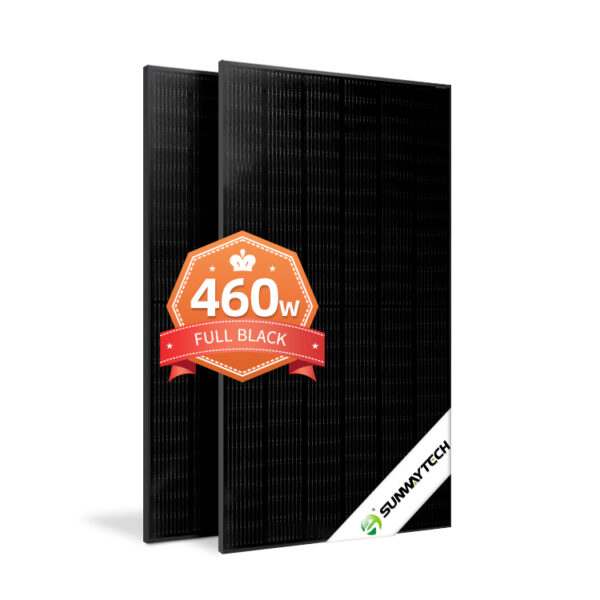

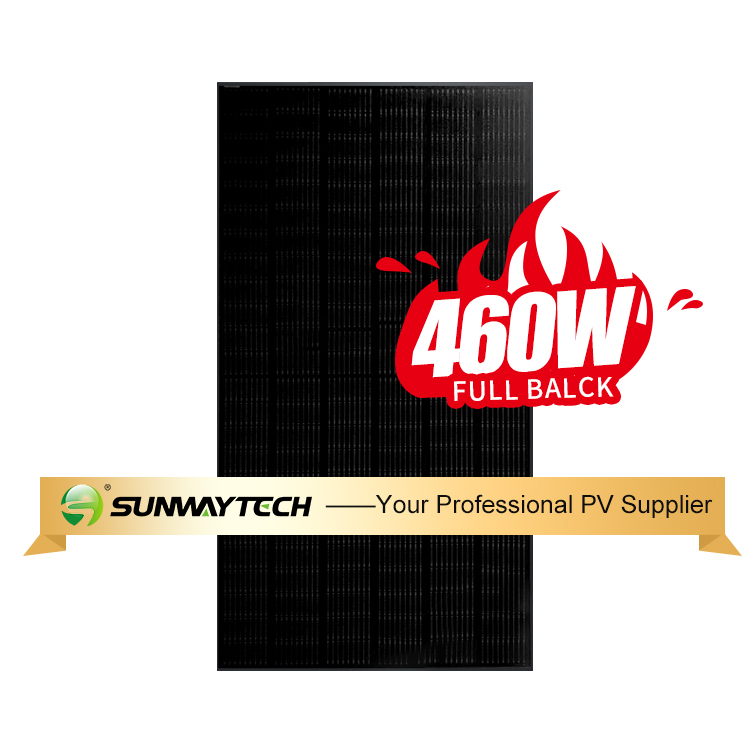

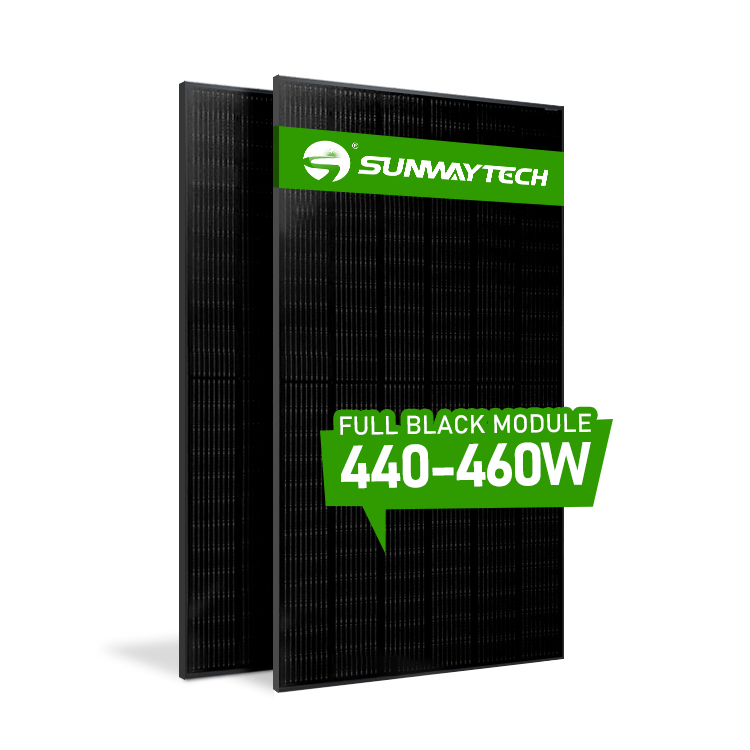

High Efficiency Black 440W 445W 450W 455W 460W Mono Solar Photovoltaic Mono Cells
Model Number: | SW460M-144 |
Power Range: | 440W-460W |
Dimensions: | 2094*1038*35mm |
Weight: | 22.5kg |
Certificate: | CE/TUV |
Electrical Parameters |
|||||
Module |
SW440M-144 ~ SW460M-144 |
||||
Encapsulation |
Class/Eva/Cell/Eva/Backsheet |
||||
Maximum Power Pmax (W) |
440 |
445 |
450 |
455 |
460 |
Maximum Power Voltage (Vmp/V) |
40.5 |
40.8 |
41 |
41.3 |
41.6 |
Maximum Power Current (Imp/A) |
10.86 |
10.92 |
10.98 |
11.04 |
11.1 |
Open Circuit Voltage (Voc/V) |
49 |
49.2 |
49.5 |
49.8 |
50.1 |
Short Circuit Current (Isc/A) |
11.3 |
11.36 |
11.42 |
11.48 |
11.54 |
Cell Efficiency(%) |
22.18 |
22.43 |
22.68 |
22.93 |
23.19 |
Module Efficiency (%) |
20.24 |
20.47 |
20.7 |
20.93 |
21.16 |
Power Tolerance (W) |
0 ~ +5W |
||||
Temperature Coefficient of Isc (αIsc) |
0.06%/℃ |
||||
Temperature Coefficient of Voc (βVoc) |
0.30%/℃ |
||||
Temperature Coefficient of Pmax (γPmp) |
0.38%/℃ |
||||
STC |
Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5 |
Waterproof Labels Product by Waterproof Labels Sunway/OEM | Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness | PV Connector by TL, QC SolarMC4 4mm Qualified cable |
Reliable Quality |
Positive power tolerance: 0~+5W |
100% EL Double-inspection ensures modules are defects free |
Modules Binned by Current to improve system performance |
Potential induced Degradation (PID) Resistant |
Battery arrangement | 108 (6×18) |
Junction Box | Split junction box, IP68 |
Output line | 4mm2, ±1200mm Wire length can be customized |
Glass | Single glass, 3.2mm coated tempered glass |
Frame | Anodized aluminum alloy frame |
Component weight | 20.8kg |
Component size | 1722×1134×30mm |
Packaging Information | 36 p/pallet 216 p/20-foot flat cabinet 936 p/40-foot high cabinet |
Sunway Monocrystalline Solar Panels All Black 425W 420W 410W 405W Eu Solar Panel From China
Model Number: | SW425M-144 |
Power Range: | 405W-425W |
Dimensions: | 1762*1134*30mm |
Weight: | 21.8kg |
Certificate: | CE/TUV |
