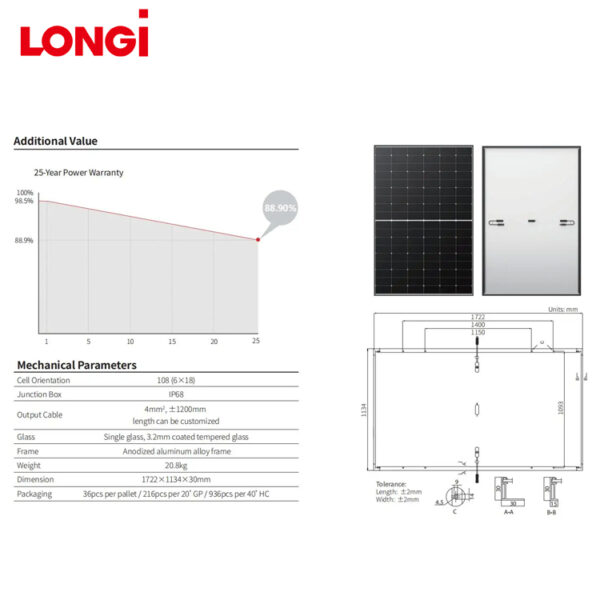

| Battery arrangement | 108 (6×18) |
| Junction Box | Split junction box, IP68 |
| Output line | 4mm2, ±1200mm Wire length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Component weight | 20.8kg |

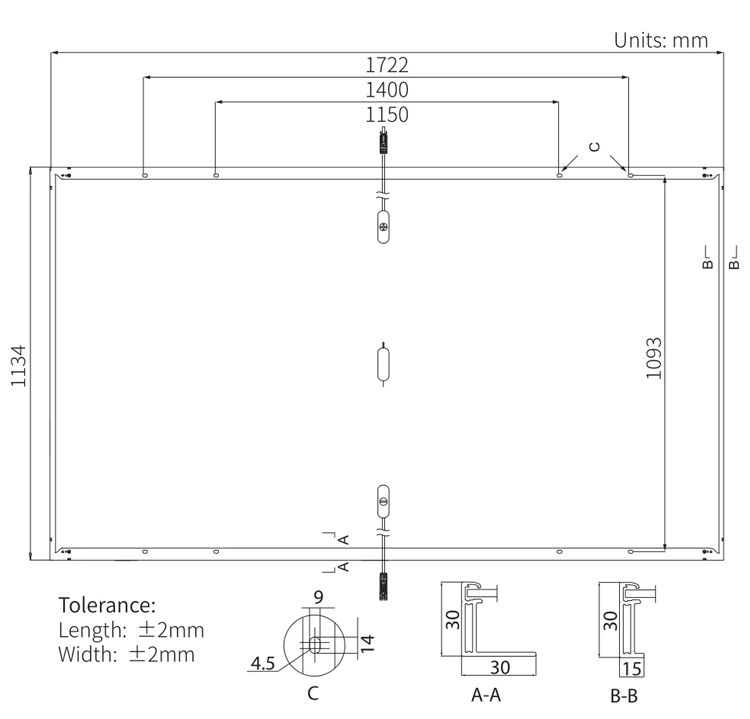

| Component size | 1722×1134×30mm |

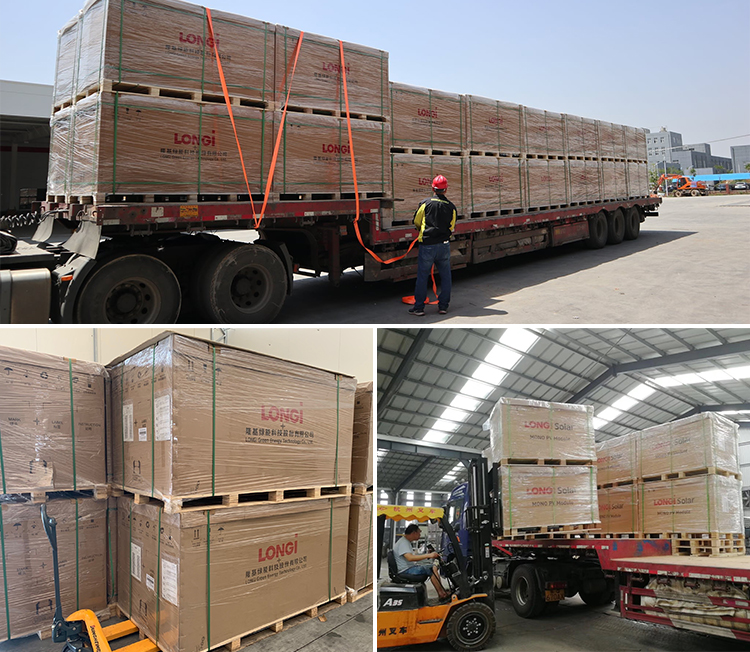

| Packaging Information | 36 p/pallet 216 p/20-foot flat cabinet 936 p/40-foot high cabinet |
Adapt to distributed projects
Simple, modern, unique style
Better power generation performance throughout the life cycle
High-quality components ensure long-term reliability
15-year product materials and workmanship warranty
25-year excess linear power output warranty
| Component model | LR5-54HTH-420M | LR5-54HTH-425M | LR5-54HTH-430M | LR5-54HTH-435M | LR5-54HTH-440M |
| Maximum power (Pmax/W) | 420 | 425 | 430 | 435 | 440 |
| Open circuit voltage (Voc/V) | 38.73 | 38.93 | 39.13 | 39.33 | 39.53 |
| Short circuit current (Isc/A) | 14.00 | 14.07 | 14.15 | 14.22 | 14.30 |
| Peak power voltage (Vmp/V) | 32.44 | 32.64 | 32.84 | 33.04 | 33.24 |
| Peak power current (Imp/A) | 12.95 | 13.03 | 13.10 | 13.17 | 13.24 |
| Component efficiency (%) | 21.5 | 21.8 | 22.0 | 22.3 | 22.5 |
