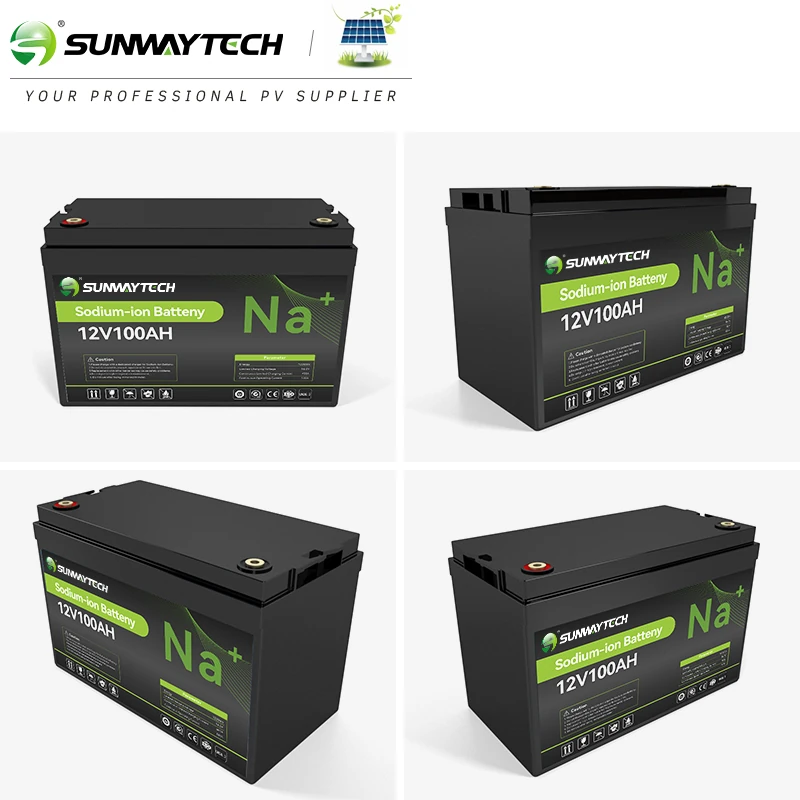

SUNWAY Sodium-ion Energy Storage Battery 12V100Ah

Categories Energy Storage System, EV Charger System, Power Lithium Battery, Solar Battery, Solar System

SW-SI-12V100AH is a 12 V / 100 Ah sodium-ion battery delivering 1.2 kWh of energy with over 3,000 cycles at 100% DOD — a long-life, cold-resistant power source for solar storage, backup power, and other 12 V applications.

Nominal Voltage	12 V
Nominal Capacity	100 Ah
Rated Energy	1.2 kWh
Cycle Life	≥ 3,000 cycles (100% DOD, 0.5C/0.5C)

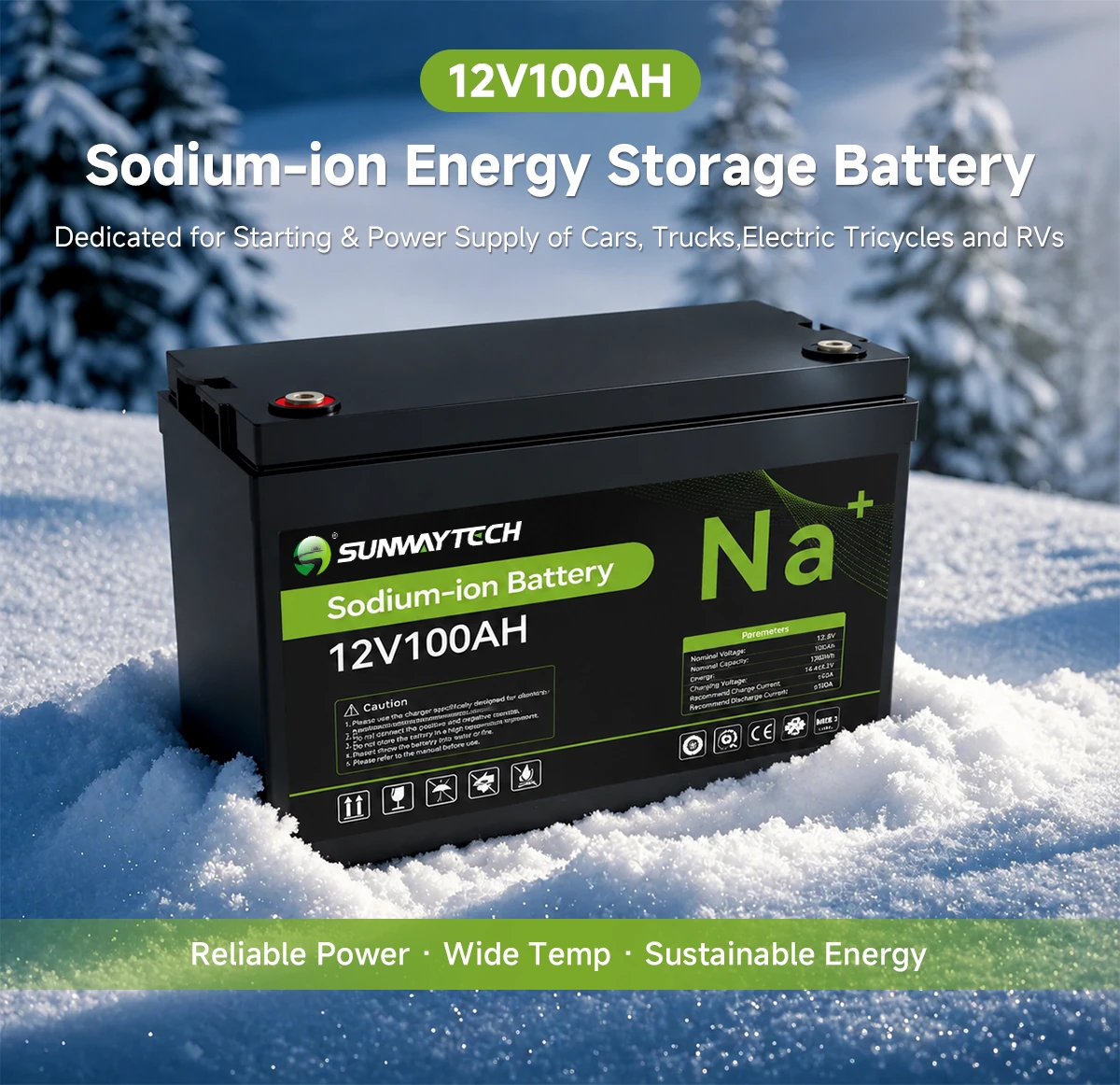

The SW-SI-12V100AH is a 12 V / 100 Ah sodium-ion battery engineered as a high-performance, long-life power source for 12 V energy storage applications. With a nominal capacity of 100 Ah and rated energy of 1.2 kWh, it delivers stable power across a wide temperature range — charge from -10°C to 55°C and discharge from -30°C to 55°C — making it especially suitable for cold environments where conventional batteries struggle

Built with 3 V / 10 Ah sodium-ion cells in a 4S10P configuration and housed in a durable ABS enclosure rated IP65, the battery supports up to 100 A continuous charge and discharge current (50 A recommended), with a charge limit of 16 V and discharge cut-off between 8 and 9 V. It offers a cycle life of over 3,000 cycles at 100% DOD (0.5C/0.5C, until capacity decays to 70%), ensuring dependable long-term performance. Certified to UN38.3 with MSDS documentation, the SW-SI-12V100AH is a safe, lightweight (12.5 kg), and low-maintenance choice for solar storage, backup power, and other 12 V systems.

Model	SW-SI-12V100AH
Cell material	Sodium-ion
Nominal voltage	12V
Nominal capacity	100AH
Cell model/Configuration	3V10AH/4S10P
Rated energy	1.2KWH

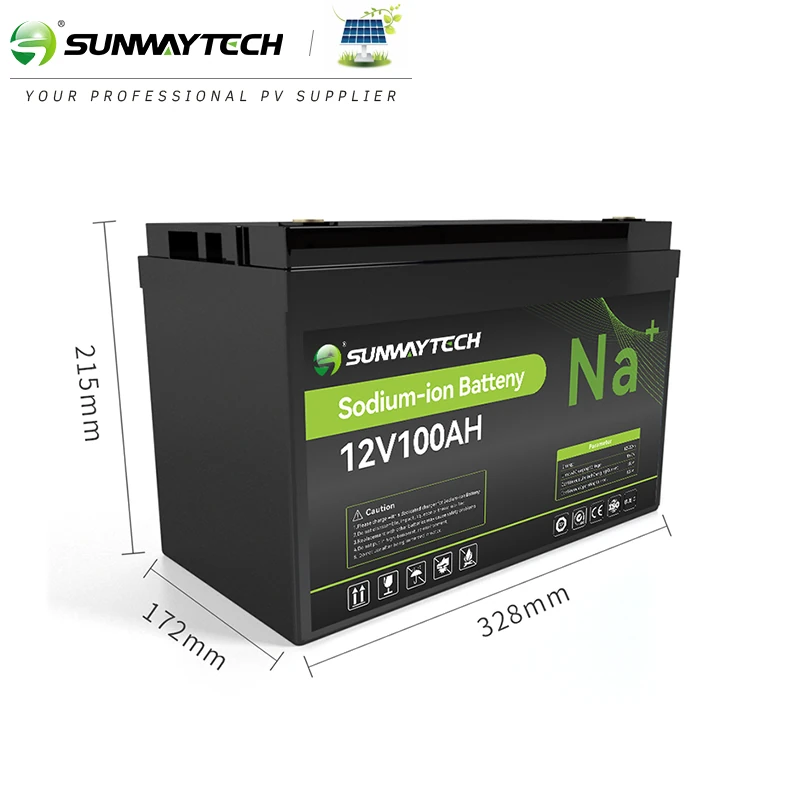

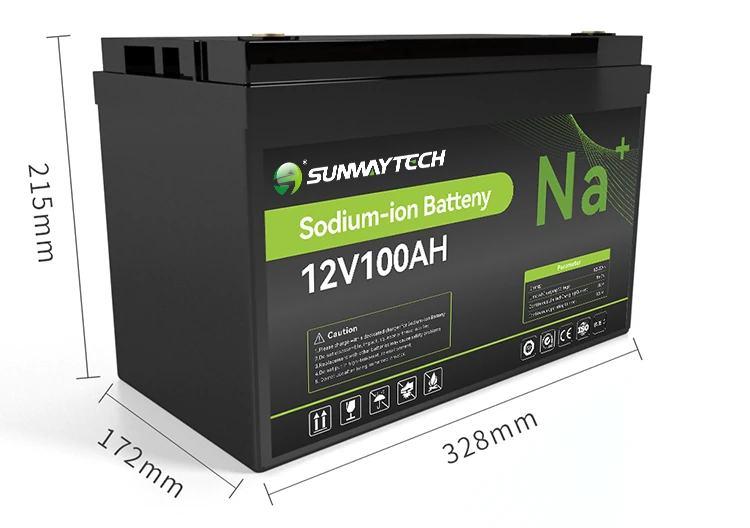

size	328214.5172mm(±2mm)
weight	12.5kg±0.5kg
Housing material	ABS
Max charge/discharge current	100A/100A
Recommend Charge/discharge Current	50A/50A
Charge limit voltage	16V
Discharge cut-off voltage	8~9V
Cycle life	≥3000 times (25±2℃, 100%DOD, 0.5C/0.5C Cycle to capacity decay to 70% of rated capacity)
Operating Temperature	Charge::-10 to 55℃/Discharge:-30 to 55 ℃
Storage environment	Less than 3 months: -20 to 45°C@60±25%R.H Less than 6 months: -10 to 35°C@60±25%R.H Over one year: 0 to 25°C@60±25%R.H
IP rating	IP65

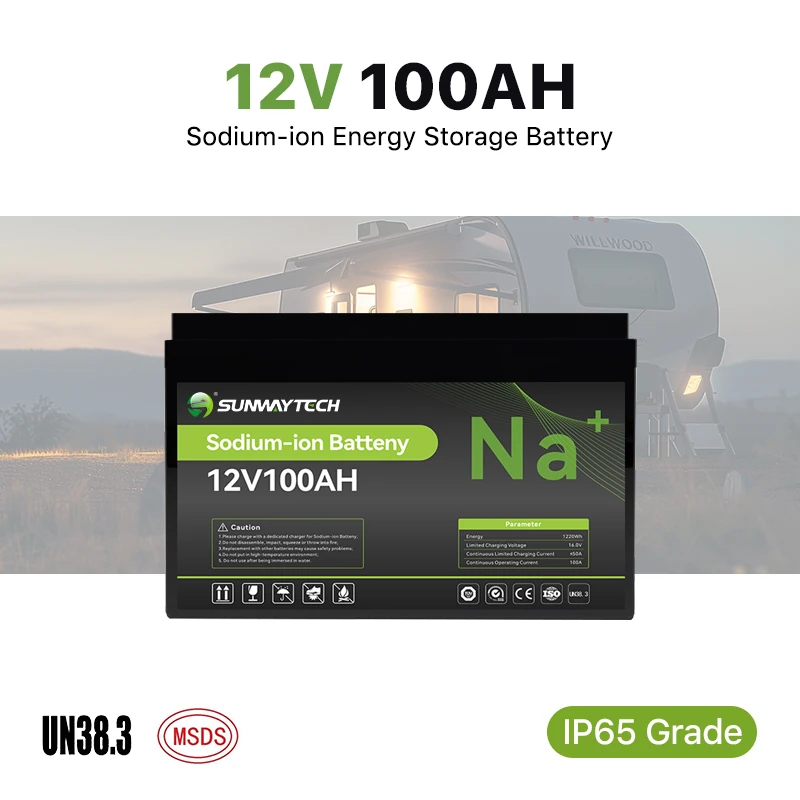

Certification	UN38.3 , MSDS
