SUNWAY LITE SERIES Smart Lithium Battery for Light Mobility Applications

Categories Power Lithium Battery, Solar Battery

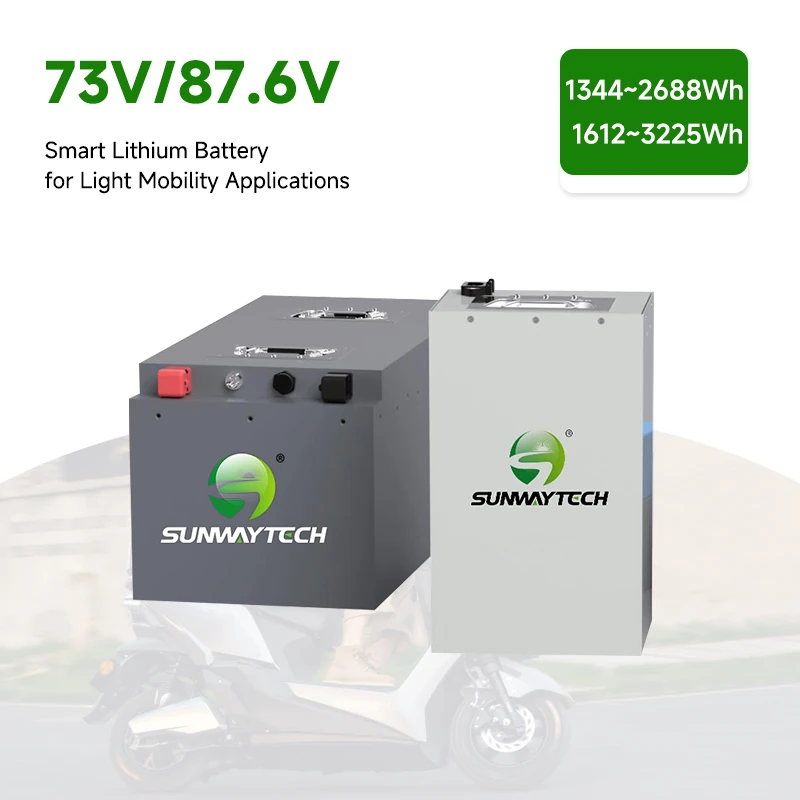

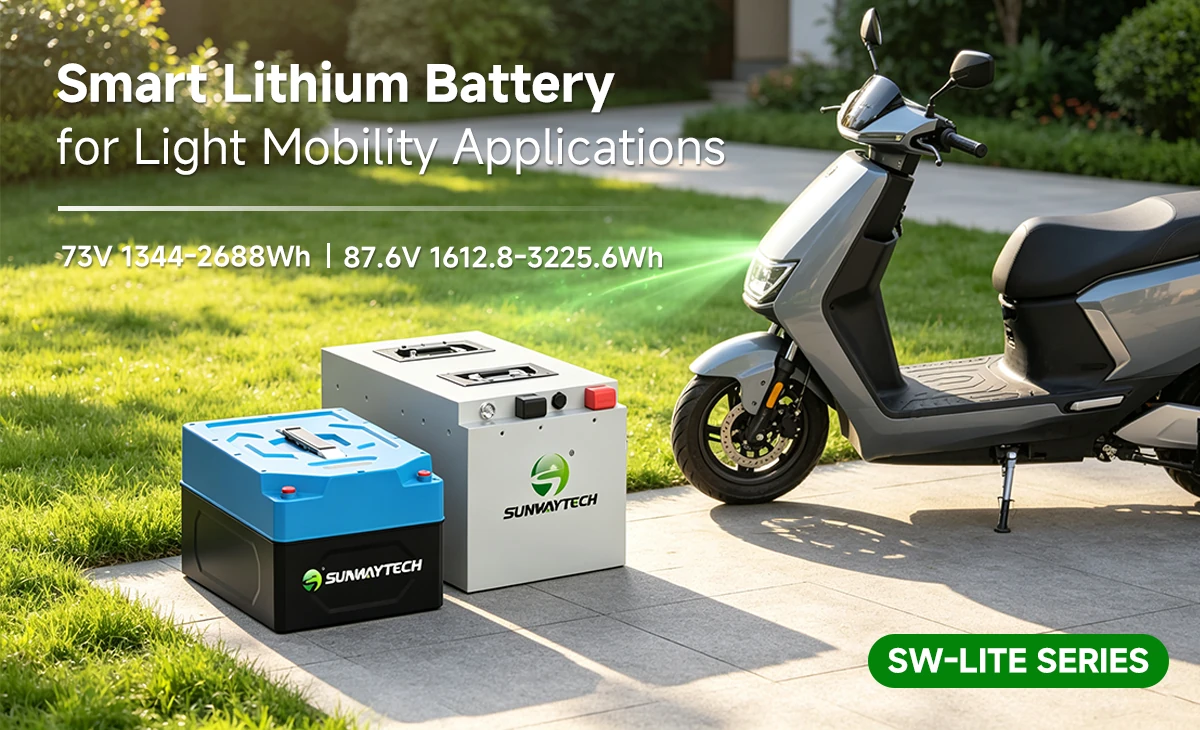

SW-Lite series is a range of smart LiFePO4 batteries for light electric vehicles — 60 V and 72 V platforms from 1344 Wh to 3225.6 Wh, with compact, lightweight designs and heated options for e-bikes, e-scooters, small tricycles, and personal mobility vehicles.

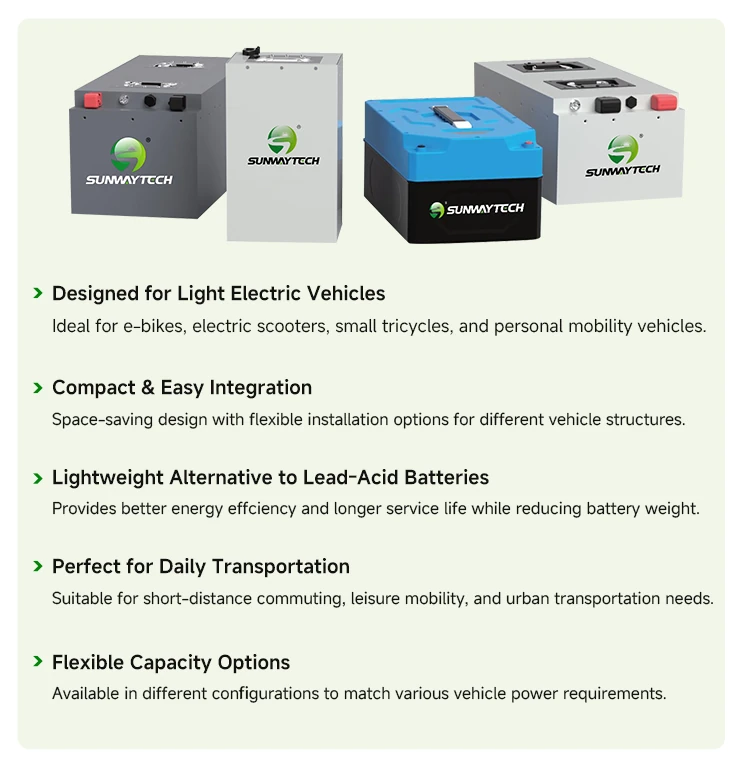

The SW-Lite series is a smart lithium iron phosphate battery range designed for light mobility applications, including e-bikes, electric scooters, small tricycles, and personal mobility vehicles. Available in 60 V and 72 V platforms with nominal energy from 1344 Wh to 3225.6 Wh, the series offers flexible capacity options to match different vehicle power requirements, with configurations from 20S1P to 24S2P.

Engineered as a lightweight alternative to lead-acid batteries, the SW-Lite series delivers better energy efficiency and longer service life while reducing battery weight. Space-saving designs allow flexible integration into different vehicle structures, and heated battery options extend reliable operation across wider temperature ranges. With standard charging voltages of 73 V (60 V series) and 87.6 V (72 V series), discharge cut-off voltages of 50 V and 60 V respectively, and maximum discharge currents up to 65 A, the SW-Lite series provides dependable power for short-distance commuting, leisure mobility, and urban transportation.

Product Model	SW-Lite-6023	SW-Lite-6435	SW-Lite-6435L	SW-Lite-6445
Battery Type	Room temperature/heated lithium iron phosphate	Room temperature/heated lithium iron phosphate	Room temperature/heated lithium iron phosphate	Room temperature/heated lithium iron phosphate
Nominal Energy	1344Wh	1920Wh	1920Wh	2688Wh
Compound Model	20S1P	20S1P	20S1P	20S2P
Electrical Parameters
Standard Charging Voltage	73V	73V	73V	73V
Discharge Cutoff Voltage	50V	50V	50V	50V
Maximum Charging Current	20A	30A	15A	40A
Maximum Discharge Current	40A	45A	45A	65A
Temperature Range
Charging Temperature Range	0~55°℃	-10~60°℃	0~60°℃	0~55°℃
Discharge Temperature Range	-20~55℃	-30~60°C	-10~60°℃	-20~55°℃
Mechanical Parameters
Product Size(mm)	329182157mm	363215175mm	178170315mm	345225176mm
Product Weight	9±1KG	13.5±1KG	16±1KG	21±1KG

Product Model	SW-Lite-7223	SW-Lite-7635	SW-Lite-7635L	SW-Lite-7245
Battery Type	Room temperature/heated lithium iron phosphate	Room temperature/heated lithium iron phosphate	Room temperature/heated lithium iron phosphate	Room temperature/heated lithium iron phosphate
Nominal Energy	1612.8Wh	2304Wh	2304Wh	3225.6Wh
Compound Mode	24S1P	24S1P	24S1P	24S2P
Electrical Parameters
Standard Charging Voltage	87.6V	87.6V	87.6V	87.6V
Discharge Cutoff Voltage	60V	60V	60V	60V
Maximum Charging Current	20A	30A	15A	40A
Maximum Discharge Current	40A	45A	45A	65A
Temperature Range
Charging Temperature Range	0~55°℃	-10~60°℃	0~60°℃	0~55°℃
Discharge Temperature Range	-20~55℃	-30~60℃	-10~60℃	-20~55℃
Mechanical Parameters
Product Size(mm)	329182157mm	363215175mm	202155339mm	425225176mm
Product Weight	10.5±1KG	15.5±1KG	18±1KG	25±1KG
