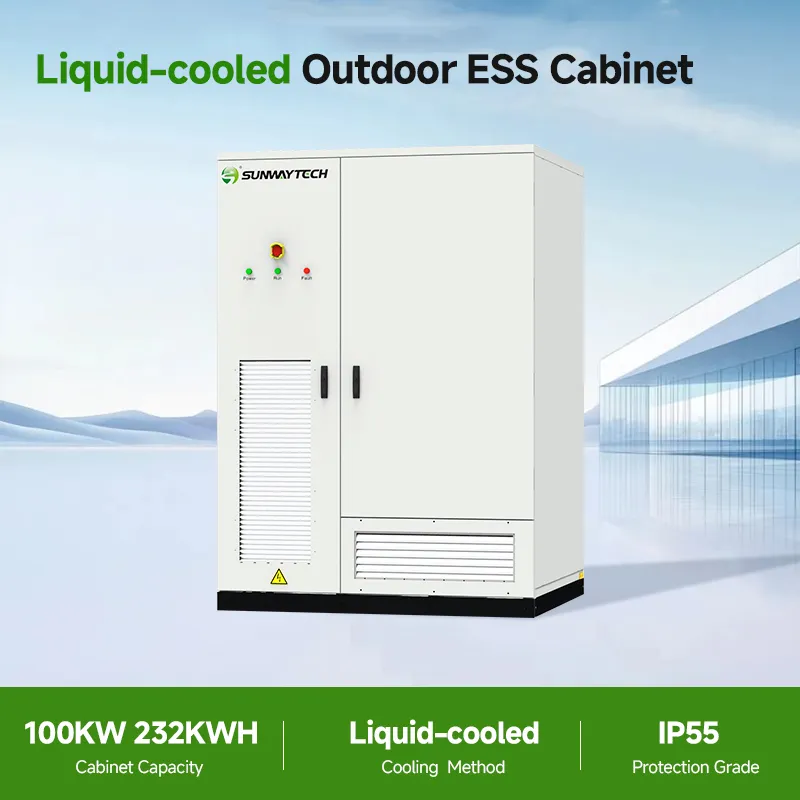

The Sunway 100kW/232kWh Liquid-Cooled Energy Storage System is designed to deliver reliable performance in commercial, industrial, and utility-scale settings. This integrated outdoor cabinet features lithium iron phosphate (LFP) batteries, modular PCS, EMS, power distribution, fire protection, and an advanced liquid cooling system that enhances thermal stability and prolongs battery life. With front-access maintenance and intelligent control, it offers a compact, scalable, and high-efficiency energy storage solution ready for rapid deployment.
| Model Number | SWMonet-100CL |
| Rated Power Output | 100kW |
| Battery Rated Energy Storage Capacity | 232 kWh |
| System Voltage Range | 728 V – 936 V |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Communication Protocols | CAN, Ethernet, RS485 |
Key Features of Sunway 100kW/232kWh Liquid-Cooled Energy Storage System:
Advanced Liquid Cooling:
Equipped with intelligent liquid cooling technology to ensure efficient heat dissipation, longer battery lifespan, and improved system stability.
Integrated All-in-One Cabinet:

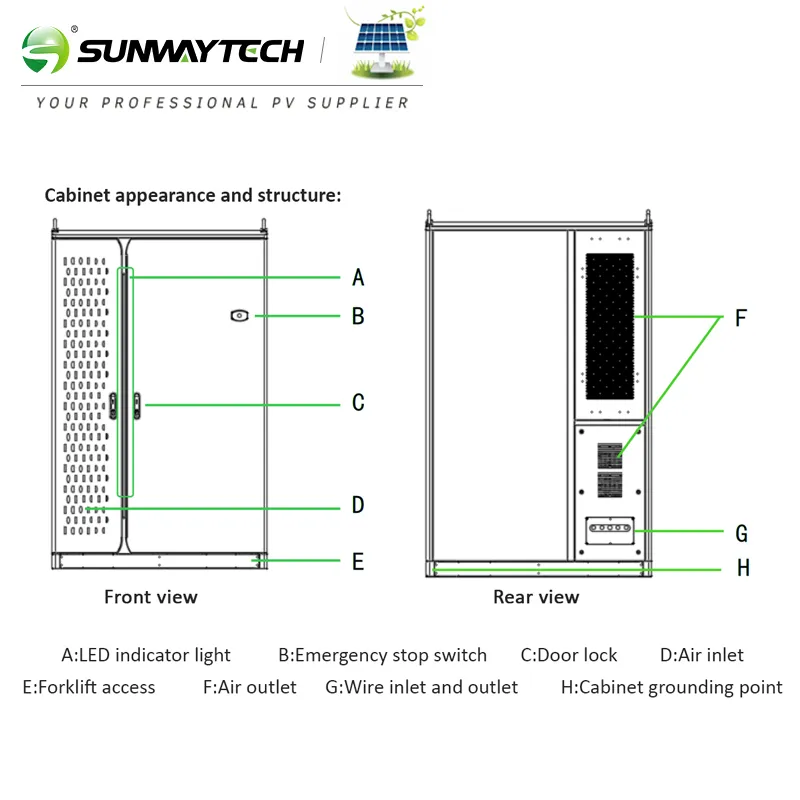

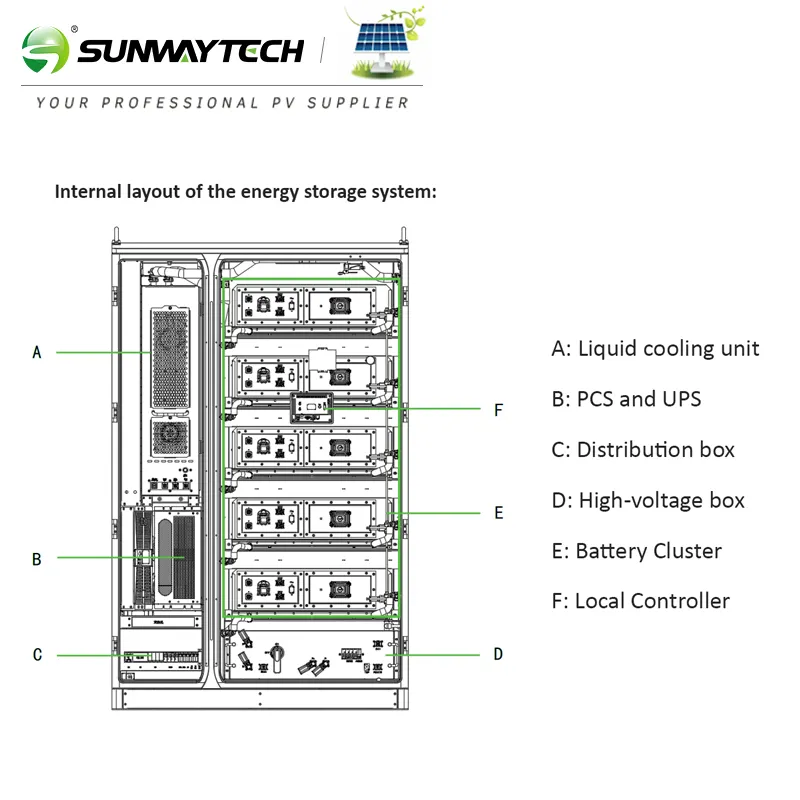

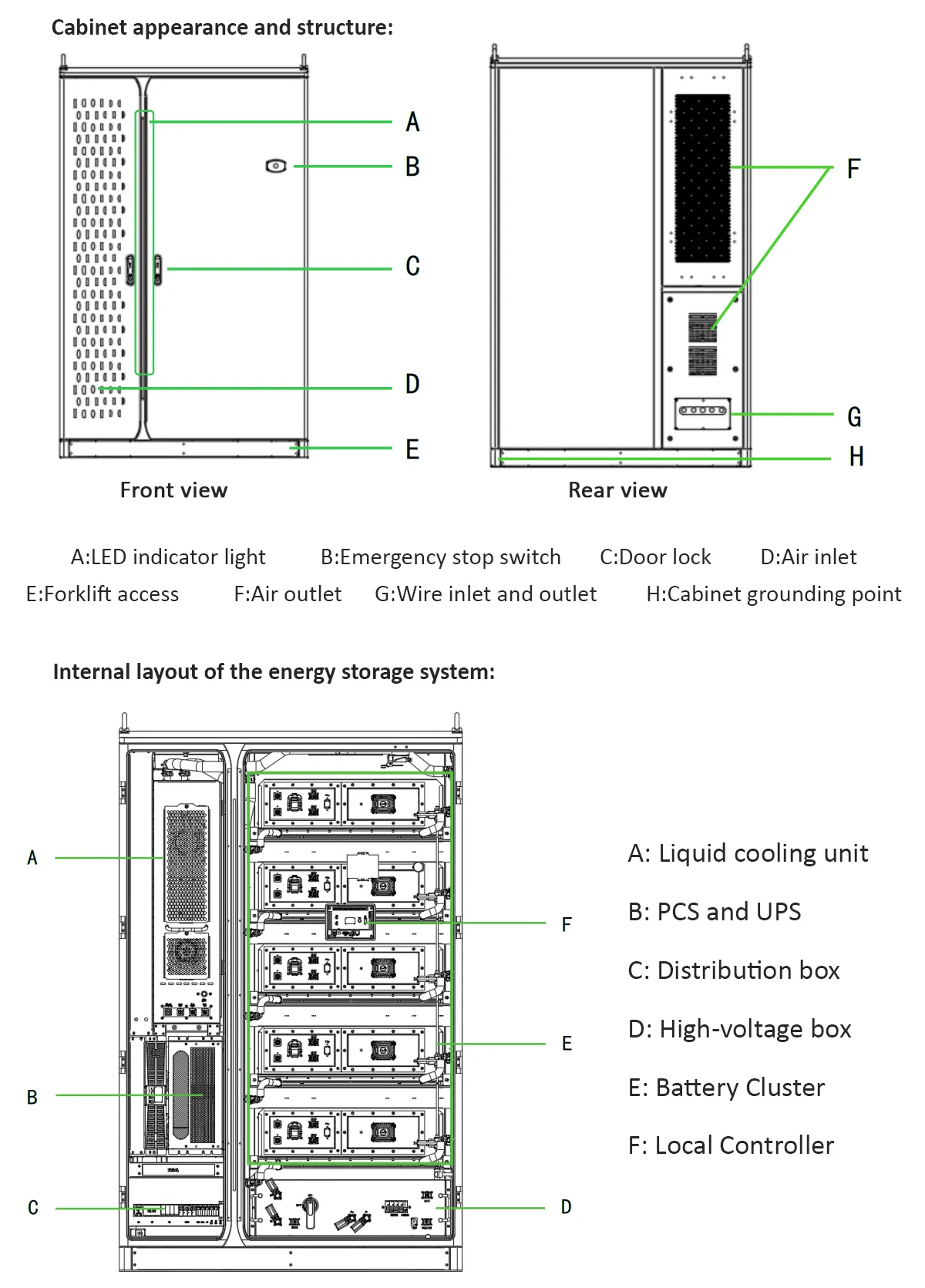

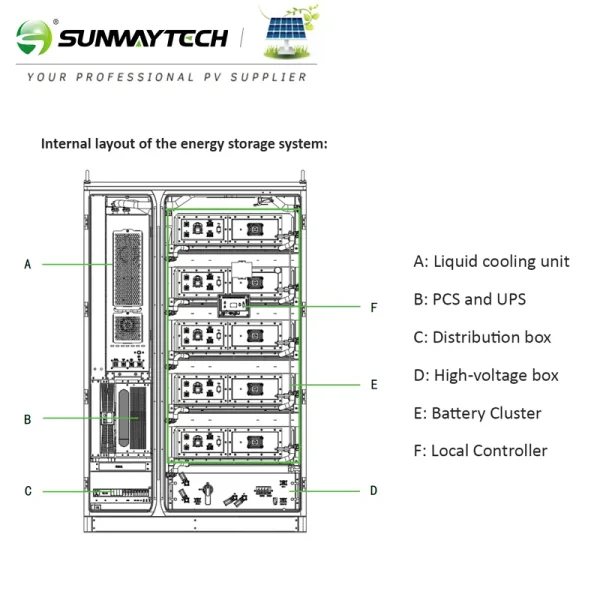

Combines LFP batteries, modular PCS, EMS, BMS, power distribution, environmental and fire control in one compact outdoor unit.
High Energy & Power Output:
Delivers 100 kW rated AC power and 232 kWh battery capacity for industrial and commercial energy needs.
Reliable & Safe:
Designed with IP55 protection, transformer isolation, and real-time monitoring for enhanced operational safety.
Pre-assembled & Pre-tested:
Factory-integrated and fully commissioned before delivery, the system arrives ready to install—eliminating complex on-site assembly and reducing labor costs.
| PERFORMANCE PARAMETER | |
| Battery Parameters | SWMonet-100CL |
| Battery Rated Capacity | 232kWh |
| Battery Rated Voltage | 832V |
| Battery Voltage Range | 728V~936V |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Battery Cell Capacity | 1p*52S*5S |
| Cell Capacity | 280Ah |
| Max.Charging/Discharging Power | 0.5P |
| Max.Charge/Discharge Current | 140A |
| Photovoltaic Parameters | |
| Rated Power | 100kW |
| PV Voltage Range | 250~500V(MPPT) |
| PV Max.Current | 160A*2 |
| MPPT Quantity | 2 |
| AC Parameters | |
| Rated AC Power | 100kw |
| Rated AC Current | 144A |
| Rated AC Voltage | 400V,3W+N+PE |
| Rated AC Frequency | 50/60Hz |
| THDi | <3(Ratedpower) |
| Power Factor | 1 leading to +1 lagging |
| THDv | <3%(linear load) |
| Protection Level | IP55 |
| Isolation Mode | Isolation transformer |
| Shutdown Self-discharge | <100W(Without transformer) |
| Display | LCD |
| Relative Humidity | 0~95%(No condensation) |
| Noise | <78dB |
| Ambient Temperature | -25°C~+60°℃(Derating above 45°C) |
| Cooling Mode | Intelligent liquid-cooled |
| Altitude | 3000m(>2000m derating) |
| BMS Communication | CAN |
| EMS Communication | Ethernet/485 |

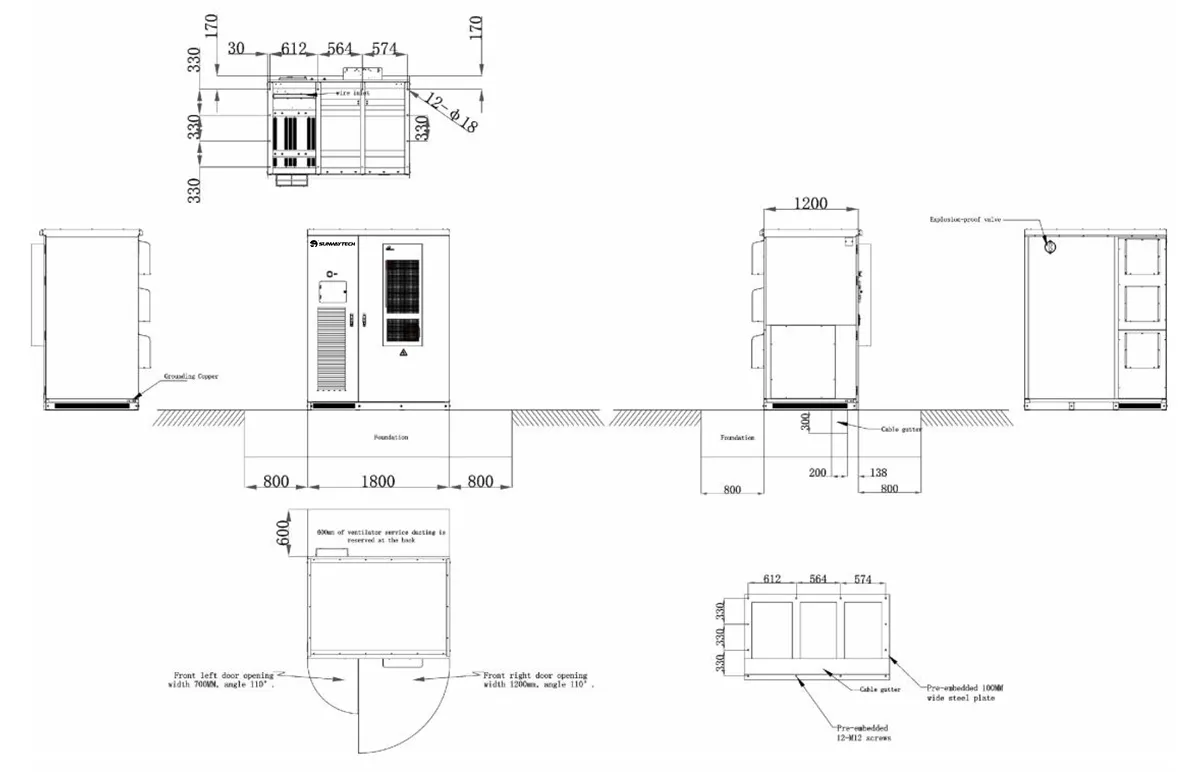

| Dimension(W*D*H) | 1600*1350*2300mm |
| Weight(approx.) | 3240kg |
