Growatt Battery 51.2V 5Kwh Lithium Ion Battery Pack growatt solar battery

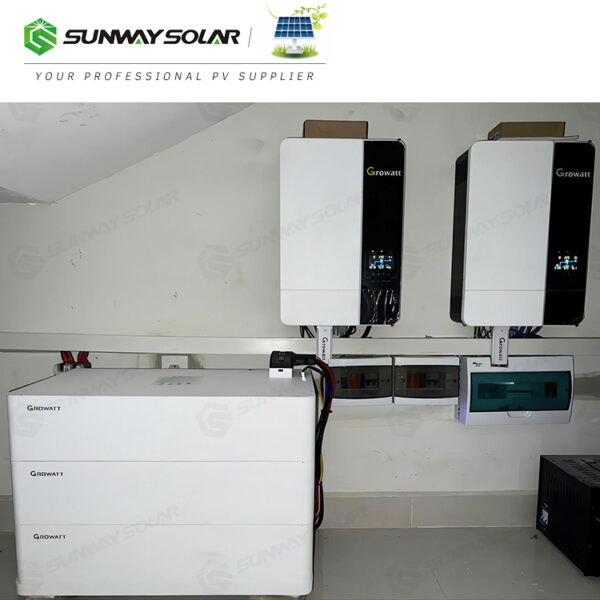

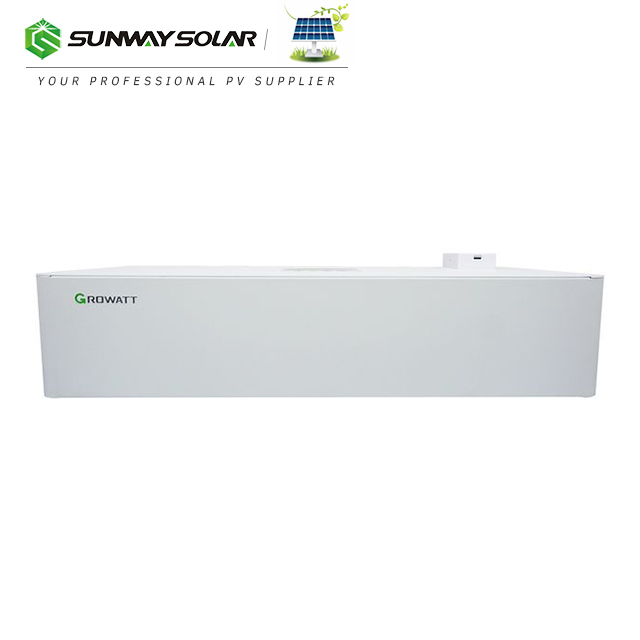

Model Number:	AXE 5.0L
Capacity：	5-400KWH
Battery Rated Voltage:	51.2V
Dimensions（mm）:	650/350/165
Weight（kg）:	42

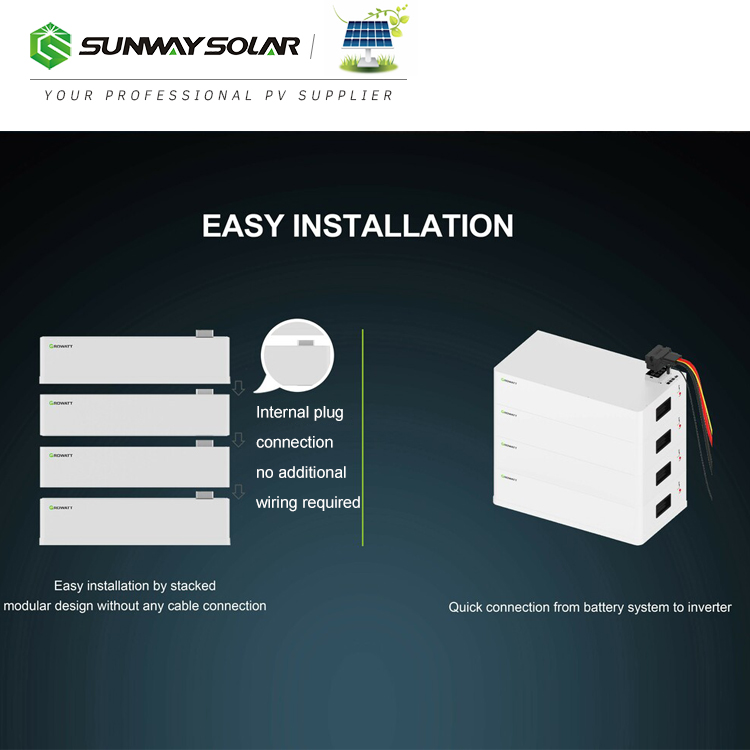

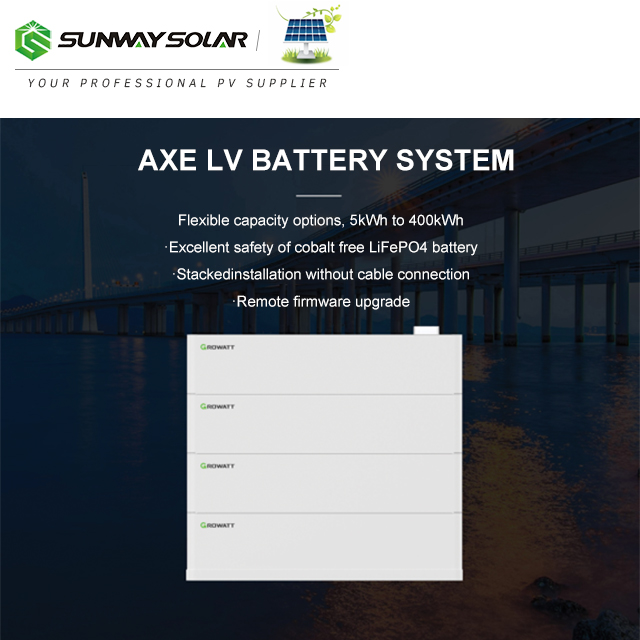

Growatt’s new AXE LV battery covers a wide range of capacities, from 5kWh to 400kWh, and can support off-grid systems with power outputs of 3kW to 30kW. The modularity of AXE LV battery system makes it easy to be installed with internal plugs, requiring no extra cable connections, while with all the external cables integrated onto one plug, its connection to the inverter is much more simplified.

Datasheet	AXE 5.0L	AXE 10.0L	AXE 15.0L	AXE 20.0L	AXE 25.0L	AXE 30.0L	AXE 35.0L	AXE 40.0L
Battery Module	AXE 5.0L - C1 (5.0kWh, 51.2V, 40kg)
Energy Capacity	5.0kWh	10.0kWh	15.0kWh	20.0kWh	25.0kWh	30.0kWh	35.0kWh	40.0kWh
Dimension (W/D/H)	650/350/165mm	650/350/305mm	650/350/445mm	650/350/585mm	650/350/725mm	650/350/865mm	650/350/1005mm	650/350/1145mm
Weight	42kg	82kg	122kg	162kg	202kg	242kg	282kg	322kg
Max Charge	60A	120A	150A	150A	150A	150A	150A	150A
Max Discharge	60A	120A	150A	150A	150A	150A	150A	150A
General
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Nominal Voltage	51.2V
Operating voltage Range	48 - 57.6V
IP Protection	IP 20
Operation Temperature	0~50°C

Floor Standing Installation

1) The battery base is required while installing the battery system .
2) The maximum quantity of stacking battery pack is 10, if it exceeds 10, please install them by
the way of multiple clusters in parallel.
3) Please install indoors and ensure the level of the ground.

Multiple AXE 5.0L with base installation process

Step 1: Check the ground, make sure that the ground is level, then place the base at the position where it needs to be installed,and keep the base level
Step 2: Place the first battery on the base
Step 3: Stack the second battery on the first battery, stack the third battery on the second battery, and so on, until all the
batteries are installed
Step 4: Make sure that all the batteries are aligned, then use a screwdriver to open the connectors on the left end of the
batteries, rotate the connector position, and connect the upper and lower battery modules together.

Growatt AXE 5.0L lithium battery consists of battery module (including cell and mechanical parts), battery management system (BMS)as well as power and communication terminals.

Location	Port	Function
1	Fault light	Display battery alarm and fault status
2	SOC light	Display battery SOC status
3	Power button	Turn the battery on and off
4	Positive terminal	Stands for PACK anode output
5	Communication	Communication between battery packs of single

Installation Method	Compound Mode
Single cluster installation	A*M+B+C
Floor installation into N columns	AM+BN+C*N

Note: "M" means the number of batteries, "N" means the number of clusters.

Get A Quote

DC Breaker	630/ 1500/ 1250A
BMS	ESMU- 10 II
Switching power supply	Switching power supply
Miniature circuit breaker	S202-C64/20/10
Size	600/1760/600mm

Model Number	SW1000V200A
Dimension (LWH)	570400160mm
Rated Voltage	1000V
Module Capacity (kWh)	5
Capacity	200A

Capacity	51.2V100AH
Chemistry	LFP
Module Capacity (kWh)	5
IP Level	IP54
Communication	CAN
Cycle Times	6000
