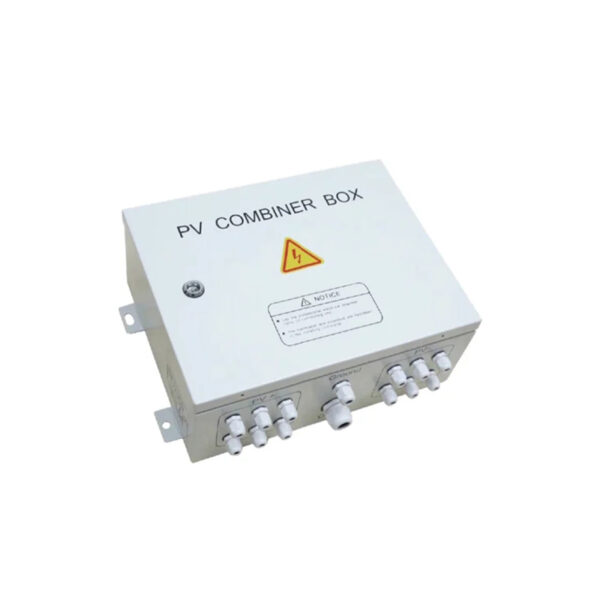

Sunway 5 IN 1 OUT PV Combiner Box

Sunway 5 IN 1 OUT PV Combiner Box

PV Combiner:For PV power system, in order for convenient maintenance and reliability,

we generally install DC combiner equipment between PV array and

PV controller or inverter to reduce the connecting wires between them.

Model Number

Solar  Combiner Box

Rated Voltage1000V DC /1500V DC
Ambient temperature-25℃~+65℃
Dimension400*155*300
Weight 15kg

For PV power system, in order for convenient maintenance and reliability,we generally install DC combiner equipment between PV array and PV controller or inverter to reduce the connecting wires between them.

Maximum open circuit voltage(VDC)
500/1000
PV array input path(N)
6/16 (can be customized)
Constant current of each PV array(A)
15
Anti counter protection
optional
DC output circuit breaker
include
Dedicated lighting protection for PV
include
Detection module(optional)
Detection of each path current,busbar voltage,breaker status,lighting protection status,temperature of box
Dimension(W*D*H)(mm)
400*155*300/620*175*420
Weight for reference(Kg)
15~19
Protection level
IP65
Altitude(m)
≤5000
Ambient temperature(℃)
-25℃~+65℃

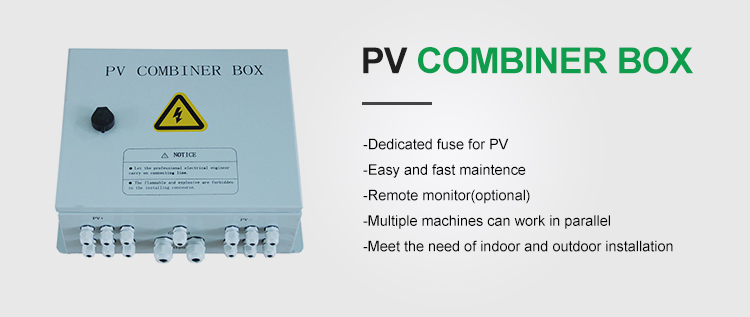

Features of Solar Combiner Box

*Meet the need of indoor and outdoor installation
*Maximum access 16 paths of PV tandem,rated current of each path is 15A
*Wide range of DC input voltage,maximum input voltage up to 500/1000VDC
*Dedicated fuse for PV
*Dedicated high-voltage lightning device for PV,its positive pole and negative pole have lightning protection function
*Multiple machines can work in parallel
*Easy and fast maintenance
*Remote monitor(optional)0-i909ioiiiiivbnm

Combiner box in grid-connected system

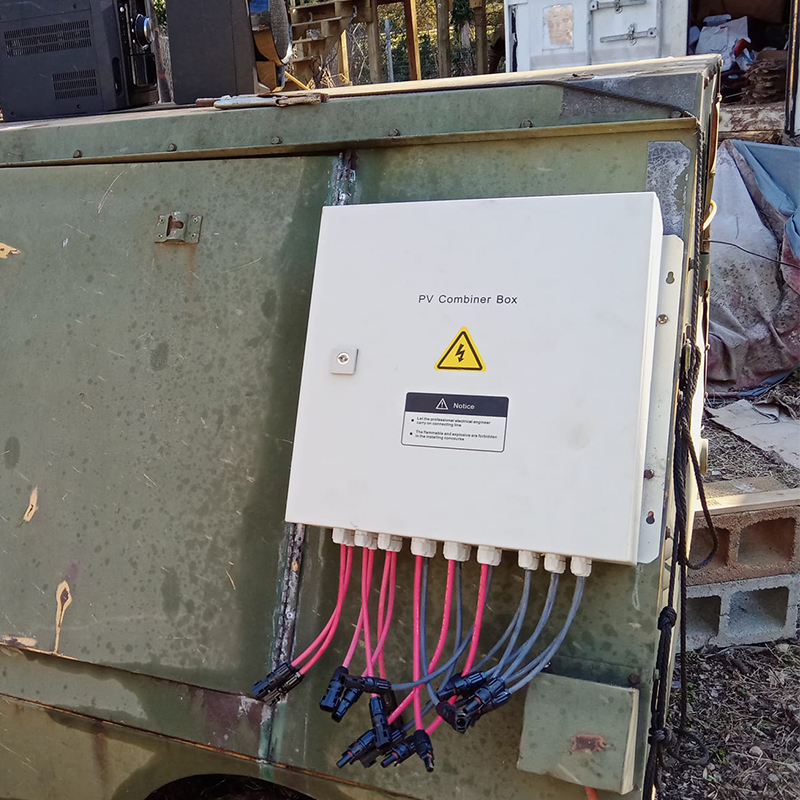

Combiner boxes in off-grid systems
