Sunway Solar Water Pump System :
Commonly seen in residential and commercial uses, as well as for irrigation of agricultural land
Model Number: |
3DPC7.5-78-110-1500 |
Power Range: |
200W-1500W |
Voltage: |
24/48/72/110V |
Max flow: |
3-7.5m3/h |
Max head: |
25-180m |

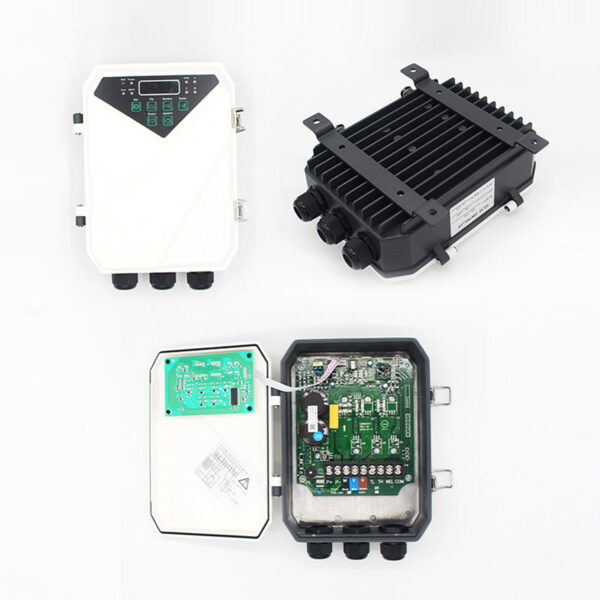

CONTROLLER INTERNAL WIRING DIAGRAM
Model
|
Power(w)
|
Voltage
|
Max flow(m3/h)
|
Max head(m)
|
Outlet(inch)
|
3DPC3-25-24-200
|
200
|
24
|
3
|
25
|
1.25"
|
3DPC3-35-24-300
|
300
|
24
|
3
|
35
|
1.25"
|
3DPC3.5-47-48-400
|
400
|
48
|
3.5
|
47
|
1.25"
|
3DPC3.5-80-48-600
|
600
|
48
|
3.5
|
80
|
1.25"
|
3DPC3.5-80-72-600
|
600
|
72
|
3.5
|
80
|
1.25"
|
3DPC3.5-95-48-750
|
750
|
48
|
3.5
|
95
|
1.25"
|
3DPC3.5-95-72-750
|
750
|
72
|
3.5
|
95
|
1.25"
|
3DPC3.8-123-72-1100
|
1100
|
72
|
3.8
|
123
|
1.25"
|
3DPC3.8-123-110-1100
|
1100
|
110
|
3.8
|
123
|
1.25"
|
3DPC3.8-155-110-1300
|
1300
|
110
|
3.8
|
155
|
1.25"
|
3DPC3.8-180-110-1500
|
1500
|
110
|
3.8
|
180
|
1.25"
|
3DPC5-45-48-500
|
500
|
48
|
5
|
45
|
1.5"
|
3DPC5.2-50-48-600
|
600
|
48
|
5.2
|
50
|
1.5"
|
3DPC5.2-50-72-600
|
600
|
72
|
5.2
|
50
|
1.5"
|
3DPC5.2-75-110-750
|
750
|
110
|
5.2
|
75
|
1.5"
|
3DPC5.5-65-72-750
|
750
|
72
|
5.5
|
65
|
1.5"
|
3DPC5.5-65-110-750
|
750
|
110
|
5.5
|
65
|
1.5"
|
3DPC6-84-110-1100
|
1100
|
110
|
6
|
84
|
1.5"
|
3DPC6-125-110-1500
|
1500
|
110
|
6
|
125
|
1.5"
|
3DPC7-46-72-750
|
750
|
72
|
7
|
46
|
1.5"
|
3DPC7-46-110-750
|
750
|
110
|
7
|
46
|
1.5"
|
3DPC7.5-62-110-1100
|
1100
|
110
|
7.5
|
62
|
1.5"
|
3DPC7.5-78-110-1500
|
1500
|
110
|
7.5
|
78
|
1.5"
|

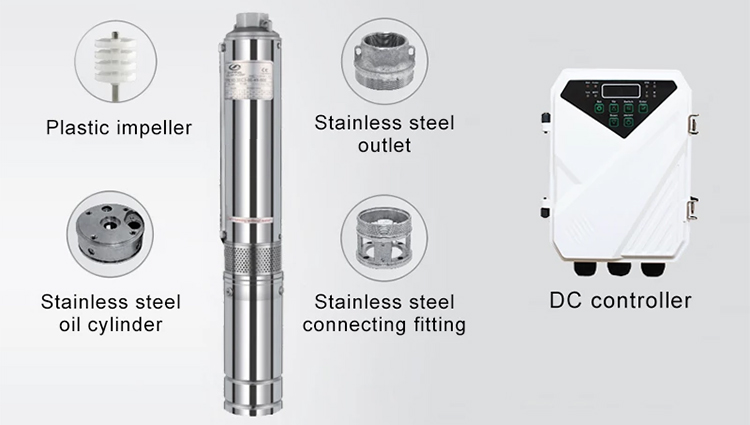

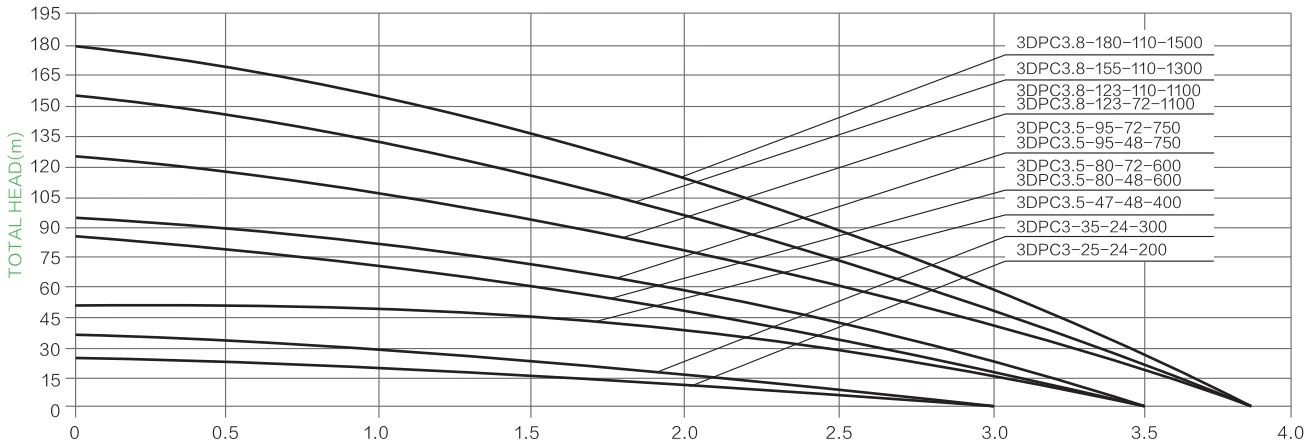

3 INCH PLASTIC IMPELLER SOLAR PUMP PARAMETER
All In One Submersible Solar Deep Well Pump Project
Standard Voltage
|
3.15V/3.20V
RT@1C/0.33C Discharge
|
3.20V
RT@0.33C Discharge
|
3.0V
RT@0.33C Discharge
|
Nominal Capacity
|
46.5Ah/46.5Ah
RT@1C/0.33C Discharge
|
50Ah/50Ah
RT@1C/0.33C Discharge
|
32Ah/33Ah
RT@1C/0.33C Discharge
|
Voltage Range
|
2.0V~3.65V
|
2.0V-3.65V
|
1.5-3.95V
|
Max Charge Current
|
32.6A
|
50A
|
16A
|
Max Discharge Current
|
46.5A
|
50A
|
60A
|
