Wind Energy System:2KW 3KW Wind Turbine Hybrid Solar System
Model Number: | WT-3000 |
System Type: | 3KW Wind Energy System |
Solar Power: | 3KW |
Working wind speed: | 3-25m/s |
Rated DC voltage: | 96V |

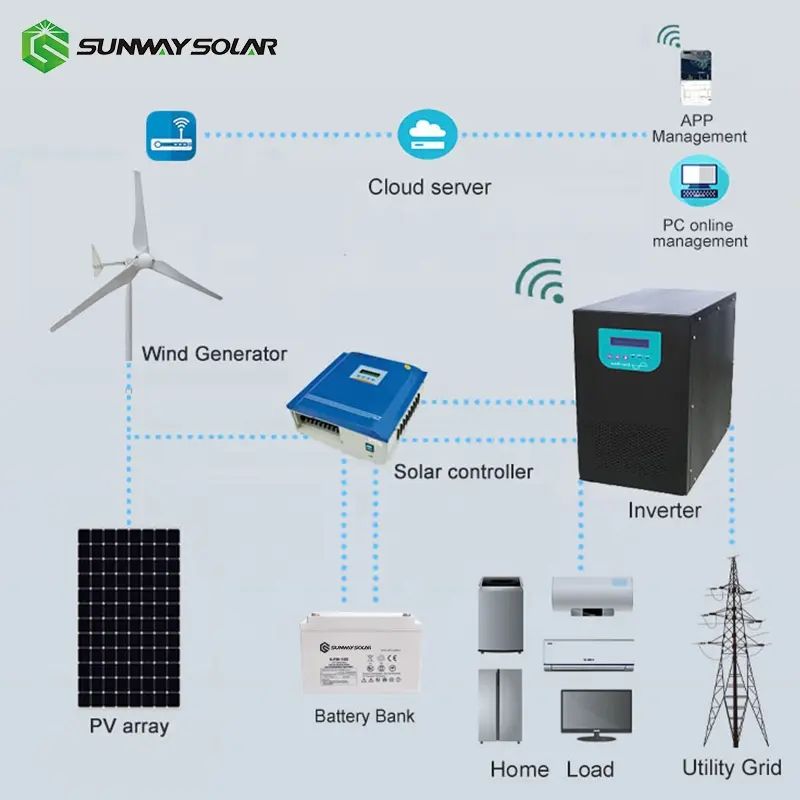

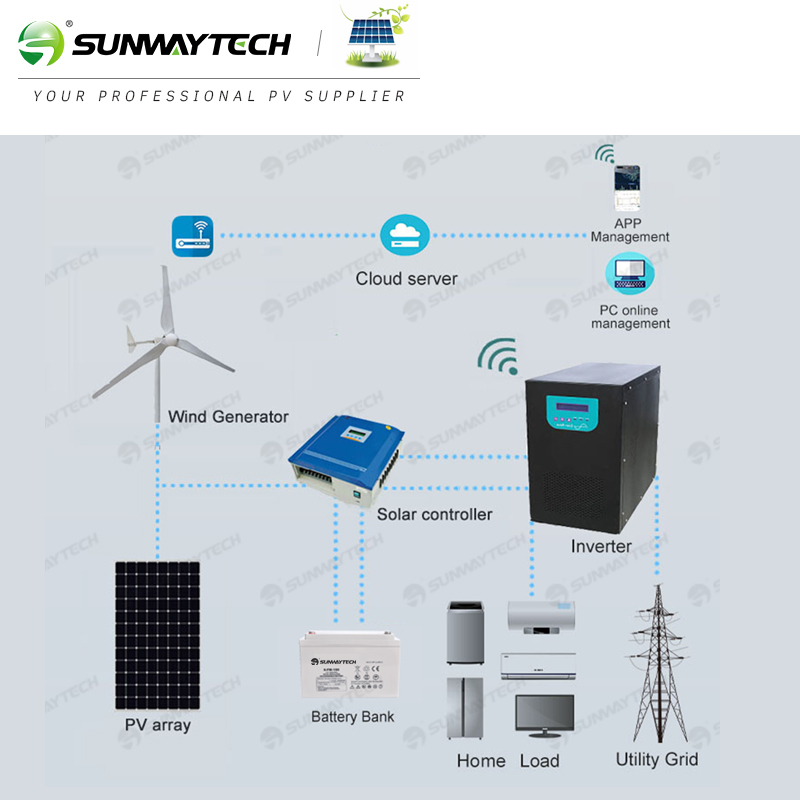

Wind turbine produce unstable three phase AC, solar panel produce unstable DC, and send to the CPU in the controller, the
controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery can save the electricity.
Through the off grid inverter to transfer the DC to AC, the battery can be send to the household equipments.
Product Name
|

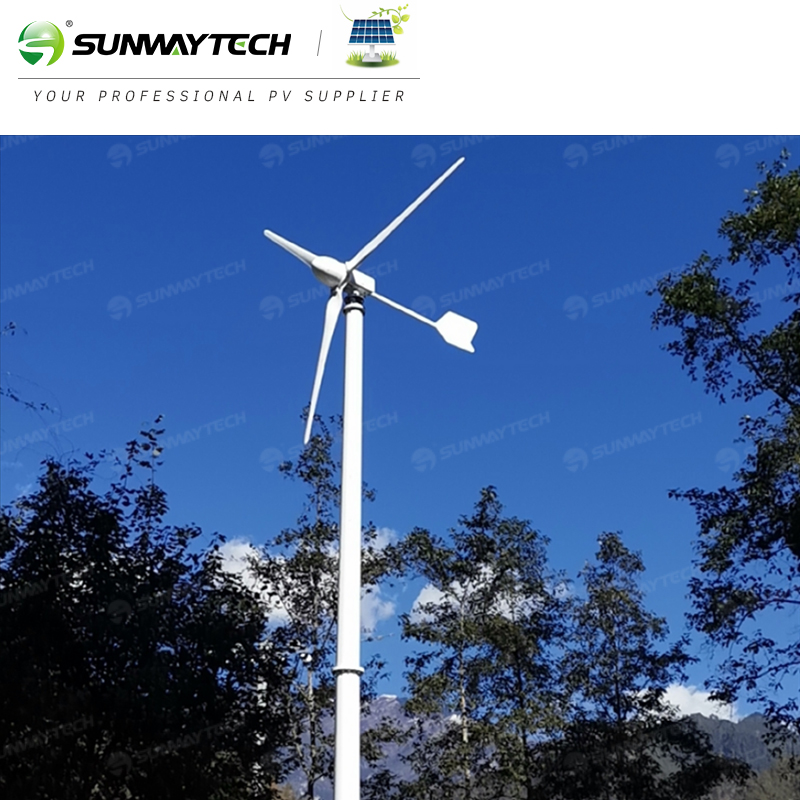

3KW Wind Generator for Wind Energy System
|
Model
|
WT-3000
|
Rated power
|
3KW
|
Starting wind speed
|
3m/s
|
Working wind spped
|
3-25m/s
|
Rated wind speed
|
10m/s
|
Security wind speed
|
40m/s
|
Rated DC voltage
|
96V
|
Rated speed
|
300r/m
|
Rotor diameter
|
3800mm
|
Protection
|
Electromagnetic torque control and electricity brake
|
Type
|
3phases permanent magnetism synchronization generator
|
Blade material
|
Extra-strong fiber glass
|
Packing material
|
Plywood box and foam material
|
Generator weight(kg)
|
85KG
|

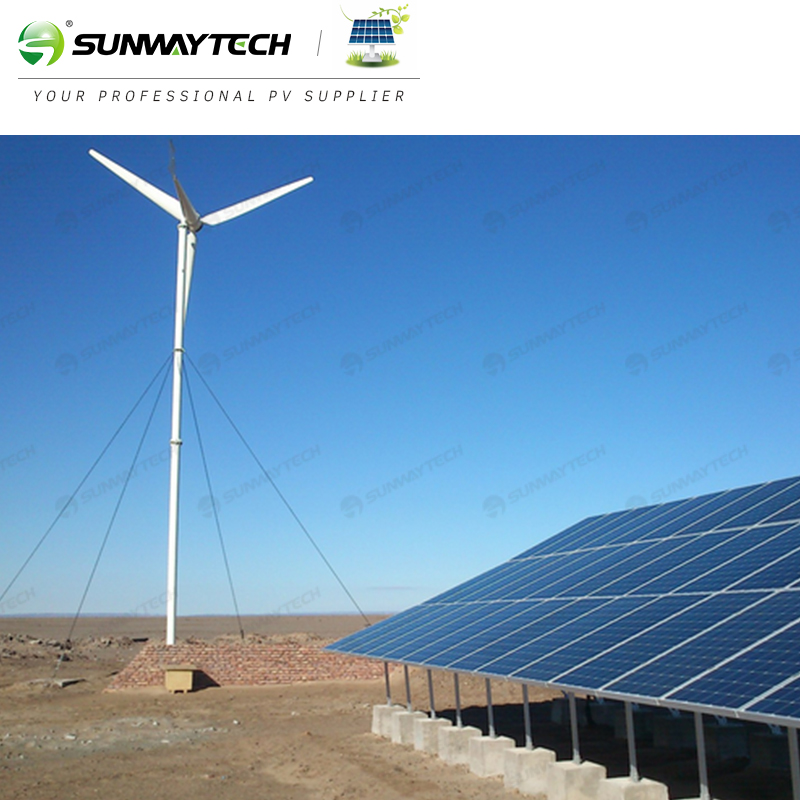

Wind Energy System Project

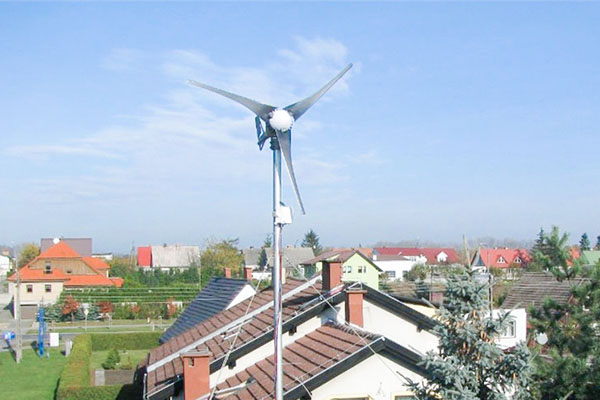

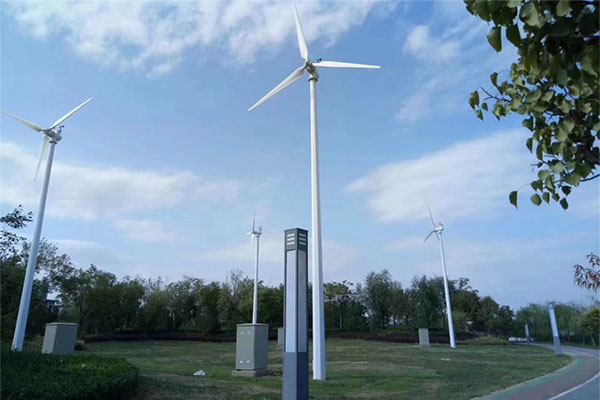

Residential Use Wind Generator | Wind Turbine for Park |

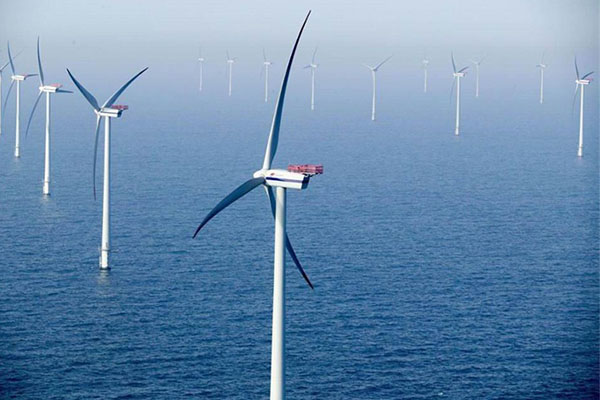

Offshore Wind Energy System | Grassland Wind Motor |
Wind Energy System Package
If you purchase wind generator from us, wind turbine will be packed with wooden;
Standard Voltage
|
3.15V/3.20V
RT@1C/0.33C Discharge
|
3.20V
RT@0.33C Discharge
|
3.0V
RT@0.33C Discharge
|
Nominal Capacity
|
46.5Ah/46.5Ah
RT@1C/0.33C Discharge
|
50Ah/50Ah
RT@1C/0.33C Discharge
|
32Ah/33Ah
RT@1C/0.33C Discharge
|
Voltage Range
|
2.0V~3.65V
|
2.0V-3.65V
|
1.5-3.95V
|
Max Charge Current
|
32.6A
|
50A
|
16A
|
Max Discharge Current
|
46.5A
|
50A
|
60A
|
Sunway Mounting system include ground and roof
installtion with a universal adjustable angle column
Solar Panel Cleaning Brush:
It is suitable for barren mountain power station , distributed power station
and farming photovoltaic power station within meters where the big solar
panel cleaning system.
PV Combiner:For PV power system, in order for convenient maintenance and reliability,
we generally install DC combiner equipment between PV array and
PV controller or inverter to reduce the connecting wires between them.
Model Number |
Solar Combiner Box |
Rated Voltage | 1000V DC /1500V DC |
Ambient temperature | -25℃~+65℃ |
Dimension | 400*155*300 |
Weight | 15kg |
