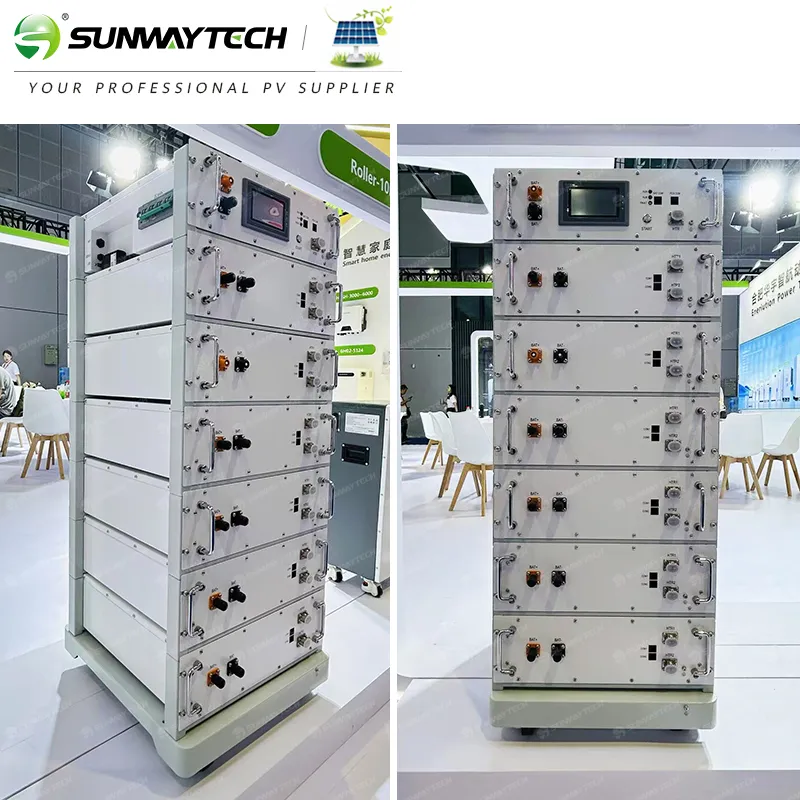

HRH-5200 5.22~62.64KWh Rack-Mounted Energy Storage Battery

HRH-5200 5.22~62.64KWh Rack-Mounted Energy Storage Battery

Categories Home & Commercial Energy Storage, Racked Lithium Battery

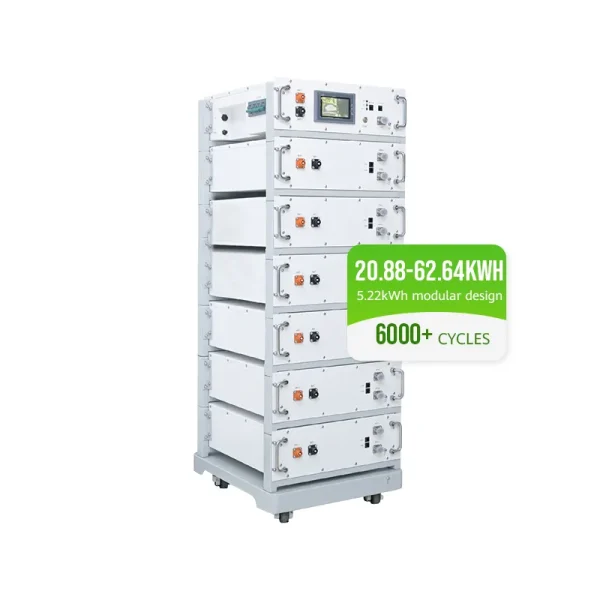

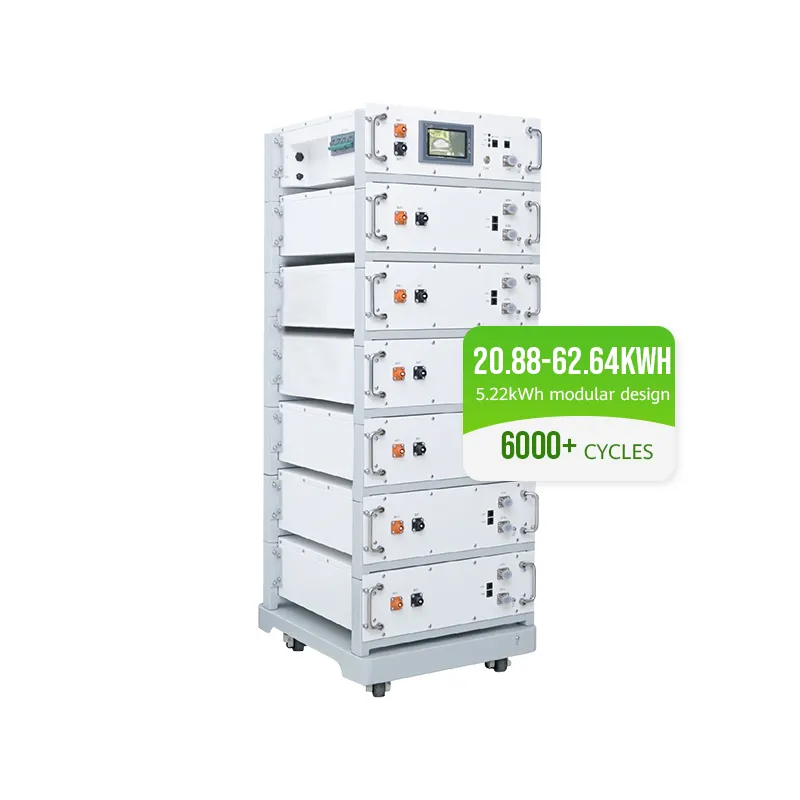

The HRH-5200 is a high-performance rack-mounted LiFePO₄ energy storage system designed for both scalability and reliability. With a modular configuration ranging from 5.22kWh to 62.64kWh, it offers flexible solutions for residential, commercial, and industrial applications. The system features a specially designed BMS with three-level overcurrent protection, ensuring optimal safety and longevity.

Engineered for efficiency, the HRH-5200 delivers over 6000 cycles at 90% depth of discharge, with wide compatibility via RS485/CAN communication protocols for seamless integration with mainstream inverter brands. Its plug-and-play modular design simplifies installation and maintenance, making it an ideal choice for reliable, long-term energy storage.

Model Number:	HRH-5200
Cell Type	LiFePO₄
Cycle Life	≥6000
Communication	RS485 / CAN
Operation Temperature	0–50°C

Product Advantages

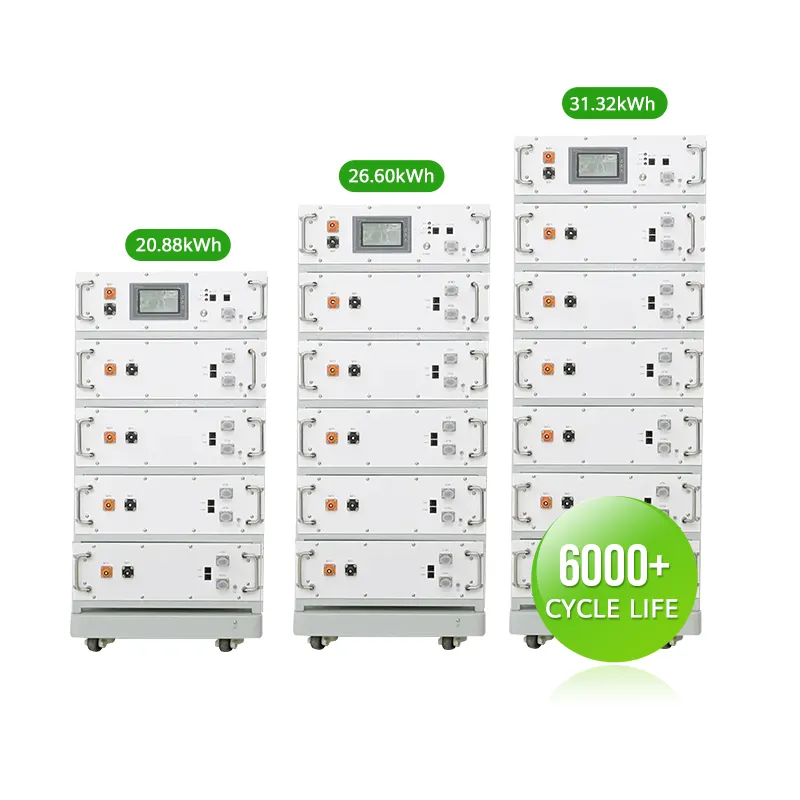

• Power configuration can be expandedfrom 5.22kWh to 62.64kWh.

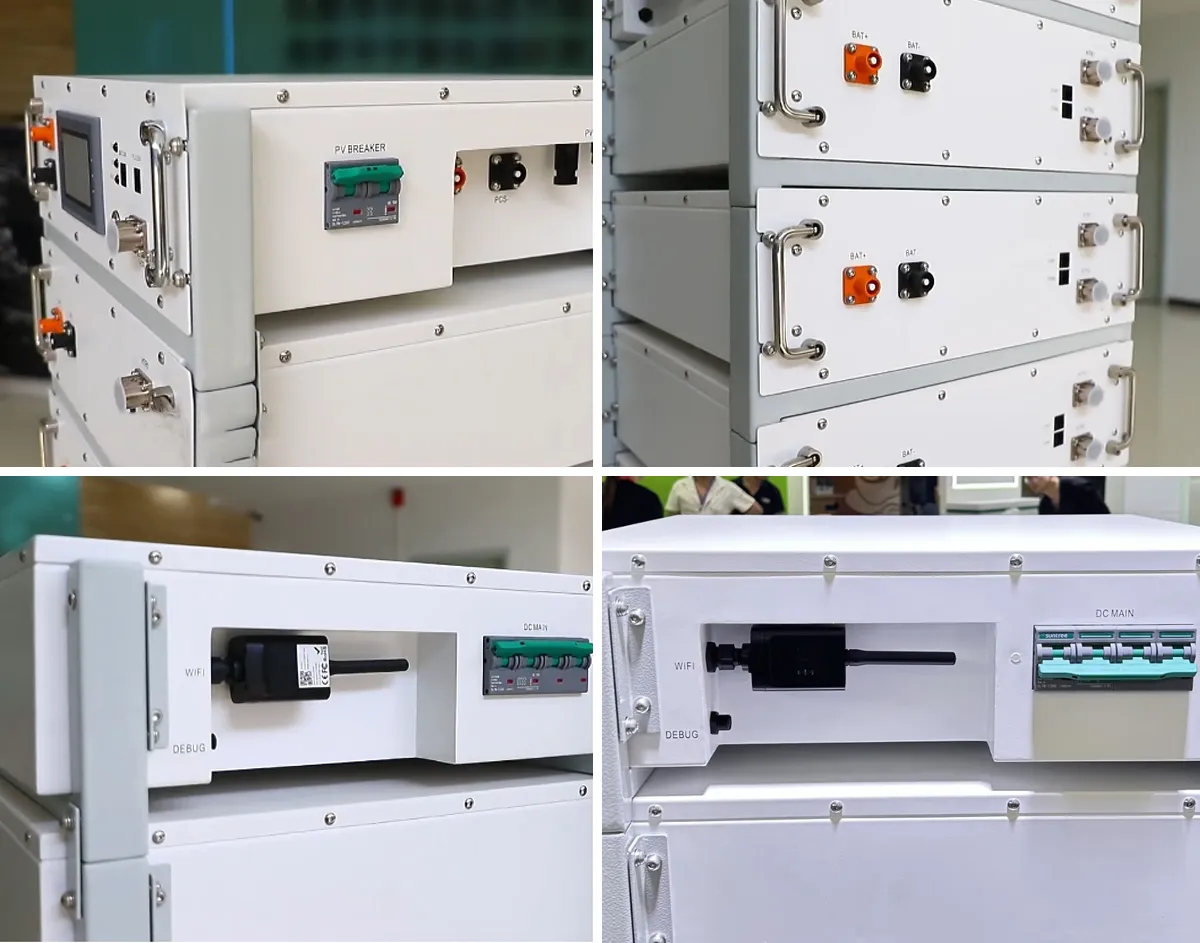

• Modular design for easy installationand operation.

• Equipped with a specially designed BMS,three-level overcurrent protection

• 90% depth of discharge,exceeding 6000cycles(0.5C, @25°C)

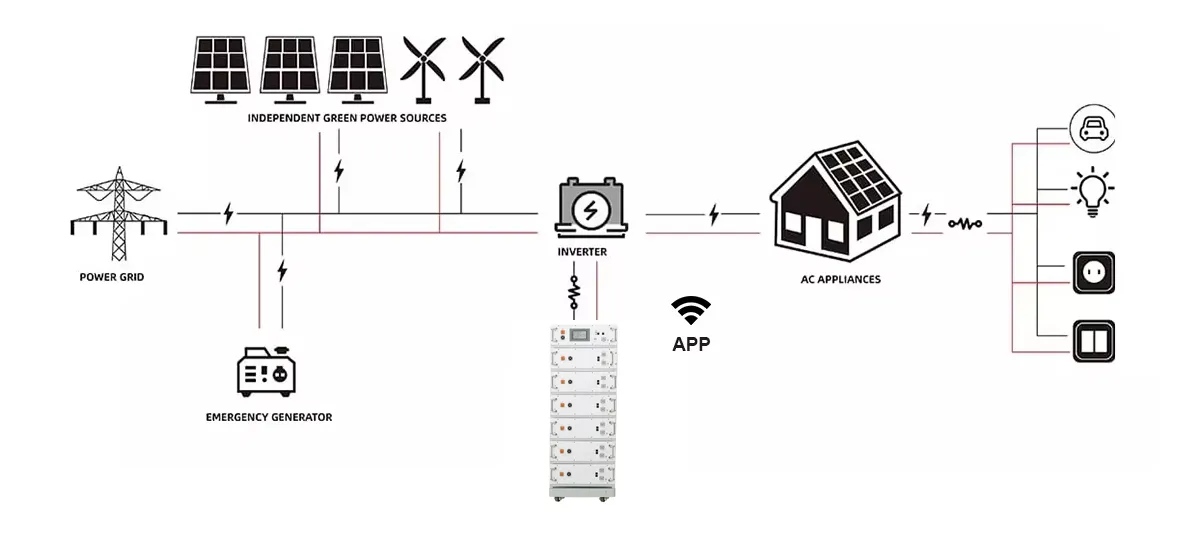

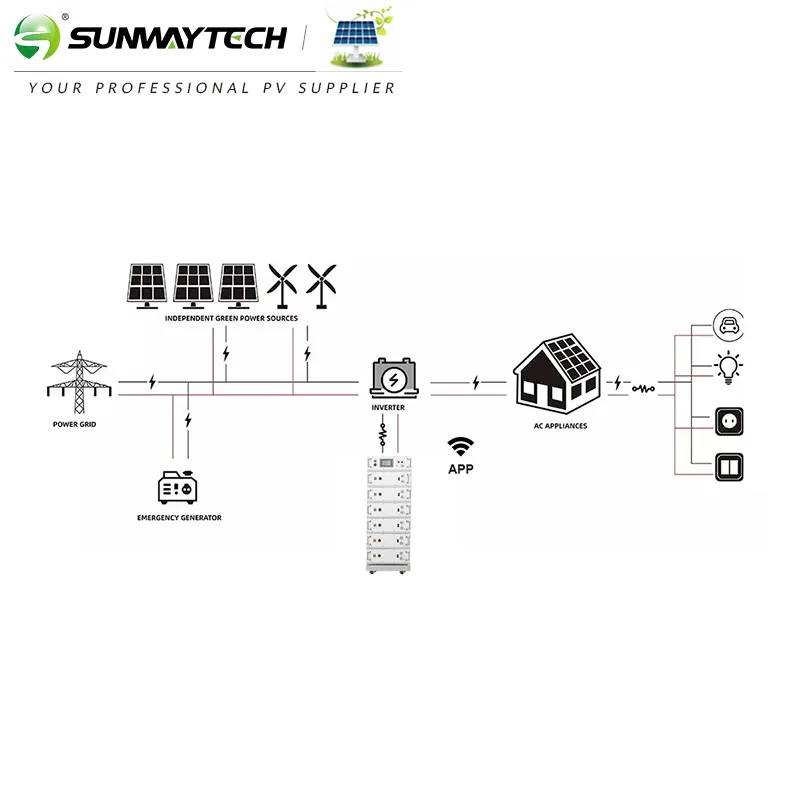

• RS485/CAN communication compatiable with mainstream inverter brands

CELL PARAMETERS
Cell Type	LiFePO4
Nominal Voltage	3.2V
Nominal Capacity	102Ah
Cycle Life	≥6000 @25°℃, 80%EOL)
BATTERY MODULE PARAMETERSI
Configuration	1P16S
Rated Capacity	102Ah
Rated Energy	5.2kWh
Nominal Voltage	51.2V
Operating Voltage Range	45.6-56.8V
Max Discharge Current	100A
GENERAL PARAMETERS
Modular Combination Quantity	4-12 pos
Max Expansion Size(WHD)	5002190560mm
Operation Temperature	0-50℃
Working Altitude	<2000m
Fire Protection System	Passive(high-temperature triggered)
Fire Extinguishing Agent	Thermal aerosol
Local Display	Yes
