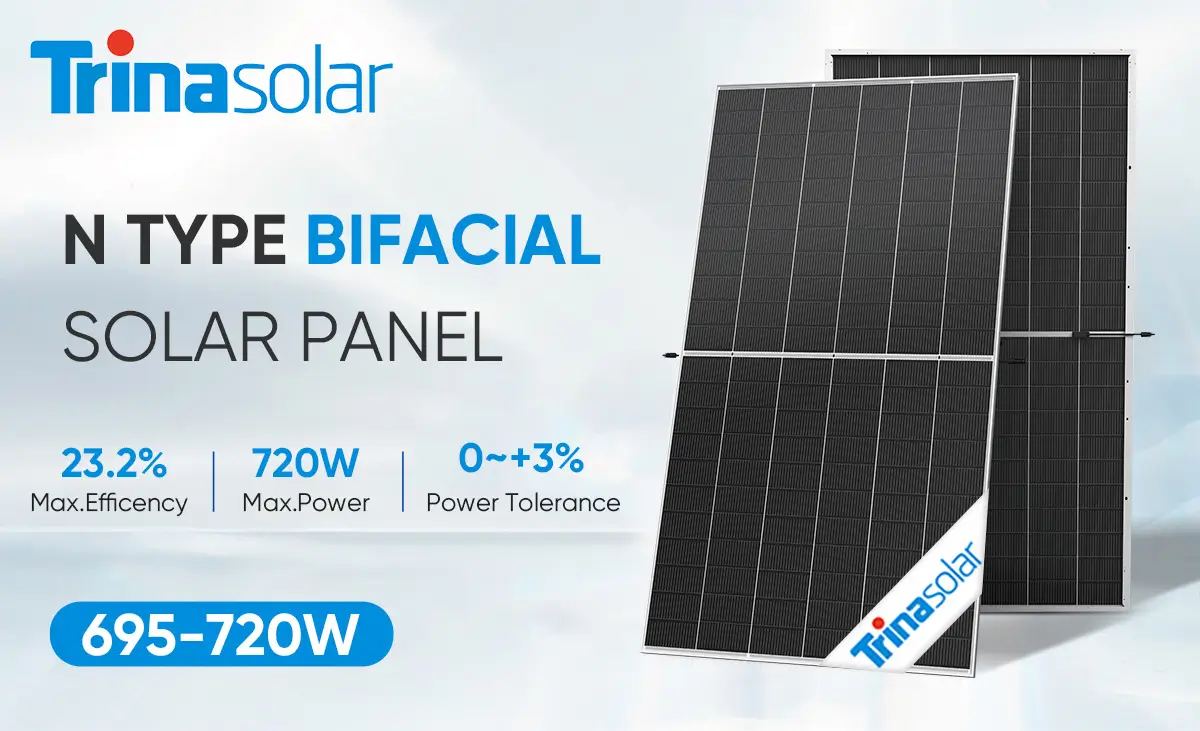

TSM-NEG21C.20 695-720W
|
Model
|
TSM-NEG21C.20 695-720W |
|
Power
|
695W-720W
|
| Weight(kg) | 38.3kg |
| Dimensions(L*W*H)(mm) | 2384x1303x33mm |
|
Cell Type
|
N-type Monocrystalline
|
|
No.of cells
|
132 cells
|
|

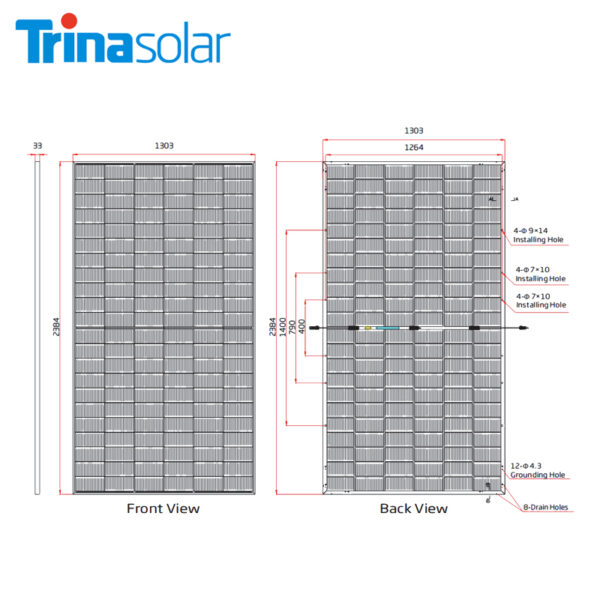

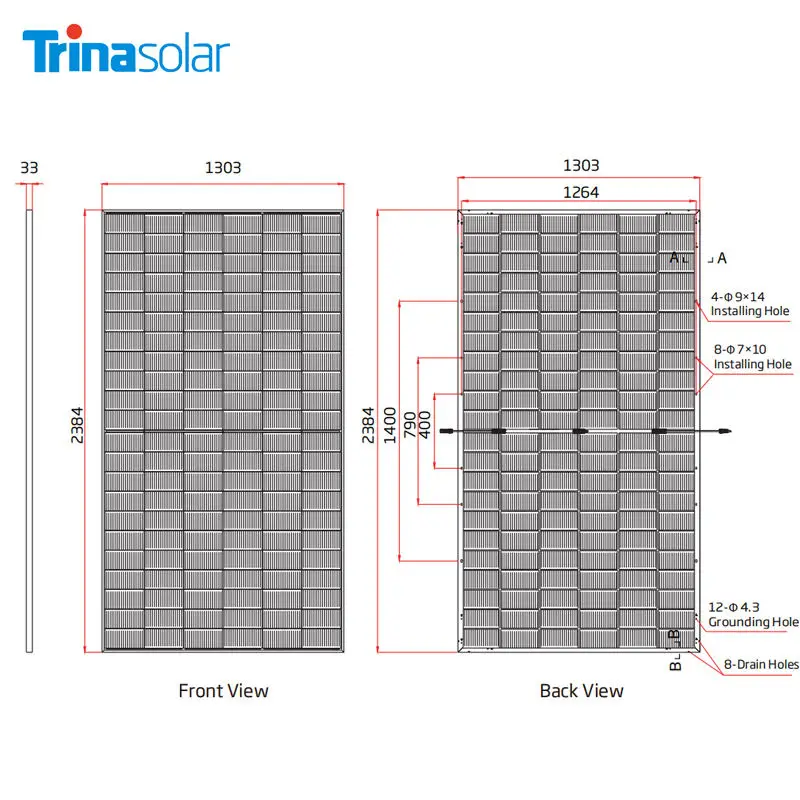

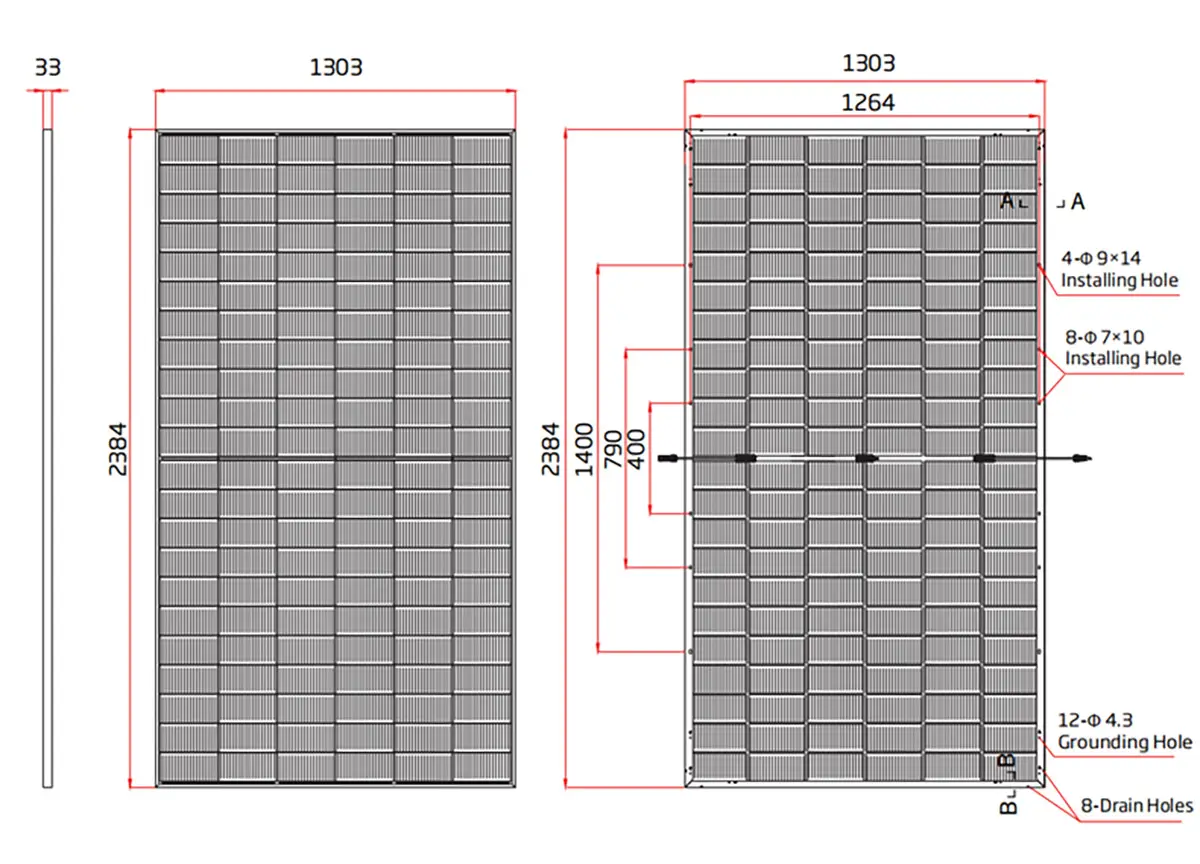

Dimensions
|
2384x1303x33 mm
|
|
Welght
|
38.3 kg
|
|
Front Glass
|
2.0 mm (0.08 inches), Hign Transmisslon, AR coated Heat strengthened Glass
|
|
Encapsulant material
|
POE/EVA
|
|
Back Glass
|
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
|
|
Frame
|
33mm(1.30 inches) Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 Rated
|
|
Cables
|
Photovoltaic Technology Cable 4.0mm² (0.006 inches²)
Portrait: 350/280 mm(13.78/11.02 inches)
Portrait: 350/280 mm(13.78/11.02 inches)
|
|
Connector
|
Connector
|
|

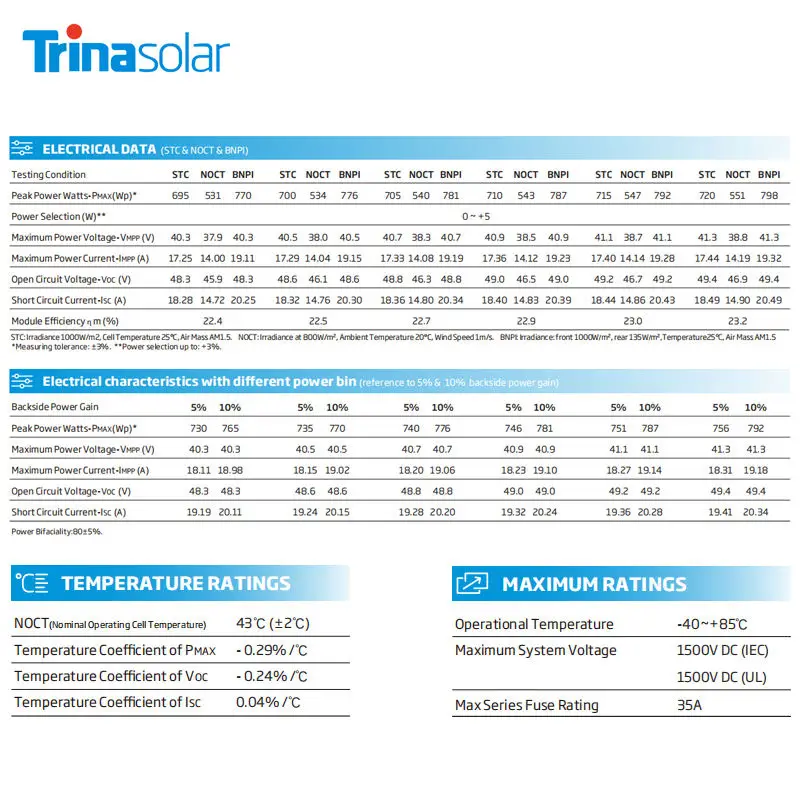

TrinaTSM-NEG21C.20 695-720W
|
||||||
|
Maximum Power Pmax(W)
|
695
|
700
|
705
|
710
|
715
|
720
|
|
Maximum Power Voltage Vmp(V)
|
40.3
|
40.5
|
40.7
|
40.9
|
41.1
|
41.3
|
|
Maximum Power Current Imp(A)
|
17.25
|
17.29
|
17.33
|
17.36
|
17.40
|
17.44
|
|
Open Circuit Voltage Voc(V)
|
48.3
|
48.6
|
48.8
|
49.0
|
49.2
|
49.4
|
|
Short Circuit Current Isc(A)
|
18.28
|
18.32
|
18.36
|
18.40
|
18.44
|
18.49
|
|
Module Efficiency (%)
|
22.4
|
22.5
|
22.7
|
22.9
|
23.0
|
23.2
|
|
Power Output Tolerance
|
0~+5%
|
|||||
|
Nominal Operating Cell Temperature(NOCT)
|
43±2°C
|
|||||
|
Temperature Coefficient of lsc
|
+0.04%/℃
|
|||||
|
Temperature Coefficient of Voc
|
-0.24%/℃
|
|||||
|
Temperature Coefficient of Pmax
|
-0.29%/℃
|
|||||
|
Operational Temperature
|
-40~+85°C
|
|||||
|
Maximum System Voltage
|
1500V DC
|
|||||
|
Max Series Fuse Rating
|
35A
|
|||||
|
STC: Irradiance 1000W/m2, Module Temperature 25°C Air Mass 1.5
|
||||||
