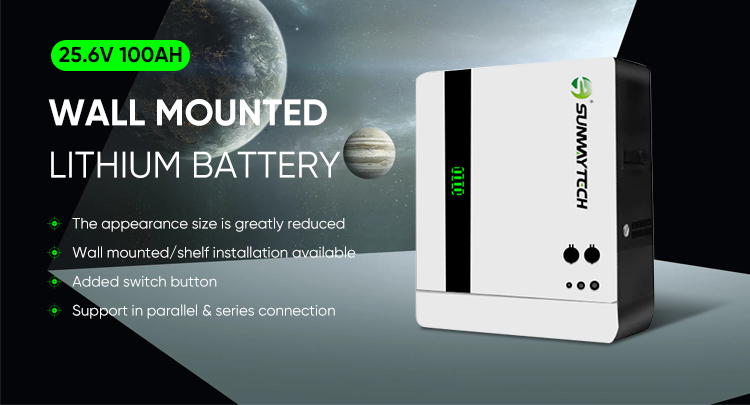

Sunway Wall Mounted Lithium Battery

Category Wall Mounted Lithium Battery

Datasheet

1. The appearance size is greatly reduced

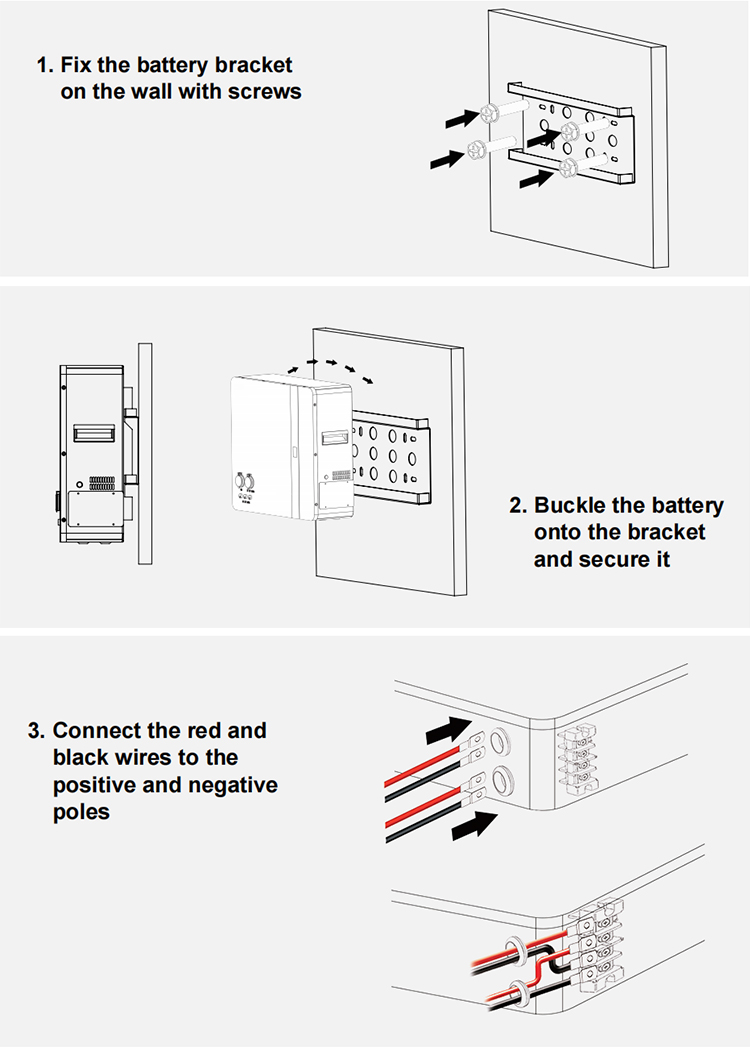

2. Wall mounted/shelf installation available

3. Added switch button

4. The three-year warranty cannot be achieved for the plastic housing, we replaced it with sheet metal shell

5.Support in parallel & series connection(Max 2s2p)

6.The heat dissipation capacity of the product is greatly improved, and the whole battery supports 1C charge and discharge

7. Low self-discharge

8. Built-in protection for over-charge, over-discharge &over-temperature

Model	SW25B100TW2
Nominal Voltage	25.6V
Nominal Capacity @ 1C	100Ah
Equalized Charge Voltage	29.2V
Discharge Cut-off Voltage	23V
Float Voltage	27V
Bulk Voltage	27.6-28.4V
Discharge Current Max Continuous	100A
Pulse Current 5 Sec	120A
Weight	24.5±0.3Kg
Dimensions LWH(mm)	442400143mm
Operation Temperature	Charging:0°C to 50°C
Operation Temperature	Discharging:-10°C to 50°C
Storage Temperature	-10~50°C
Relative Humidity(RH)	20-60(No Condensed Water)
Protection	IP33
Safety Certificate	UN38.3,IEC,MSDS
