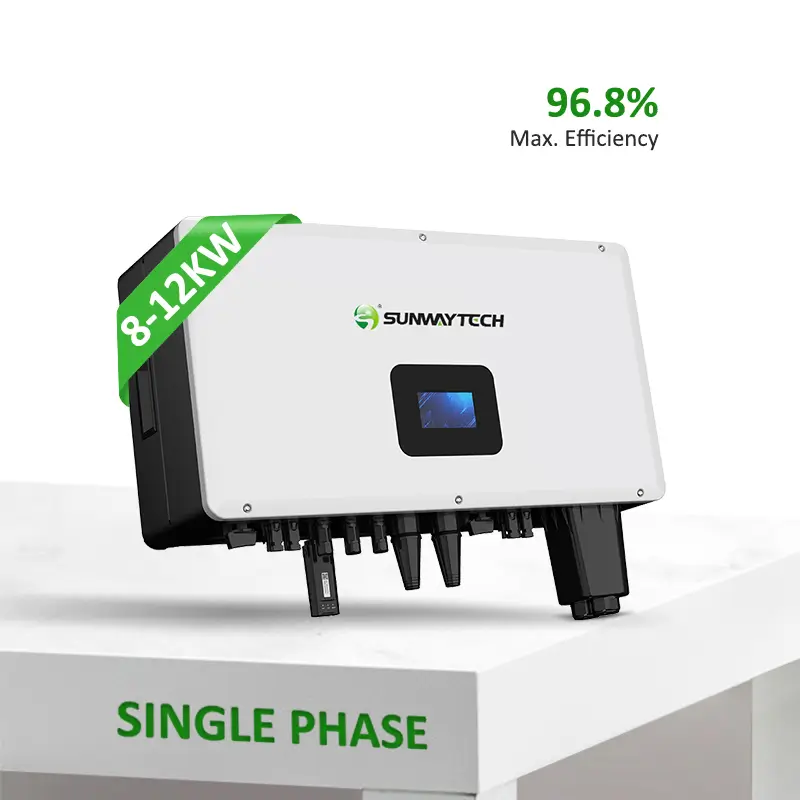

| Model Number: | SW8-12KLP1-EU |
| Output power： | 8-12KW |
| Output Voltage: | 360V |

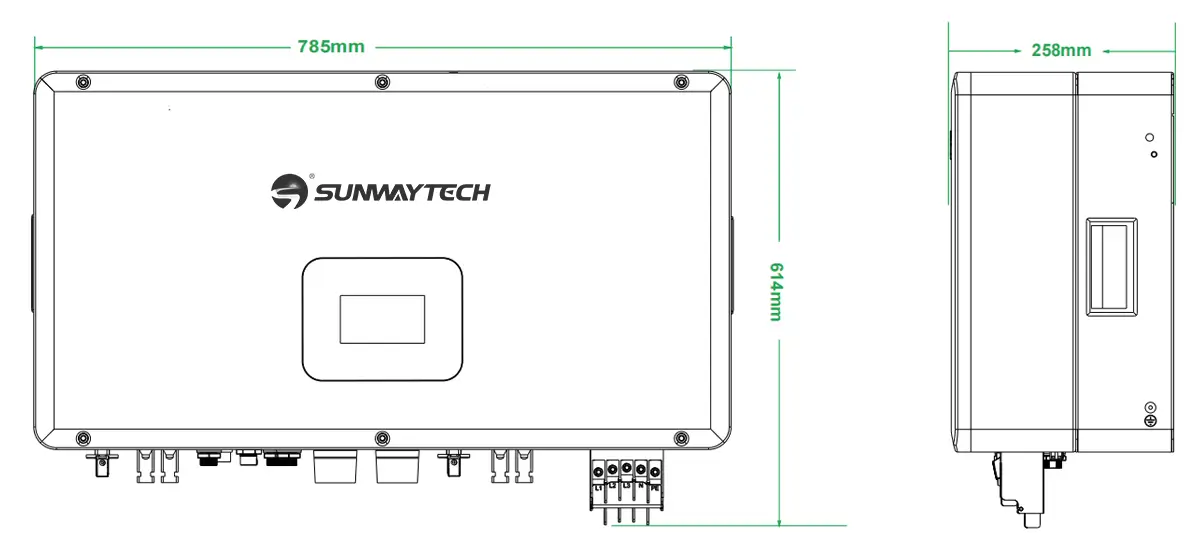

| Size(mm): |
785 * 614 * 258
|
| Weight(KG)： | 51 |
The low voltage series storage Inverters are designed to increase energy independence for homeowners. The power range is from 8kW to 12kW, compatible with low voltage (40-60V) batieries.

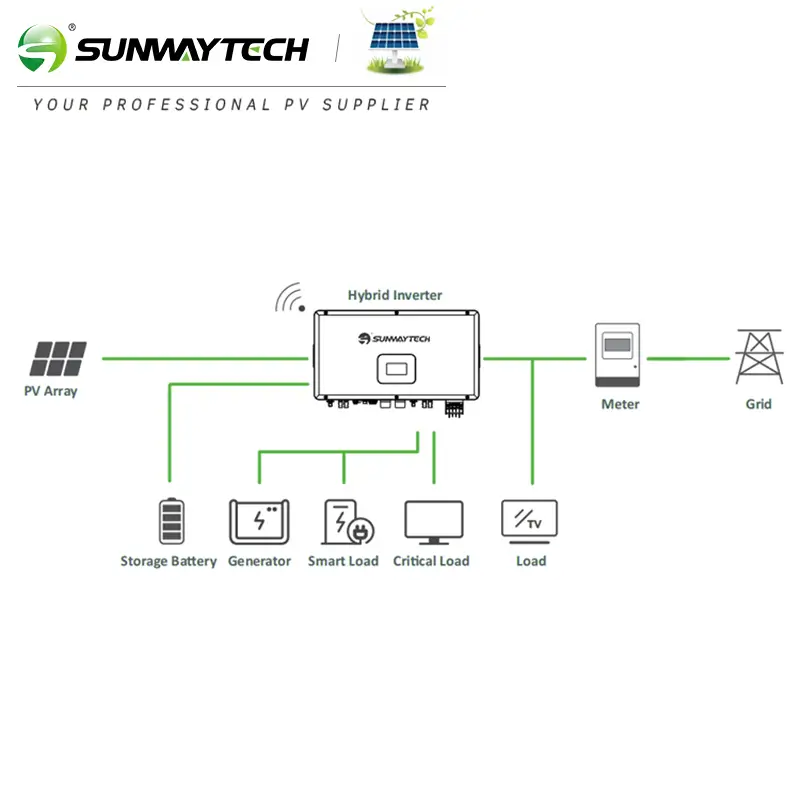

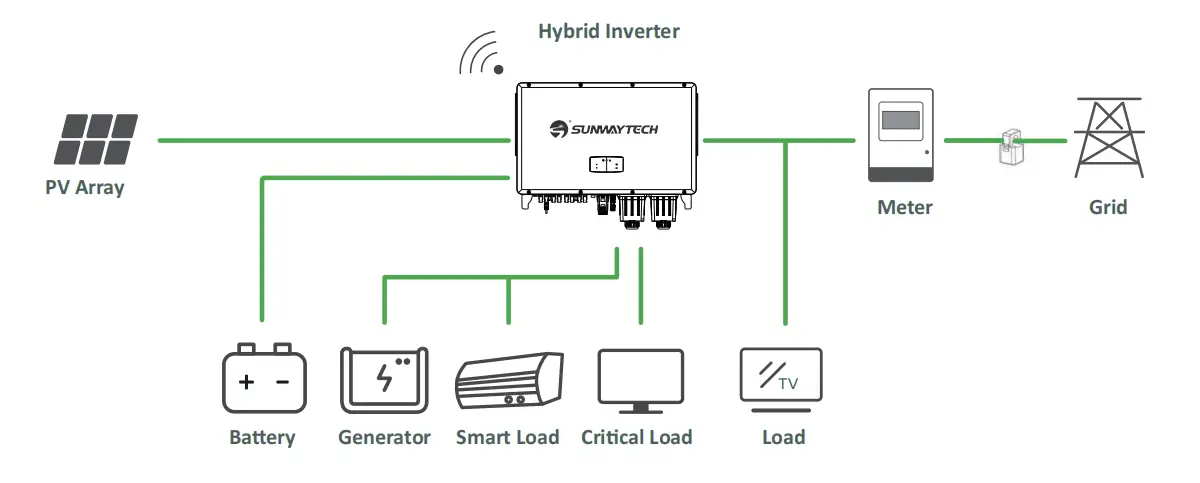

Energy management is based on time-of-use and demand charge rate structures, which significantly reduce the amount of energy purchased from the public grid. Thanks for the UPS function (switch time < 10ms), that enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading.
The low voltage series storage inverters are integrated with Arc Fault Circuit Interrupter (AFCI) and rapid shutdown.
|
Technical Data
|
SW8KLP1-EU
|
SW10KLP1-EU
|
SW12KLP1-EU
|
|
PV Input
|
|||
|
Max. Input Power (kW)
|
12
|
15
|
18
|
|
Max. PV Voltage (V)
|
550
|
||
|
MPPT Range (V)
|
80 - 500
|
||
|
Full MPPT Range (V)
|
15-500
|
190-500
|
230-500
|
|
Normal Voltage (V)
|
360
|
||
|
Startup Voltage (V)
|
100
|
||
|
Max. Input Current (A)
|
18.5*3
|
||
|
Max. Short Current (A)
|
26*3
|
||
|
No. of MPP Tracker / No. of PV String
|
3/1+1+2
|
||
|
Battery Port
|
|||
|
Max. Charge/Discharge Power (kW)
|
8.0
|
10
|
12
|
|
Max. Charge/Discharge Current (A)
|
200
|
240
|
240
|
|
Battery Normal Voltage (V)
|
51.2
|
||
|
Battery Voltage Range (V)
|
40-60
|
||
|
Battery Type
|
Li-ion / Lead-acid etc.
|
||
|
AC Grid & Diesel Gen (Optional)
|
|||
|
Max Continuous Current (A)
|
37
|
46
|
55
|
|
Max Continuous Power (kVA)
|
8.0
|
10
|
12
|
|
Nominal Grid Current (A)
|
36.4/34.8
|
45.5/43.5
|
54.6/52.2
|
|
Nominal Grid Voltage (V)
|
198 to 242 @ 220 / 207 to 253 @ 230
|
||
|
Nominal Grid Frequency (Hz)
|
50 / 60
|
||
|
Power Factor
|
1 default (adjustable from 0.8 leading to 0.8 lagging)
|
||
|
Current THD (%)
|
< 3
|
||
|
AC Load Output
|
|||
|
Max Continuous Current (A)
|
37
|
46
|
55
|
|
Max Continuous Power (kVA)
|
8
|
10
|
12
|
|
Max Peak Current (A) (10min)
|
55.5
|
69
|
82.5
|
|
Max Peak Power (kVA) (10min)
|
12
|
15
|
18
|
|
Nominal AC Voltage L-N (V)
|
220/230
|
||
|
Nominal AC Frequency (Hz)
|
50/60
|
||
|
Switching Time (ms)
|
Seamless
|
||
|
Voltage THD (%)
|
< 3
|
||
|
Efficiency
|
|||
|
European Efficiency (%)
|
98.1
|
||
|
Max. Efficiency (%)
|
96.8
|
||
