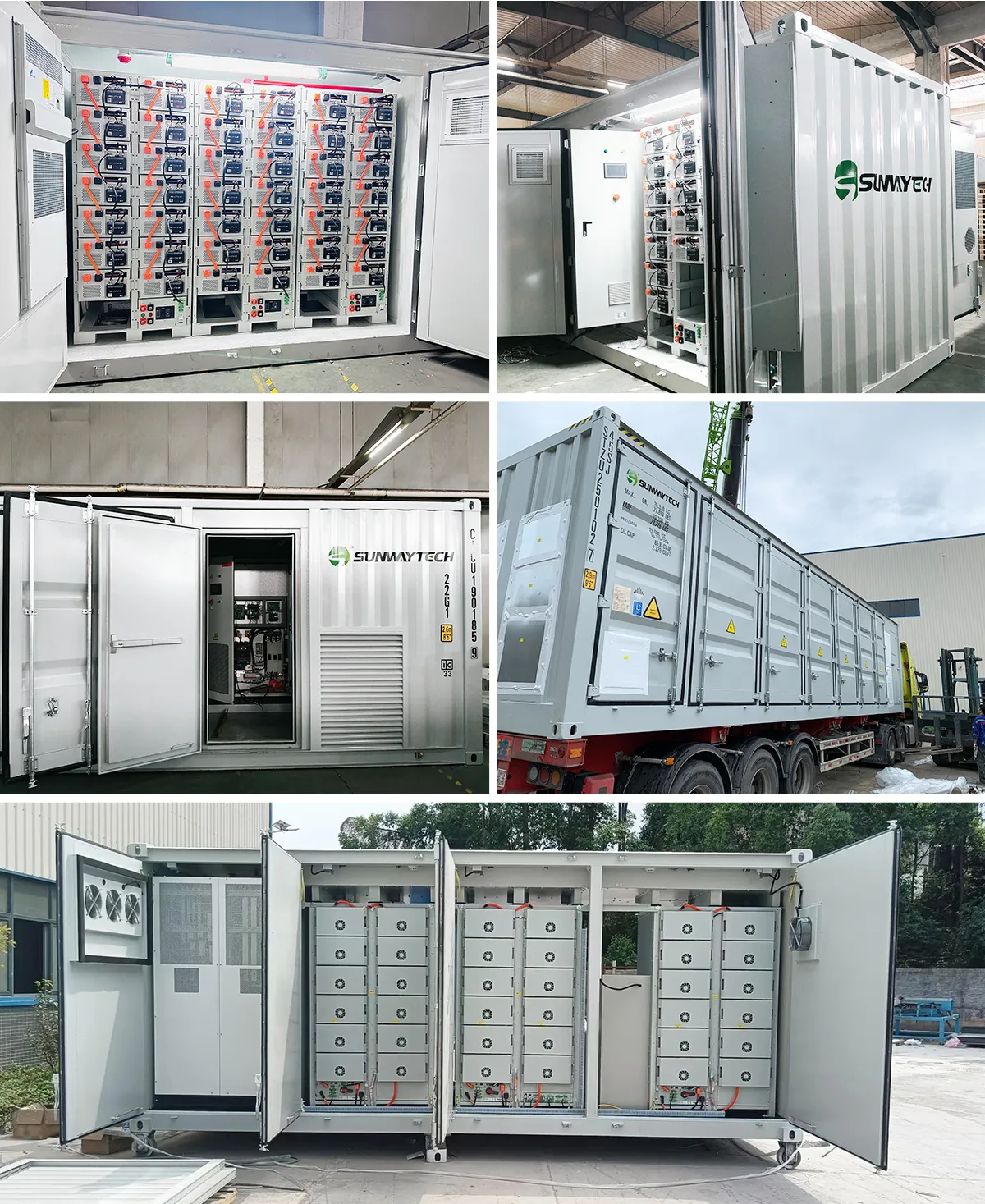

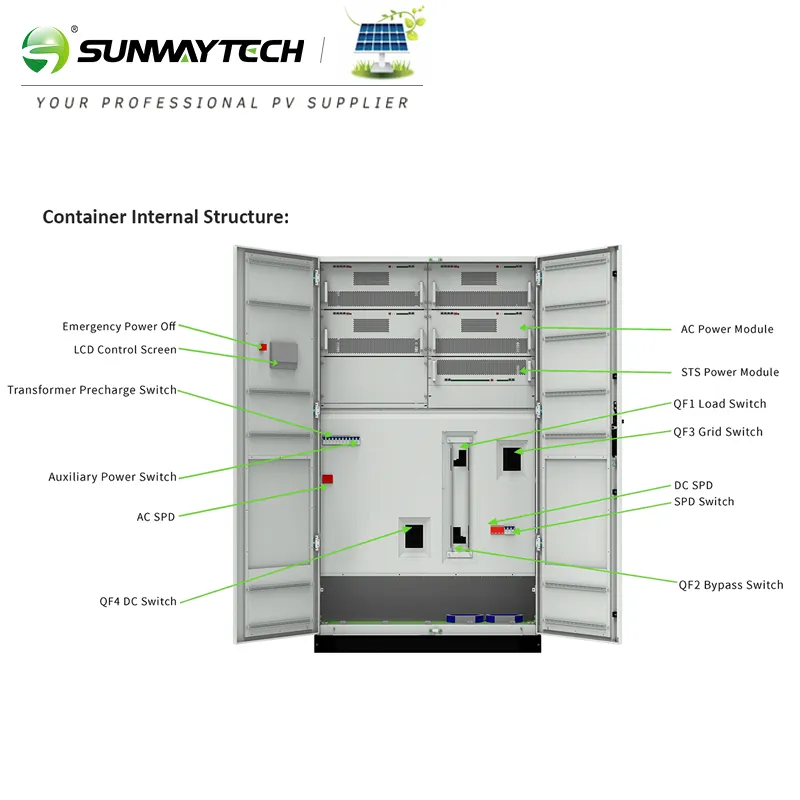

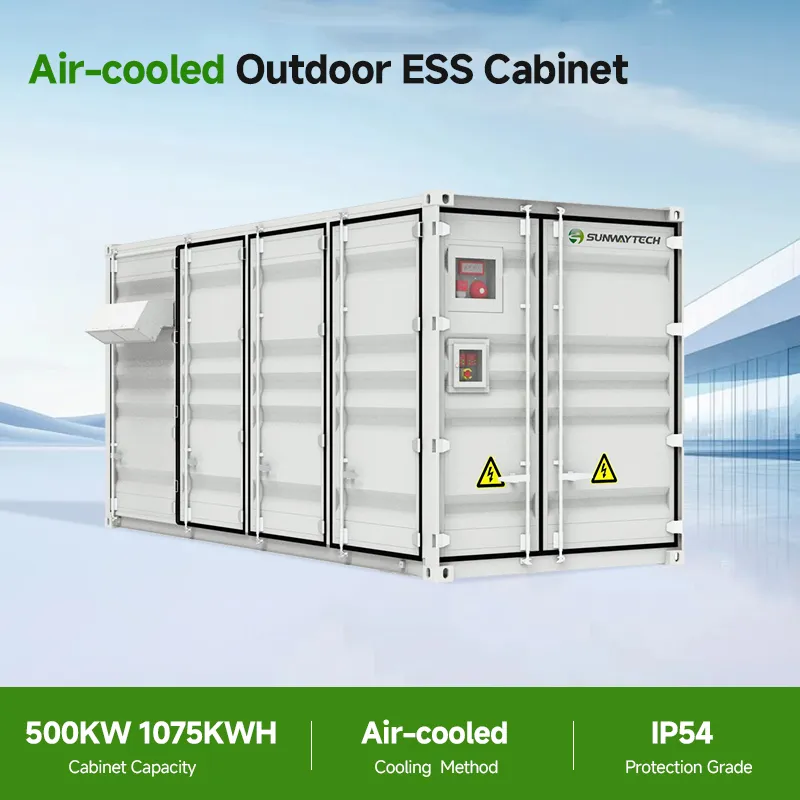

Outdoor energy storage cabinet integrates energy storage battery, modular Pcs, energy management monitoring system, power distribution system,environmental control system and fire control system. Adopting modularized pcs, it is easy to maintain and expand capacity, and the outdoor cabineiadopts front maintenance, which can reduce the footprint and maintenance access, and is characterized by safety and relabiity, rapid deployment.low cost,high energy efficiency and intelligent management.
| Model Number | SWMonet-50C |
| Rated Power Output | 500kW |
| Battery Rated Energy Storage Capacity | 1075kWh |
| System Voltage Range | 672V~864V |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Communication Protocols | CAN, Ethernet, RS485 |

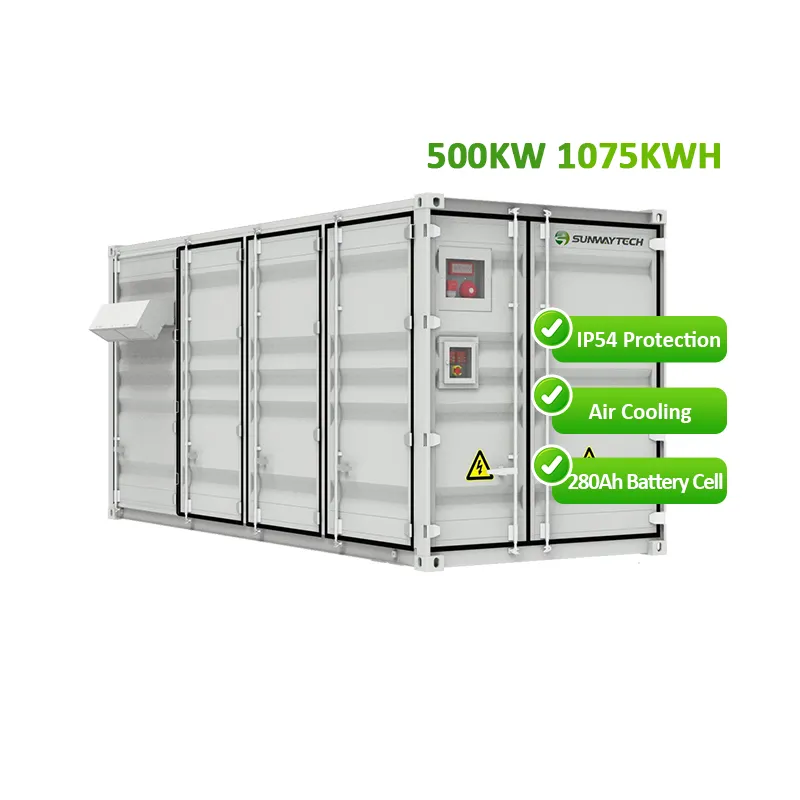

🔋 High-Capacity Outdoor Energy Storage for Scalable Applications Key Features：
High Energy Capacity:
1075kWh battery storage with 500 kW rated AC output, ideal for commercial and industrial loads.
Integrated Outdoor Cabinet:
Combines LFP batteries, PCS, EMS, BMS, power distribution, fire protection, and cooling systems in one all-weather unit.
Modular & Expandable:

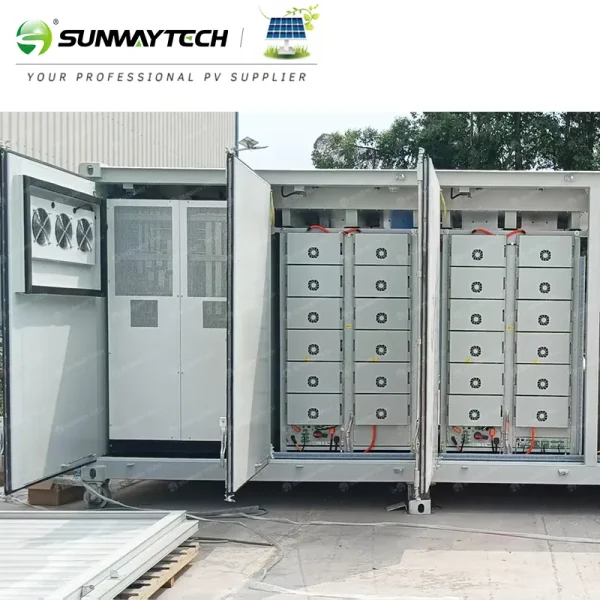

12 battery boxes in 5P20S12S configuration allow capacity scalability and simple maintenance.
Smart Control:
Equipped with CAN, Ethernet, and RS485 communication protocols for real-time energy management.
Rugged Design:
IP54 protection, transformer isolation, intelligent air cooling, and reliable operation from -25°C to 60°C.
| PERFORMANCE PARAMETER | |
| Model | SWMonet-50C |
| Battery Rated Energy Storage Capacity | 1075kWh |
| System Rated Voltage | 768V |
| System Voltage Range | 672V~864V |
| PV Voltage Range | 315~500V（MPPT) |
| PV Maximum Current | 160A |
| PV MPPT Path Number | 10 |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Battery Pack Series and Parallel Connection | 5P*20S*12S |
| Maximum Charge and Discharge Current | 800A |
| Rated AC Power | 500kW |
| Rated AC Current | 721A |
| Rated AC Voltage | 400V,3W+N+PE |
| Rated AC Frequency | 50Hz |
| Current Total Harmonic Distortion Rate THDI | <5%(rated power) |
| Power Factor | -1lead~+1 lag |
| Voltage Total Harmonic Distortion THDU | <3%(linear load) |
| Degree of Protection | IP54 |
| Protection Level | / |
| Isolation Method | Transformer isolation |
| Power Consumption During Shutdown | <0.1%Rated power(without transformer) |
| Show | Touch LCD touch screen |
| Relative Humidity | 0~95%(no condensation) |
| Noise | <78dB |
| Ambient Temperature | -25°C~60C(Derating above 45°C) |
| Cooling Method | Intelligent air Cooling |
| Altitude | 2000m(>2000m derating) |
| BMS Communication | CAN |
| EMS Communication | Ethernet/485 |

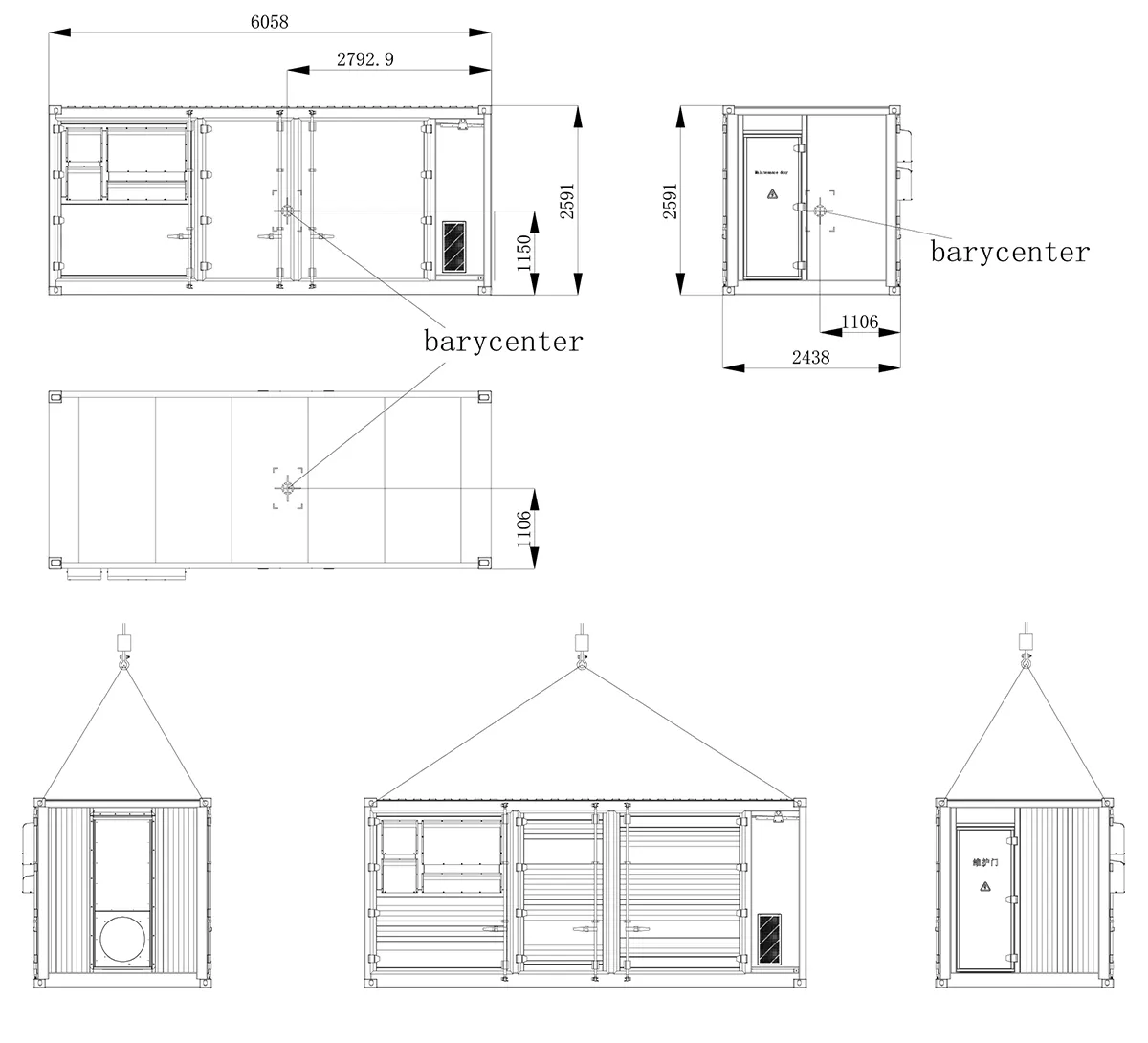

| Dimensions(W*D*H) | 6058mm*2438mm*2591mm |
| Weight(approx.) | 17000kg |
| Battery System | |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Nominal Voltage | 3.2V |
| Voltage Range | 2.8V~3.6V |
| Nominal Capacity | 280Ah |
| Maximum Operating Temperature Range(charging) | 0~50°C |
| Maximum Operating Temperature Range(discharging) | -10~50°C |
| Cell Series and Parallel Connection | 1P20S |
| Rated Energy | 17.92kWh |
| Nominal Voltage | 64V |
| Voltage Range | 56V~72V |
| Weight(approx.) | 139kg |
| Overall dimensions(W*D*H) | 460*882*263mm |
| Rated Energy Storage | 215kWh |
| System Rated Voltage | 768V |
| System Voltage Range | 672V~864V |
| Series and Parallel Mode | 1P*20S*12S |
| Number of Electrical Boxes Included | 12 |
| Weight(approx.) | 1680kg |
