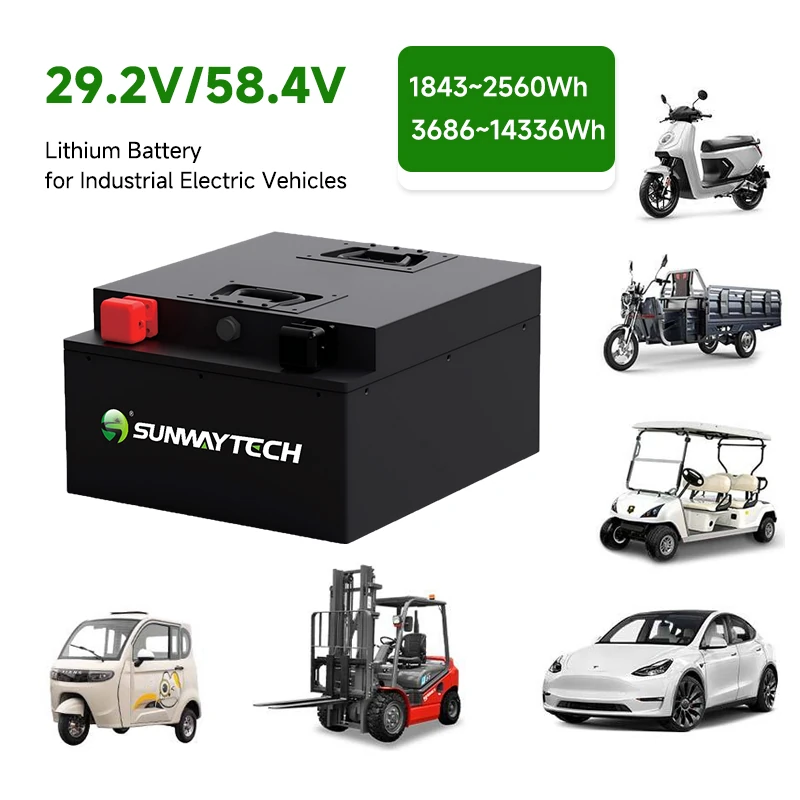

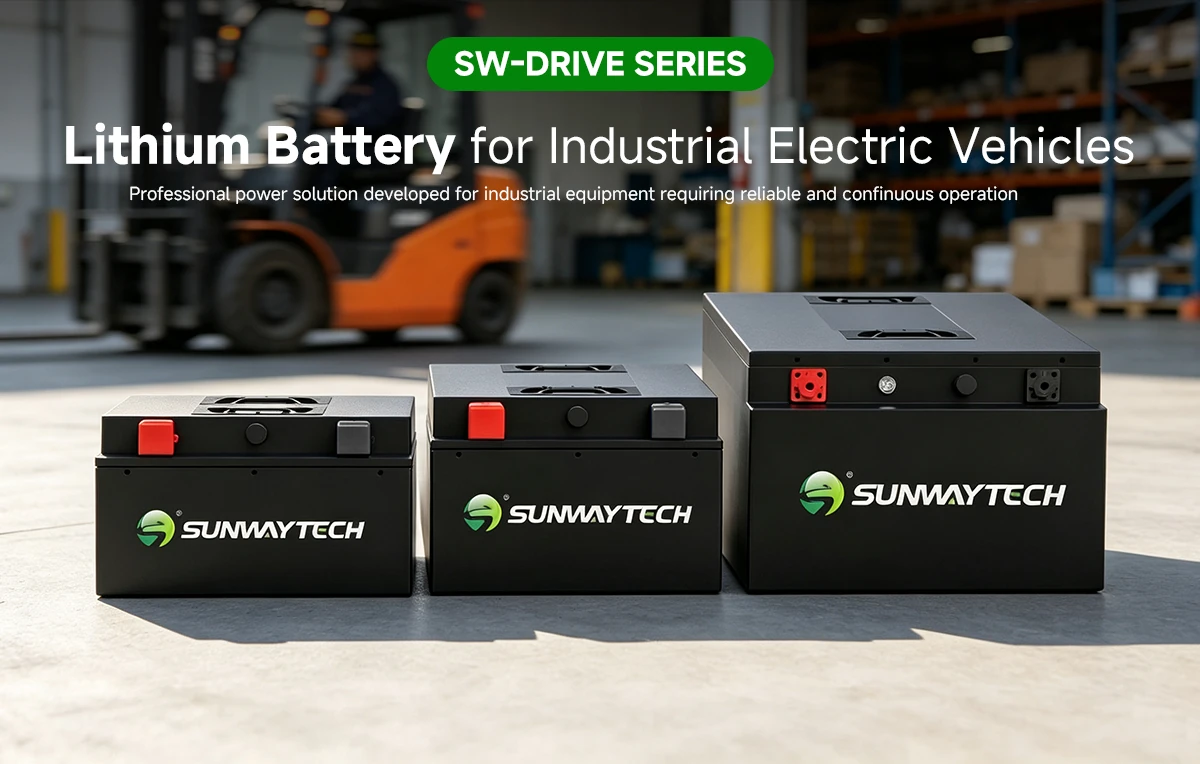

SUNWAY DRIVE SERIES Lithium Battery Solution for Industrial Electric Vehicles

Categories Power Lithium Battery, Solar Battery

SW-Drive series is a range of industrial-grade LiFePO4 batteries — 24 V and 48 V platforms from 1843.2 Wh to 14336 Wh, with room-temperature and heated versions built for forklifts, stacker trucks, AGVs, cleaning machines, sightseeing vehicles, and other electric equipment.

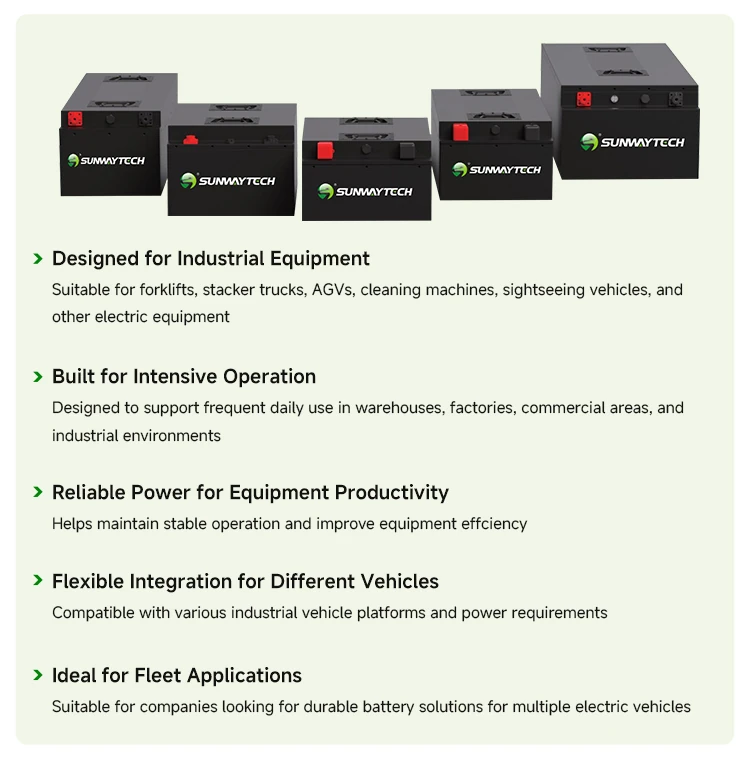

The SW-Drive series is a professional lithium battery solution developed for industrial equipment requiring reliable and continuous operation — including forklifts, stacker trucks, AGVs, cleaning machines, sightseeing vehicles, and other electric equipment. Available in 24 V and 48 V platforms with nominal energy from 1843.2 Wh to 14336 Wh, the series provides flexible integration options for different industrial vehicle platforms and power requirements.

Built for intensive daily use in warehouses, factories, commercial areas, and industrial environments, the SW-Drive series delivers stable power output with maximum discharge currents up to 150 A. Models are available in room-temperature or heated lithium iron phosphate versions, with charging temperatures down to -10°C and discharging temperatures down to -20°C for dependable operation across shifts. Designed to maintain stable operation and improve equipment efficiency, the SW-Drive series is an ideal, durable battery solution for electric vehicle fleets.

Product Model	SW-Drive-2480	SW-Drive-24100	SW-Drive-24150	SW-Drive-24200	SW-Drive-4860
Battery Type	Room temperature iron lithium	Room temperature/heated lithium iron phosphate	Room temperature/heated lithium iron phosphate	Heated lithium iron	Room temperature iron lithiun
Nominal Energy	1843.2Wh	2560Wh	3686.4Wh	4556.8Wh	2560Wh
Compound Mode	8S1P	8S2P	8S2P	8S1P	16S1P
Electrical Parameters
Standard Charging Voltage	29.2V	29.2V	29.2V	29.2V	58.4V
Discharge Cutoff Voltage	20V	20V	20V	20V	40V
Max Charging Current	35A	50A	70A	70A	50A
Max Discharge Current	70A	100A	140A	150A	80A
Temperature Range
Charge Temp.	0~60℃	0~60℃/-10~60℃	0~60°C/-10~60℃	-10~60℃	0~60℃
Discharge Temp.	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
Mechanical Parameters
Product Size(mm)	315315175mm	360315195mm	360315195mm	443260206.5mm	500250195mm
Product Weight	19.6±1KG	28±1KG	30.5±1KG	37.5±1KG	29.5±1KG

Product Model	SW-Drive-4880A	SW-Drive-48100	SW-Drive-48150	SW-Drive-48200	SW-Drive-48300
Battery Type	Heated lithium iron	Heated lithium iron	Room temperature iron lithium	Heated lithium iron	Heated lithium iron
Nominal Energy	3686.4Wh	5120Wh	7720.96Wh	10035.2Wh	14336Wh
Compound Mode	16S1P	16S1P	16S1P	16S1P	16S1P
Electrical Parameters
Standard Charging Voltage	58.4V	58.4V	58.4V	58.4V	58.4V
Discharge Cutoff Voltage	40V	40V	40V	40V	40V
Max Charging Current	50A	50A	70A	100A	100A
Max Discharge Current	80A	100A	150A	150A	150A
Temperature Range
Charging Temp.	-10~60℃	-10~60℃	-10~60℃	-10~60℃	-10~60℃
Discharge Temp.	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
Mechanical Parameters
Product Size(mm)	505.6237.6195.4mm	600300200mm	750300250mm	750350250mm	750360250mm
Product Weight	31.6±1KG	39±1KG	55.5±1KG	68±1KG	105±1KG
