SUNWAY’s 6KW 5KWH All-in-One Residential Energy Storage System integrates a 6kW hybrid inverter, a 5.12kWh lithium iron phosphate (LiFePO₄) battery, and intelligent monitoring into a single compact unit. Designed for both on-grid and backup scenarios, this system ensures seamless energy management for households.
| Model Number: | SW6KW5KWH-IO-SL-A |
Nominal Capacity | 100ah |
Cycle Life | 6000 |
| Size(mm): | 630*226*765mm |
| Weight(KG)： | 63.8 |
6KW 5KWH All-in-One Residential Energy Storage System
Model: SW6KW5KWH-IO-SL-A
Explore more residential energy storage systems
PV String Input Data | SW6KW5KWH-IO-SL-A |
Max. PV Input Power | 5400W |
Max.PV Input Voltage | 600V |
Rated PV Input Voltage | 360V |
Start-up Voltage | 120V |
MPPT Voltage Range | 100-550V |
Full Load MPPT Voltage Range | 280-500V |
Max. PV Input Current | 16A/16A |
Max. DC Short Circuit Current | 20A/20A |
No.of MPPT Trackers | 2 |
Battery Input Data | |
Battery Type | Li-ion |
Battery Voltage Range | 40~60V |
Max. Discharging/Charging Current | 80A |
AC input/output data(On-grid) | |
Rated AC Output Power | 6000W |
Max. AC Output Apparent Power | 6600VA |
Grid Type | Single Phase |
Rated AC Voltage | 220V/230V/240V,L/N/PE |
Rated AC Frequency | 50/60Hz |
Rated AC Output Current | 16.4/15.7/15A |
Max. AC Output Current | 18/17.2/16.5A |
Power Factor | 0.8 leading to 0.8 lagging |
AC Output Data(Back-up) | |
Rated Output Power | 6000W |
Max. Output Apparent Power | 6600VA |
Peak Output Apparent Power | 7200W@60s,6600W@10s |
Rated Output Voltage | 230V,L/N/PE |
Rated Output Frequency | 50/60Hz |
Switch Time | 10ms |
Working Efficiency | |
Max. Efficiency | 97.23% |
Euro Efficiency | 96.59% |
MPPT Efficiency | >99% |
General Data | |
User Interface | LED & APP |
Communication With BMS | CAN |
Communication With Portal | WiFi+LAN/4G(Optional) |

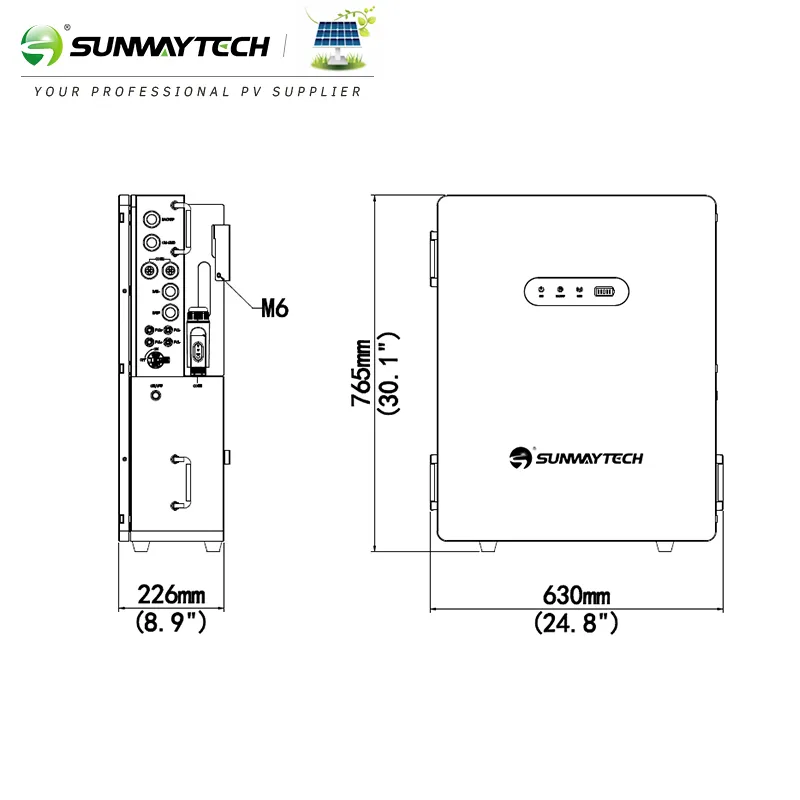

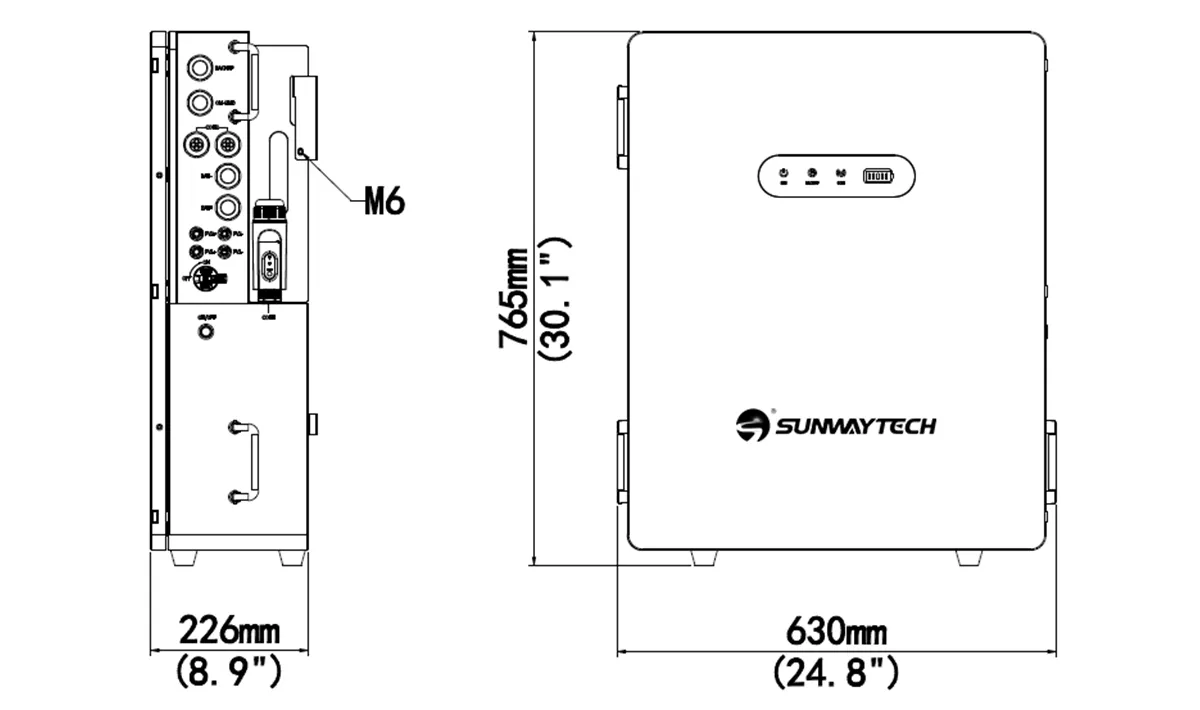

Dimension(W×D×Hmm) | 630*226*765mm |
Weight | 63.8kg |
Ingress Protection | IP66 |
Warranty | 10 Years |
Operating Temperature Range | -25~60℃ |
Storage Temperature Range | -25~85℃ |
Operation Relative Humidity | ≤95%,RH |
Max. Operation Altitude | 3000m(>2000m power derating) |
Certifications and Standards | NTS TypeA, UNE 217002,UNE_217001, EN 50549-1&-10,G99, G98,G100, CEI 0-21,IEC62109-1&2,IEC 62619 , IEC 62477-1 EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4, EN301 489-1/-17 |
