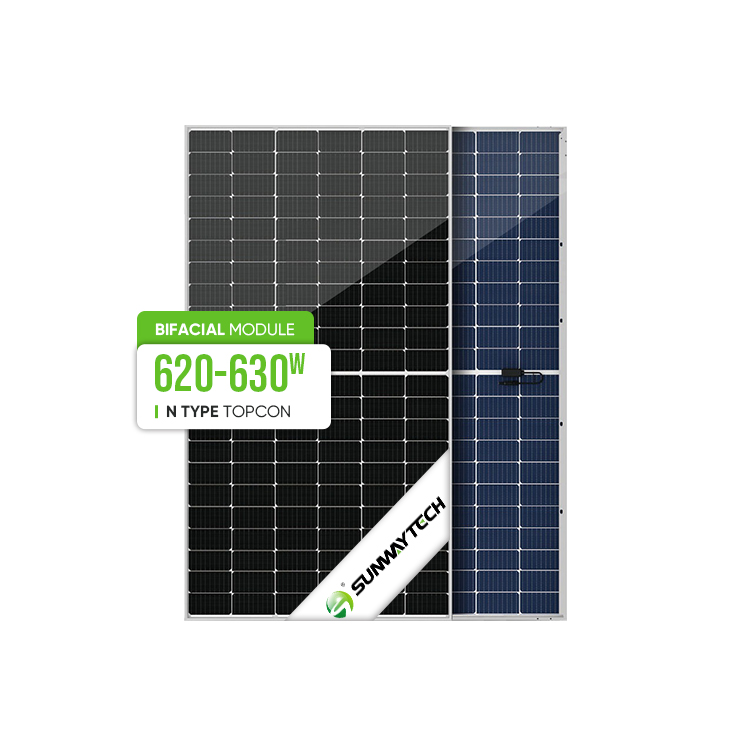

The SW630N-132 is a high-performance N-Type TOPCon bifacial solar module designed to deliver exceptional energy yields for commercial and utility-scale solar installations. With a robust power output ranging from 620W to 630W and an industry-leading maximum conversion efficiency of 23.32%, this 132-cell panel maximizes generation even in space-constrained areas. Engineered for extreme durability, it features an anti-reflective and anti-soiling glass surface that minimizes power loss from dirt while providing outstanding performance in low-light environments. Backed by a comprehensive 12-year product warranty and a 30-year linear performance guarantee, this high-efficiency module secures your clean energy investment for decades to come.
Industry-Leading Efficiency:
Utilizes advanced N-Type TOPCon bifacial cell technology to achieve an impressive maximum conversion efficiency of 23.32% alongside a positive power tolerance of 0~+5W.
Extreme Durability & Load Resistance:
Certified to withstand severe weather conditions, easily accommodating heavy front snow loads up to 5400Pa and rear wind loads up to 2400Pa.
Enhanced Reliability:

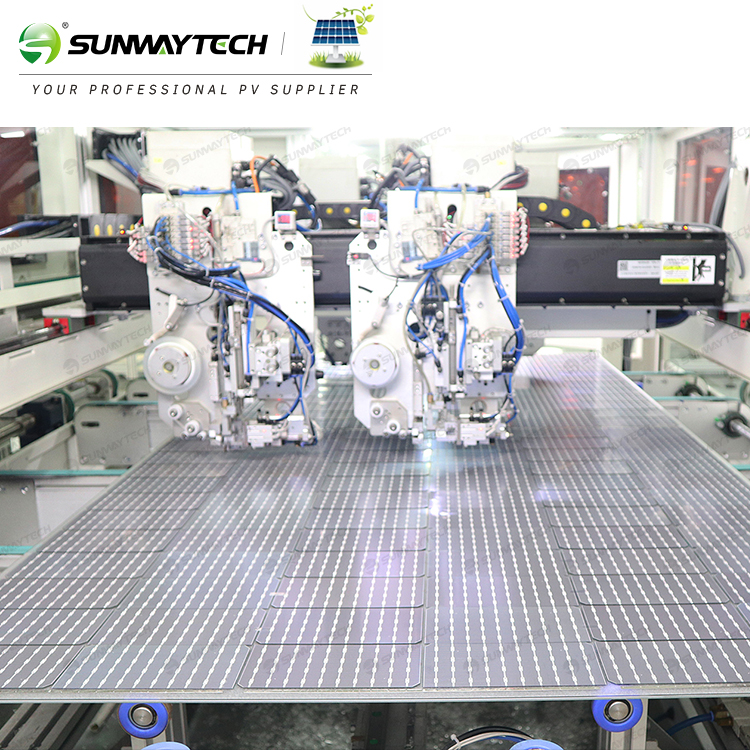

Features 100% EL double-inspection to ensure a completely defect-free product. Its inherent Potential Induced Degradation (PID) resistance guarantees long-term operational stability.
Optimized Surface Technology:
Equipped with an anti-reflective and anti-soiling surface that actively reduces power loss caused by dust and dirt accumulation.
Superior Low-Light Performance:
Engineered to maintain outstanding energy generation even during suboptimal weather, early mornings, or low-irradiance conditions.
Long-Term Investment Protection:
Comes with a rigorous 12-year warranty for product materials and workmanship, paired with a 30-year linear warranty ensuring at least 80% power output retention.
| Module | SW620N-132~SW630N-132 | ||
| Encapsulation | Glass/Eva/Cell/Eva/Glass | ||
| Maximum Power Pmax (W) | 620 | 625 | 630 |
| Maximum Power Voltage (Vmp/V) | 41.4 | 41.7 | 41.95 |
| Maximum Power Current (Imp/A) | 14.98 | 14.99 | 15.02 |
| Open Circuit Voltage(Voc/V) | 49.6 | 49.9 | 50.2 |
| Short Circuit Current (Isc/A) | 15.91 | 15.92 | 15.94 |
| Module Efficiency(%) | 22.95 | 23.14 | 23.32 |
| Power Tolerance (W) | 0~+5W | ||
| Temperature Coefficient of Isc (αIsc) | +0.046%/℃ | ||
| Temperature Coefficient of Voc (βVoc) | -0.25%/℃ | ||
| Temperature Coefficient of Pmax(γPmp) | -0.30%/℃ | ||
| STC | Irradiance 1000W/m², Cell Temperature 25℃, Air Mass 1.5 | ||

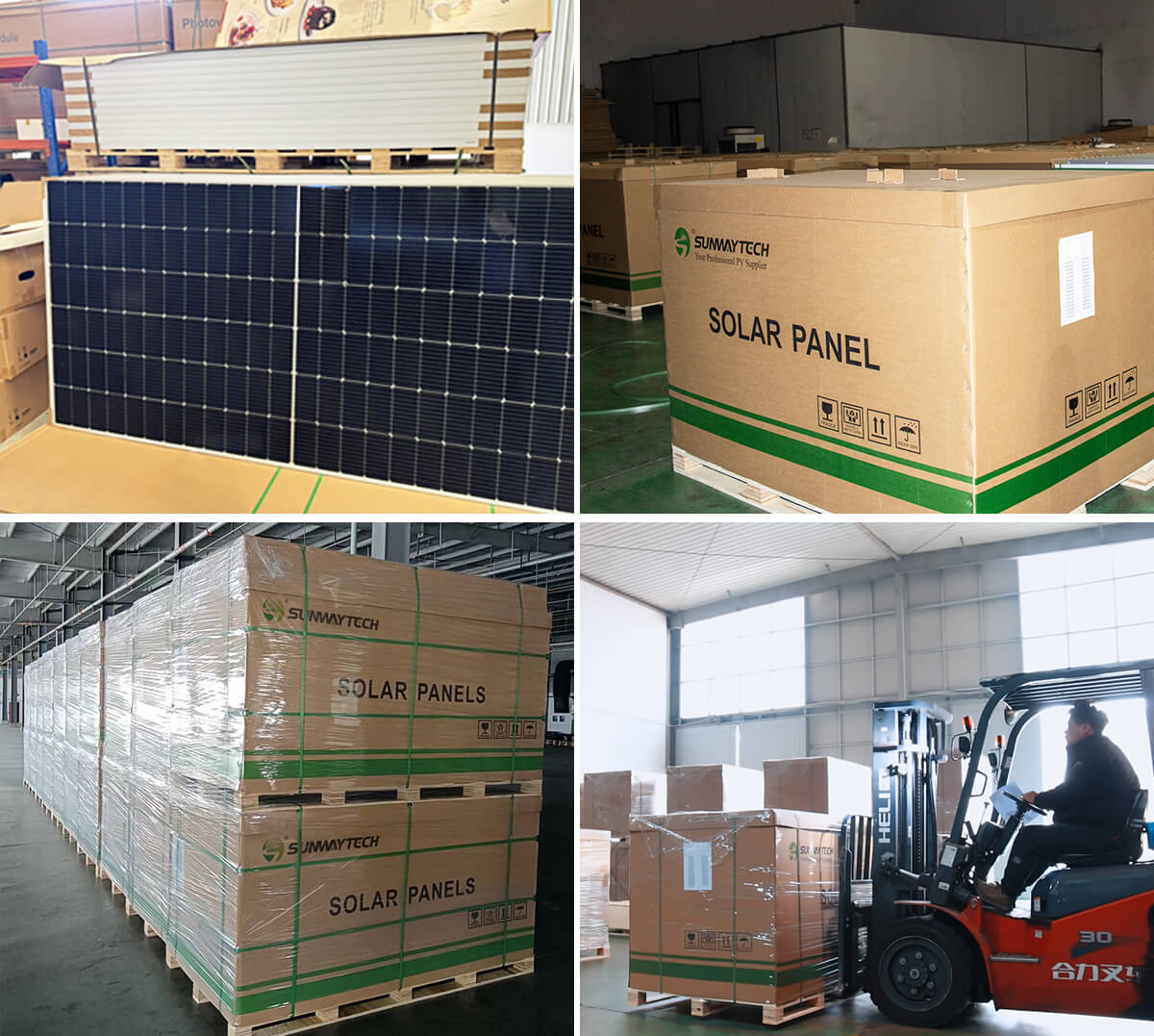

| Modules Per Pallet | 36Pcs |
| Modules Per 40HQ | 720Pcs |
