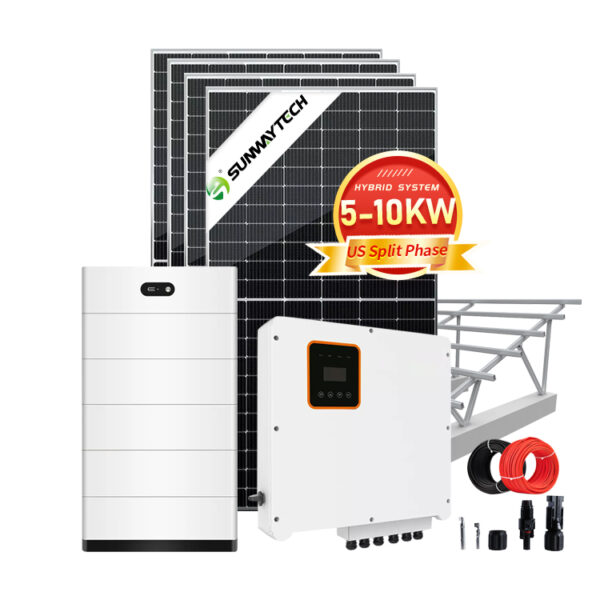

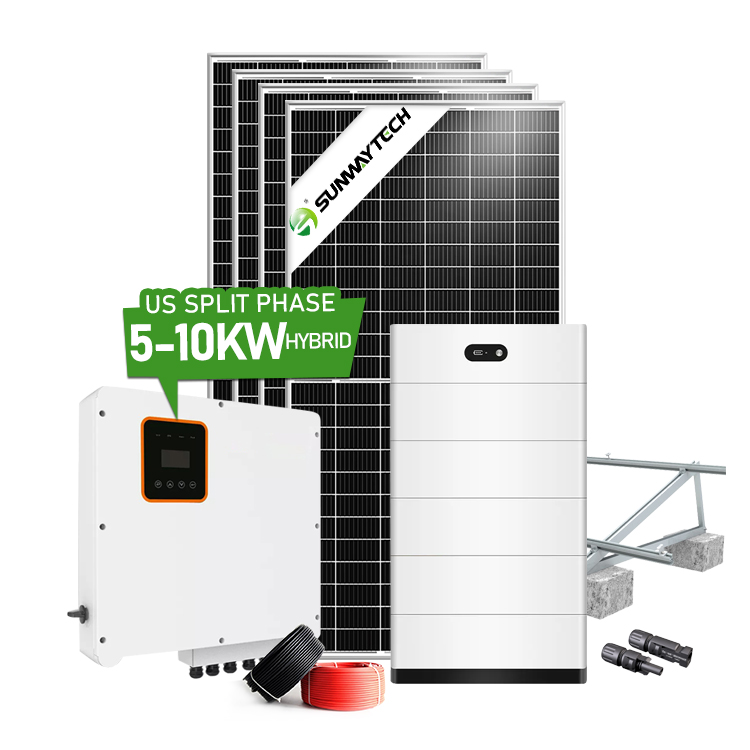

Sunway 5Kw 8Kw 10Kw Hybrid Solar System

Sunway 5Kw 8Kw 10Kw Hybrid Solar System

hybrid solar system :
hot sale 5kw 8kw 10kw hybrid solar power system 10 kw with CE TUV battery energy storage system

Model Number:SWM-5KW-US-HY
System Type:hybrid solar system
Solar Power:5KW/8KW/10KW
Output Voltage:380V-400V
Certificate:UL/TUV/CE/ISO

What is hybrid solar system?

A hybrid solar panel system is a combination of a grid-connected and storage-ready apparatus that provides consistent energy supply during day and night. The hybrid system stores energy for later use in one or multiple solar batteries but then can also pull from the grid in high energy use periods like hot summer months. Any solar-plus-storage system that is not meant to be entirely off-grid will be a hybrid system.





Item
Model
Description
Quantity
1
SW550M-144
Half Cell
8-20pcs
2
Hybrid Solar Inverter
Power: 5KW/8KW/10KW
1set
Output Voltage:Split Phase
3
Lithium Battery
48V 100Ah/200Ah
2pcs or more
4
Mounting System
Whole set for roof and ground
1 set
5
PV Cables
4mm2 PV cables
200m
6
PV connector
Rated Voltage:1000V
10 pairs













HALF CELL MONO/POLY SOLAR PANEL


1. Positive power tolerance:0~+5w
2. 100%EL Double-inspection ensures modules are defects free
3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available
4. 158.75mm, 166mm, 182mm, 210mm Size
5. Full Cell, Half Cut, 3-Cut
6. Perc/Hjt/All Black/Frameless Tech
7. Sunway Solar Brand or Tier 1 Optional
8. Waterproof Label on Back of Panel













HYBRID SOLAR INVERTER


1. Wide input voltage range
2. Supports automatic battery switching
3. Compatible with lead-acid /lithium ion batteries
4. Built-in MPPT solar charge controller
5. Compatible anticountercurrent function
6. Touch screen LCD
7. Natural cooling, low noise
8. Battery reverse connect protection

















SOLAR BATTERY BANK


1. Deep cycle long lifespan
2. High discharge performance
3. Easy installation and Maintenance-free
4. Agm/Gel/Lithium Ion Battery Type
5. 2V/12V/48V/High Voltage Battery
6. More than 6000 times, up to 90% DOD
7. Wide suitability of ambient temperature range
8. Maintenance is simple, reducing deep discharge.











SOLAR MOUNTING SYSTEM


1. Ground Solar Mounting System
2. Residential Roof(Pitched Roof)
3. Car parking solar mounting system
4. Vertical wall solar mounting system
5. Commercial Roof(Flat roof&workshop roof)
6. All aluminum structure mounting system
7. Ballasted mount, Do not harm structure.
8. Most Parts are Preinstalled, Save 50% Labour Force











SOLAR SYSTEM ACCESSORIES


1. Pin Diameter:4mm
2. Degree of Proteetion:IP67
3. Max System Voltage:1000V
4. Rated Current:30A(4m3/6m3)
5. Excellent resistance to U.V,oil, greases, oxygen and ozone
6. Excellent flexibility and stripping
7. High Voltage and Current carring capacity
8. IP 65 Degree Lightning Protection











PV TOOLS


1. Disassembly Tool
2. MC3 MC4 Crimper
3. Wire Cable Cutter & Stripper
4. MC4 Connectors Assembly
5. Solar Crimping Tool is High-precision ratchet mechanism for complete crimps; 1.2 metric tons pressure at crimping face, with
minimal hand effort; Interchangeable high-precision crimping die set; Top German quality.
